Summary
- Model Number:QY70KC
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Max. Lifting Height:64.5m
- Max. Lifting Load:70ton
- Rated Lifting Moment:2812kN.m
- Rated Loading Capacity:70ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:44800.000kg
- Condition:New
- Moving Type:Wheel
- Engine rated power:276/1900kw/(r/min)
- Engine rated torque:1500/1200-1500N.m/(r/min)
- Dimensions:14700*2790*3820mm
- Max. travel speed:90km/h
- Max. grade ability:41%
- Min. turning diameter:24m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

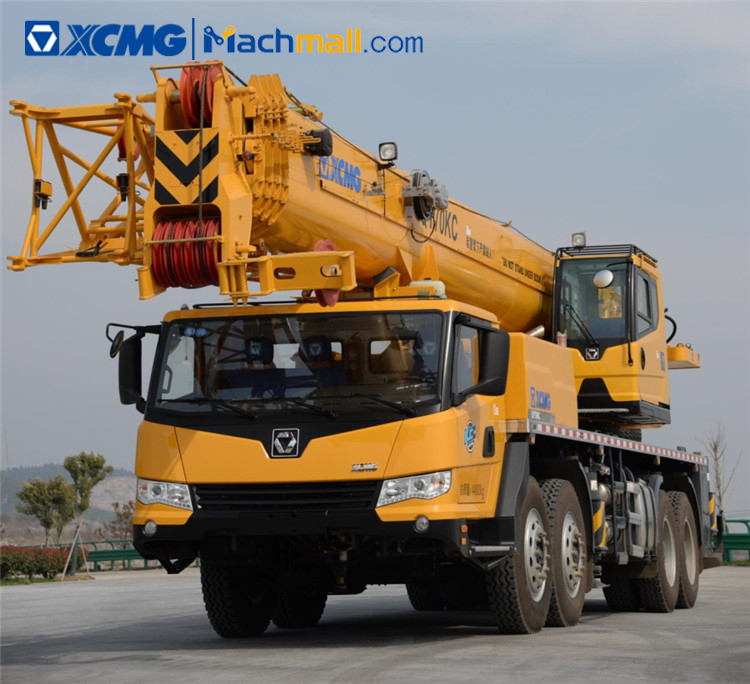

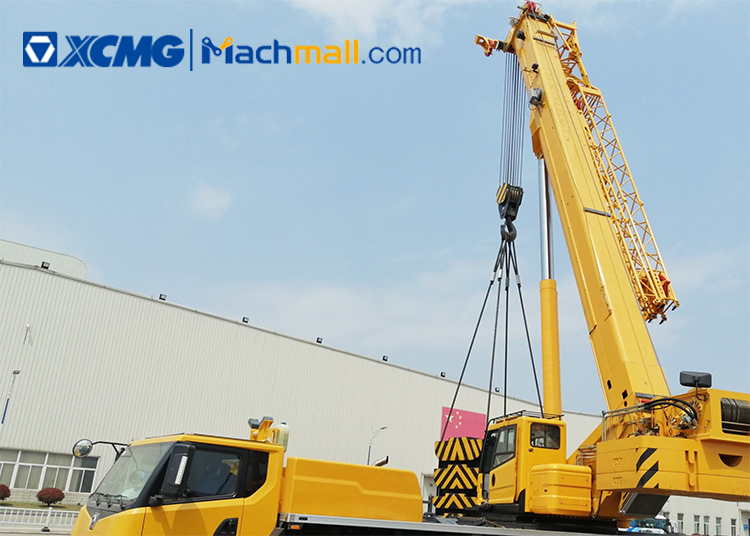

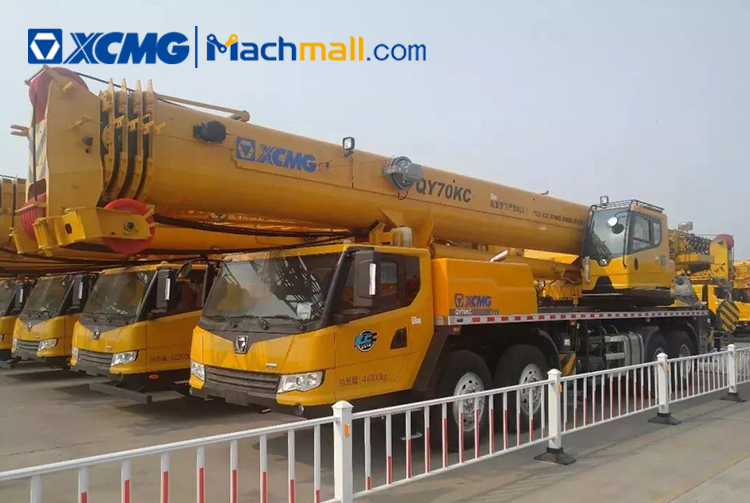

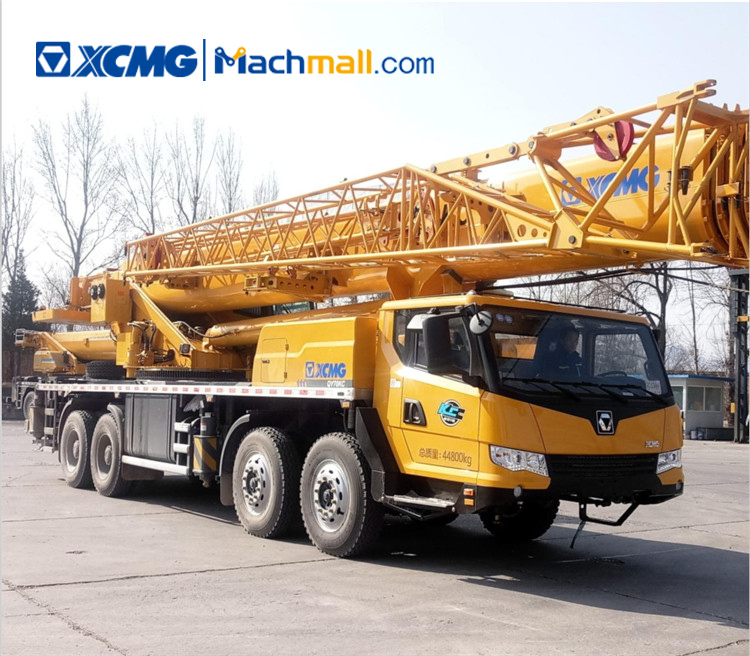

70 ton XCMG truck lift crane QY70KC.
XCMG truck lift crane QY70KC is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
Performance Characteristics:

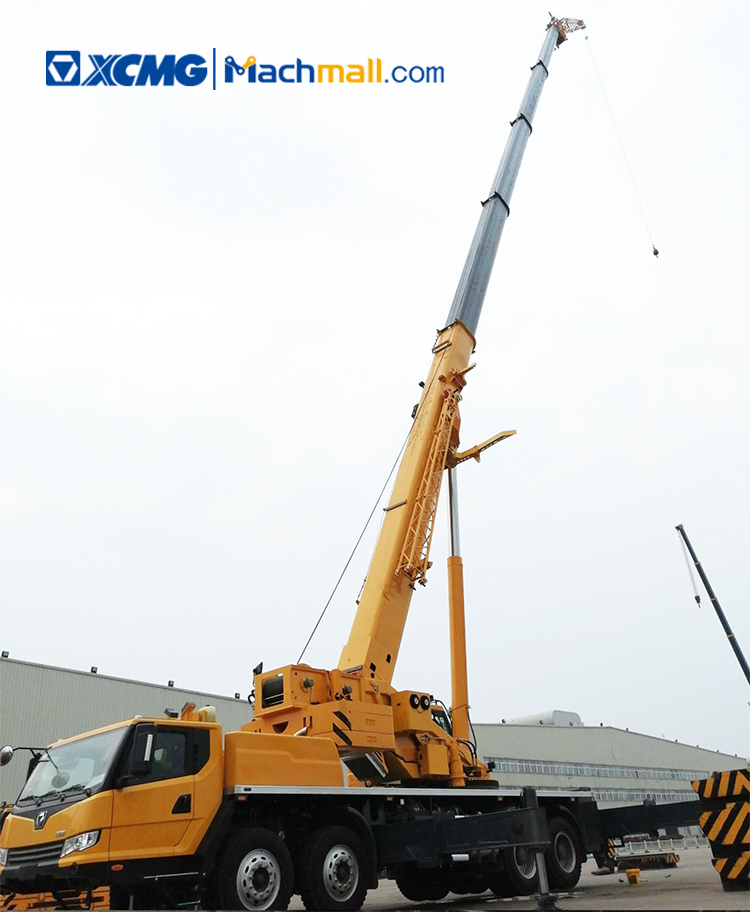

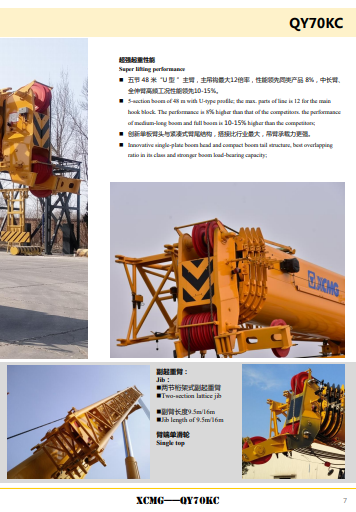

1. 48 m super boom, stronger performance in high-frequent use working conditions
XCMG truck lift crane QY70KC's five-section boom of 48 m has the lifting performance of 8% over the cranes in its class.
2. Optimal power transmission system
XCMG truck lift crane QY70KC off-road specialized four-axle G-class chassis with low speed large torque power transmission system equipped, features higher climbing capacity at lower speeds and job site transfer capacity at higher speeds.
3. Exclusive control technology of simultaneous movements, more efficient
G1 generation double-variable pump along with after-valve compensation load-sensitive system contributes to fine control of lifting operation, smooth operation and industry-leading working efficiency, leading to economical, efficient and precise control.
4. High grade electrical protection, more reliable operation
Improved electrical system reliability: waterproof and dustproof inserts, high temperature-resistant corrugated pipes, special wire harness closure sleeves and rubber sleeves are used, excellent dust protection, protection level up to IP67.
