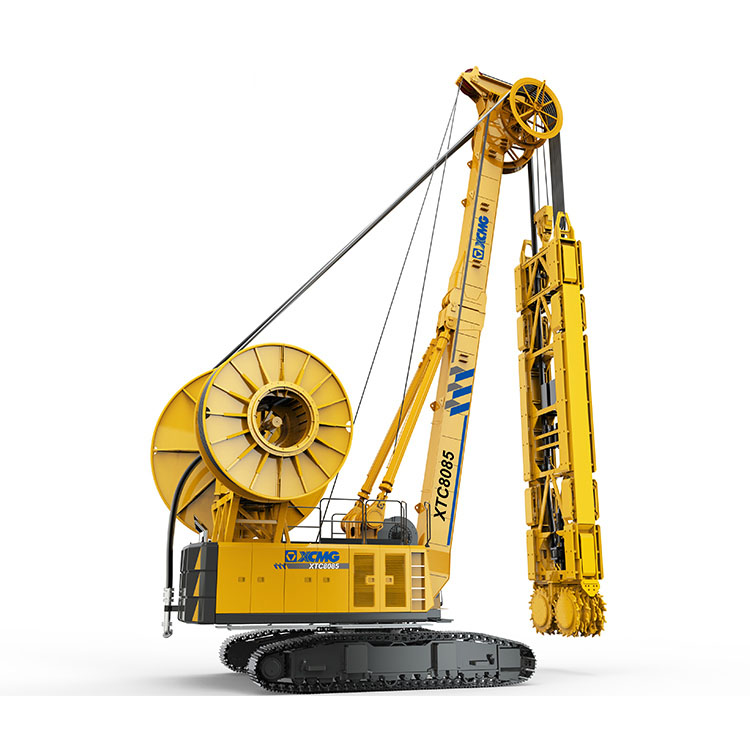

XCMG official trenching machine Trench Cutter Piling Machine XTC80-85 for sale
![](/app/topc/statics/images/close.png)
![XCMG official trenching machine Trench Cutter Piling Machine XTC80-85 for sale](http://www.machmall.com/images/store/357636/item/5001f25a7dc9d01d1ab962ba7f004a13.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Model Number:XTC80-85
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Groove depth(mm): 85m
- Max. lifting power:567/2100kW/r/min
Specifications
- weight:1000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official trenching machine Trench Cutter Piling Machine XTC80-85.
XTC80/85 trench cutter is designed for low construction space. It can be used in underground deep foundation engineering seepage wall, retaining wall, load-bearing wall construction for such as subway station, foundation pits buildings, high-rise building basement, underground commercial, reservoir dam, port, mine, environmental engineering, etc.
1.Double winches with single row structure are set in the front and back so as to improve the service life of wire rope effectively.
2.Equipped with our own special chassis, which has a large spread width and long chain tread. This chassis can improve the stepping ability and the constructing stability of the machine.
3.Advanced technology of setting milling teeth and the putting tooth blind area milling mechanism with proprietary technology ensure the efficiency of construction.
4.Gas lift reverse circulation discharge mode reduces the fuel consumption and construction cost effectively.
5.Self-developed milling wheel drive structure has some advantages, such as: getting spare parts more easily, low maintenance cost and saving time.
6.With the function of one machine has two used and dismounting conveniently, it can be in common use with the main engine of XG600D hydraulic diaphragm wall grab.
Type |
Units |
Data |
|
Trench width |
mm |
800-1500 |
|
Max. wall depth |
m |
85 |
|
Trench length |
mm |
2800 |
|
Trench accuracy |
% |
2 |
|
Max. torque |
kN.m |
2x80 |
|
Rotary speed |
r/min |
0~25 |
|
Max. hoisting force |
kN |
600 |
|
Max. hoisting speed |
m/min |
50 |
|
Rope diameter |
mm |
φ32 |
|
Engine |
Rate Power |
kW/r/min |
567/2100 |
Undercarriage |
Track shoe width |
mm |
1000 |
Max. taveling speed |
km/h |
1 |
|
Max. grade ability |
% |
35 |
|
Machine Size |
Working condition |
m |
11.6*5.5*18.5 |
Walking state |
m |
14.9*3.48*3.23 |
|
Total weight |
t |
164 |
