China ShuoLi 145kw 100m3/h diesel mobile trailer mounted concrete pump price for sale
Summary
- Dimension(L*W*H):6300*2160*2600mm
- Weight:6600kg
- Power(W):145kw
- Model Number:HBTS80D-16-145R
- Brand Name:Shuo Li
- Place of Origin:Jiangsu,China
Specifications
- Weight:6600.000kg
- Condition:New
- Moving Type:Wheel
- Hopper capacity:0.8 m3
- Hopper height:1380 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

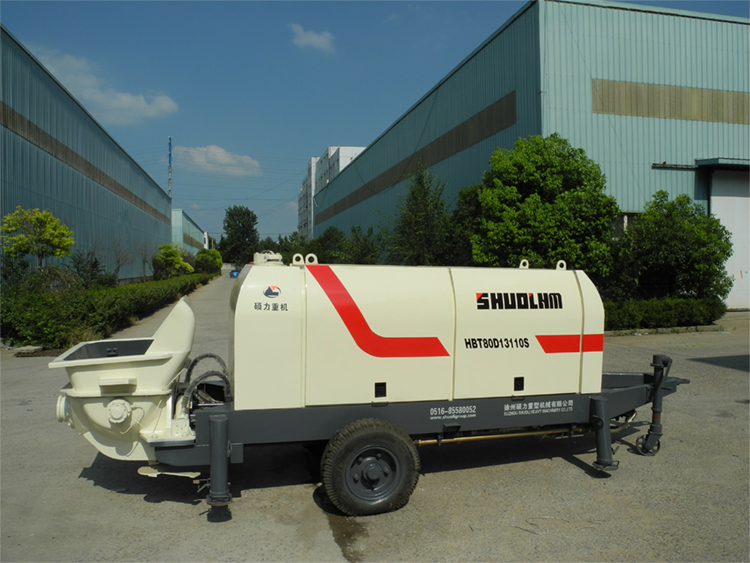

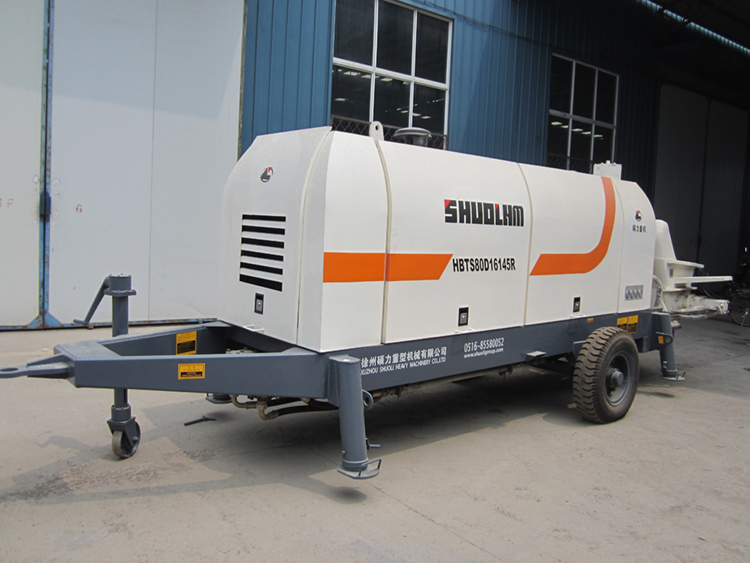

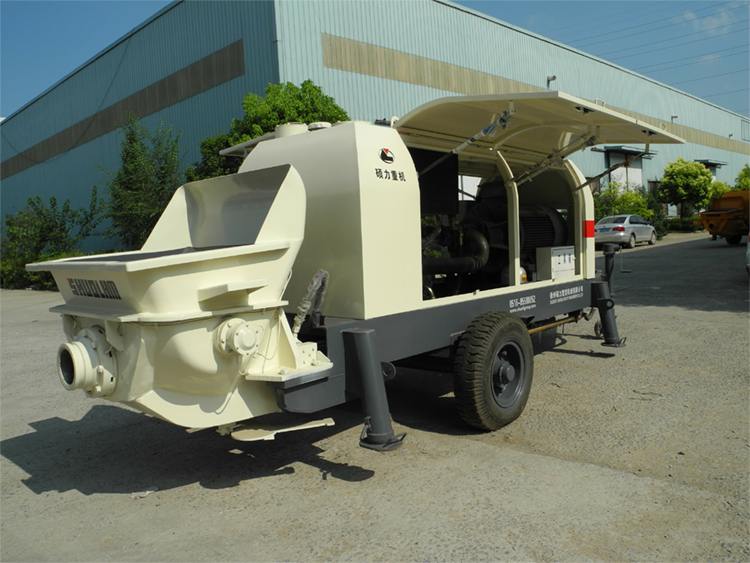

China ShuoLi 145kw 100m3/h diesel mobile trailer mounted concrete pump.
The hydraulic system of HBT series concrete pump adopts double discrete open circuit, which has high system efficiency, good heat dissipation and stable operation. The main pump can be selected from well-known brands such as Rexroth (imported Rexroth with original packaging, Rexroth made in China), imported Hawe, imported from Japan Kawasaki, imported from South Korea Kawasaki, domestic main pump and other famous brands according to user requirements. The valve block can be selected according to user requirements. Imported valve block And many configurations such as domestic valve group.
Selling points:
1.Hydraulic system :
This product adopts a double-pump, double-circuit closed hydraulic system. The main pump oil circuit and the S valve swing oil circuit are independent of each other, making the system simple, prolonging the life of the components, higher reliability, and facilitating fault judgment and troubleshooting.
2.Mechanical (mixing) distribution valve system:
For the design of key stress components such as hopper and S valve, the I-DEAS calculation program is used to calculate the force state, structural rigidity, and stress concentration of the subdivision mesh finite element calculation, and the structural stiffness of the hopper and S valve is designed. Good, good manufacturability, avoiding the deformation of the hopper and the broken shaft of the S valve during the high-level transportation of similar products.
3.Power system:
It adopts imported original Deutz supercharged, inter-cooled, water-cooled high-power diesel engine with excellent performance and high reliability.
|
Parameter |
Unit |
HBTS80D-16-145R |
|
Max theory output (low pressure) |
m3/h |
102 |
|
Max theory output (high pressure) |
m3/h |
60 |
|
Max conxrete pressure |
Mpa |
16/9 |
|
Hydraulic system type |
|
open |
|
Power mode |
|
Diesel Engine |
|
Speed |
r/min |
2200 |
|
Diesel brand |
|
WEICHAI |
|
Power |
kw |
145 |
|
Valve type |
|
s valve |
|
Transportation cylinder diameter |
mm |
200 |
|
High-low pressure switching |
|
√ |
|
Hydraulic oil tank capacity |
L |
230 |
|
Fuel tank capacity |
L |
580 |
|
Hopper capacity |
m3 |
0.8 |
|
Hopper height |
mm |
1380 |
|
Dimension L*W*H |
mm |
6300*2160*2600 |
|
Total weight |
kg |
6600 |
