Specifications
- Weight:26000.000kg
- Condition:New
- Moving Type:Wheel
- Tire:12.00R20
- Fuel tanker capacity :400L
- Wheel base :3450+1450 mm
- Fuel type:Diesel EUROⅡ
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

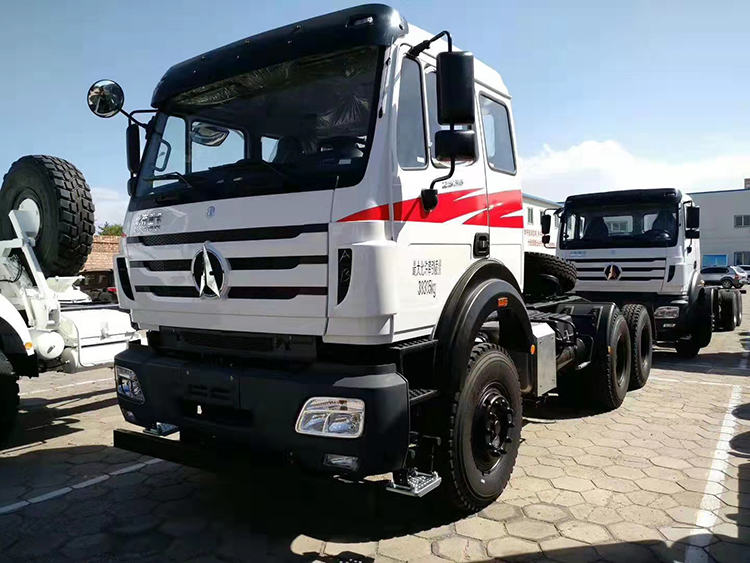

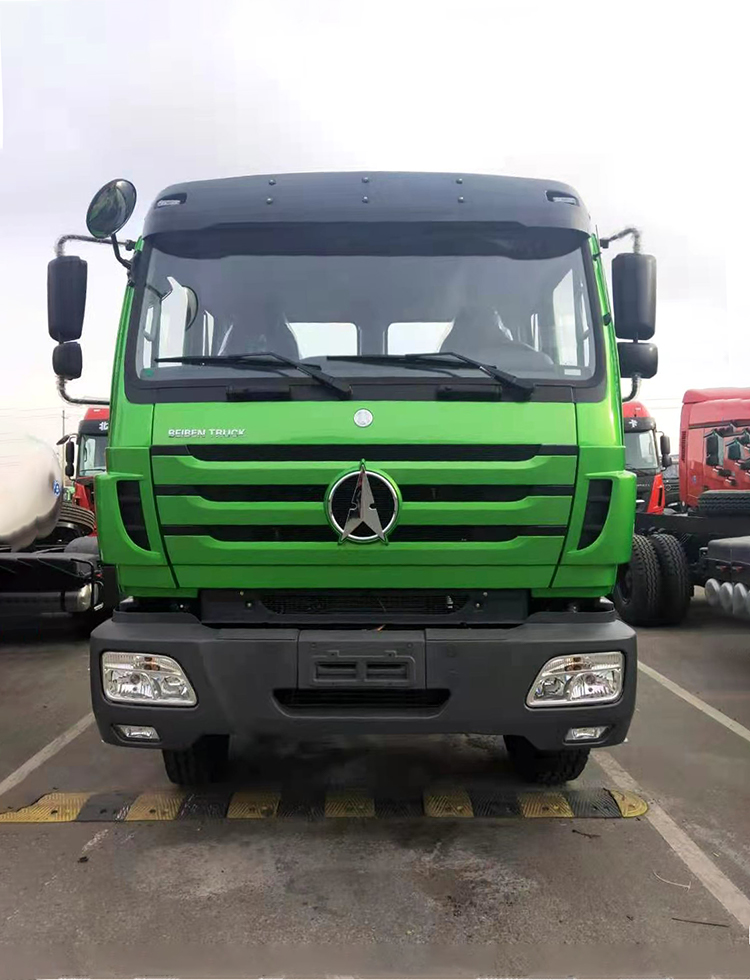

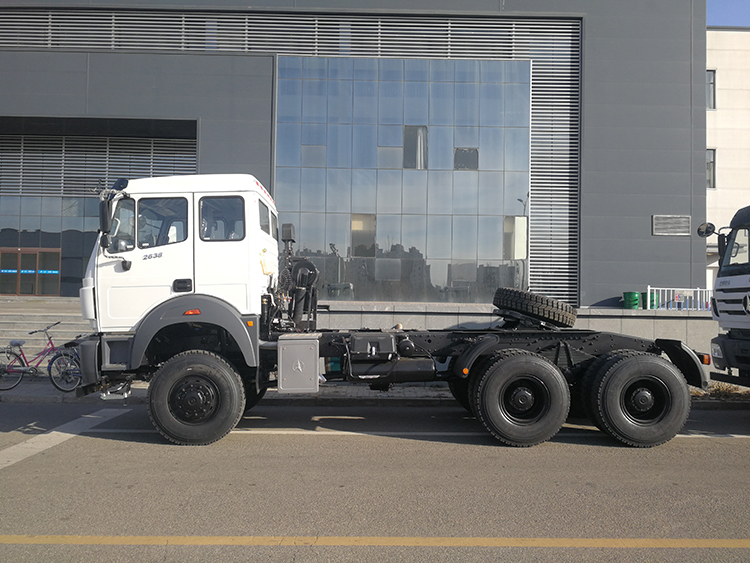

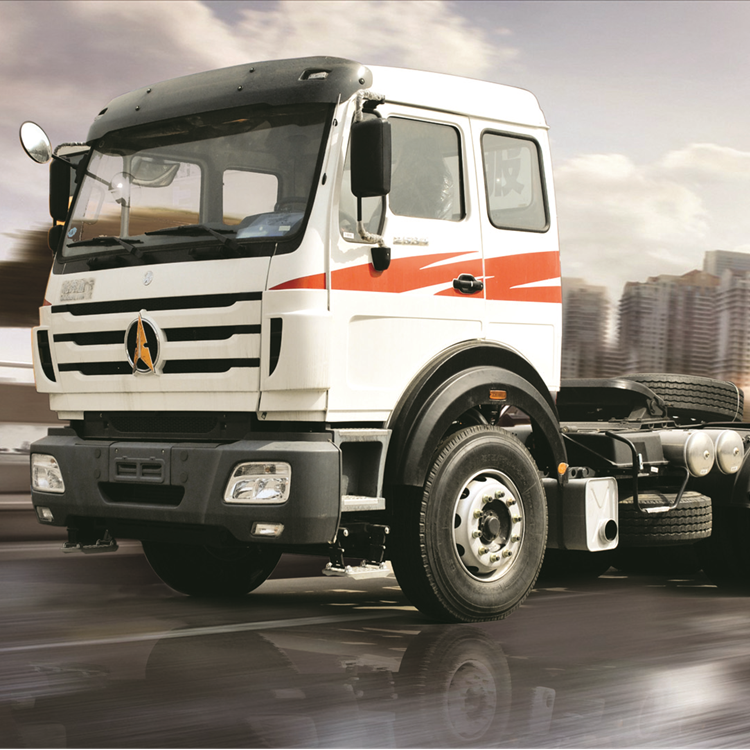

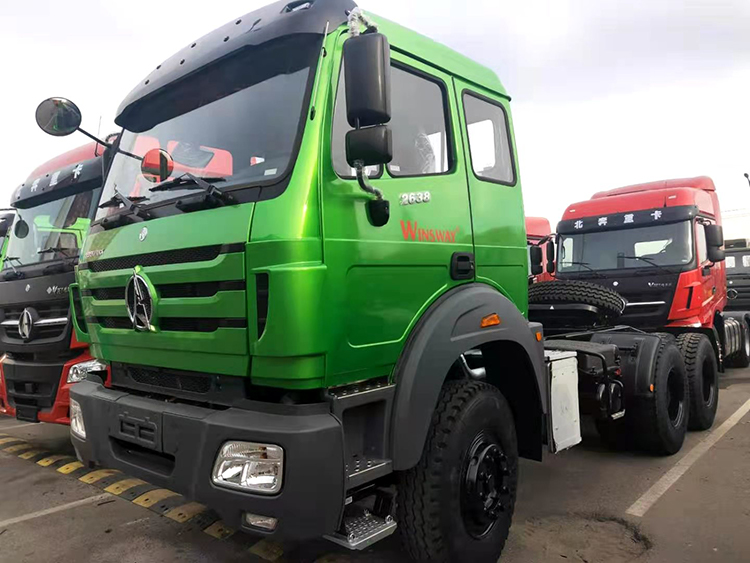

China BEIBEN 2638SZ LHD tractor truck 6×4 with 380HP.
China BEIBEN 2638SZ LHD tractor truck 6×4 with 380HP has a metal frame + skin structure, which has the same level of safety as a European car, and meets the European ECER29 safety regulations.
The frame is stamped and formed at one time to ensure the strength of the girder. The axle is selected as Beiben axle. Mercedes-Benz's unique axle technology improves the reliability of the vehicle, fuel-saving, and high attendance rate. Reinforced structure, suitable for transporting all kinds of heavy goods.
The main products of the company include 2 series of truck axles and bus axles,8 platforms and over 120 varieties.The Company in strict accordance with ISO9001-2008 system for quality control,relying on advanced CNC processing equipment and digital assembly method to ensure the quality of the product.For the reliability of the products,our company material and parts supply standard strictly enforced DBL standard in Germany.
|
Wheel base (mm) |
3450+1450 |
|||
|
Engine(WEICHAI) |
Model |
WP10.380E32，water-cooled，four strokes，6 cylinders straight in line，turbocharged,
|
||
|
Fuel type |
Diesel EUROⅡ |
|||
|
Power |
380HP |
|||
|
Fuel tanker capacity （L） |
400L |
|||
|
Clutch |
Model |
Φ430, Diaphragm Spring，Hydraulic boosting 430 |
||
|
Gearbox |
Model |
12JS160T |
||
|
Brake system |
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
||
|
Assistant brake
|
Engine exhaust brake |
|||
|
Park brake
|
Potential springs pressing on middle and rear wheels |
|||
|
Steering system |
Model |
8098 Hydraulic boosting |
||
|

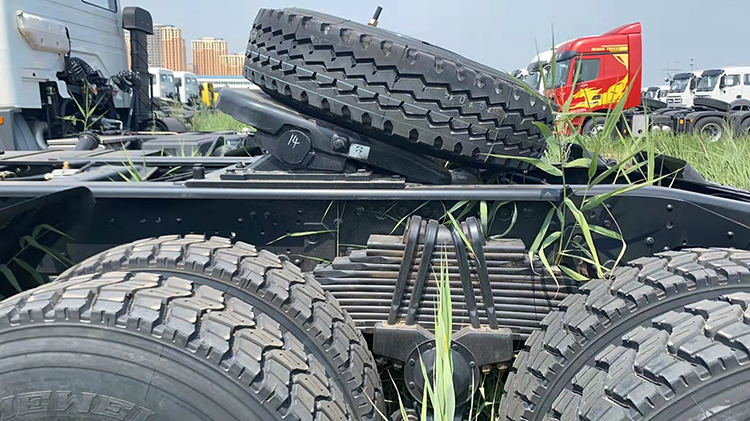

Suspension system
|
Front Suspension
|
Non-free standing leaf spring，telescopic shock absorber with stabilizer bar suspension |
||
|
Rear Suspension
|
Non-free standing stabilization spring， stabilization suspension
|
|||
|
Frame (Benz Technology) |
Fish belly shape, variable width, variable sections
|
|||
|
Cross section dimension of frame（mm）
|
317×70×8.5+7+12mm |
|||
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake,7.5tons non-driving steering axle
|
|||
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio 5.263
|
|||
|
Tire |
12.00R20 |
|||
|
Electrical system |
Battery |
2X12V/135Ah |
||
|
Generator |
28V-35A |
|||
|
Starter |
5.4Kw/24V |
|||
|
Cab |
NG80B Long flat cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; NG80B |
|||
|
Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio, high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C。
|
||||
|
Color |
Ice white |
|||
|
Fifth wheel |
#90 single direction |
|||
