Summary
- Model Number:XGA6012-6S
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Rated Lifting Moment:100t.m
- Rated Loading Capacity:6ton
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
- Maximum lifting capacity/working range:6.0/16.4 t/m
- Independent height:40m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

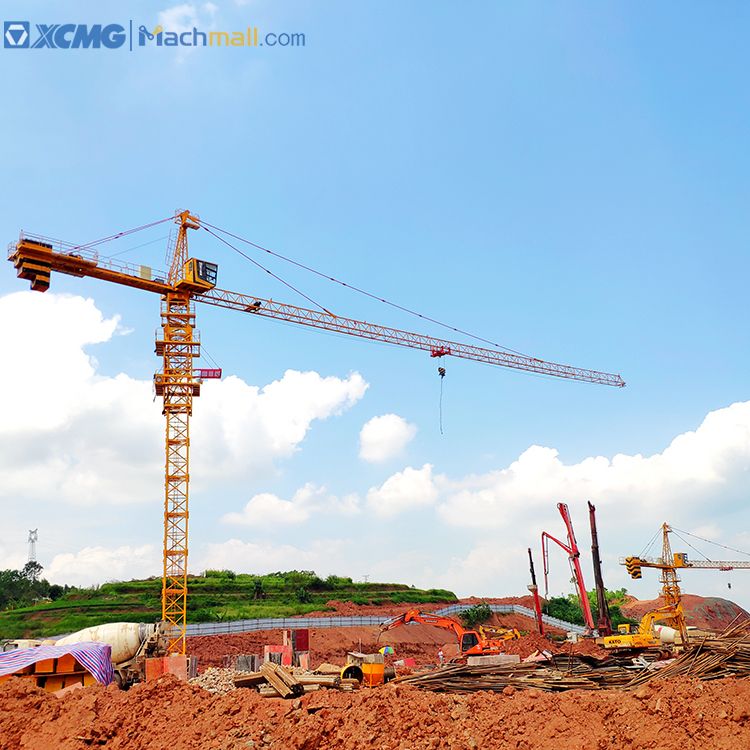

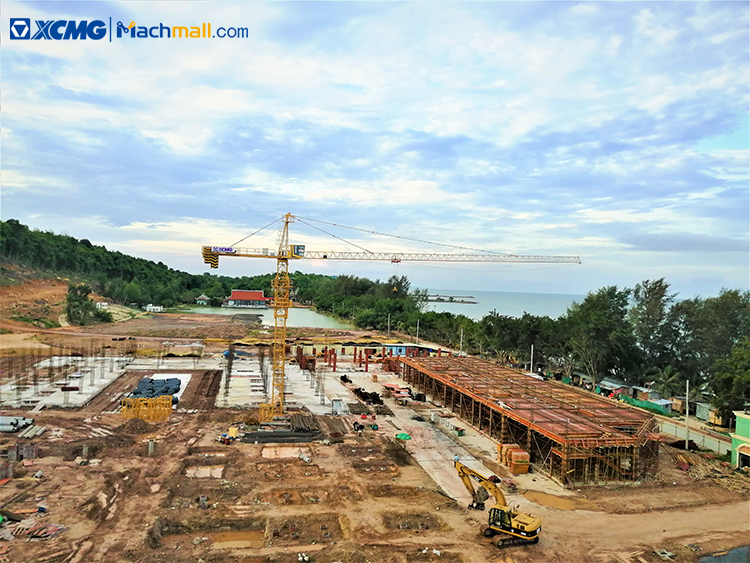

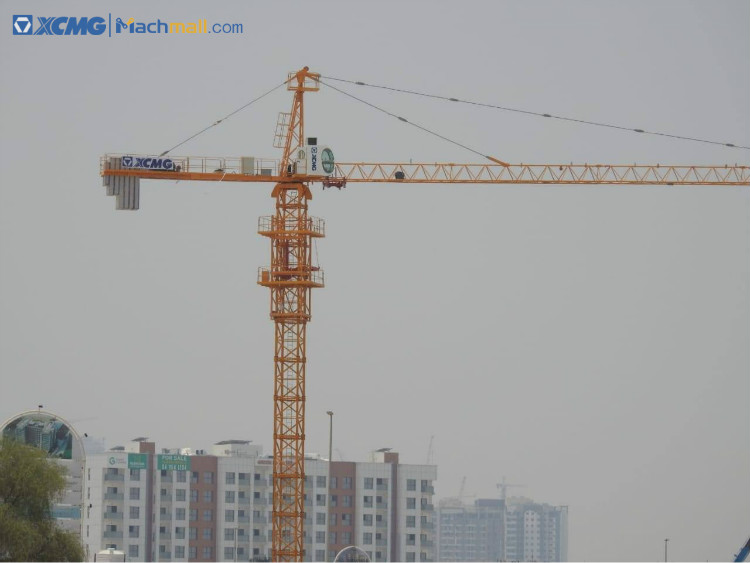

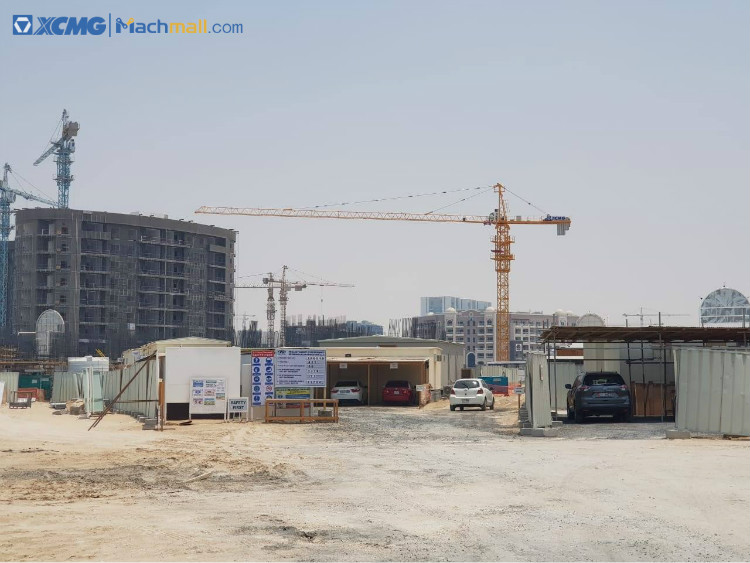

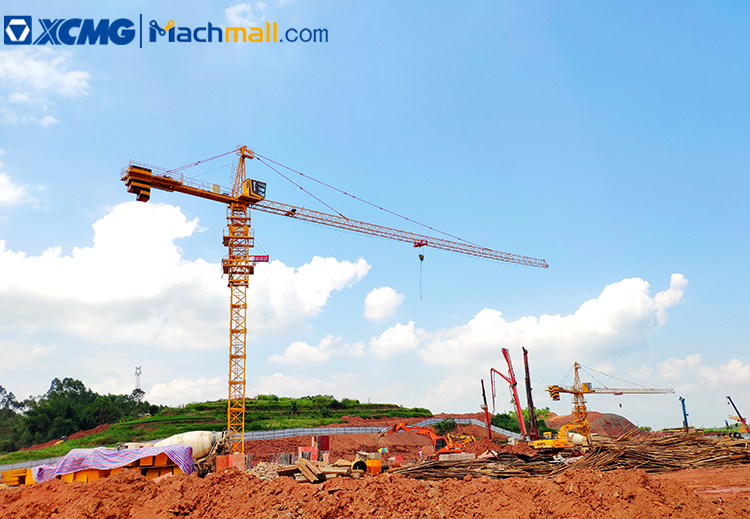

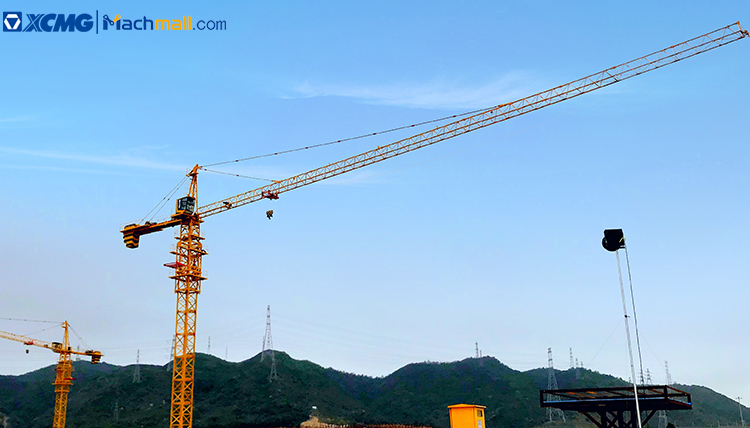

XCMG new tower crane building XGA6012-6S with 30 - 60m boom length.
XCMG new tower crane building XGA6012-6S with 30 - 60m boom length is one of the main models of S series products. S series products introduce the design concept and control technology of truck cranes for the first time in the industry. Serialized products with important features. Inherited XCMG's innovations and breakthroughs in the four major technologies of safety and reliability, advanced intelligence, green efficiency, appearance and humanity.
Highlights:
1.The industry's first application of high-strength cold-formed steel, the boom is lighter, the lifting performance is better than other manufacturers in the industry, and the lightweight level is at the industry's leading level;
2.The whole machine is equipped with 8.8～10.9 grade Dacromet high-strength bolts, which have higher strength, stronger anti-rust ability and longer service life;
3.Structural parts adopt powder electrostatic spraying technology, automotive-grade coating level, 2 years of colorfastness, 5 years of corrosion resistance;
4.For the first time, the design concept of the cab in the automotive field was introduced into the tower crane industry, and the electrophoresis treatment process was used to achieve ten years of corrosion-free cabs. The external unit of the air conditioner is built-in, and it is installed and transported as a whole to avoid damage to the external unit and reduce the risk of outdoor operation during installation and maintenance;
5.The modular hoisting technology of the whole machine greatly increases the installation and disassembly efficiency by 20-30%;

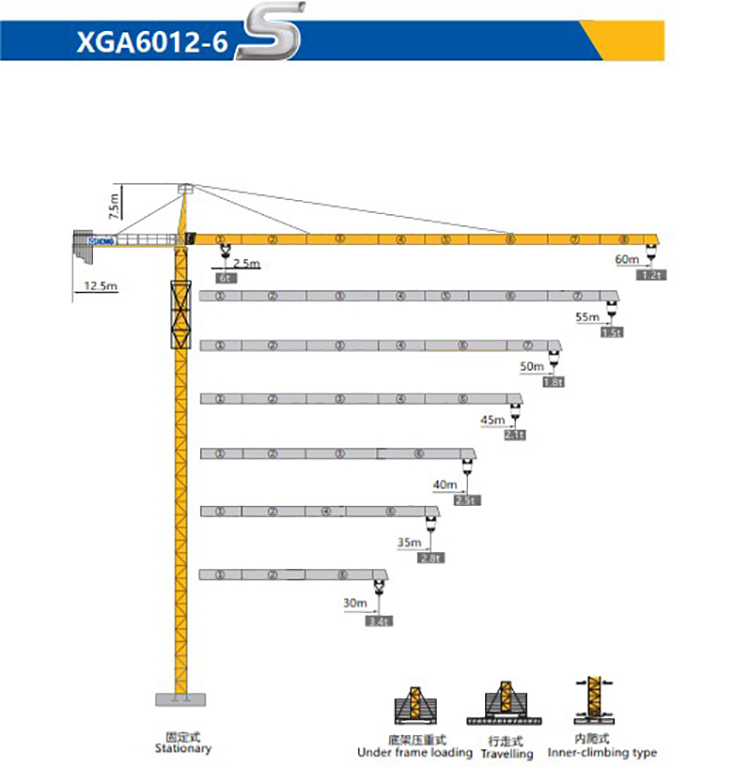

6.The boom has seven combinations of 60m/55m/50m/45m/40m/35m/30m.
|
Item |
Unit |
Parameter |
|
Rated lifting moment |
t.m |
100 |
|
Maximum lifting capacity/working range |
t/m |
6.0/16.4 |
|
Maximum boom length/boom end hoisting weight |
m/t |
60/1.2 |
|
Independent height |
m |
40 |
|
Maximum attachment height/overhang height |
m |
199.6/32.4 |
|
Lifting capacity rope |
m |
400 |
|
Tower configuration |
|
Square tube integral section 1.6m×1.6m×2.8m |
|
Lifting speed |
m/min |
80(2α) |
|
Luffing speed |
m/min |
50/26 |
|
Swing speed |
m/min |
0～0.6 |
|
Lifting power |
kW |
24/24/5.4 |
|
Luffing power |
kW |
3.3/2.2 |
|
Rotation power |
kW |
2×3.7 |
|
Total power (excluding jacking) |
kW |
34.7 |
