Summary
- Weight:22000kg
- Overall Dimension:14900*2490*3050mm
- Table Size:2400*900mm
- Max Lifting Height:43m
- Rated Loading Capacity:230/450kg
- Power:55.5KW
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS43
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:22000.000kg
- Condition:New
- Moving Type:Wheel
- Max. platform height:41.3m
- Max. working range:25m
- Max. traveling speed:5km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

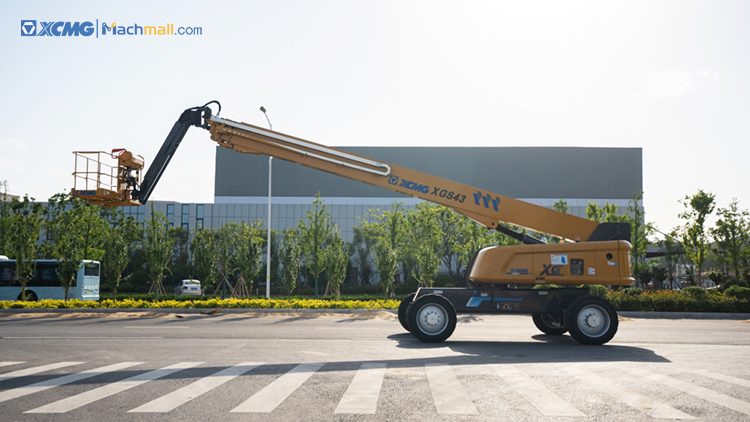

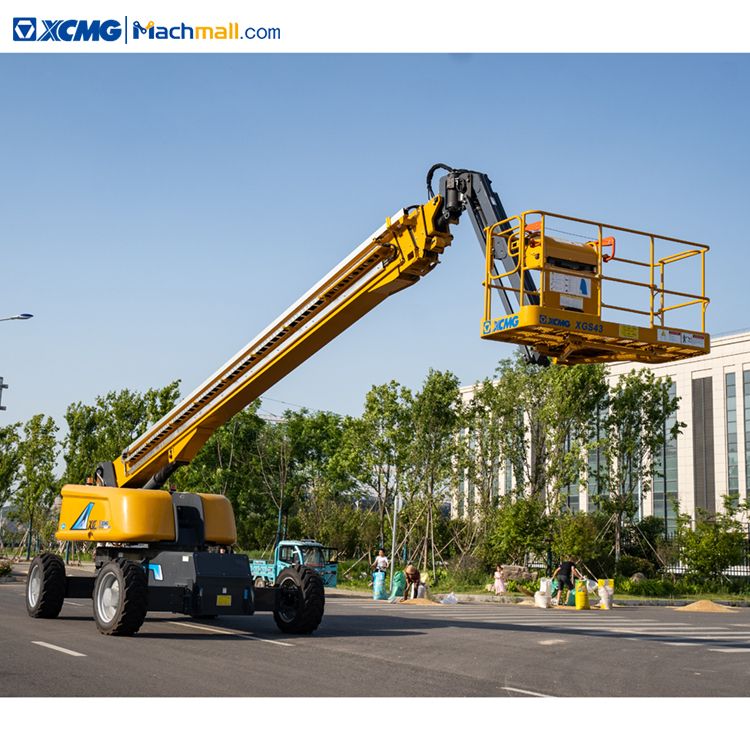

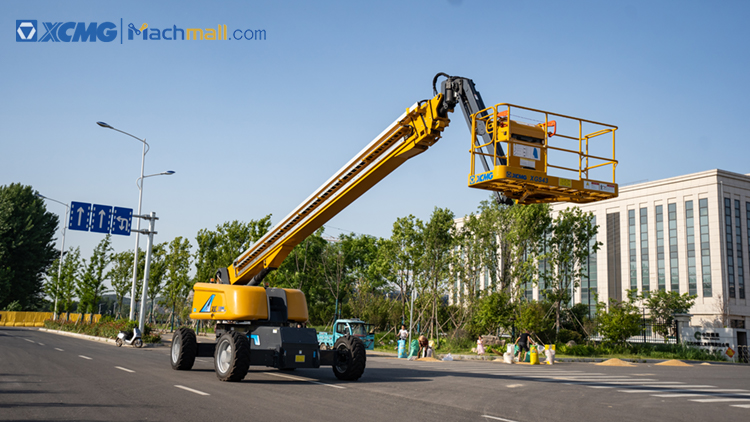

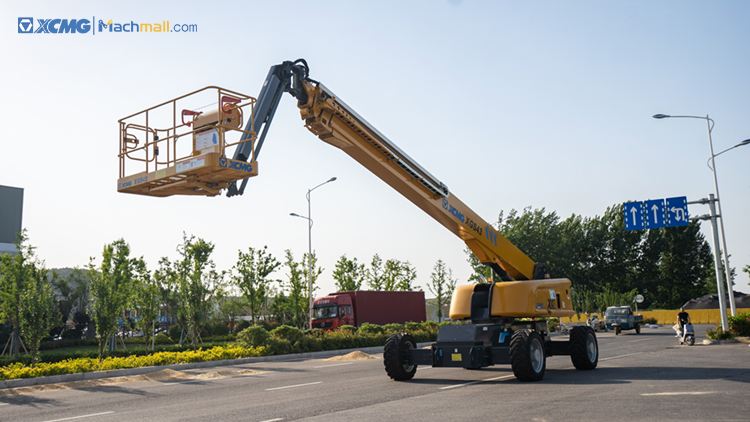

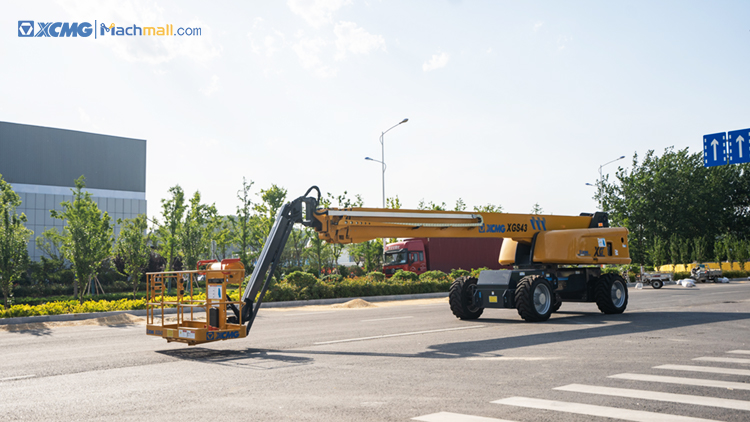

XCMG official XGS43 43m straight arm high quality telescopic towable boom lift.
XGS43 has super strong bearing capacity, dual operation amplitude curve control technology, and the operation height and amplitude are leading in the industry.

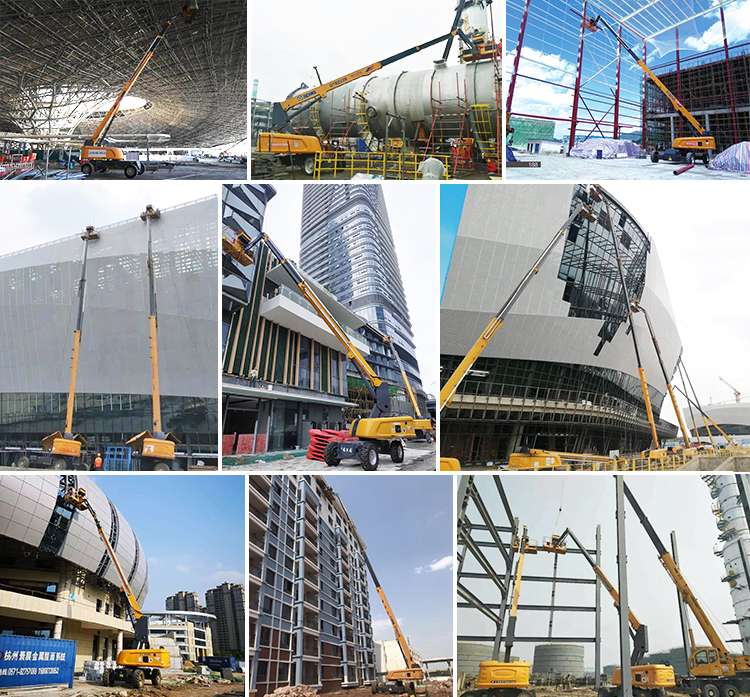

At the same time, the vehicle has a 2.44m swing crank arm, the pitch angle can reach 130°, and the left and right swings are 75°, and the working range is large; In the retracted state of the axle, the crank arm can swing back 160°, which reduces the size of the car and facilitates transportation; this model has excellent operating performance and large bearing capacity, and is widely used in construction, bridge and equipment maintenance, shipyards and petrochemical construction fields.
Product Highlights:
1.2.4m wide platform, enough for carrying tools and materials effectively widening the work range.
2.The crank should swing backward by 160°, retracted under the boom, saving the transportation and storage room.
3.230kg and 450kg loading capacity, leading in the industry.
4.Ensure complete operation of surrounding buildings without moving.

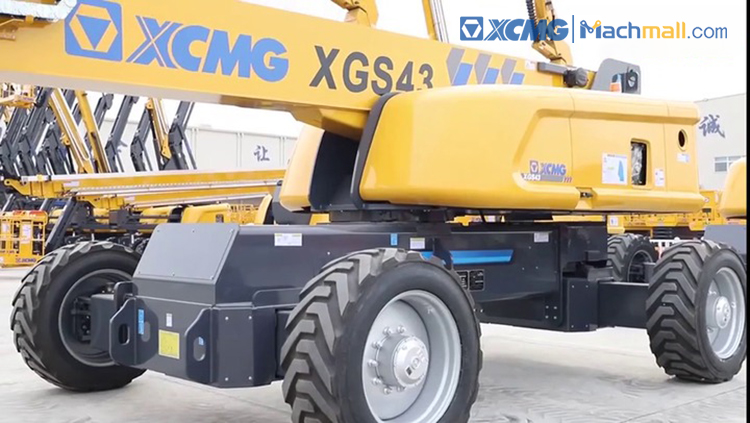

5.Four wheel drive and steering features strong drive capacity and flexible steering.
6.Enable the axle automatically to adapt to the terrain, suitable for cement, pitch, soft roads and other rough mountainous roads.
|
Item |
Unit |
Parameter |
|
Overall length (Transport status) |
mm |
14.9 (12.0) |
|
Overall width (With shaft retracted/extended) |
mm |
2490/3800 |
|
Overall height |
mm |
3050 |
|
Wheelbase |
mm |
3800 |
|
Max. working height |
m |
43.3 |
|
Max. platform height |
m |
41.3 |
|
Max. working range |
m |
25 |
|
Max. load capacity |
kg |
230 (unrestricted)/450 (restricted) |
|
Luffing range of boom |
° |
-1 ~ +75 |
|
Slewing angle of turntable |
° |
360° |
|
Max tail swing (With axle retracted/extended) |
mm |
2390/1725 |
|
Platform size |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
22000 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius (With axle retracted/extended) |
m |
8.2/10.8(Two-wheel steering) |
|
Min. ground clearance |
mm |
320 |
|
Max. grade ability |
% |
40 |
|
Tire specification |
- |
445/50D710 |
|
Engine model |
- |
Perkins 1104D-44T |
|
Engine rated power |
kW/(r/min) |
55.5/(2400) |
