Summary
- Overall Dimensions:6960*2500*2850mm
- Max Lifting Height:16700mm
- Rated Loading Capacity:4.5ton
- Type:telescopic handler forklift
- Model Number:XC6-4517K
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
- Certification:CE, ISO, SGS, BV,TUV, ETC
Specifications
- Weight:13500.000kg
- Condition:New
- Moving Type:Wheel
- Engine power rate:82/74.9KW
- Rated load:4.5ton
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

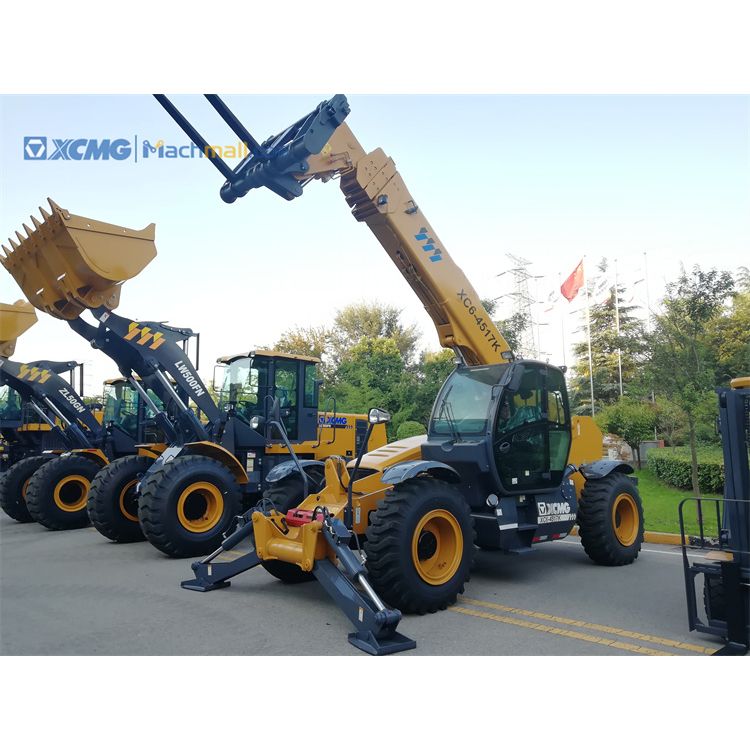

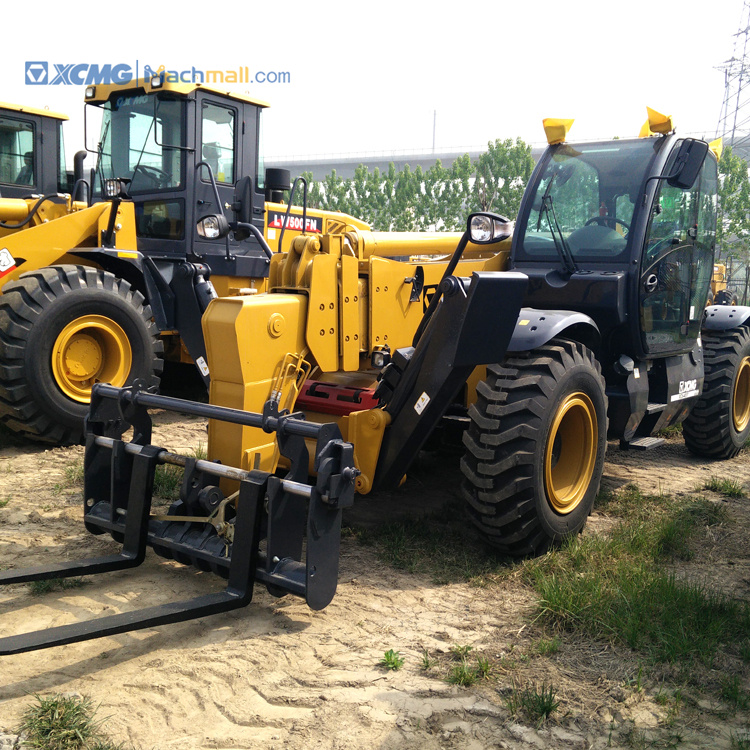

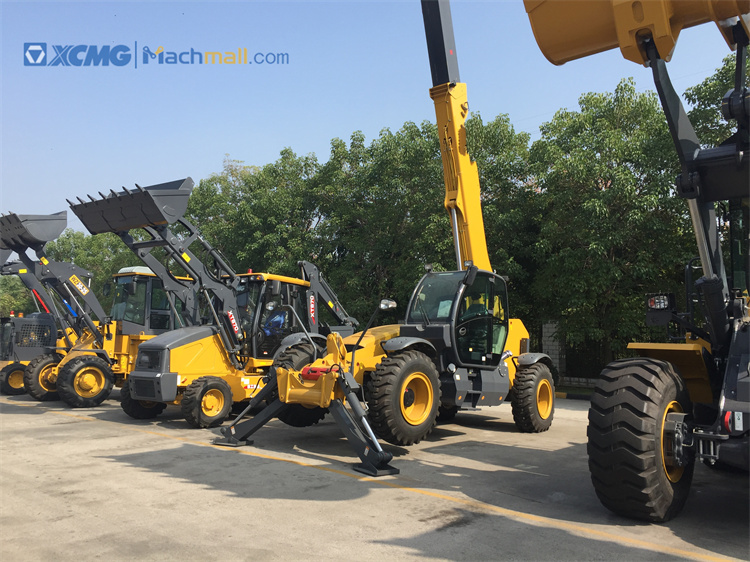

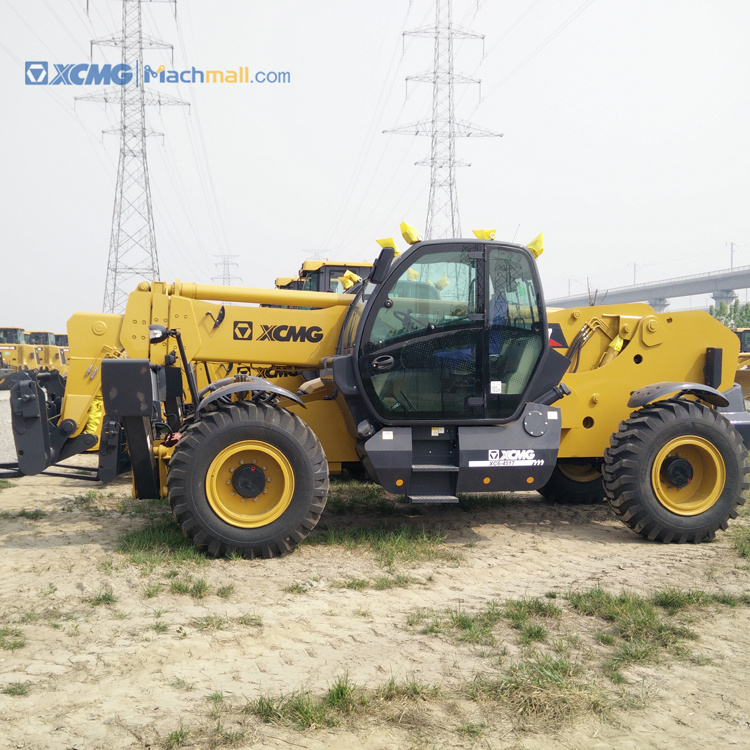

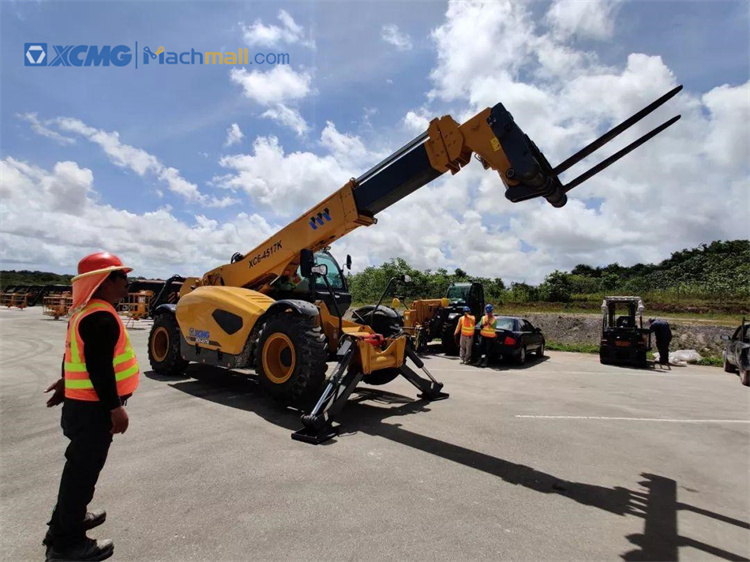

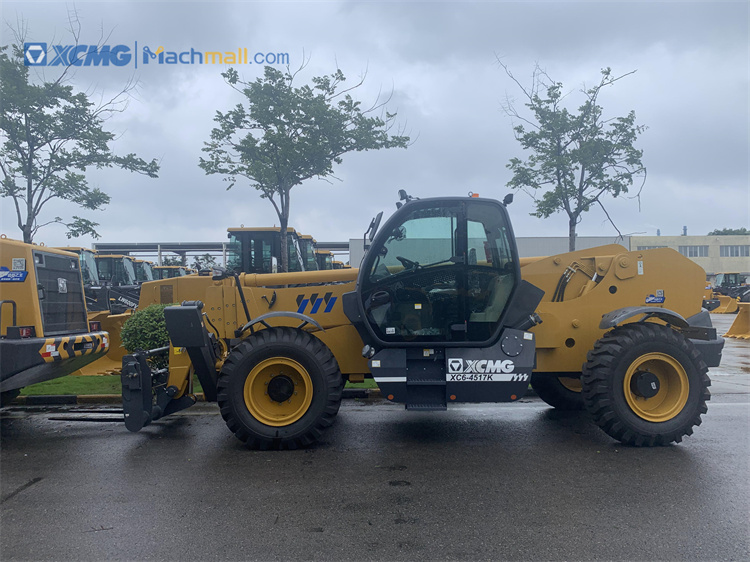

XCMG 17m telescopic handler forklift.
XC6-4517 17m telescopic forklift is a representative product of XCMG K series 17m telescopic handler forklift. This product is equipped with imported Cummins engine of strong and reliable power and imported axles and transmission of stable drive.
The full-hydraulic wet brake is applied to ensure driving safety. The four-section telescopic boom structure features flexible operations, accurate forklifting, and automatic leveling, with the maximum lifting height up to 16.7m. It's a multifunctional high-efficiency small-sized construction machinery product.
Characteristics:
The 4wd telescopic handler forklift with multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
Powerful international brand engines; Special CARRARO transmissions and axles for smooth drive.
The international top-level full-hydraulic wet brake system features stable and reliable braking and guarantees driving safety.
The frame leveling function equipped (The body is capable of 10º swing in both leftward and rightward directions) realizes powerful site adaptability and meets the needs of diversified working conditions.
The special overload control system guarantees operation safety and reliability.
The electrohydraulic proportional control for the working system features accurate, stable, and efficient operations.
The leading human-machine interaction system and the instrument, monitoring, and alarm system with complete functions provide you energetically with a comfortable, intelligent, and safe operation experience.

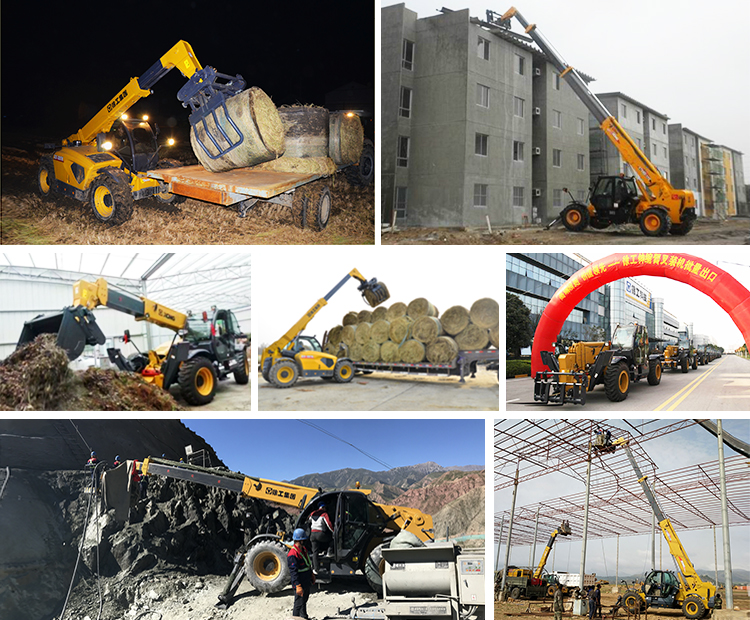

Optional aerial working platform, bucket and various tools to meet customer needs.
|
Unit |
XC6-4517 |
|
|
Gross weight |
kg |
13500 |
|
Engine power |
kW |
82/74.9 |
|
Rated load |
kg |
4500 |
|
Effective load at maximum |
kg |
490 |
|
forward reach |
|
|
|
Maximum lifting height |
mm |
16700 |
|
Maximum forward reach |
mm |
12600 |
|
Center distance of load |
mm |
600 |
|
Luffing angle |
° |
-4~73 |
|
Fork angle |
° |
90~18 |
|
Maximum traction force |
kN |
≥70 |
|
Gradeability |
° |
≥25 |
|
Maximum traveling speed |
km/h |
36 |
|
Turning radius |
mm |
≤5000 |
|
Braking distance |
m |
≤10 |
|
Overall length |
mm |
6960 |
|
Overall width |
mm |
2500 |
|
Overall height |
mm |
2850 |
|
Wheelbase |
mm |
3900 |
|
Wheel tread |
mm |
2060 |
|
Fork length |
mm |
1200 |
