Summary
- Model Number:XGC55T
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:41M
- Max. Lifting Load:55 TON
Specifications
- Weight:63223.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

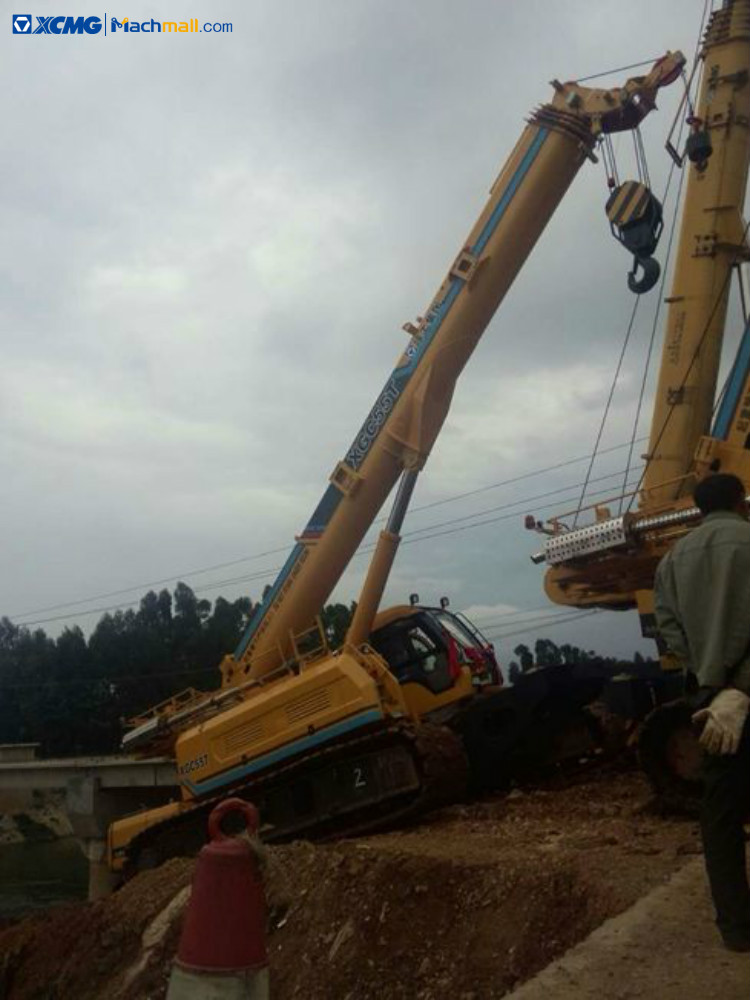

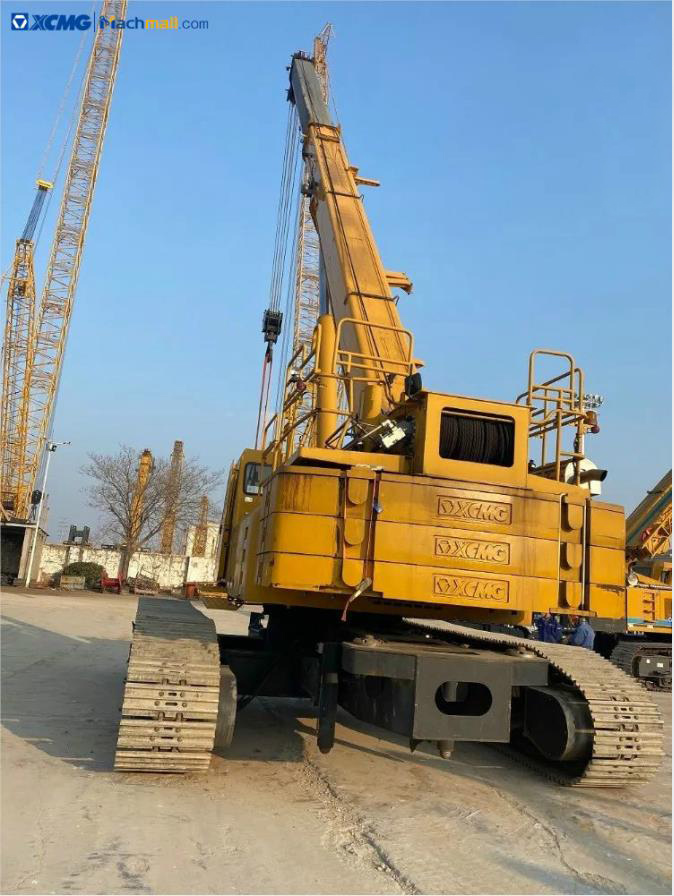

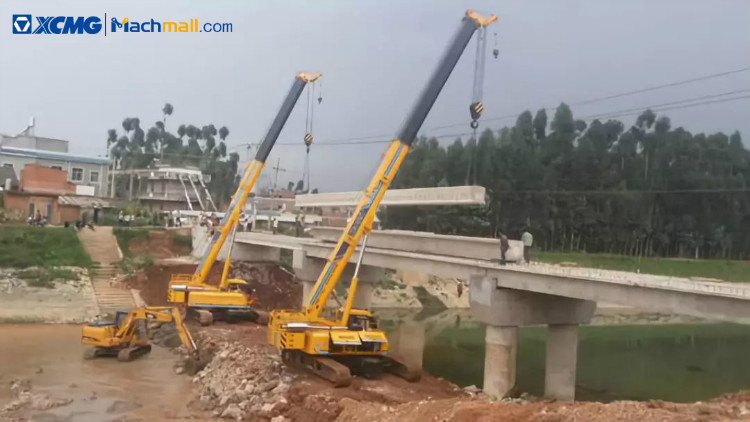

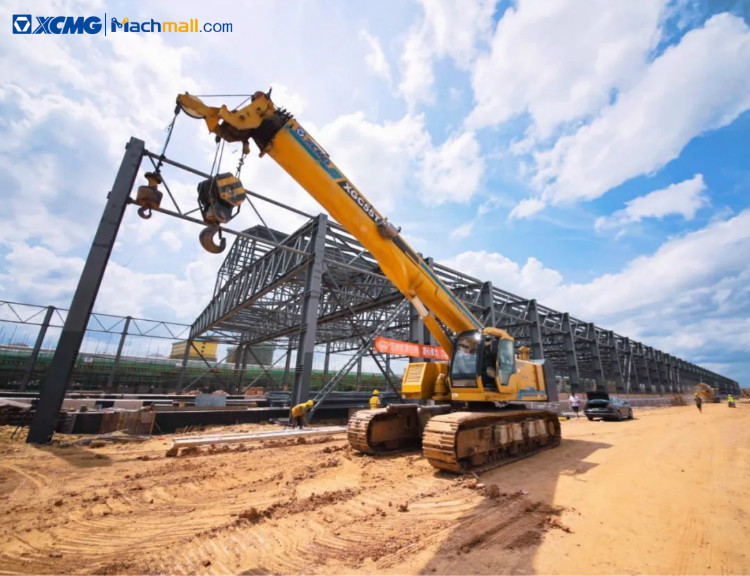

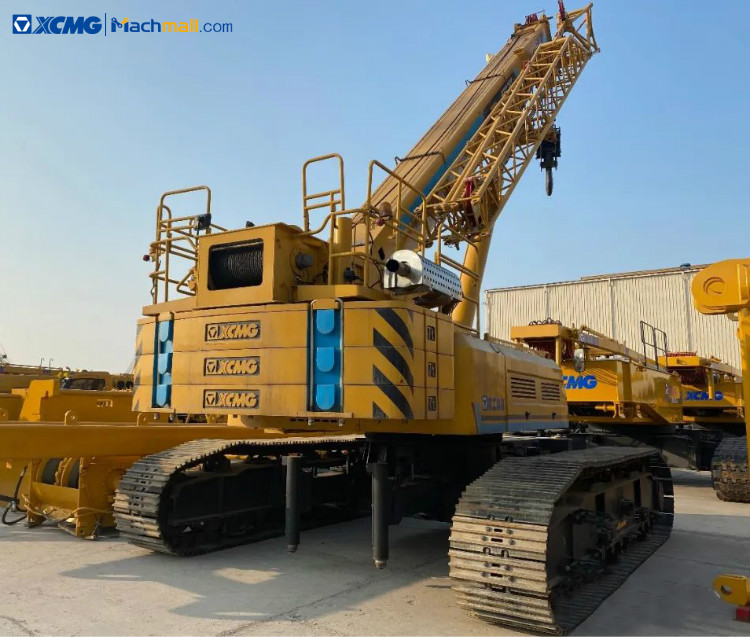

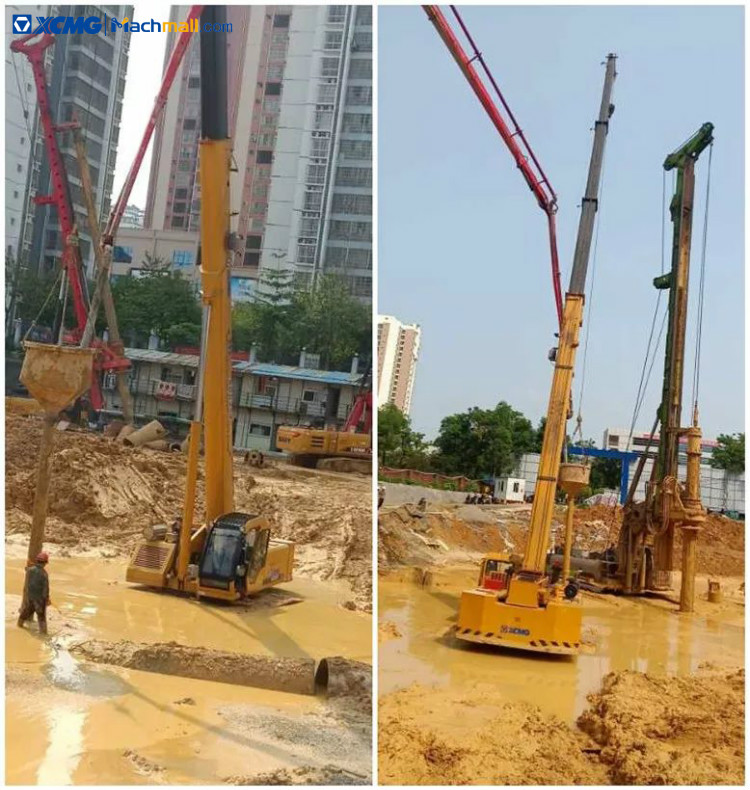

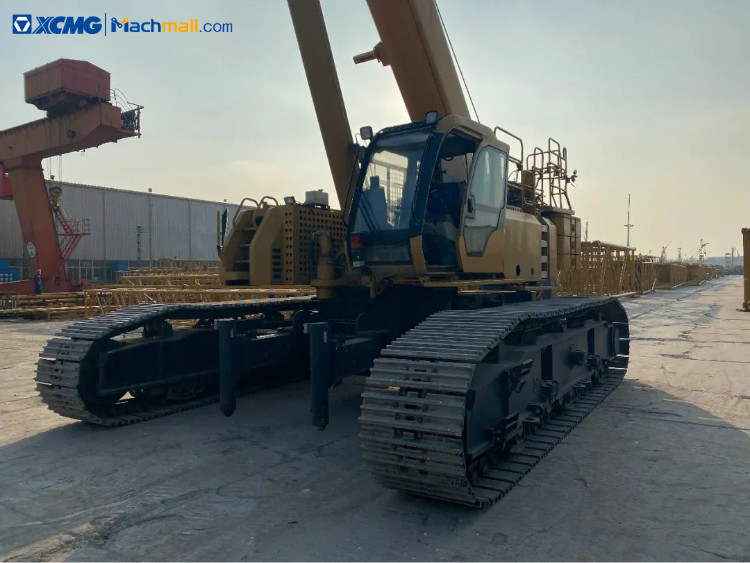

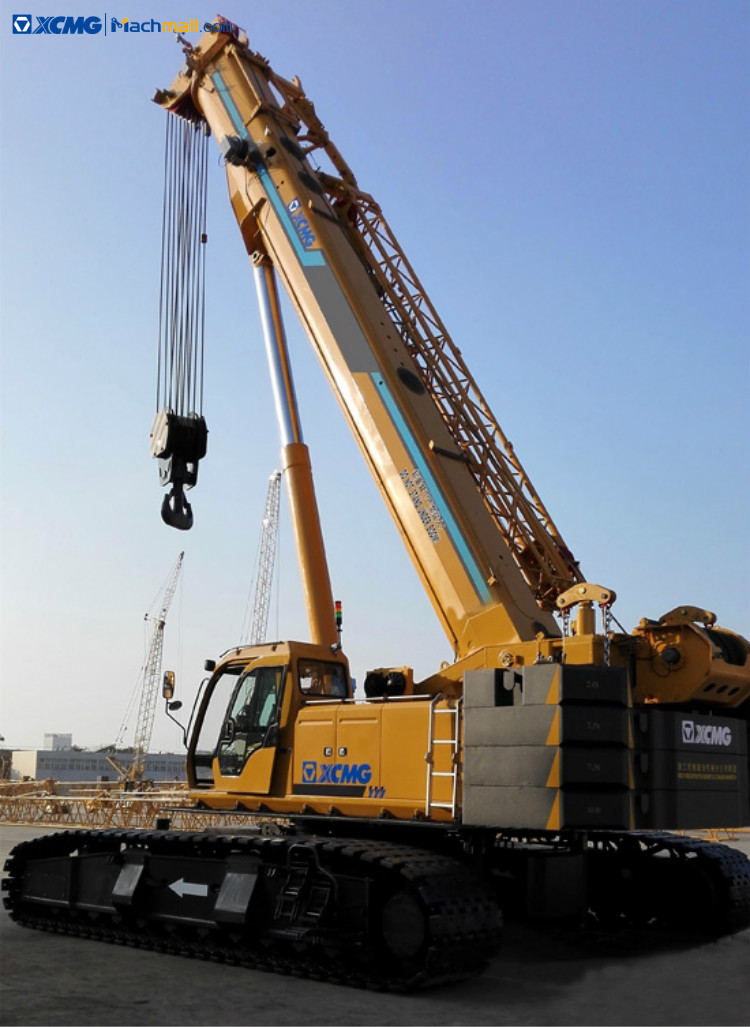

XCMG construction machinery XGC55T 50 ton mobile telescopic crawler crane.
XCMG Construction machinery XGC55T 50 ton mobile telescopic crawler crane with five telescopic boom sections, 41m fully-extended boom (10.6~41m), and 9.5~16m jib.
XCMG telescopic crawler crane XGC55T is boom length can fulfill various working radius demands. Telescoping crawler track, not only meets the high stability requirement of lifting operation, but also the outline dimension requirement for overall crane transportation.
Extendable crawler track meets the requirements of lifting work with high stability, also meets transport requirements for crane outline dimension.
XGC55T is of integrated transport design without disassembly, greatly save transport costs.
* Equipped with two modes of no-load in high-speed and with-load in low-speed to achieve automatic switch-over for travel with-load in high-speed, overload travel protection function, to ensure the safety for travel with-load.
* Automatic direction change function of forward/ backward travel, without changing steering direction, so as to make operation more humanization.
* Use of mixed luffing down technology, to ensure not only smooth gravity falling but also fast dynamic falling, for energy-saving, stable, fast and efficient operation.
|
Item |
Unit |
Parameter value |
|
Parameter Item |
- |
XGC55T |
|
Dimension parameter |
|
* |
|
Overall crane length |
(mm) |
12719 |
|
Overall crane width(extend/retract) |
(mm) |
4800/2980 |
|
Overall crane height |
(mm) |
3223 |
|
Center distance between drive roller and driven roller |
(mm) |
5278 |
|
Crawler shoe width |
(mm) |
760 |
|
Weight parameter |
|
* |
|
Total mass in travel state |
(kg) |
63223 |
|
Travel parameter |
|
* |
|
Travel speed with no load |
(km/h) |
3 |
|
Travel speed with full load |
(km/h) |
1.5 |
|
Min. ground clearance |
(mm) |
304 |
|
Max. grade ability |
(%) |
45 |
|
Ground pressure |
(MPa) |
0.077 |
|
Power parameter |
|
* |
|
Noise near ear(dB) |
(A) |
80 |
|
Engine model |
- |
QSB6.7 |
|
Engine rated power |
(kw) |
164 |
|
Engine rated speed |
(r/min) |
2200 |
|
Engine emission standard |
- |
(non-road) EU Stage IIIA |
|
Volume parameter |
|
* |
|
Hydraulic oil tank volume |
(L) |
900 |
|
Fuel tank volume |
(L) |
550 |
|
Main perdormance parameter |
|
* |
|
Max. rated lifting capacity |
(t) |
55 |
|
Min. rated radius |
(m) |
3 |
|
Max. load moment--basic boom |
(kN/m) |
2116.8 |
|
Max. load moment--longest聽 boom |
(kN/m) |
1207 |
|
Lifting height--basic boom |
(m) |
10.9 |
|
Lifting height--longest boom |
(m) |
41.4 |
|
Lifting height--longest boom+jib |
(m) |
55 |
|
Boom length--basic boom |
(m) |
10.6 |
|
Boom length--longest boom |
(m) |
41 |
|
Boom length--longest boom+jib |
(m) |
57 |
|
Jib offset angle |
(°) |
0,15,30 |
|
Working speed |
|
* |
|
Boom raising time |
(s) |
60 |
|
Boom fully-extending time |
(s) |
110 |
|
Max. slewing speed |
(r/min) |
2 |
|
Hoisting speed(no load, the 4th layer) main hoist system |
(m/min) |
140 |
|
Hoisting speed(no load, the 4th layer) aux. hoist system |
(m/min) |
140 |
