Summary
- Weight:20600kg
- Overall Dimension:14060*2490*3000mm
- Table Size:2400*900mm
- Max Lifting Height:38.2m
- Rated Loading Capacity:230/340kg
- Power:55.5kW
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS40
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:20600.000kg
- Condition:New
- Moving Type:Wheel
- Wheelbase:3800mm
- Maximum traveling speed:5km/h
- Min. ground clearance:320mm
- Min. turning radius:8.2/10.8/5.8/6.8m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

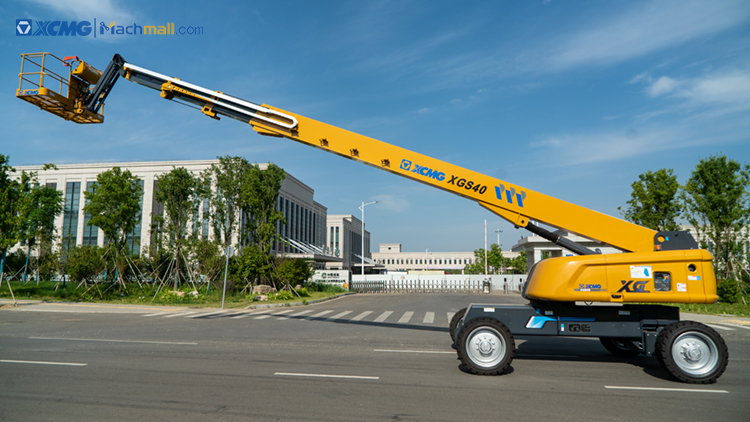

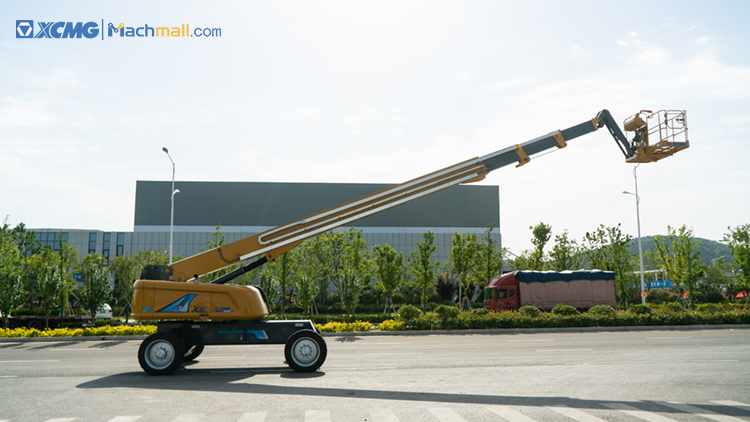

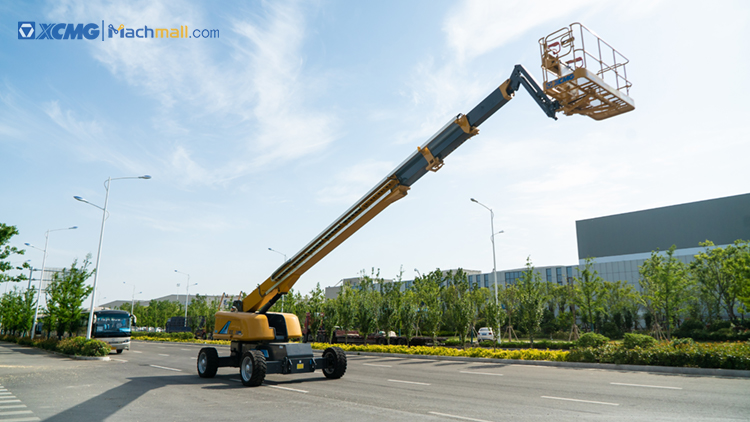

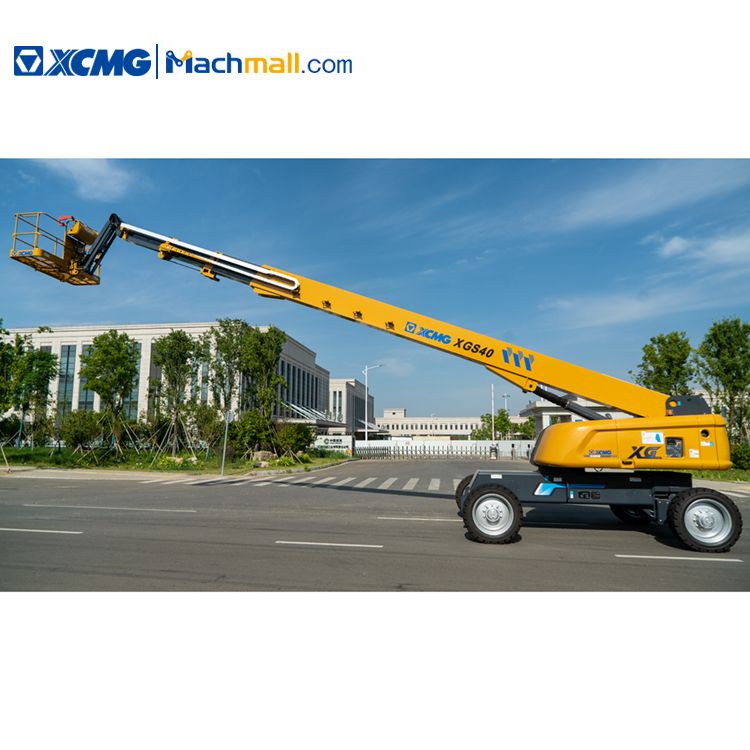

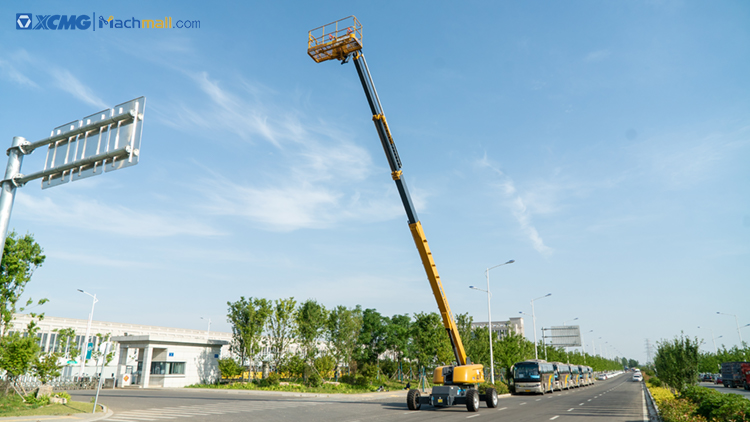

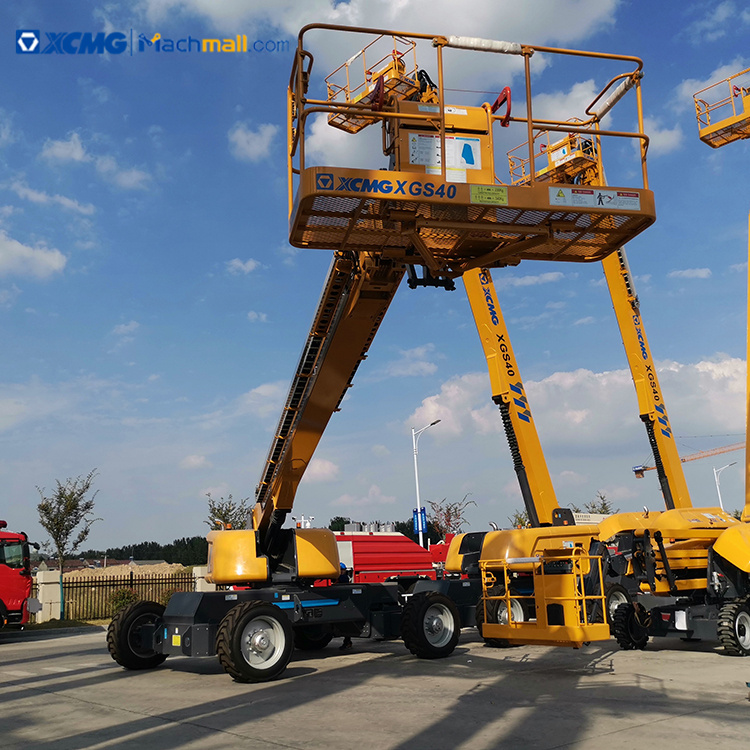

XCMG XGS40 40m Straight arm mobile elevating telescopic boom lift with 4 wheel.
1. A 40-meter-level mobile elevating work platform with excellent performance and flexible driving.
2. Four-wheel drive, the climbing ability has reached the advanced level in the same industry; the dual operation amplitude curve control technology, the operation height, amplitude and load capacity are industry-leading;
3. At the same time, the height of the whole machine is controlled within 3m, which is convenient for transportation.

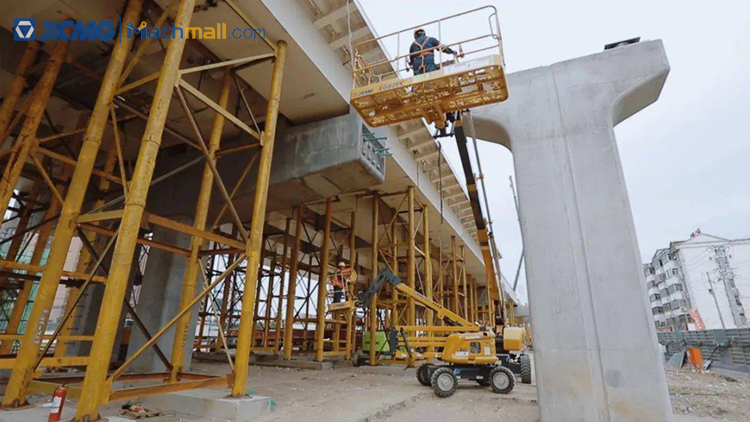

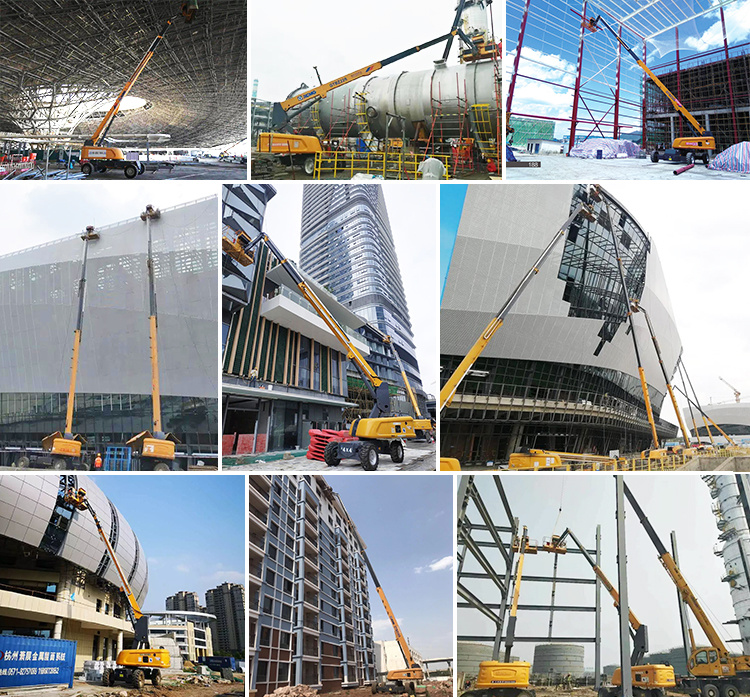

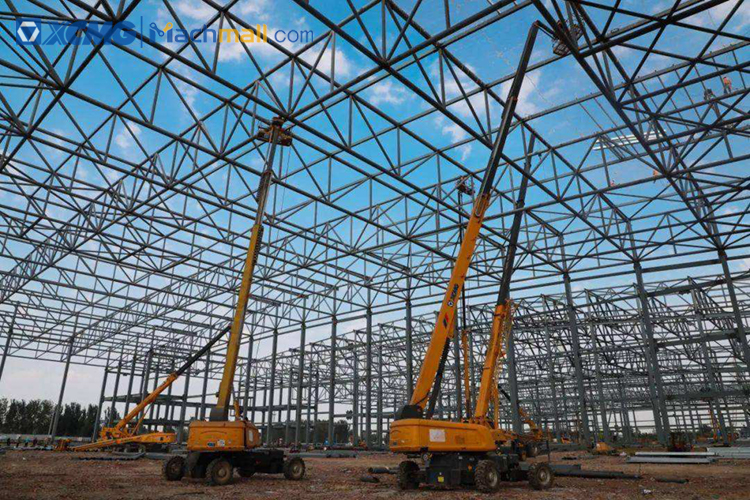

4. XCMG XGS40 40m Straight arm mobile elevating telescopic boom lift with 4 wheel is simple, efficient, safe and reliable, and can meet the needs of users in the construction, bridge and equipment maintenance, shipyard, petrochemical and leasing industries.
|
Item |
Unit |
Parameter |
|
a. Overall length of complete machine |
mm |
14060 |
|
b. Overall width |
mm |
2490/3800 |
|
c. Overall height |
mm |
3000 |
|
d. Wheelbase |
mm |
3800 |
|
Max. working height |
m |
40.2 |
|
Max. platform height |
m |
38.2 |
|
Max. working range |
m |
23.9 |
|
Max. carrying weight |
kg |
230/340 |
|
Luffing range of boom |
° |
-7 ~ +75 |
|
Slewing angle of turntable |
° |
360° |
|
Max. rearward slewing |
mm |
2085/1430 |
|
Platform size |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
20600 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius (With axle retracted/extended) |
m |
8.2/10.8 (Two-wheel steering) |
|
5.8/6.8 (Four-wheel steering) |
||
|
Min. ground clearance |
mm |
320 |
|
Max. gradeability |
% |
40 |
|
Tire specification |
- |
445/50D710 |
|
Engine model |
- |
Perkins 1104D-44T |
|
Engine rated power |
kW/(r/min) |
55.5/2400 |
