Summary
- Weight:18400kg
- Overall Dimension:14300*2490/3800*3070mm
- Table Size:2400×900mm
- Max Lifting Height:34.2m
- Rated Loading Capacity:230/340 kg
- Power:55.5/(2400) kW/(r/min)
- Model Number:XGS34
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:18400.000kg
- Condition:New
- Moving Type:Other
- Wheelbase:3800mm
- Max. traveling speed:5km/h
- Min. ground clearance:260mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

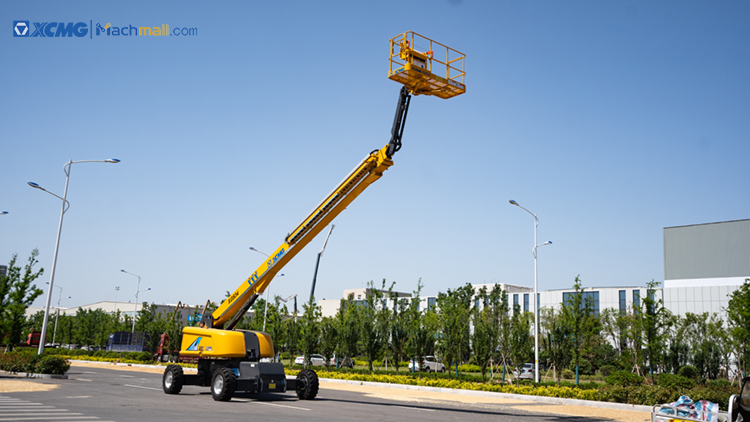

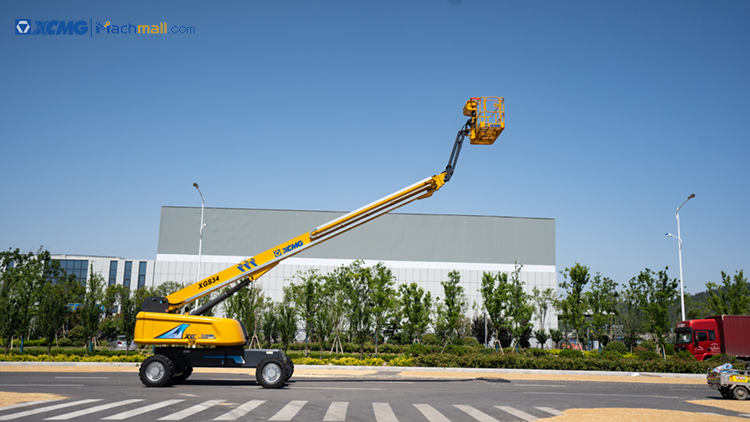

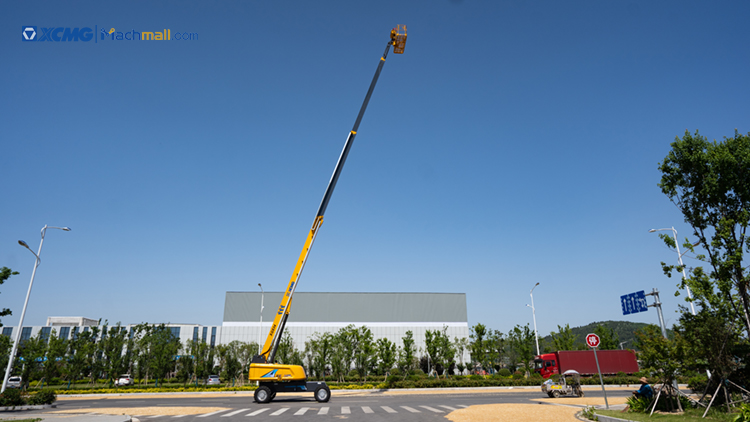

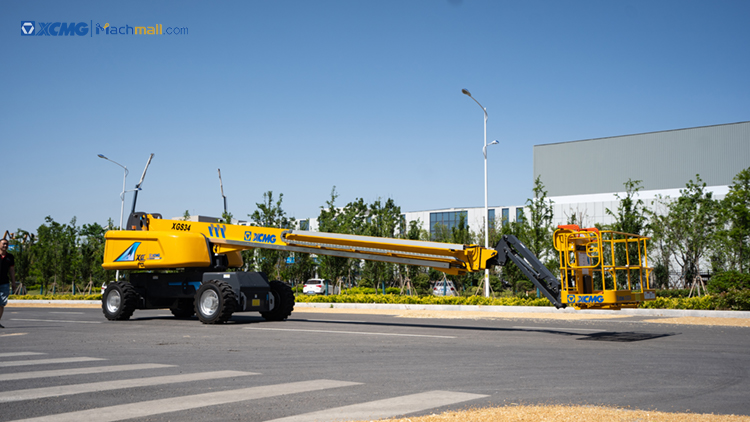

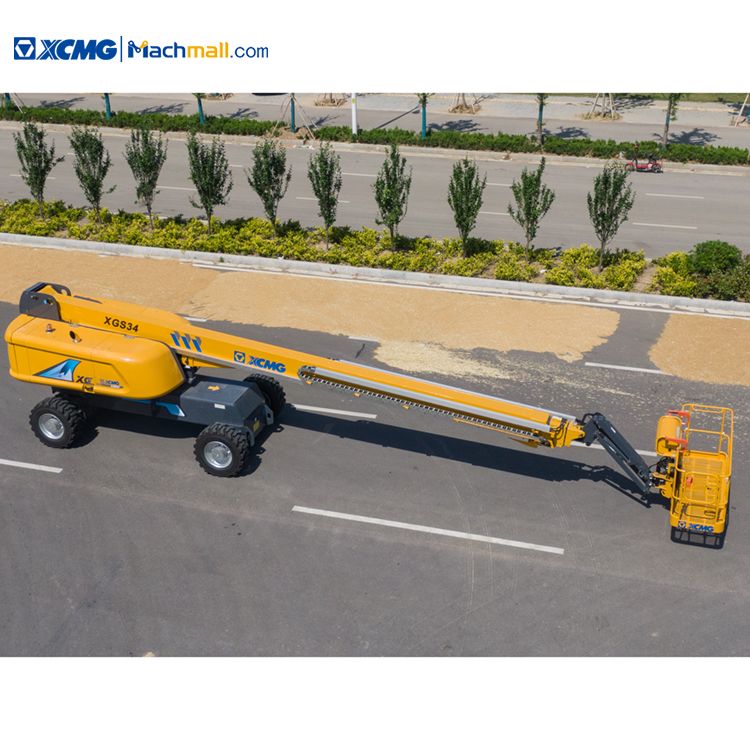

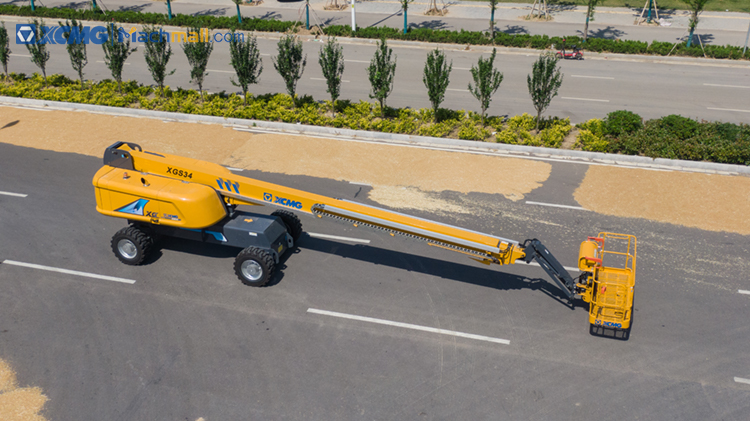

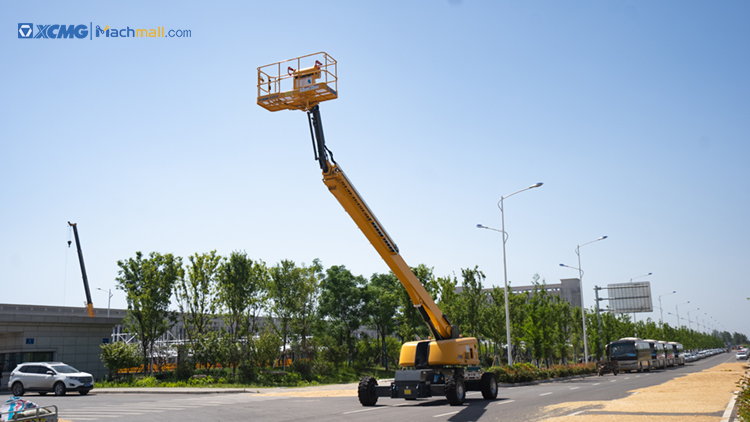

XCMG official XGS34 34m new telescopic straight arm platform boom lift.
XCMG official XGS34 34m new telescopic straight arm platform boom lift has electronic control turning, wide foam tires, excellent climbing driving, adaptive to various complicated road conditions; dual loading operation curves for real-time loading control; the widest operation reach of proucts of the same class.
XCMG official XGS34 34m new telescopic straight arm platform boom lift meets demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry.
Advantages and features:
1. XCMG official XGS34 34m new telescopic straight arm platform boom lift is the widest of the products of the same class, which improves the operation capacity; Strong driving capacity, grade ability up to 45%.
2. Enabling aerial work platform XGS34 to incomparably move in any complicated site.
3. Real-time monitor the load, effectively making use of boom and making its work performance at leading edge.
4. Specific human-machine interactive system, forming a perfect safety protection system.
|
Item |
Unit |
Parameter |
|
Overall length of complete machine |
mm |
14300 |
|
Overall width (With shaft retracted/extended) |
mm |
2490/3800 |
|
Overall height |
mm |
3070 |
|
Wheelbase |
mm |
3800 |
|
Max. working height |
m |
34.2 |
|
Max. platform height |
m |
32.2 |
|
Max. working range |
m |
24.6 |
|
Max. load capacity |
kg |
230 (unrestricted)/340 (restricted) |
|
Luffing range of boom |
° |
-6 ~ +75 |
|
Slewing angle of turntable |
° |
360° |
|
Max. rearward slewing (With shaft retracted/extended) |
mm |
2085/1430 |
|
Dimension of platform |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
18400 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius (axle retracted/extended) |
m |
8.2/10.8 (Two-wheel steering) |
|
Min. ground clearance |
mm |
260 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
- |
385/65D22.5 |
|
Engine model |
- |
Perkins 1104D-44T |
|
Engine rated power |
kW/(r/min) |
55.5/(2400) |
