Summary
- Weight:16000kg
- Dimension(L*W*H):6150*2300*3200mm
- Power(W):103kW
- Model Number:XS163J
- Brand Name:Xuzhou, Jiangsu, China
- Place of Origin:China
- Grade Ability:30%
- Travel Speed:11.17km/h
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- Weight:16000.000kg
- Condition:New
- Moving Type:Other
- Exciting Force:305/225kn
- Wheel base:3076mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

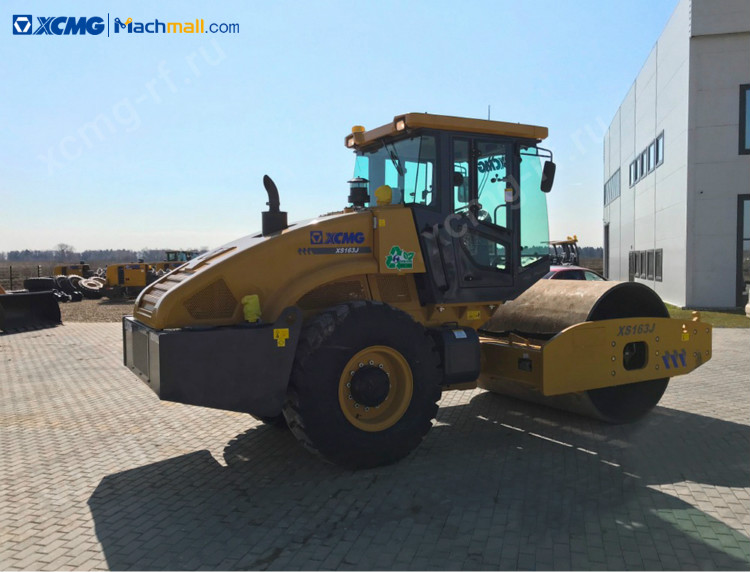

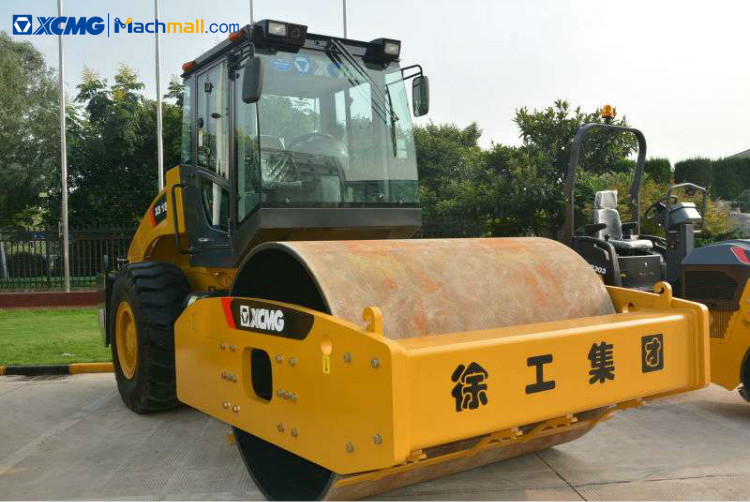

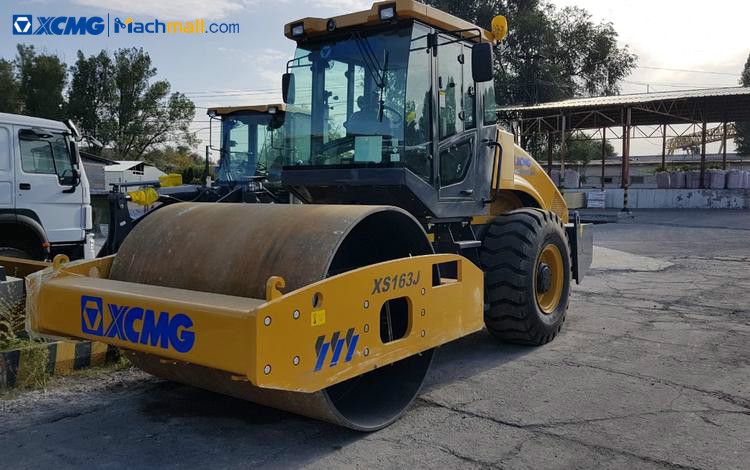

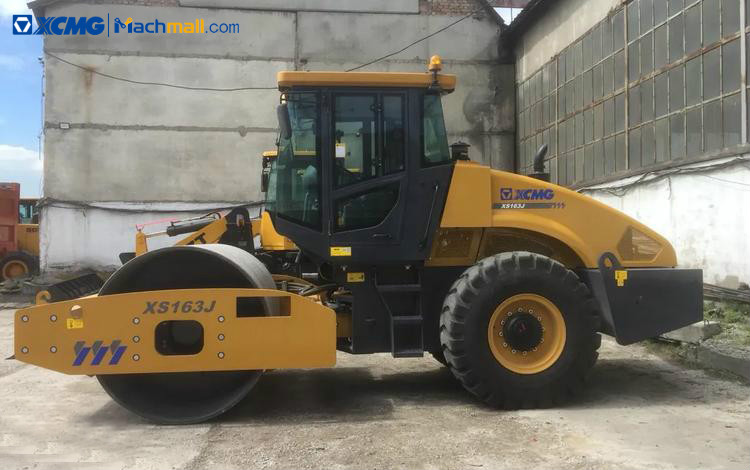

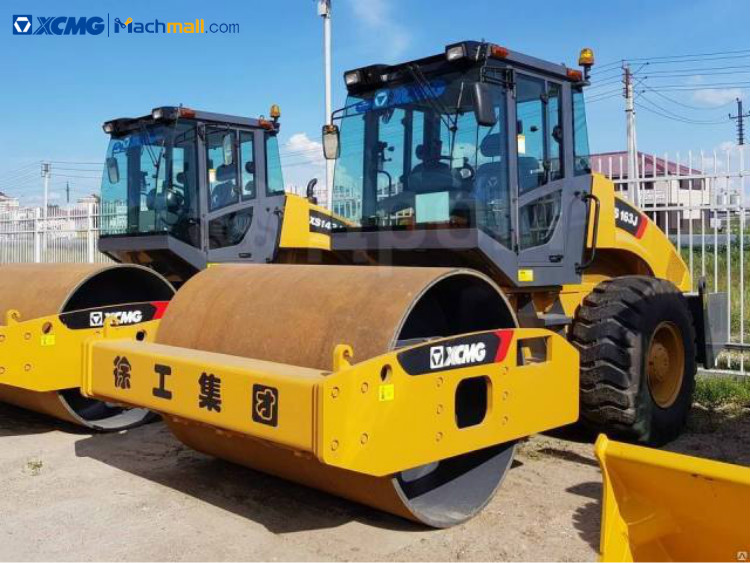

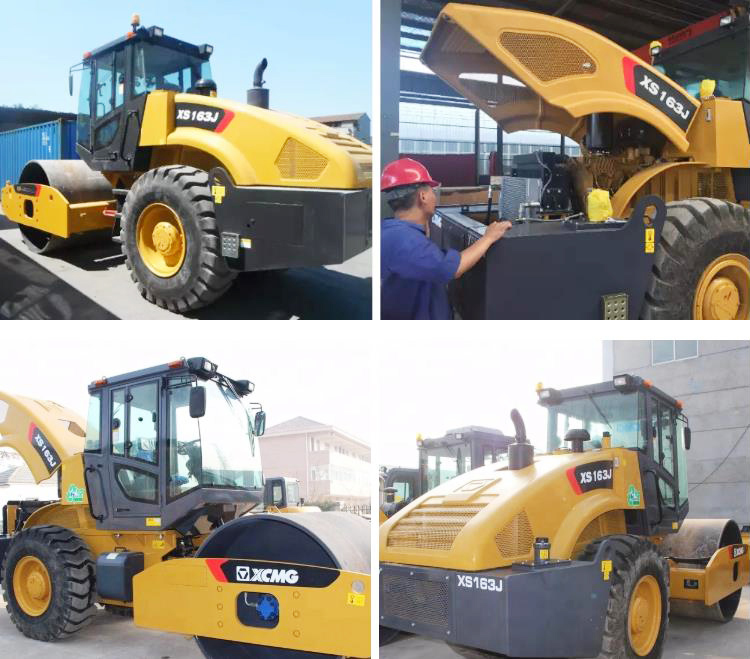

XCMG XS163J 16 ton soil compactor roller.
XCMG XS163J 16 ton soil compactor roller is suitable to the compaction of stabilized soil base materials in various large projects; Thus, XCMG road roller XS163J is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
XCMG XS163J 16 ton soil compactor roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc.
Performance Characteristics:
1. XCMG compactor roller XS163J use the H-series, water cooling, low-speed diesel engine manufactured by Shanghai.
2. XCMG XS163J compactor roller adopt closed hydraulic drive system ensure better drive performance and gradeability.
3. compactor roller XS163J use the mechanical gear box with synchro mesh unit to realize convenient operation.
4. Main clutch uses the heavy-duty special with a reliable performance and good maintainability.
5. XCMG compactor roller XS163J can meet the requirements of different working conditions.
|
Item |
|
Unit |
XS163J |
|
Service mass |
|
kg |
16000 |
|
Distributed mass of driving wheel |
|
kg |
8000 |
|
Distributed mass of vibration wheel |
|
kg |
8000 |
|
Static line load |
|
N/cm |
376 |
|
Vibration frequency |
|
Hz |
28/33 |
|
Theoretical amplitude |
|
mm |
1.9/0.95 |
|
Exciting force |
|
kN |
290/200 |
|
Range of speed(Forward) |
I |
km/h |
2.85 |
|
|
II |
km/h |
5.08 |
|
|
III |
km/h |
11.17 |
|
Range of speed(Backward) |
I |
km/h |
2.88 |
|
|
II |
km/h |
5.02 |
|
Wheel base |
|
mm |
3076 |
|
Compaction width |
|
mm |
2130 |
|
Theoretical gradeability |
|
% |
30 |
|
Minimum turn radius |
|
mm |
6800 |
|
Diameter of vibration wheel |
|
mm |
1523 |
|
Minimum ground clearance |
|
mm |
440 |
|
Engine Model |
|
|
SC4H140.1G2 |
|
Rated power |
|
KW/r/min |
103/1800 |
|
Overall dimension (length x width x height) |
|
mm |
6150*2300*3200 |
