Summary
- Max Lifting Height:7150mm
- Rated Loading Capacity:3.5ton
- Type:Telescopic Forklift
- Model Number:XC6-3507K
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
Specifications
- Weight:7850.000kg
- Condition:New
- Moving Type:Wheel
- Wheelbase:2980mm
- Overall dimensions of the whole set:6380×2500×2740mm
- Rated power:74.9kw
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

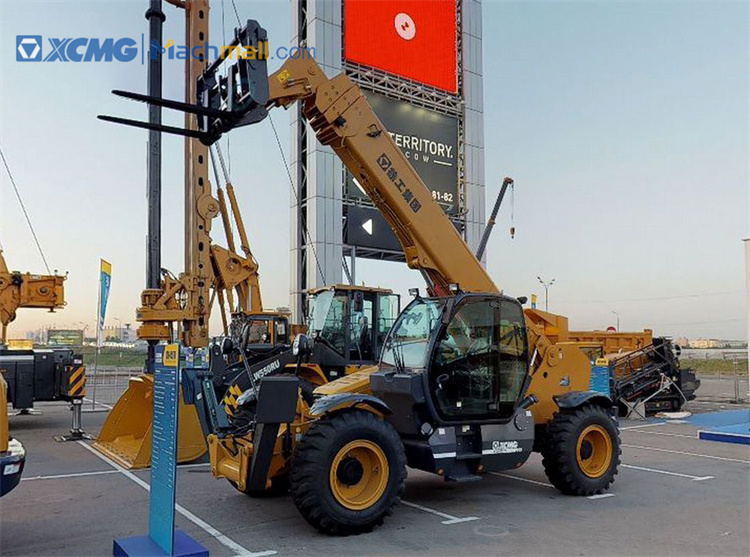

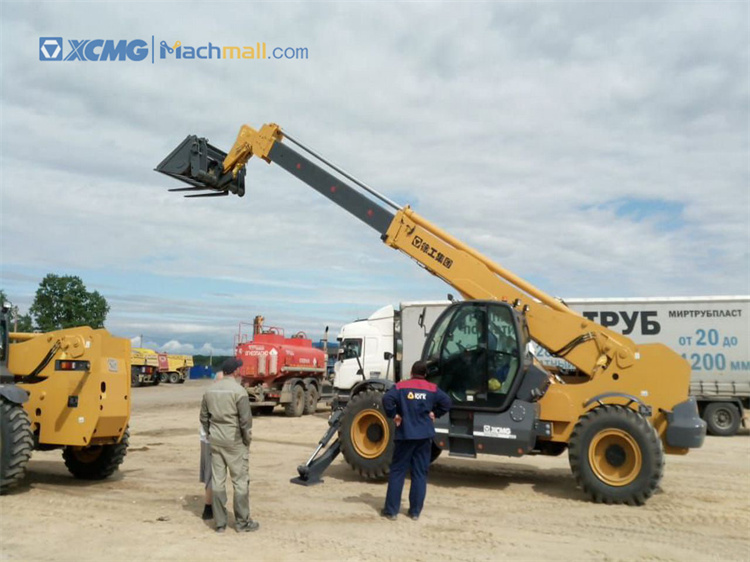

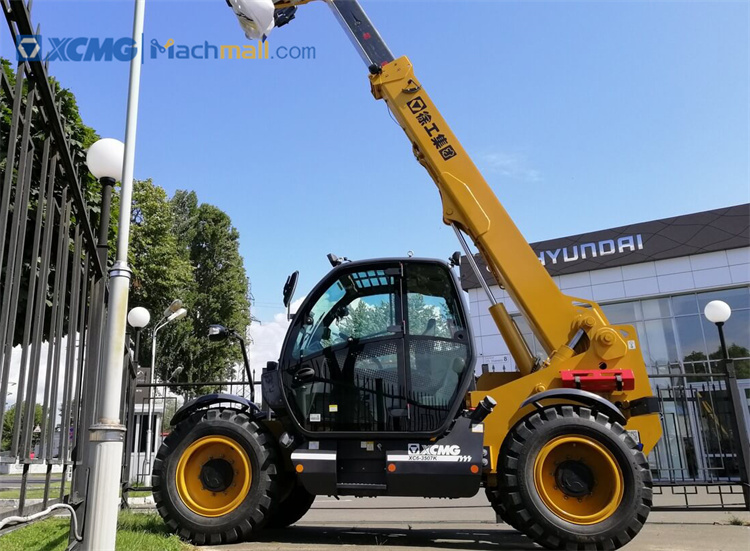

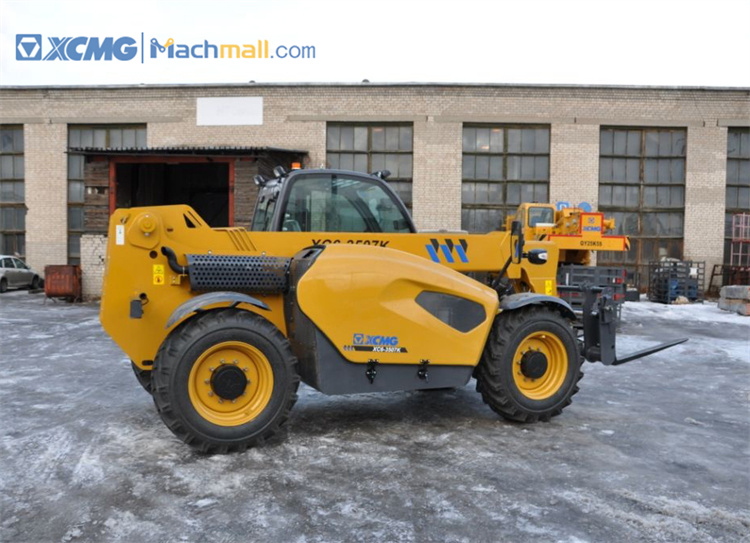

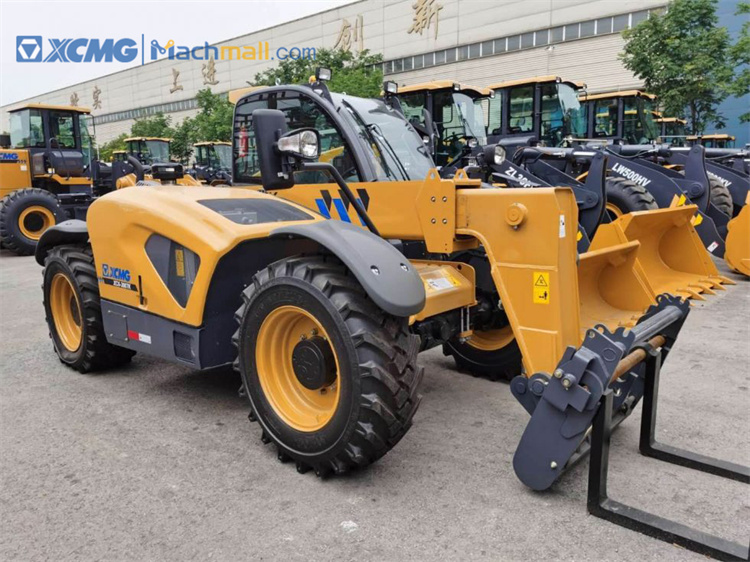

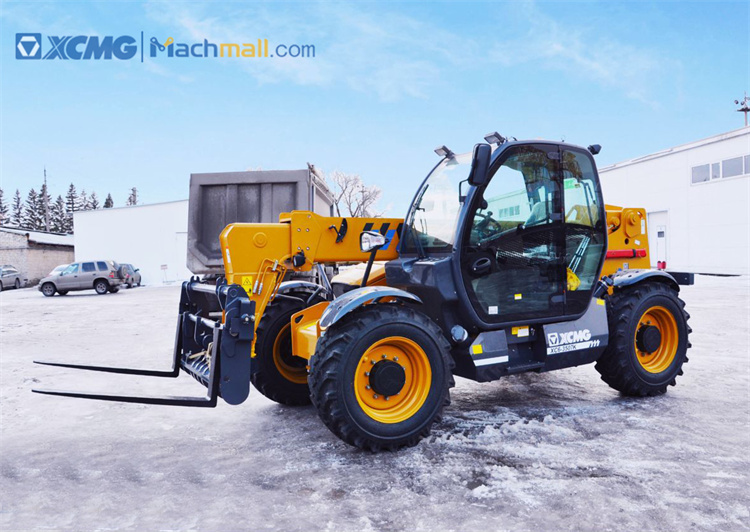

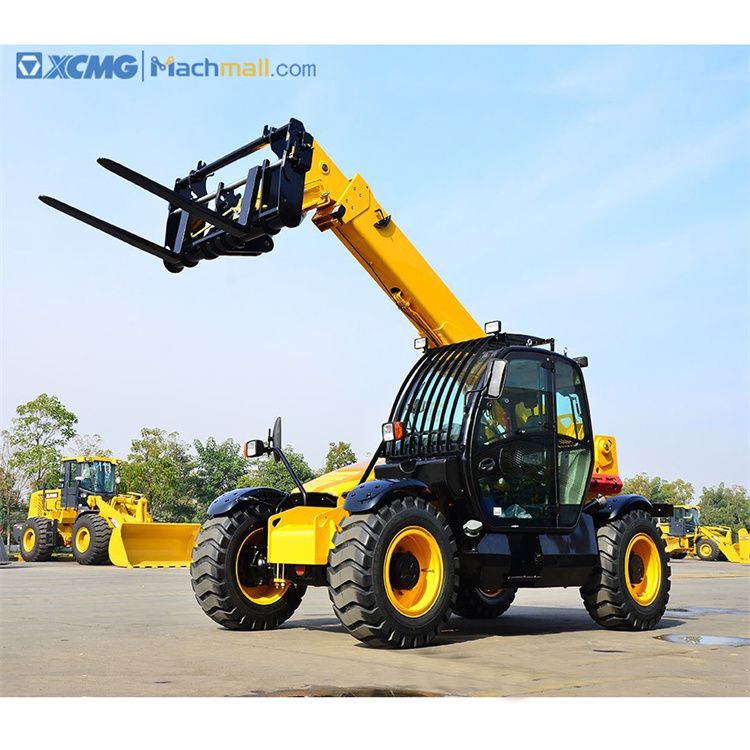

XCMG 3.5 ton small telescopic forklift.
XC6 is the latest XCMG 3.5 ton 7m telescopic forklift telehandler which features the highest operation simplicity, safety and efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
Performance Characteristics:

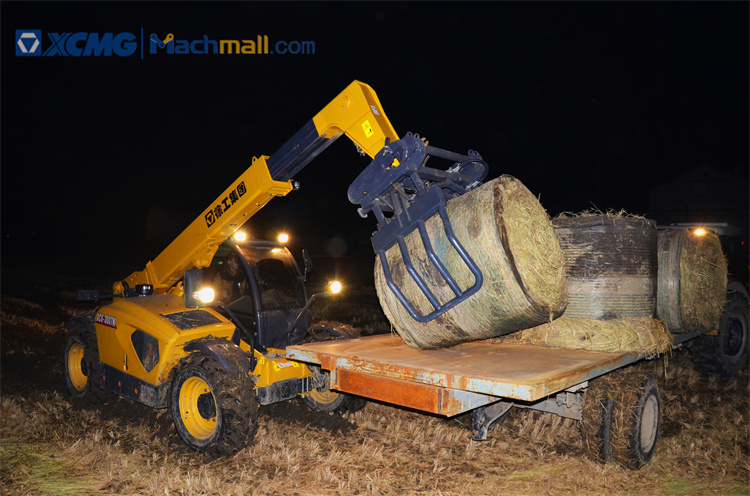

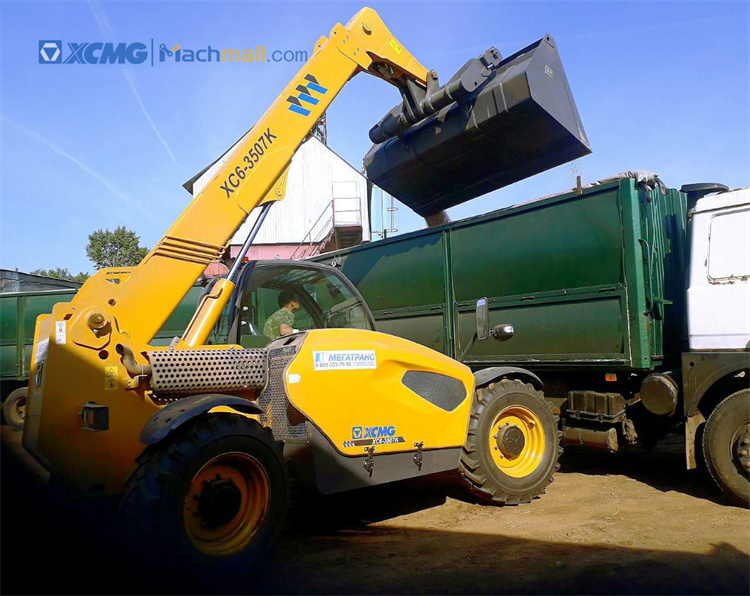

* Equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
* Realize super-strong off-road capability and adapt to diversified working conditions.
* This machine features high handinessand flexibility.
* Realizes full speed range drive and stable driving.
* Meets the needs of diversified working conditions.
* Achieve high operation safety and reliability.
* Features accurate, stable, and efficient operations.
|
XC6-3507 |
Unit |
|
|
Machine weight(±5%) |
7850 |
kg |
|
Engine power rate |
74.9 (Deutz) |
kw |
|
Max. payload |
3500 |
kg |
|
Payload under max. extension |
1250 |
kg |
|
Max. lifting height(±100) |
7150 |
mm |
|
Max. outreach(±100) |
3600 |
mm |
|
Load center distance |
600 |
mm |
|
Swing angle(±1°) |
-3~65 |
(°) |
|
Forwards(±1.5) |
90 |
(°) |
|
Backwards(±1) |
17.5 |
(°) |
|
Max. traction force |
≥55 |
kN |
|
Grade ability |
≥40 |
(°) |
|
Max. travel speed(±5%) |
30 |
Km/h |
|
Turning radius(outer of the tire) |
≤3880 |
mm |
|
Brake distance |
≤8 |
m |
|
Total length(±2%) |
4995 |
mm |
|
Total height(±2%) |
2470 |
mm |
|
Total weight(±2%) |
2250 |
mm |
|
Wheelbase(±2%) |
2980 |
mm |
|
Trade(±2%) |
1840 |
mm |
