Summary
- Rated Load:3 ton
- Dimension(Long* Breadth * High):7245*2482*3050mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:LW300FV
- Brand Name:XCMG
- Certification:ISO
Specifications
- Weight:10600.000kg
- Engine Brand:WEICHAI
- Rated Load:3-5 ton
- Bucket Capacity:2.5 - 3.5m³
- Wheel base:2600mm
- Engine Model:WP6G125E333
- Rated power/Speed:92/2000Kw/rpm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

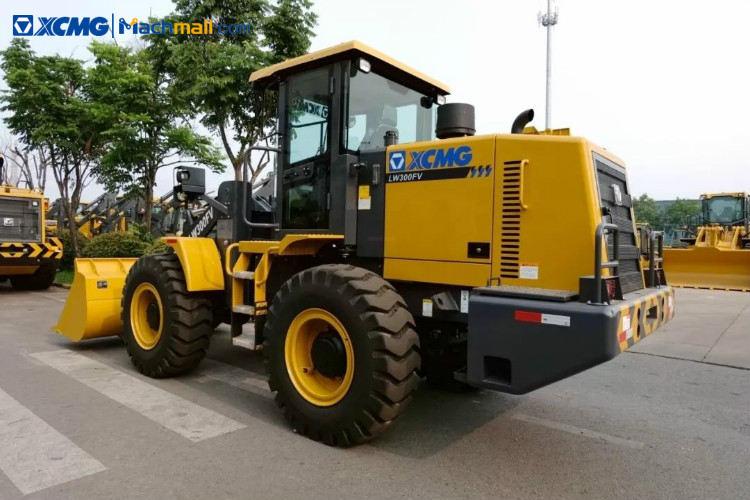

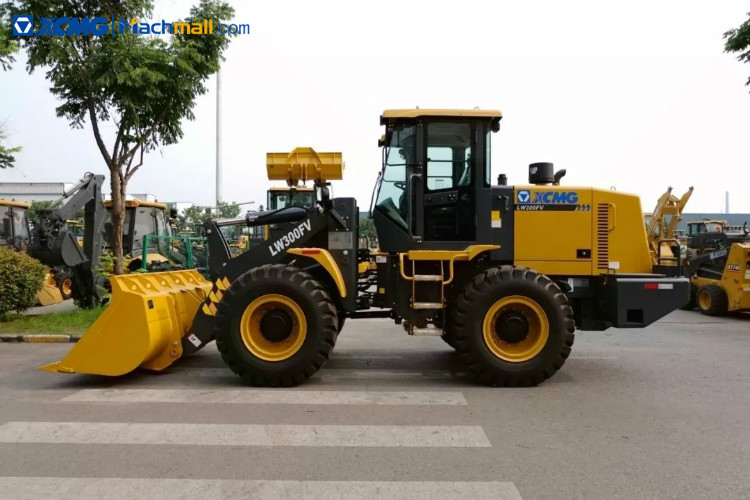

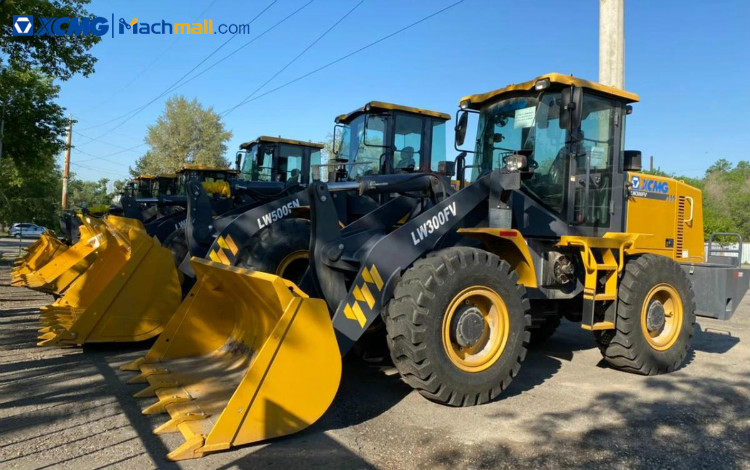

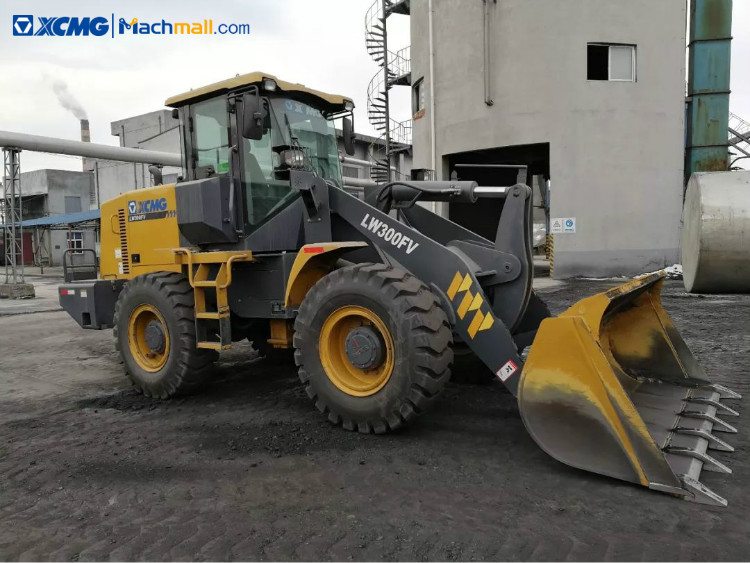

XCMG 3ton wheel loader LW300FV.
XCMG wheel loader LW300FV is the most popular model of 3ton China wheel loader, XCM LW300FV is new model equipped with EURO III engine with electric injector, new model will have high performance.
LW300FV can be used for shoveling, transporting, unloading and leveling. If the corresponding working device is replaced, it can also be used for bulldozing, lifting, loading and unloading wood and steel pipes. It is a kind of ten purposes. A wide range of construction machinery.
Performance Characteristics:
1, High energy-conservation, efficiency, reliability, and comfort.
2, All load-carrying portions of the drive axle are solid and firm enough to ensure excellent overload resistance and meet the needs of diversified high strength and high load operations.
3, As the sole low speed engine energy-conservation product among the industry's 3t loaders, it’s leading the industry’s energy-conservation trend.
4, The full-view cab sufficiently takes in consideration the human-machine functions to realize high operation safety and comfort.
5, Undertaking the concept of “ground maintenance”, all maintenance locations are scientifically arranged to ease the checking and maintenance.
LW300FV optional parts:
A/C/ 1.8m3 Blade bucket/ 2.1m3 Lignt material Blade bucket/ 2.5m3 Lignt material Blade bucket / 1.8m3 Reinforced bucket
|
Description |
Specification |
Unit |
|
Rated operating load |
3000 |
kg |
|
Bucket capacity |
1.8 |
m3 |
|
Machine weight |
10600±200 |
kg |
|
Dump clearance at maximum lift |
2930 |
mm |
|
Reach at maximum lift |
1010 |
mm |
|
Wheel base |
2600 |
mm |
|
Tread |
1850 |
mm |
|
Max. breakout force |
130 |
Kn |
|
Max. horse power |
95 |
Kn |
|
Total hydraulic cycle time |
8.8 |
s |
|
Min. turning radius over tyres |
5165 |
mm |
|
Articulation angle |
35 |
° |
|
Overall machine dimension LxWxH |
7245x2482x3050-3210 |
mm |
|
Engine Model |
WP6G125E333 |
|
|
Rated power/Speed |
92/2000 |
Kw/rpm |
