Summary
- Dimension(L*W*H): 10190*2500*3700 mm
- Weight: 20000kg
- Power(W):203kW
- Model Number:HB30K
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- Weight:20000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- chassis:HOWO
- Max. horizontal conveying distance:25.7m
- Reach height:29.6m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

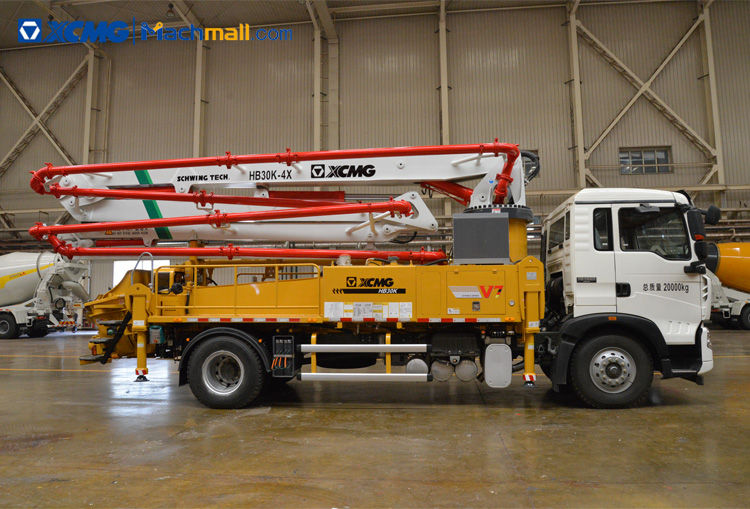

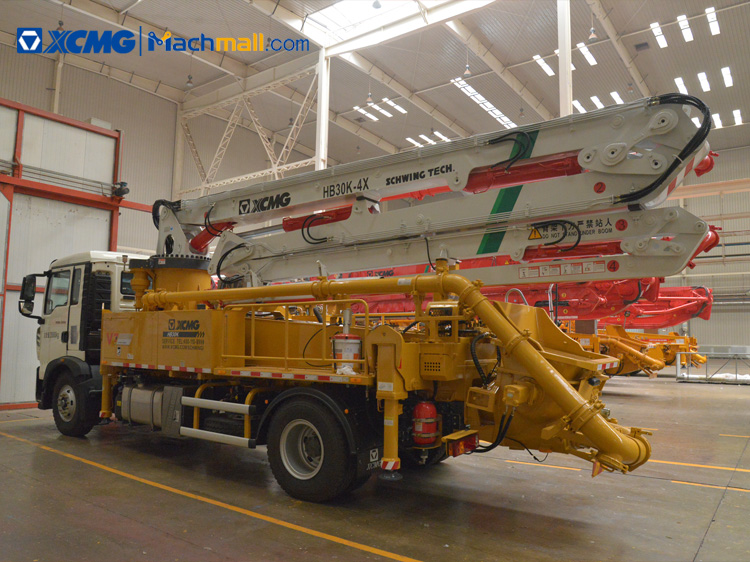

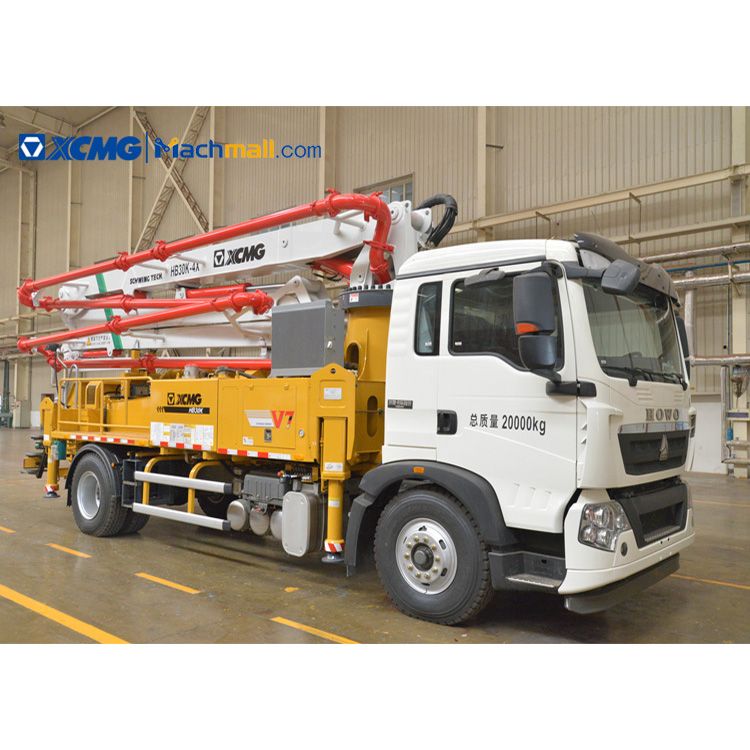

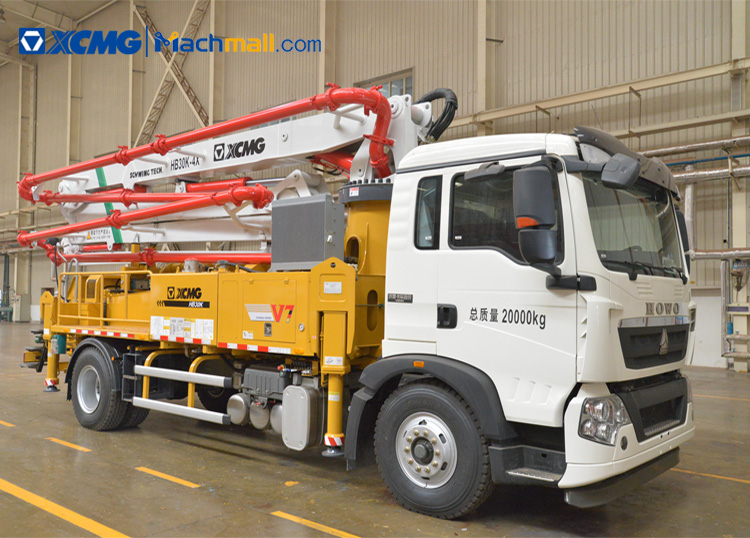

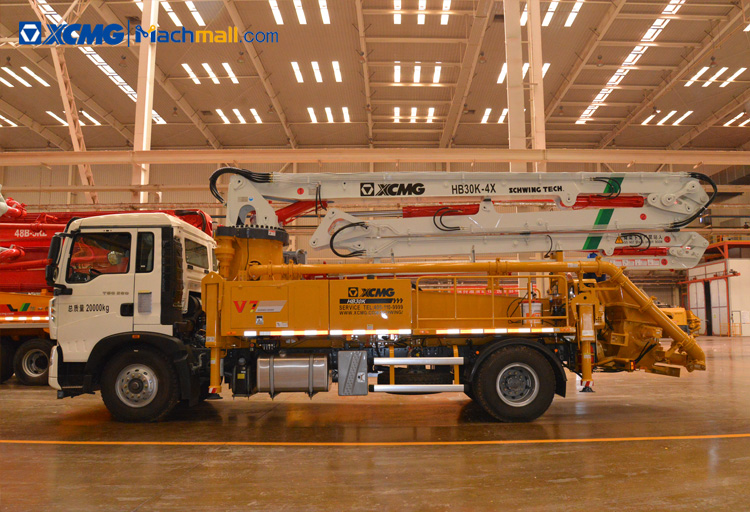

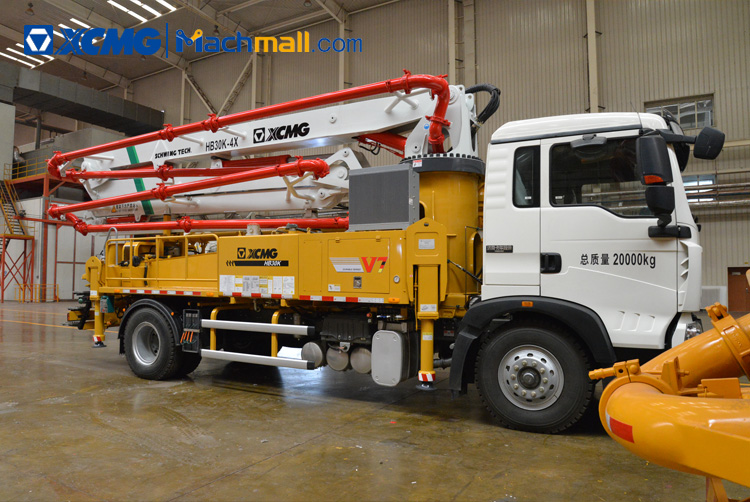

XCMG 30m small concrete pump trucks HB30K with HOWO chassis for Vietnam.
XCMG 30m small concrete pump trucks HB30K is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
XCMG 30m small concrete pump trucks HB30K is highly reliable and durable with seven technical highlights.

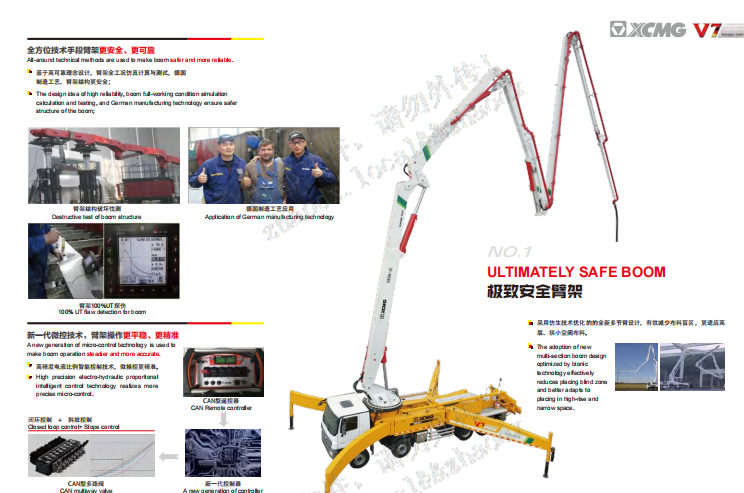

More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
|
Description |
Unit |
|
Parameter value |
|
Outline dimension |
mm |
|
10190*2500*3700 |
|
Overall weight |
kg |
|
20000 |
|
Chassis |
Model |
|
ZZ5207M521GC1 |
|
|
Max. speed |
km/h |
90 |
|
|
Max. grade-ability |
% |
35 |
|
|
Wheelbase |
mm |
5200 |
|
|
Tire |
|
11.00R20 |
|
Engine |
Model |
|
MC07.28-30 |
|
|
Max. power |
kW |
203 |
|
|
Max. torque |
N.m/(r/min) |
1100/1200-1800 |
|
|
Displacement |
L |
6.87 |
|
|
Emission standard |
|
Eruo III |
|
Pumping system |
Theoretical output |
m3/h |
100 |
|
|
Concrete pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
Time/min |
25 |
|
|
Delivery cylinder diameter *stroke |
mm |
φ230*1600 |
|
|
Max. diameter of pumping concrete |
mm |
40 |
|
|
Filling height |
mm |
1550 |
|
|
Concrete slump range |
cm |
8~23 |
|
Placing boom |
Reach height |
m |
29.6 |
|
|
Reach depth |
m |
18 |
|
|
Slewingradius |
m |
25.7 |
|
|
Slewing angle |
。 |
±270 |
|
Stabilizer span |
Longitudinal span of stabilizer |
mm |
6100 |
|
|
Transverse span of front stabilizer |
mm |
5555 |
|
|
Transverse span of rear stabilizer |
mm |
4810 |
|
Others |
Lubrication method |
|
Automatic lubrication |
|
|
Control method |
|
Manual/remote control |
|
|
Volume of water box |
L |
400 |
