Summary
- Place of Origin:XUZHOU, CHINA
- Brand Name:XCMG
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

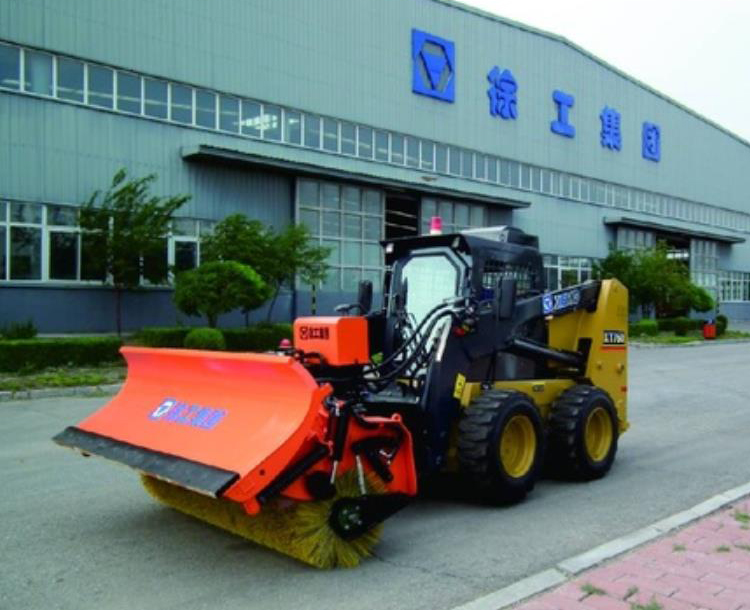

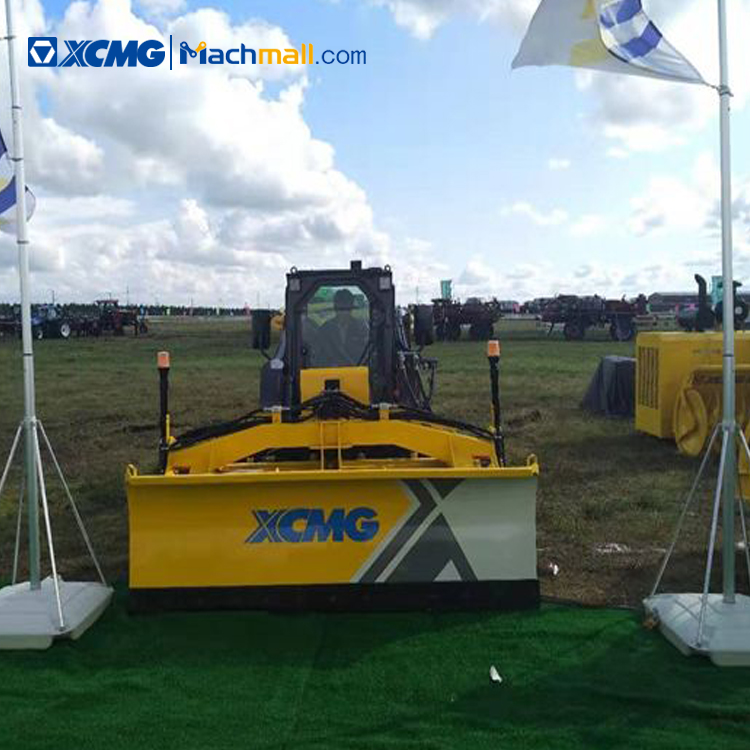

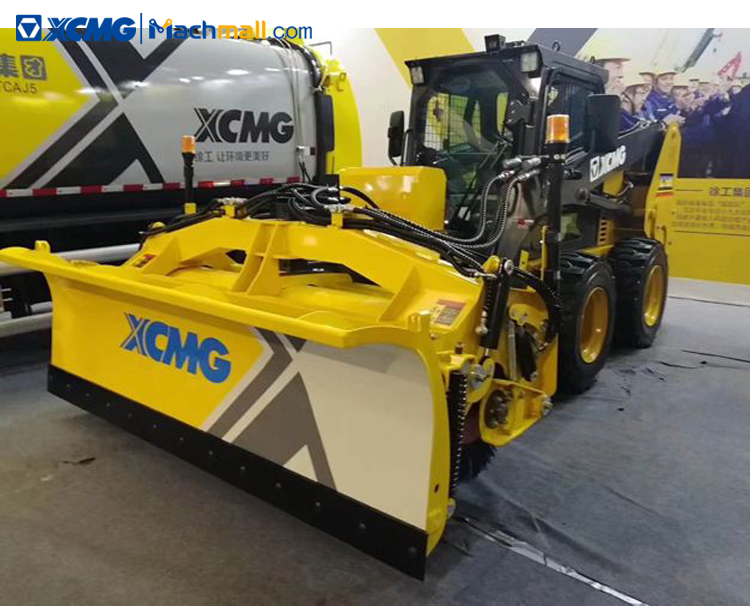

XCMG skid steer loader with multifunction attachment snow brush and snow shovel .

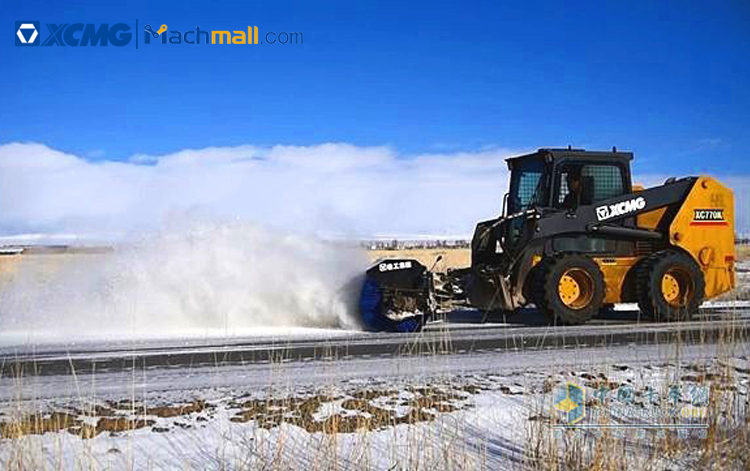

XCMG skid steer loader with multifunction attachment integrates snow brush and snow shovel, and the snow removal width is 2.4 meters. The working speed can reach 12 km/h, which is suitable for sweeping snow, sand and gravel on highways and urban roads, realizing multiple functions in one machine.
1. Excellent performance and quality assurance
The hydraulic system of the skid steer loader provides power and the system works stably. The shovel board is made of Q345B material, with a firm and stable structure. The blade is made of wear-resistant steel plate with good wear resistance.
2. Flexible operation, professional and efficient

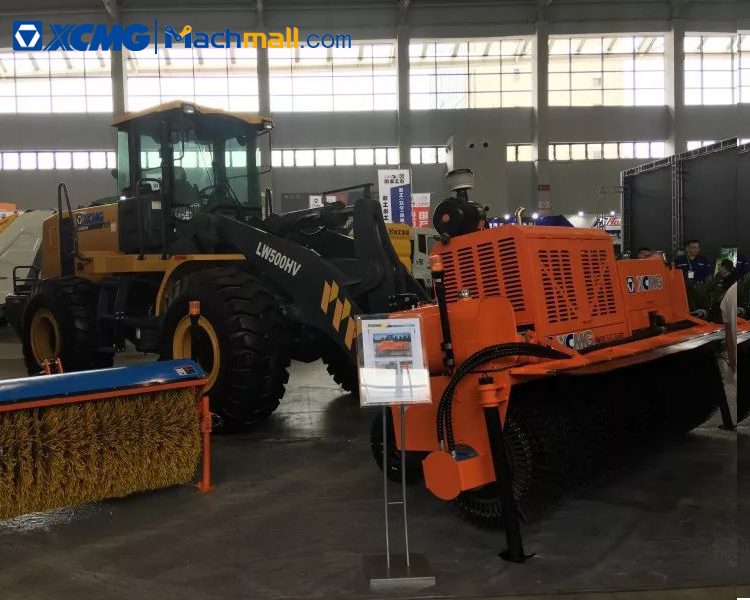

Easy to mount, the integrated snow shovel and snow brush design can be quickly interchanged with the skid steer loader bucket. According to the thickness of the snow, the snow brush and snow shovel can be operated individually or in combination. The whole machine has the functions of left and right swing angle and automatic adjustment, can be tilted horizontally, and the snow discharge speed is fast.
3. Reliable control, safety and stability

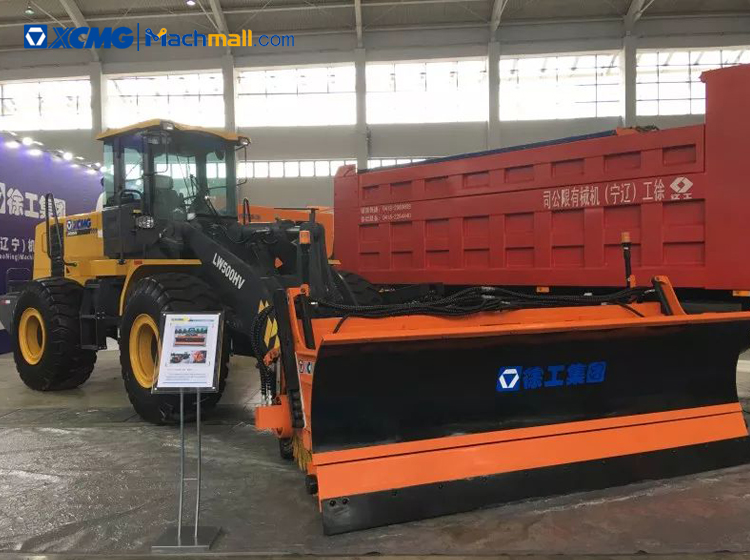

The brush shaft is processed as a whole, and the installation coaxiality is high, and the snow brush runs strongly and smoothly. The swipe chip swipes the card column, running smoothly, and sweeping full coverage. The snow shovel adopts an overall obstacle avoidance form, which has a large obstacle avoidance force and can quickly and automatically reset after crossing the obstacle.
4. Simple operation, manpower saving
The operator can control various actions of the whole machine in the cab, which makes the operation more convenient and comfortable, and reduces the labor intensity.
|
Parameters |
CS24 |
CS32 |
|
Snow shovel width(mm) |
2400 |
3460 |
|
Snow brush width(mm) |
2000 |
3200 |
|
Swing angle left and right(°） |
±30 |
±25 |
|
Pavement profiling(°) |
±5 |
±7.5 |
|
Brush blade diameter(mm) |
600 |
810 |
|
Snow brush working speed(r/min) |
250-280 |
250-280 |
|
Max thickness of snow removal(mm) |
150 |
200 |
|
Min working temperature(℃) |
-40 |
-40 |
|
Applicable vehicle |
Skid steer loaders over 1 ton |
Wheel Loaders over 5 ton |
