Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):9360*2500*3660mm
- Weight:18000kg
- Power(W):132000W
- Model Number:HPC30V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Max Aggregate Size:22/16
Specifications
- Weight:18000.000kg
- Condition:New
- Moving Type:Wheel
- Max. front spraying:14.8m
- Max. spraying height:18m
- Max. spraying width:29.6m
- Max. speed/hour:90km/h
- Max. reach depth:7m
- Wind supply capacity:10~13m3/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

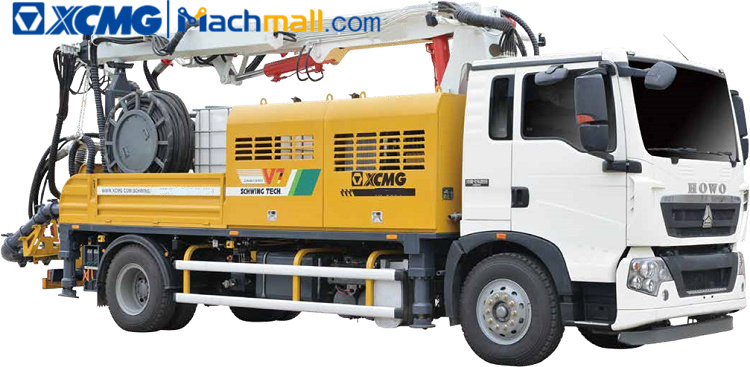

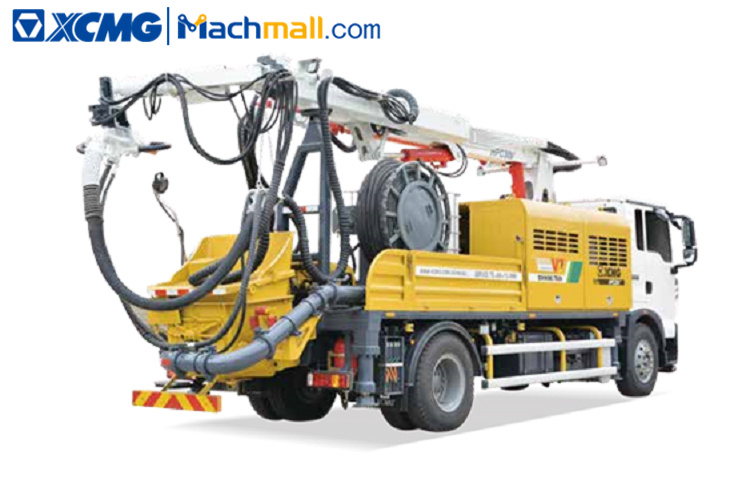

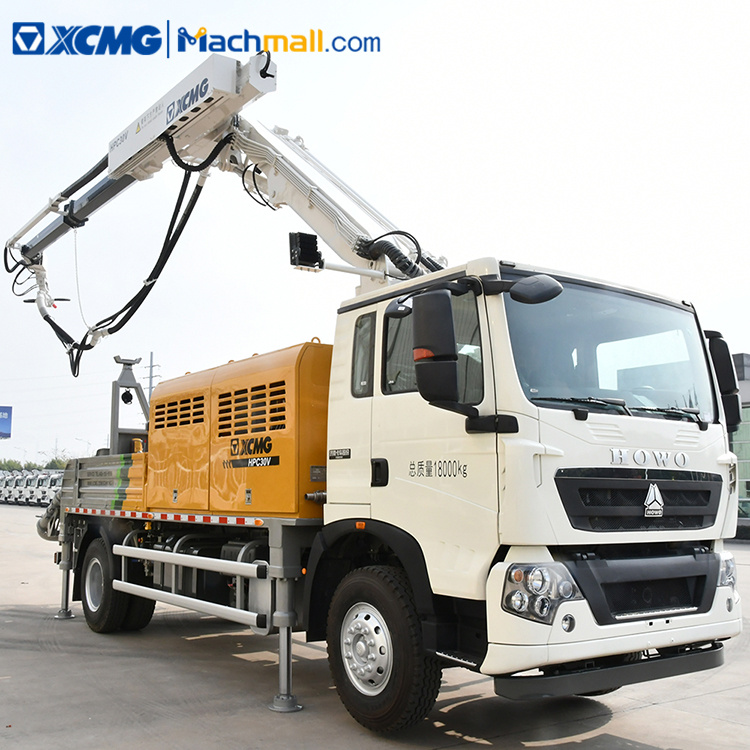

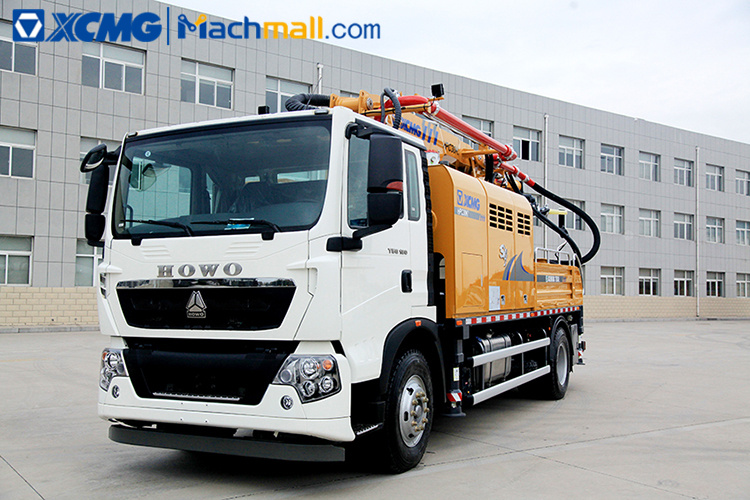

XCMG shotcrete pump truck with HOWO chassis HPC30V price for Myanmar.
XCMG shotcrete pump truck HPC30V,equipped with HOWO chassis, can realize the max. spraying height of 18m, the farthest front spraying distance of 15m.No matter from the economic benefit, loading quality, or overload capacity, HOWO chassis in the industry has a leading technology and brand advantage.
Advabtages:

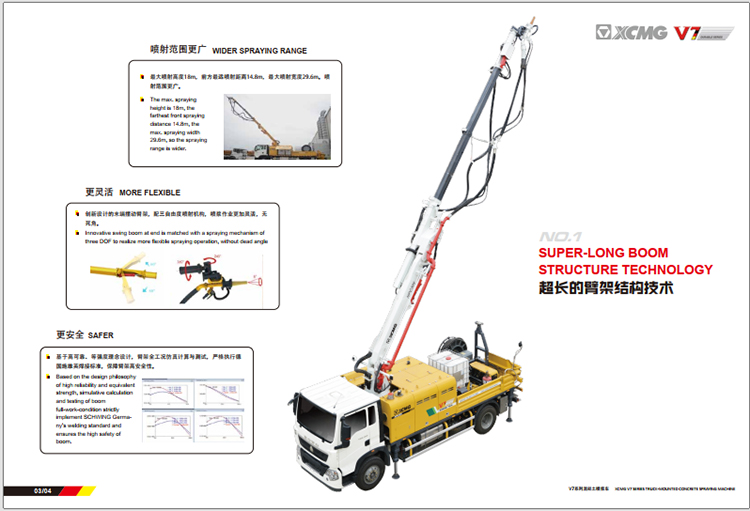

1.More accurate boom control technology
With boom inching control technology and initiative shock absorption technology, such motions as boom slewing, elevating, telescoping and spraying are steadier, with slewing amplitude reduced by 60% , elevating amplitude reduced by 80% and positioning more accurate.
2.More practical double-power technology
Besides the main power by motor, chassis power can realize boom and stabilizer telescoping without access to electricity and condensing agent feeding into IBC-tank; the simultaneous operation of pumping system and high-pressure water pump ensures more convenient and efficient cleaning of overall machine.
3.Steadier reversing buffering technology
The valve control buffering technology with faster response replaces traditional pump emission reduction technology; The buffering process is steadier and more reliable, with smaller impact.
|
ITEM |
UNIT |
HPC30V |
|
Overall weight |
kg |
18000 |
|
Rated power of engine |
kW/rpm |
132 /2400 |
|
Emission standard |
—— |
China V |
|
Gradeability |
％ |
30 |
|
Turning radius |
m |
9.5 |
|
Max. speed/hour |
km/h |
90 |
|
Max. spraying height |
m |
18 |
|
Max. spraying width |
m |
29.6 |
|
Max. front spraying distance |
m |
14.8 |
|
Min. permissible tunnel height for spraying operation |
m |
4 |
|
Max. reach depth |
m |
7 |
|
Axial rotation of nozzle seat |
° |
360 |
|
Axial swing of nozzle seat |
° |
240 |
|
Nozzle deflection angle X Turning angle of brush |
° |
8×360 |
|
Max. theoretical spraying capacity |
m3/h |
30 |
|
Max. pumping pressure |
MPa |
8 |
|
Concrete cylinder diameter/stroke |
mm |
180/1000 |
|
Hopper capacity |
L |
500 |
|
Transfer tube |
—— |
Rock valve |
|
Air compressor |
|
optional |
|
Wind supply capacity |
m3/min |
10～13 |
|
Wind pressure |
MPa |
0.8 |
|
Delivery pressure |
MPa |
0.8 |
|
Accelerant weighing/delivery capacity |
L/h |
60～600 |
|
Outline dimension |
mm |
9360×2500×3660 |
