Electrical Engineering > Low Voltage Distribution Equipment > Power Transformer

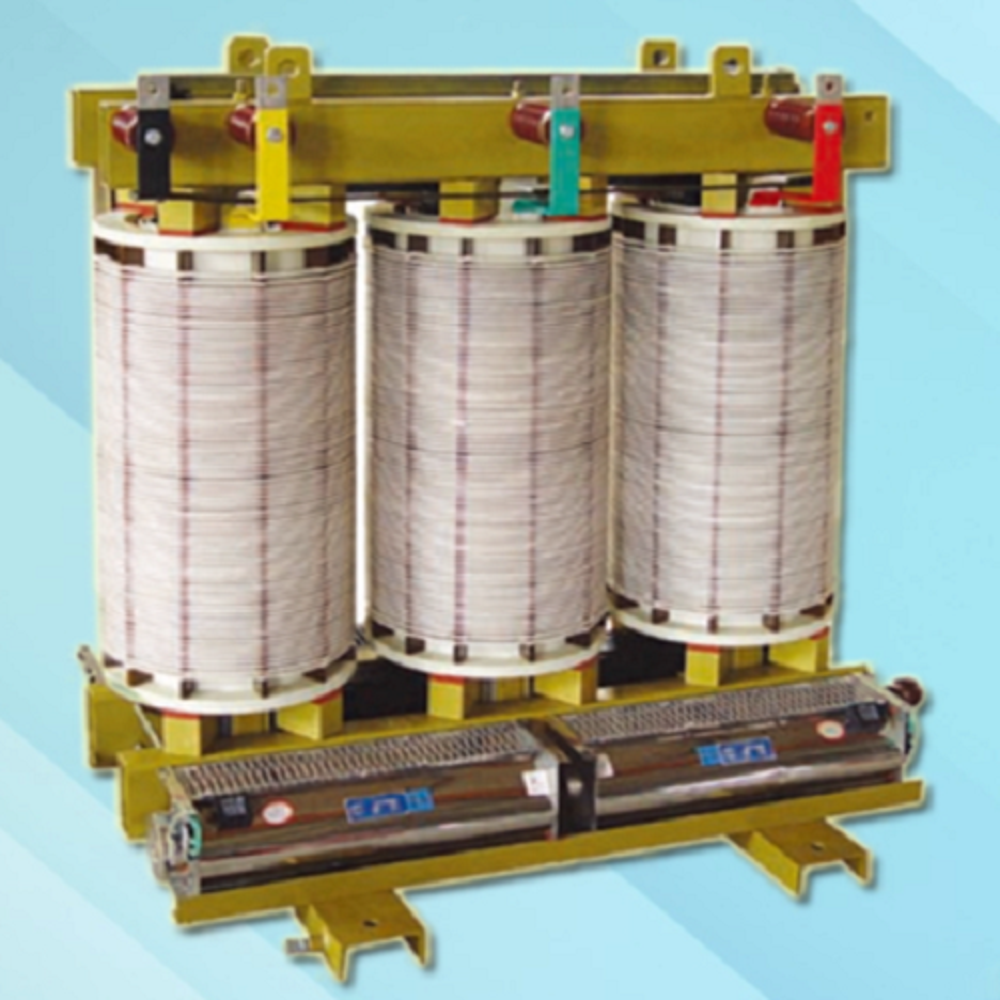

SG(B)10 /15Three-phase resin-insulated solid-cast power transformer

  • SG(B)10 /15Three-phase resin-insulated solid-cast power transformer
  • SG(B)10 /15Three-phase resin-insulated solid-cast power transformer

SG(B)10 /15Three-phase resin-insulated solid-cast power transformer

SG(B)10 /15Three-phase resin-insulated solid-cast power transformer
SG(B)10 /15Three-phase resin-insulated solid-cast power transformer
SG(B)10 /15Three-phase resin-insulated solid-cast power transformer

SG(B)10 /15Three-phase resin-insulated solid-cast power transformer

View All >
After-sales Service： Engineers available to service machinery overseas
Min Order Quantity： 1 Unit
Delivery Time：
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service：
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Inquiry Chat Now
SG(B)10 /15Three-phase resin-insulated solid-cast power transformer
SG(B)10 /15Three-phase resin-insulated solid-cast power transformer
Product:
SG(B)10 /15Three-phase resin-insulated solid-cast power transformer
Quantity:
- + /EA

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare
Details

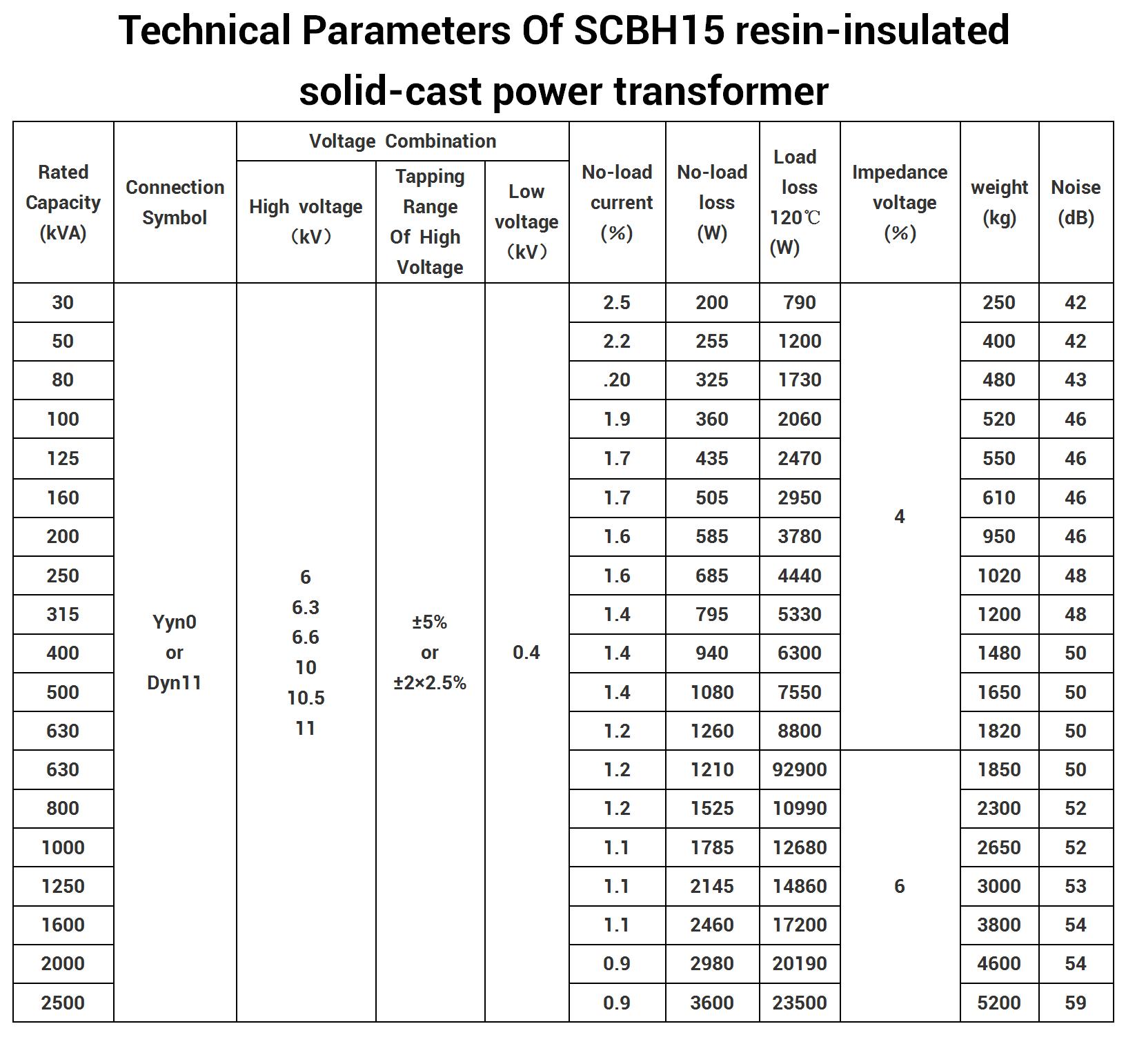

Specifications

  • Weight:1200.000kg
  • Warranty Period:12 Months
  • Certification:CE/ISO9001
  • Condition:New
  • Rated Capacity:30KVA~2500KVA
  • Connection Symbol:Yyn0 or Dyn11
  • Primary side high voltage:6kv / 6.3kv / 6.6kv / 10kv / 10.5kv / 11kv
  • Tapping Range Of High Voltage:±5% or ±2×2.5%
  • Subside Low Voltage:0.4kv
  • No-load current:0.9%~2.5%
  • No-load loss:200W~3600W
  • Load loss (120℃):790W~23500W
  • Impedance voltage:4% or 6%
  • weight:250kg~5200kg
  • Noise:42dB~59dB

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China
