Summary
- Fork Width: 100mm
- Fork Length:1150mm
- Min Lifting Height: 85mm
- Max Lifting Height:200mm
- Rated Loading Capacity: 2 ton 3 ton
- Power Source:DC MOTOR
- Type:Powered Pallet Truck
- Model Number:CBS20 CBS30
- Brand Name:YANCHA
- Place of Origin:Jiangsu, China
Specifications
- weight:360.000kg
- Condition:New
- Moving Type:Other
- Color:Customer Demanded
- Battery:24V
- Overall Dimensions:1800*680*1320mm
- Turning radius:1250mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

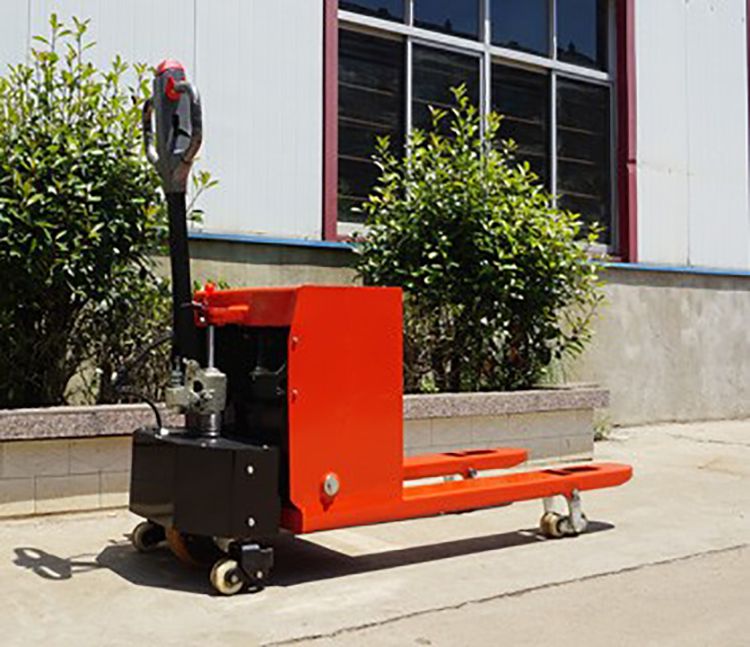

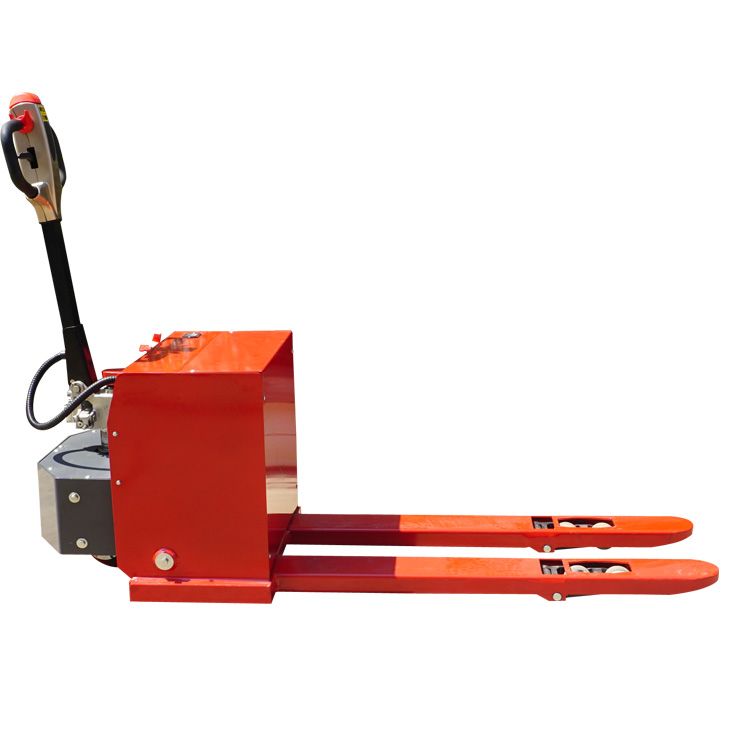

YANCHA semi electric pallet truck 2 ton 3 ton with CE.
YANCHA semi electric pallet truck 2 ton 3 ton with CE has high performance and high reliability: alternating driving system provide strong power, which ensures more accurate control and more stable operation.
Advantages:
1. Truckage fees of forklift can be reduced more than 25% compared with manual handling.
2. Enlarge cargo volume, and save carriage time.
3. Reduce destroy rate.
4. Increase cargo's height in order to improve the space utilization rate.
5. Reduce the labor intensity and improve working condition.
6. Good mechanical performance, various working performance, less investment of loading and discharging equipments.
Model |
Unit |
CBS20 |
CBS30 |
Load Capacity |
kg |
2000 |
3000 |
Lift Height |
m |
200 |
200 |
Load Center |
mm |
600 |
600 |
Fork Length |
mm |
1150 |
1200 |
Lowest height |
mm |
85 |
85 |
Manipulation Way |
|
Handle |
|
Tyres |
|
Nylon/PU |
|
Dimension of Driving Wheel |
|
250*80 |
250*80 |
Speed at Full Load |
km/h |
4.5 |
4.5 |
Lifting Speed at full Load |
mm/min |
55 |
55 |
Speed Control Way |
|
Stepless Speed Regulator |
|
Door Frame Tilt Angle |
° |
/ |
/ |
Gradient at full Load |
° |
10 |
8 |
Battery |
V/Ah |
24/120 |
24/120 |
Working Time(for reference) |
h |
4 |
4 |
Driving Motor |
kw |
1.2 |
1.5 |
Lifting Motor |
kw |
/ |
/ |
The Min. Turning Inner Radius |
mm |
1200 |
1200 |
L X W X H Dimension |
mm |
1800*680(550)*1320 |
1850*860*1420 |
weight |
kg |
350 |
360 |
