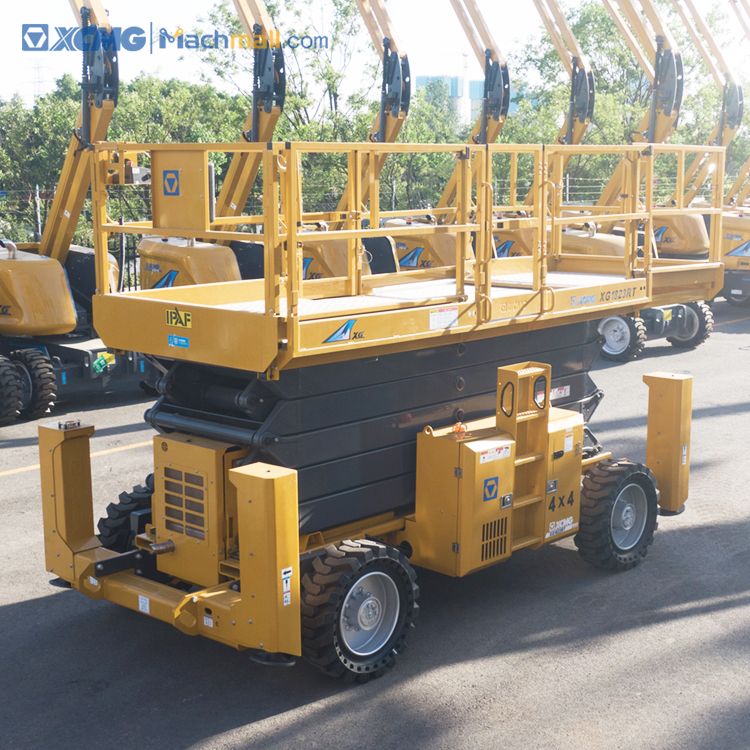

XCMG official 18m mobile rough terrain hydraulic scissor lift platform XG1823RT price for sale
![](/app/topc/statics/images/close.png)
![XCMG official 18m mobile rough terrain hydraulic scissor lift platform XG1823RT price for sale](http://www.machmall.com/images/store/357636/item/bcbc91356f51dcf4d58d0486f93e120a1641463834.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:8000kg
- Overall Dimension:4860*2286*3170mm
- Table Size:3980*1830mm
- Max Lifting Height:18m
- Rated Loading Capacity:680kg
- Power:36kw
- Model Number:XG1823RT
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:8000.000kg
- Condition:New
- Moving Type:Wheel
- Minimum turning radius (inner wheel/outer wheel):2.5/5.6m
- Lifting and falling time of working platform:55/55s
- Maximum number of workers:4
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

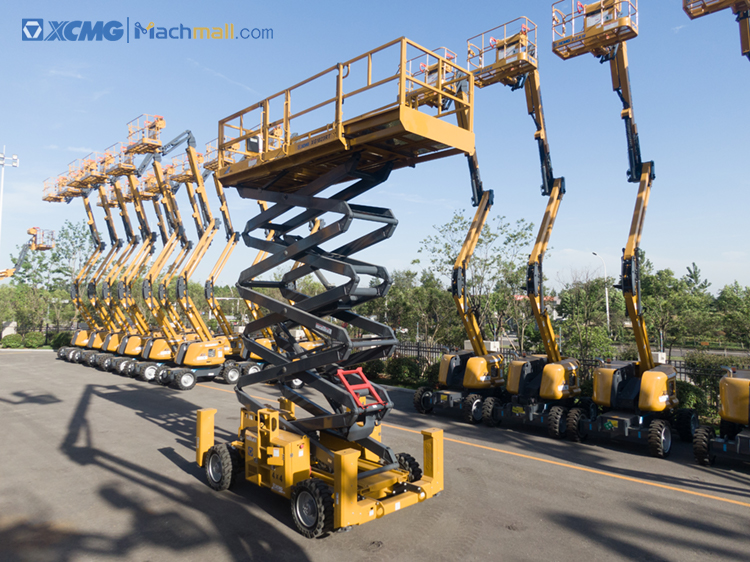

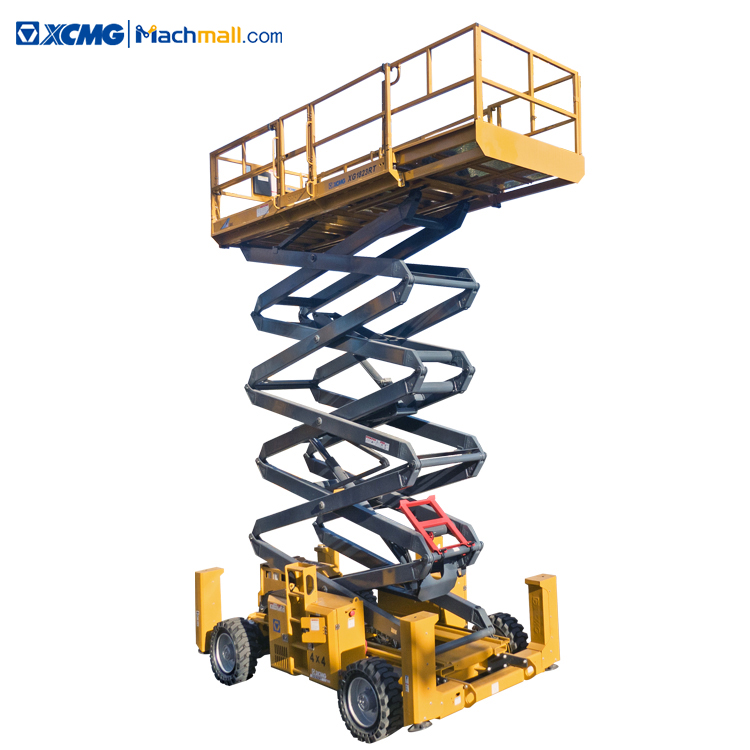

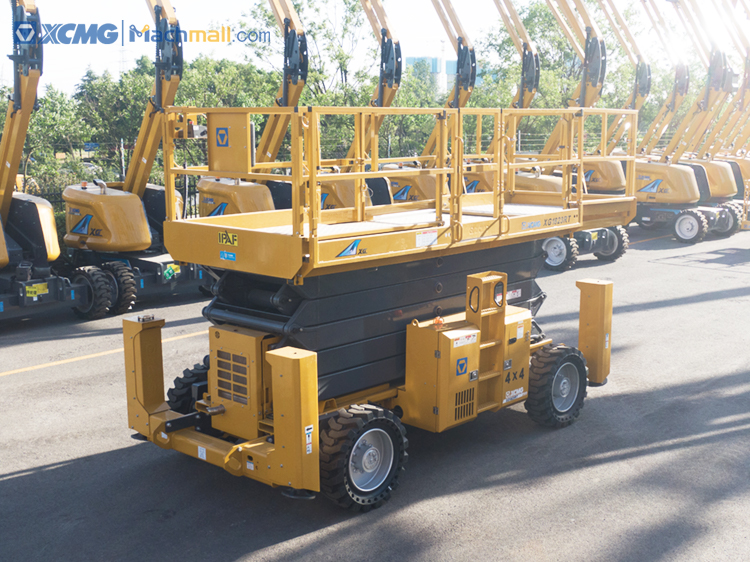

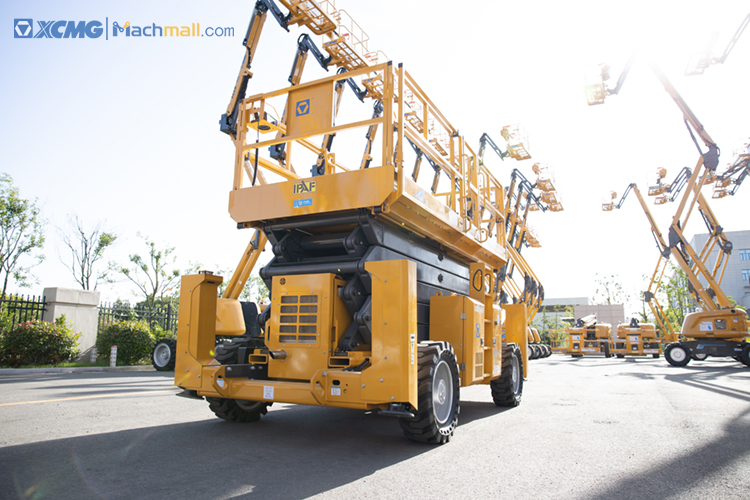

XCMG official 18m mobile rough terrain hydraulic scissor lift platform XG1823RT.
XCMG official 18m mobile rough terrain hydraulic scissor lift platform XG1823RT developed and produced by Xugong Group has a working height of 18m, a vehicle width of 2.3m, a rated load of 680kg, and a maximum climbing capacity of 40%.

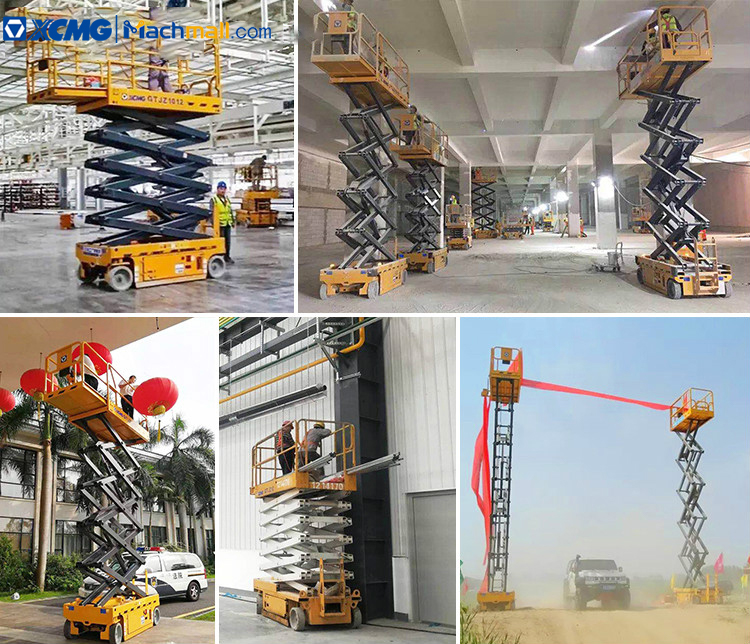

Compared with the conventional scissor mobile lifting work platform, it has a large load and a wide platform. It is more suitable for the installation of large loads, large objects, and multi-person collaborative operations, such as fire-fighting ventilation pipes, lighting, glass, curtain wall installation, paint spraying, and wall finishing.
Performance Characteristics:
1. Adopt a more energy-saving and fuel-efficient power system, and the whole machine is more energy-efficient and fuel-efficient;
2. The working platform can be expanded and contracted, with larger working space, and more convenient transportation and displacement.
3. Achieve a maximum load of 680kg, reaching the leading level in the industry.
4. The fastest travel speed is 6.1km/h, with 40% climbing ability, making driving operations easier.
Item |
Unit |
XG1823RT |
Overall dimension(L*W*H) |
m |
4.9*2.3*3.2 |
Wheelbase |
m |
2.85 |
Maximum working height |
m |
18 |
Maximum platform height |
m |
16 |
Maximum load |
kg |
230/680 |
Table size |
m |
3.98*1.83 |
Total Weight |
kg |
8000 |
Maximum speed |
Km/h |
1.1-6.1 |
Minimum ground clearance |
m |
0.23 |
Maximum gradeability |
% |
40 |
Engine model |
|
Kubota V2403-M-DI |
Engine rated power |
kW(r/min) |
36/(2600) |
