Summary
- Weight:3700kg
- Overall Dimension:2840*1390*2721mm
- Table Size:2640x1120x1263mm
- Max Lifting Height:15.8m
- Min Lifting Height:1.58m
- Rated Loading Capacity:350kg
- Model Number:XG1614HD
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:3700.000kg
- Condition:New
- Moving Type:Other
- Wheelbase:2240mm
- Wheel tread:1263mm
- Maximum gradeability:25%
- Guardrail height:1135mm
- Footplate height:860mm
- Load capacity of extensible work platform:115kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

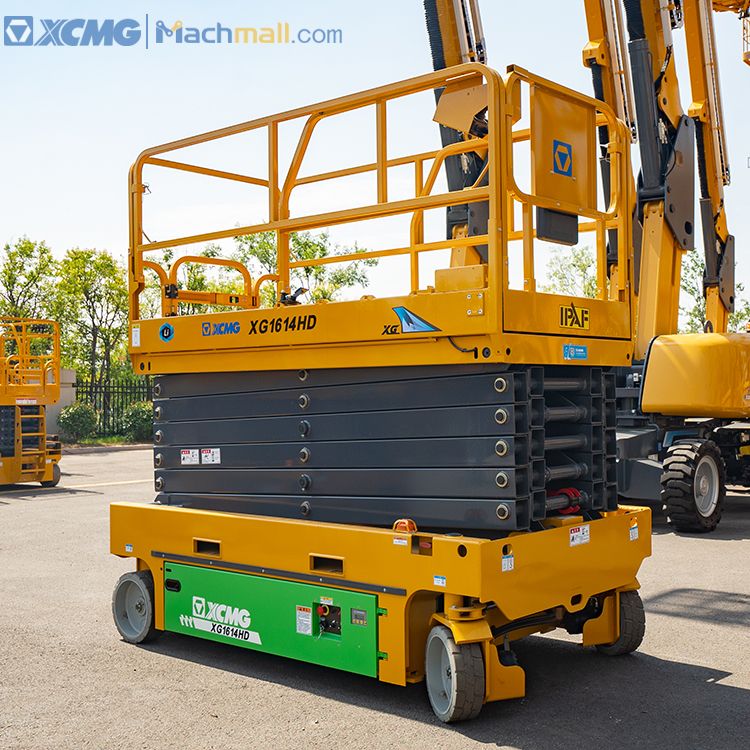

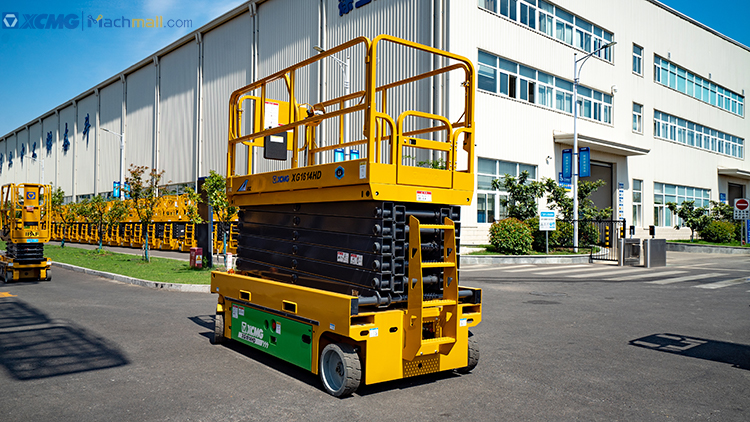

XCMG official new 16m mobile elevating work platform XG1614HD scissor lift.
XCMG official new 16m mobile elevating work platform XG1614HD scissor lift is a new elevating work platform developed and manufactured by XCMG, with working height at 15.8m, overall width at 1.39m, load capacity at 350kg, platform extending length at 0.9m, and gradeability at 25%.
Featuring compact structure, advanced performances, and complete safety protection, this machine is a special for building construction. Featuring zero-emission, high environmental-friendliness, stable lifting & lowering, easy operations, and convenient maintenances, it can be extensively applied in factories, warehouses, airports, and stations and is especially suitable for narrow working environments.
Advantages and features:
1. The electric drive system of zero emission, low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed places, including office buildings, hospitals, and schools, to minimize the environmental influence.
2. The active safety protection mechanisms, including pit protection mechanism, are applied and the independently designed safety control system is installed to sufficiently meet the multiple needs (Including safety, reliability, and intelligence) of customers with humanized design thinking, complete safety protection, and rich optional equipment combination.
3. The narrow structure design enables the machine to pass through single gateway with ease and the folding railings are used to realize easier transportation and translocation.
4. The small turning radius design can guarantee flexible use in narrow spaces.
5. Load capacity at 350kg is leading in this field.
6. The 3km/h dirve speed and 25% gradeability make the operations easier.
|

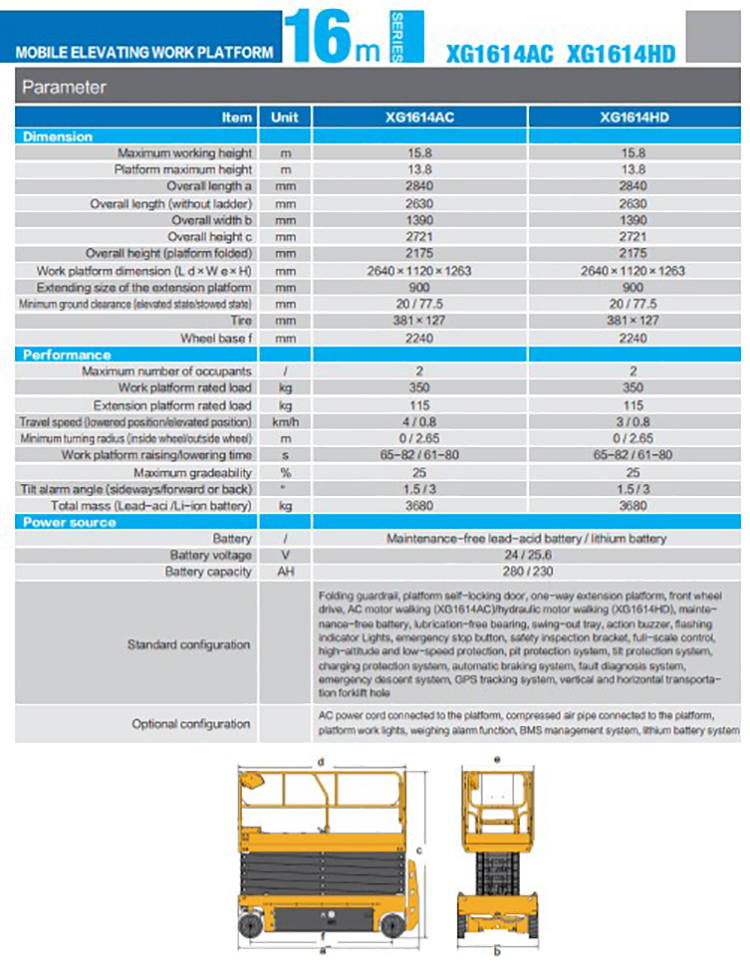

Item |
Parameter |
|
|
Overall dimensions |
Length (With ladder/Without ladder ) |
2840（2630）mm |
|
Width |
1390mm |
|
|
Height (With platform folded) |
2721(2175)mm |
|
|
Work platform dimensions |
Length Width Height |
2640x1120x1263mm |
|
Extensible length of auxiliary work platform |
900mm |
|
|
Maximum working height |
15.8m |
|
|
Maximum platform height |
13.8m |
|
|
Minimum platform height |
1.58m |
|
|
Guardrail height |
1135mm |
|
|
Footplate height |
860mm |
|
|
Wheelbase |
2240mm |
|
|
Wheel tread |
1263mm |
|
|
Minimum ground clearance (With pit protection device lowered) |
20mm |
|
|
Minimum ground clearance (With pit protection device lifted) |
77.5mm |
|
|
Load capacity |
350kg |
|
|
Load capacity of extensible work platform |
115kg |
|
|
Maximum traveling speed at low level |
3.0Km/h |
|
|
Maximum traveling speed at high level |
0.8Km/h |
|
|
Maximum gradeability |
25% |
|
|
Turning radius (Inner wheel) |
0 |
|
|
Turning radius (Outer wheel) |
2.65m |
|
|
Control system |
WIKA/North Valley |
|
|
Gross mass |
3700Kg |
|
|
Lifting time |
65-82S |
|
|
Lowering time |
61-80S |
|
|
Inclination warning angle (Lateral/longitudinal) |
1.5/3° |
|
|
Rated power of lifting/traveling motor |
4.5Kw |
|
|
Battery |
6-EV-100/25.6V 230Ah |
|
|
Battery voltage |
24V/25.6V |
|
|
Battery capacity |
240AH/230Ah |
|
|
Tire specification |
381mm×127mm |
|
|
Hydraulic system capacity |
25L |
|
|
Hydraulic oil tank capacity |
18L |
|
