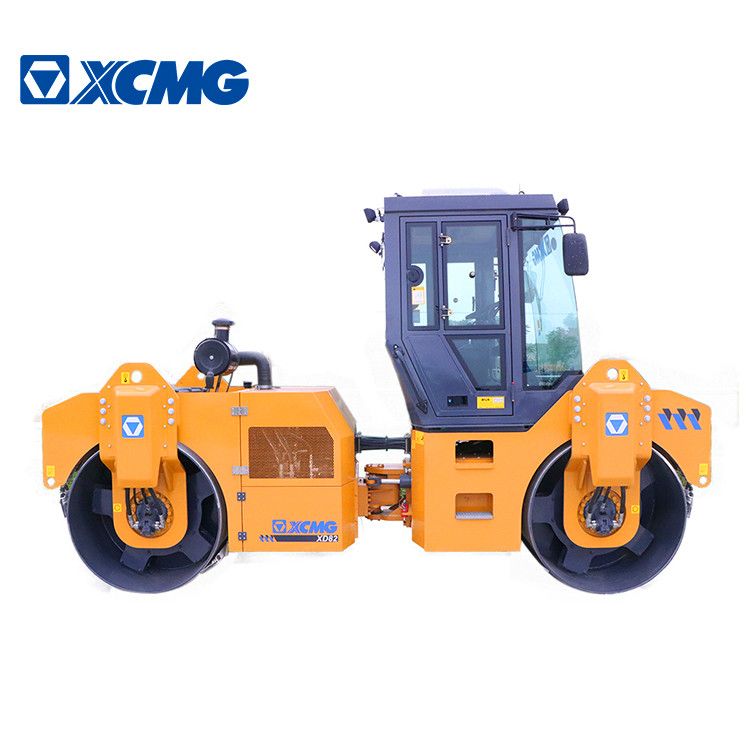

XCMG offical 8 ton road roller compactor machine XD82 with Deutz engine
![](/app/topc/statics/images/close.png)
![XCMG offical 8 ton road roller compactor machine XD82 with Deutz engine](/images/store/357636/item/XD82 (6).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:8500kg
- Dimension(L*W*H):4890*1972*3087mm
- Power(W):74.9KW
- Model Number:XD82
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:0~9.5km/h
- Static Linear Pressure:248N/cm
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- weight:8500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG offical 8 ton road roller compactor machine XD82 with Deutz engine.
XD82 road roller compactor machine is suitable for the compaction of asphalt concrete surface layer, can also be used for the compaction of small and medium-sized foundations, sub-foundations and filling materials. It is an ideal compaction equipment for the maintenance of asphalt pavement in the municipal maintenance and high-speed management.
Performance Characteristics:
1.The steering wheel can adjust angle according to the need of the driver.
2.Control handle, display, etc. are arranged on the right side to broaden the front view.
3.Speed frequency management system guides the user to compaction operation.
4.The vibration drum realizes the center of four-in-one combination.
5.Double-sealing technology.
6.Dual frequency dual amplitude vibration system.
7.Independent vibration of front and rear drum.
Parameter |
Unit |
XD82 |
|
Weight distribution |
Working weight |
kg |
8500 |
Front wheel distribution weight (kg) |
4250 |
||
Rear wheel distribution weight (kg) |
4250 |
||
Compaction performance |
Static linear load |
N/cm |
248/248 |
Nominal amplitude |
mm |
0.35/0.70 |
|
Vibration frequency |
Hz |
48/45 |
|
Exciting force (high frequency/low frequency) |
kN |
40/80 |
|
Vibration wheel size |
mm |
1150×1680 |
|
Maneuverability |
Speed range |
km/h |
0~9.5 |
Theoretical gradeability |
% |
30 |
|
Minimum turning radius mm (in/out) |
4100/5780 |
||
Swing angle |
° |
±8 |
|
Steering angle |
° |
±38 |
|
Engine |
model |
DEUTZ BF4M2012-10T3R |
|
Type |
Inline four-cylinder pressurized water-cooled |
||
Rated power |
kW |
74.9 |
|
Rated speed |
r/min |
2300 |
