Summary
- Weight:9010 kg
- Dimension(L*W*H):7580×2325×2820 mm
- Power(W):115 / 2600 kW/（r/min）
- Model Number:XSL603
- Brand Name:XCMG
- Place of Origin:Jiangsu,China

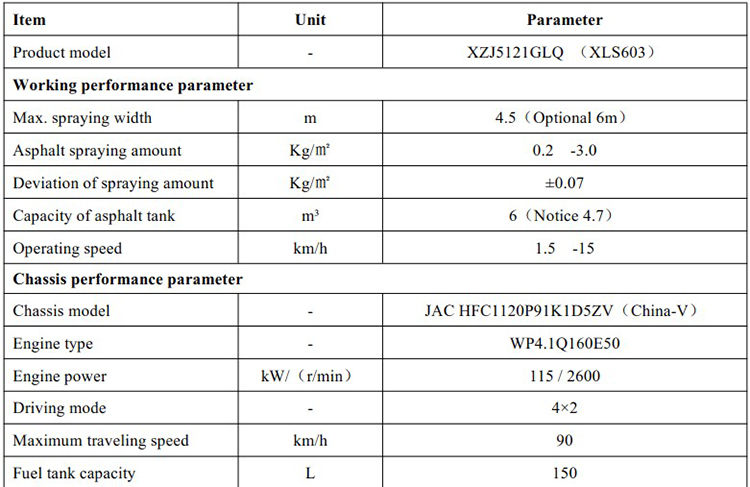

Specifications
- Weight:9010.000kg
- Condition:New
- Moving Type:Wheel
- Max. spraying width:4.5m (optional 6m)
- Asphalt spraying amount:0.2 -3.0 Kg/㎡
- Overall dimension:7580×2325×2820 mm
- Driving mode:4×2
- Chassis model:JAC HFC1120P91K1D5ZV（China-V）
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG road maintenance truck XLS603 asphalt distributor 6m sprying width.
XCMG road maintenance truck XLS603 asphalt distributor 6m sprying width is an automation product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, modified asphalt. The product controls the whole process of asphalt spraying through the controller, thus the asphalt spraying amount is not affected by the change of speed and the high-precision spraying is achieved.
XCMG road maintenance truck XLS603 asphalt distributor 6m sprying width is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.
Features:
1.Heat transfer fluid cyclically heats and preserves the heat for the tank, asphalt pump, XZJ5121GLQ(XLS603) Intelligent Asphalt Distributor nozzle, spraying beam and asphalt pipeline in all directions to meet construction requirements for different kinds of asphalt.
2.Manual spraying gun is optional for local asphalt spraying to corners and special positions.
3.One-to-one control mode for the nozzle is adopted, the spraying width can be adjusted.
4.Touch display in driver’s cab records asphalt spraying area, distance and total amount.
5.JAC 4×2 type China Tier-V 12t chassis engine, powerful and comfortable for driving.
6.Automatic and manual operation systems, convenient and reliable.
