XCMG Retread Machine 180kN XR180DII Rotary Drilling Rig For Sale, MACHMALL

Used Equipment > Used Engineering & Construction Machinery > Retread Machine

XCMG Retread Machine 180kN XR180DII Rotary Drilling Rig For Sale

FOB Price: $190000.000

View All >

Model： XR180DII

Engine： Cummins

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Retread Machine 180kN XR180DII Rotary Drilling Rig For Sale

Quantity:

- + /Set

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XR180DII

Specs & Compare

Details

Specifications

Weight:57000.000kg
Output torque:180kN·m
Rated power:194/2200kW
Rotating speed:6~33r/min
Maximum driving speed:2.3km/h

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Delivery Port:Any Port In China

XCMG Retread Machine 180kN XR180DII Rotary Drilling Rig

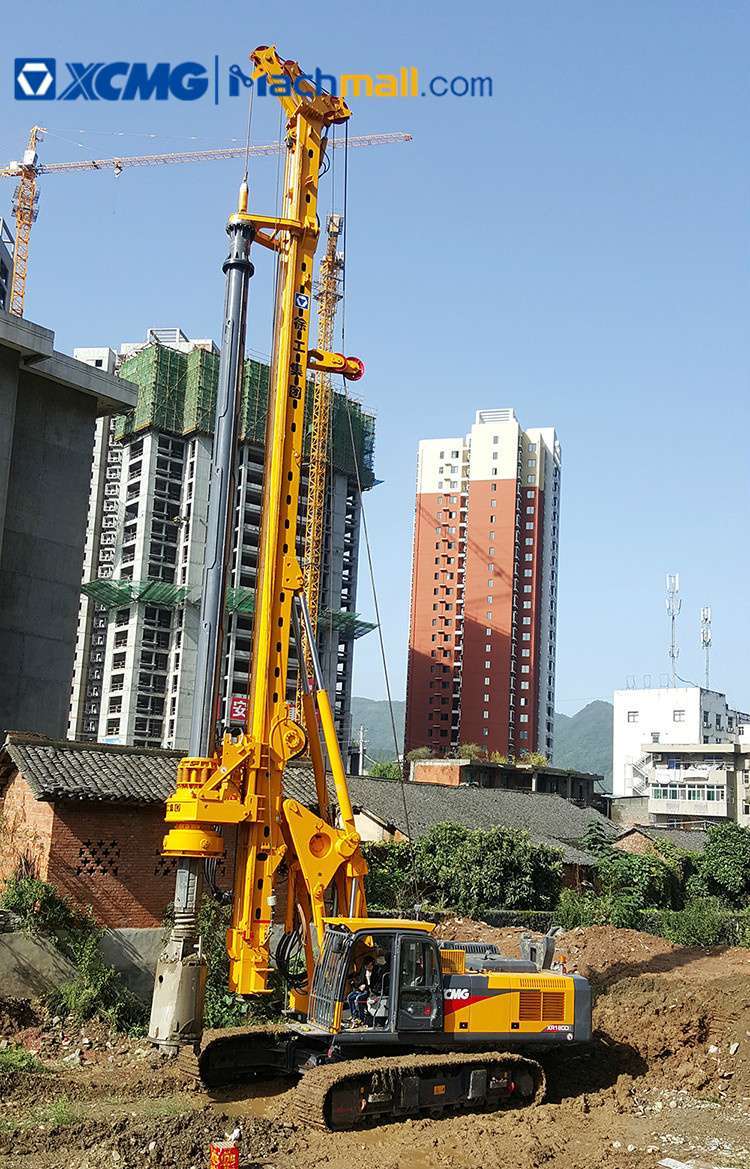

XCMG XR180DII rotary drilling rig adopts special hydraulic telescopic TDP series crawler chassis and large-diameter slewing support for rotary drilling rigs, which meets super stability and convenient transportation. It adopts the original imported Cummins electronically controlled turbocharged engine, which has strong power and meets Euro III emission standards. The hydraulic system adopts extreme power control and positive flow control to make the hydraulic system more energy-saving and efficient. The single-row rope main hoist is used to effectively solve the problem of wire rope wear and effectively improve the service life of the wire rope; and the main hoist is equipped with a drilling depth detection device, and the single-layer rope winding makes the depth detection more accurate.

Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.

Main Technical Specification			XR180D
Engine	Model		Cum-mins QSB6.7-C260
Engine	Rated Power	KW	194
Rotary Drive	Max. Output Torque	KN.M	180
Rotary Drive	Rotary Speed	R/Min	7~27
Max. Drilling Diameter		mm	Φ1600
Max. Drilling Depth		M	46
Pull-Down Cylinder	Max. Pull-down Piston Push	KN	160
	Max. Pull-down Piston Pull	KN	180
	Max. Pull-down Piston Stroke	M	5
Crowd Winch	Max. Pull-down Piston Push	KN	210
	Max. Pull-down Piston Pull	KN	210
	Max. Pull-down Piston Stroke	M	13
Main Winch	Max. Pulling Force	KN	180
Main Winch	Max. Line Speed	M/Min	65
Auxiliary Winch	Max. Pulling Force	KN	50
Auxiliary Winch	Max. Line Speed	M/Min	70
Mast Rake	Side/Forwards/Backwards		±3°/5°/15°
Undercarrige	Max. Traveling Speed	KM/H	1.5
	Max. Grade Ability	%	35
	Min. Clearance	mm	350
	Track Shoe Width	mm	700
	Distance between Tracks	mm	2960~4200
Hydraulic System Working Pressure		MPA	35
Overall Drilling Weight		T	58
Dimesion	Working Condition	mm	8350x4200x20480
Dimesion	Transportation Condition	mm	14255x2960x3450

XCMG STORY

XCMG RECONDITIONED MACHINE

XCMG reconditioned machine is the second-hand machine program launched by XCMG for the post market. XCMG takes advantage of its dealers network to collect the second-hand XCMG machine that falls into strict standards: good condition, full function and low service hours. The returned machine is then disassembled, repaired, painted, rebuilt and tested officially by XCMG, and the product life is therefore extended. The price of XCMG reconditioned machine is far lower than that of the new one, but its performance and safety are not compromised thanks to XCMG's state-of-the-art processes and technologies. In order to dispel customers' concerns, XCMG establishes a strict evaluation system for reconditioned machines and invites SGS to issue third-party certification.

OUR TEAM

150+ SPECIALISTS

150+ specialists participate in the reconditioning process.

Inspection Team

Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine.

Reconditioning and Repairing Team

Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.

Issuing Report Team

Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.

OUR FACTORY

REMANUFACTURING FACTORY

RECONDITION PROCESSES

RECONDITION PROCESSES OF THE USED

We maintain a meticulous and rigorous attitude toward quality, focusing on extraordinary creativity, elaborate designs and exquisite craftsmanship.

COLLECTION

Examine the working conditions, conduct static and dynamic assessment on the used machine. Only machines with light deprecation, low working hours and full functions can be collected.

INSPECTION

Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine. More than 300 details are checked and compared to XCMG standard. Recondition plan is then decided.

RECONDITIONING AND REPAIRING

Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.

TESTING

Follow the test procedure, ensure the performance and durability of the machine. Unqualified products are returned to step 3.

READY FOR DELIVERY

Ready for Delivery!!!

ISSUING REPORT

Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.

PAINTING

The whole machine is repainted to restore its appearance. Bright as new.

FAQ

FREQUENTLY ASKED QUESTIONS

1.What’s the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump, distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.

3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.

4.Can you satisfy my special requirement?

As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).

5.What is accpetable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
If any other questions, please feel free to contact with us.
