XCMG Retread Machine XR220D 220kn 50m Rotary Drilling Rig For Sale, MACHMALL

Used Equipment > Used Engineering & Construction Machinery > Retread Machine

XCMG Retread Machine XR220D 220kn 50m Rotary Drilling Rig For Sale

FOB Price: $140000.000

View All >

Model： XR220D

Engine： CUMMINS

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Retread Machine XR220D 220kn 50m Rotary Drilling Rig For Sale

Quantity:

- + /Set

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XR220D

Specs & Compare

Details

Specifications

Weight:70000.000kg
Output torque:220kN·m
Rated power:242kW
Rotating speed:7～22r/min
Maximum driving speed:1.5km/h

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Delivery Port:Any Port In China

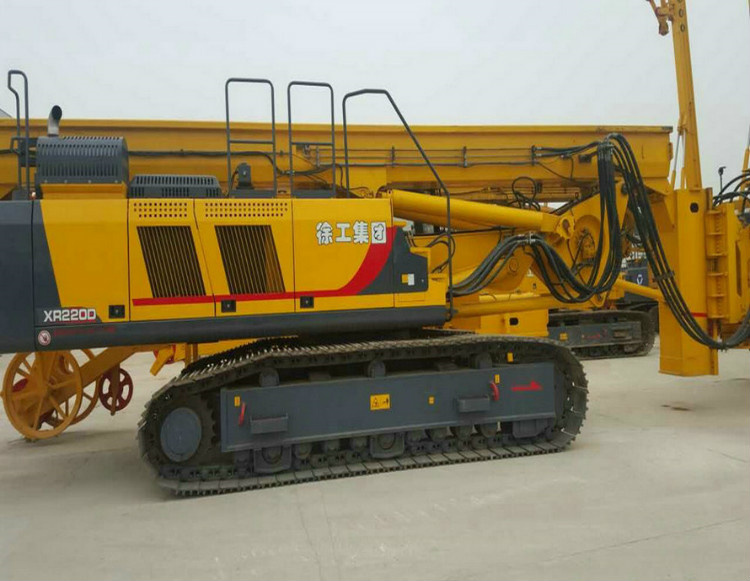

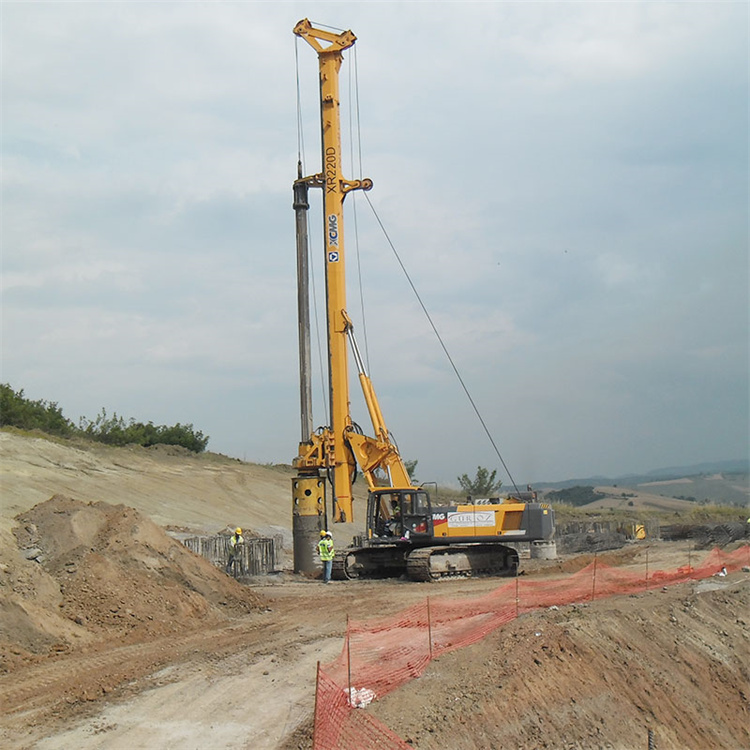

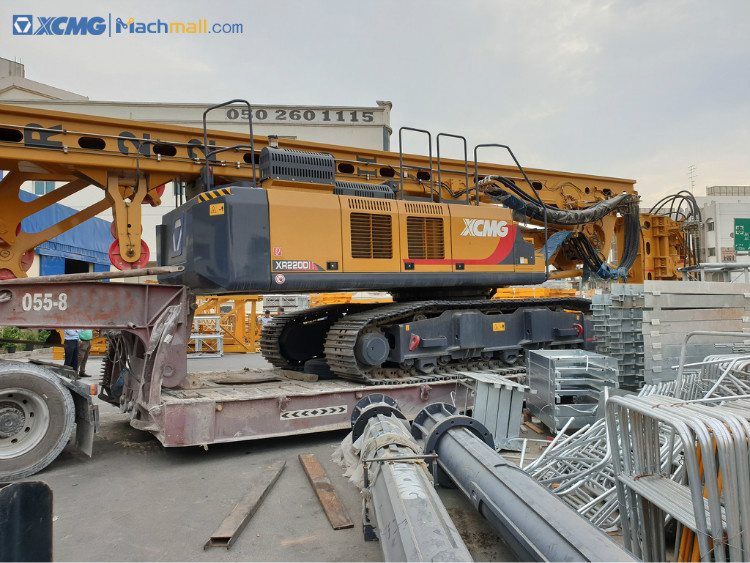

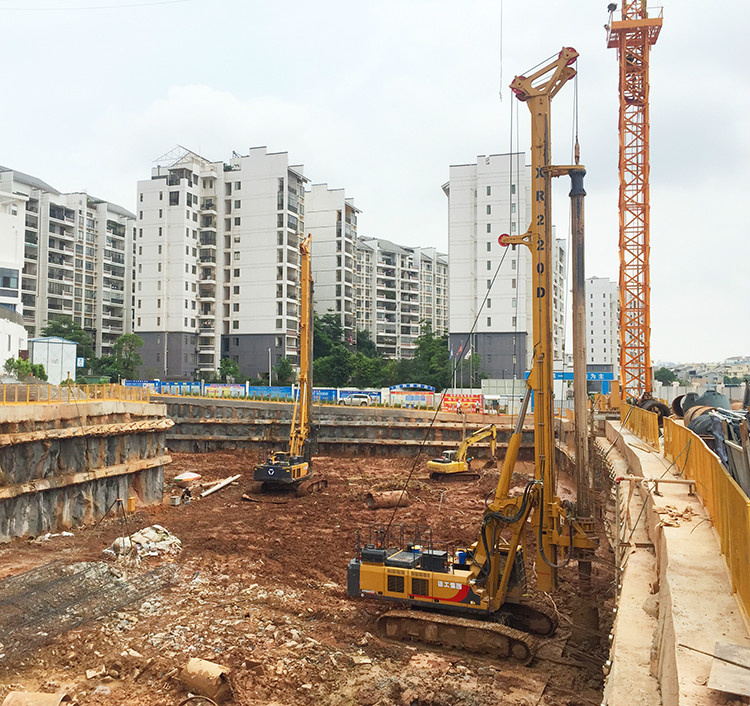

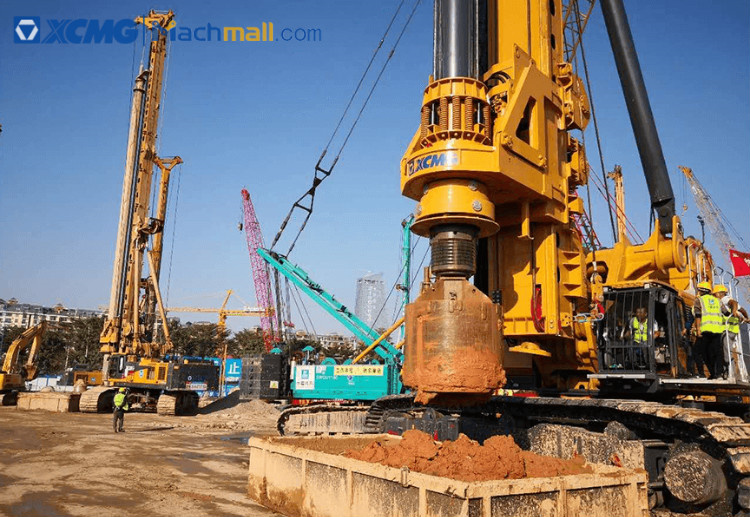

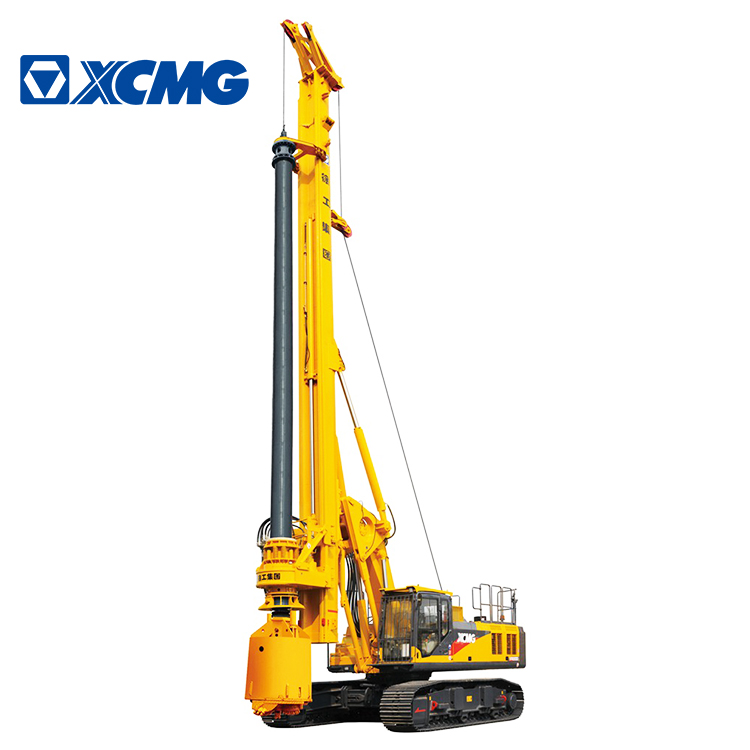

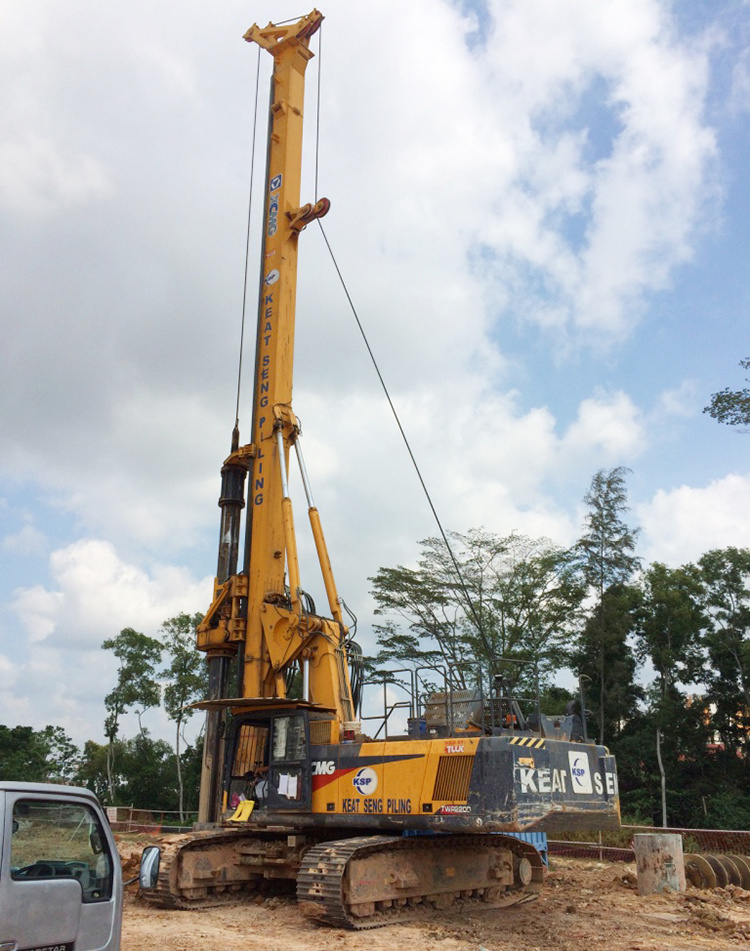

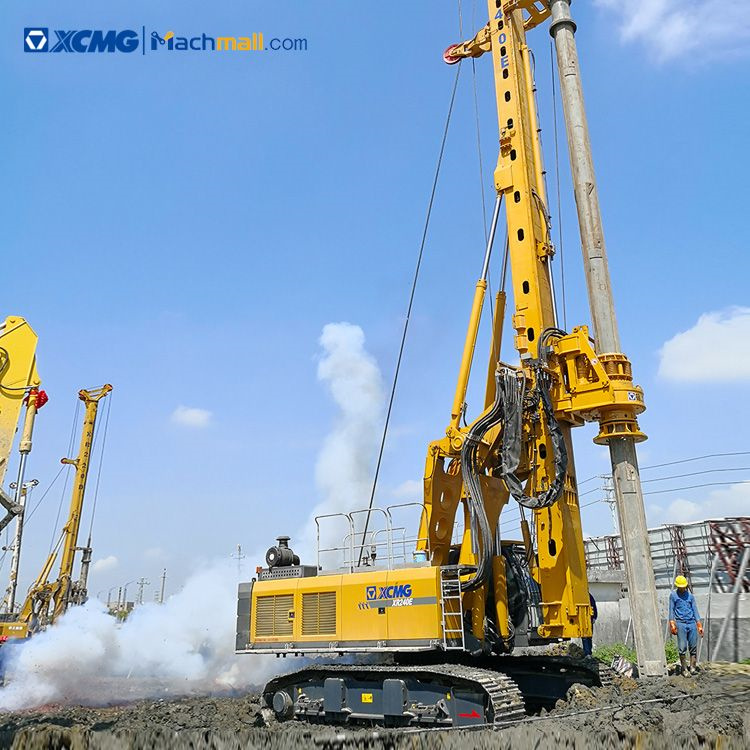

XCMG Retread Machine XR220D 220kn 50m Rotary Drilling Rig

XCMG XR220D rotary drilling rig adopts a single-layer rope main hoist, which effectively solves the problem of wire rope wear and improves the service life of the wire rope. Infrared cameras are installed, and the use of the main coil wire rope can be observed day and night in the cab. Various configurations can be made according to user requirements (such as outrigger cylinders, automatic rotation, hoisting pressurization system), with good scalability. Imported Cummins electronically controlled turbocharged engine is selected, which meets Euro III emission standards, is energy-saving and environmentally friendly, and has strong power. The hydraulic system adopts extreme power control and positive flow control, which makes the hydraulic system more efficient and more energy-saving.

Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.

Description		Unit	Parameter
Max. drilling diameter		mm	2000
Max. drilling depth		m	67
Engine	Model		QSL-325
Engine	Rated power/speed	kW	242/(2200r/min)
Rotary drive	Max. torque	kN.m	220
Rotary drive	Rotational speed	r/min	7-25
Crowd cylinder	Max. Pushing force	kN	200
	Max. Pulling force	kN	200
	Max. stroke	mm	5000
Main winch	Max. pulling force	kN	230
	Max. single-rope speed	m/min	70
	Diameter of the steel wire rope	mm	30
Auxiliary winch	Max. pulling force	kN	80
	Max. single-rope speed	m/min	60
	Diameter of the steel wire rope	mm	20
Traveling	Max. traveling speed of the overall unit	km/h	1.5
Traveling	Max. climbable gradient of the overall unit	%	35
Hydraulic system	Working pressure	MPa	35
Rotary table slewing angle		°	360
Weight of overall unit		t	76
Dimension	Working condition	mm	8968440022180
Dimension	Transportation condition	mm	1636032503535

XCMG STORY

XCMG RECONDITIONED MACHINE

XCMG reconditioned machine is the second-hand machine program launched by XCMG for the post market. XCMG takes advantage of its dealers network to collect the second-hand XCMG machine that falls into strict standards: good condition, full function and low service hours. The returned machine is then disassembled, repaired, painted, rebuilt and tested officially by XCMG, and the product life is therefore extended. The price of XCMG reconditioned machine is far lower than that of the new one, but its performance and safety are not compromised thanks to XCMG's state-of-the-art processes and technologies. In order to dispel customers' concerns, XCMG establishes a strict evaluation system for reconditioned machines and invites SGS to issue third-party certification.

OUR TEAM

150+ SPECIALISTS

150+ specialists participate in the reconditioning process.

Inspection Team

Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine.

Reconditioning and Repairing Team

Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.

Issuing Report Team

Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.

OUR FACTORY

REMANUFACTURING FACTORY

RECONDITION PROCESSES

RECONDITION PROCESSES OF THE USED

We maintain a meticulous and rigorous attitude toward quality, focusing on extraordinary creativity, elaborate designs and exquisite craftsmanship.

COLLECTION

Examine the working conditions, conduct static and dynamic assessment on the used machine. Only machines with light deprecation, low working hours and full functions can be collected.

INSPECTION

Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine. More than 300 details are checked and compared to XCMG standard. Recondition plan is then decided.

RECONDITIONING AND REPAIRING

Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.

TESTING

Follow the test procedure, ensure the performance and durability of the machine. Unqualified products are returned to step 3.

READY FOR DELIVERY

Ready for Delivery!!!

ISSUING REPORT

Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.

PAINTING

The whole machine is repainted to restore its appearance. Bright as new.

FAQ

FREQUENTLY ASKED QUESTIONS

1.What’s the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump, distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.

3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.

4.Can you satisfy my special requirement?

As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).

5.What is accpetable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
