Specifications
- Weight:2000.000kg
- Rated lifting capacity:1500kg
- Lifting height of fork:3000mm
- Front track:920mm
- Full load forward speed:195mm/s
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

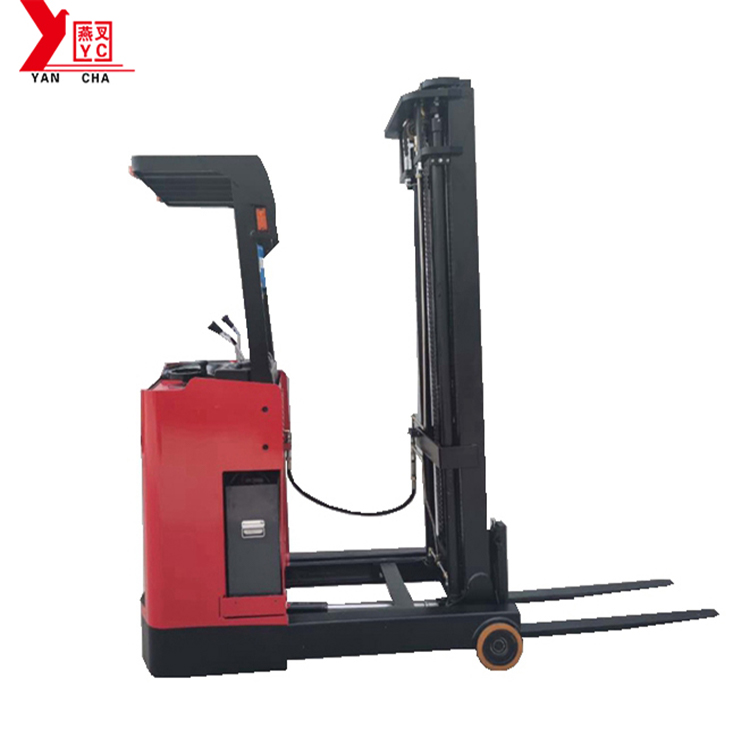

Reach stacker YANCHA battery stacker 1.5 ton with CE 3.5m lift height.
Reach stacker YANCHA battery stacker 1.5 ton with CE 3.5m lift height Adopts powerful hydraulic motor to supply more torque so as to make the truck lift and drop steadily.
Advantages:
1. More safe and confortable braking system.
2. Equipped with combined idler wheel with high strength and low deformation degree.
3. Equipped oil cylinder on the back to make a broaden sight.
4. Flow-limiting valve can adjust drop speed of portal frame. It can prevent portal frame from dropping fast even though the oil pipe explodes, and guarantee the safety of operator.
|
NO. |
Project |
Unit |
Value |
|
1 |
Rated lifting capacity |
kg |
1500 |
|
2 |
Whole weight |
kg |
2000 |
|
3 |
full length |
mm |
2370 |
|
4 |
Full width |
mm |
1020 |
|
5 |
Full height |
mm |
2100 |
|
6 |
Lifting height of fork |
mm |
3000 |
|
7 |
Forward distance |
mm |
500 |
|
8 |
Ground clearance |
mm |
45 |
|
9 |
Wheelbase (left/right) |
mm |
1465 / 1465 |
|
10 |
Front overhang |
mm |
165 |
|
11 |
Front track |
mm |
920 |
|
12 |
Rear track |
mm |
800 |
|
13 |
Max. lifting speed without load |
mm/s |
150 |
|
14 |
Max. lifting speed with full load |
mm/s |
90 |
|
15 |
Max. descent speed without load |
mm/s |
115 |
|
16 |
Max. descent speed at full load |
mm/s |
380 |
|
17 |
Full load forward speed |
mm/s |
195 |
|
18 |
Max. operating speed without load |
km/h |
5.5 |
|
19 |
Max.operating speed with full load |
km/h |
4.4 |
|
20 |
Min. outside turning radius |
mm |
1600 |
|
21 |
Max. gradeability with full load |
% |
5 |
|
22 |
Max. hook traction at full load |
kN |
— |
|
23 |
Load center distance |
mm |
500 |
|
24 |
Model specifications of walking motor |
— |
ZQD13-1C |
|
25 |
1min working system current of walking motor |
A |
195 |
