XCMG factory 30 ton hydraulic pickup truck crane XCT30

Engineering & Construction Machinery > Engineering & Construction Crane > Truck Crane

XCMG factory 30 ton hydraulic pickup truck crane XCT30_M price

FOB Price: $100000.00-$150000.00

View All >

Model： XCT30_M

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG factory 30 ton hydraulic pickup truck crane XCT30_M price

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XCT30_M

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

XCT30_M

XCMG

Xuzhou,Jiangsu,China

48.1m

30 Ton

965kN.m

30 Ton

Construction

CE/ISO9001

+ Add a Product

Summary

Model Number:XCT30_M
Brand Name:XCMG
Place of Origin:Xuzhou,Jiangsu,China
Max. Lifting Height:48.1m
Max. Lifting Load:30 Ton
Rated Lifting Moment:965kN.m
Rated Loading Capacity:30 Ton
Application:Construction
Certification:CE/ISO9001

Specifications

Weight:30000.000kg
Condition:New
Moving Type:Wheel
Min rated working radius:3m
Max. travel speed:85km/h
Max. grade ability:40%
Min. ground clearance:261mm
Engine rated power/rpm:192/2200kW/(r/min)
Max. output torque/rpm:1000/1400N.m/(r/min)

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG factory 30 ton hydraulic pickup truck crane XCT30_M price

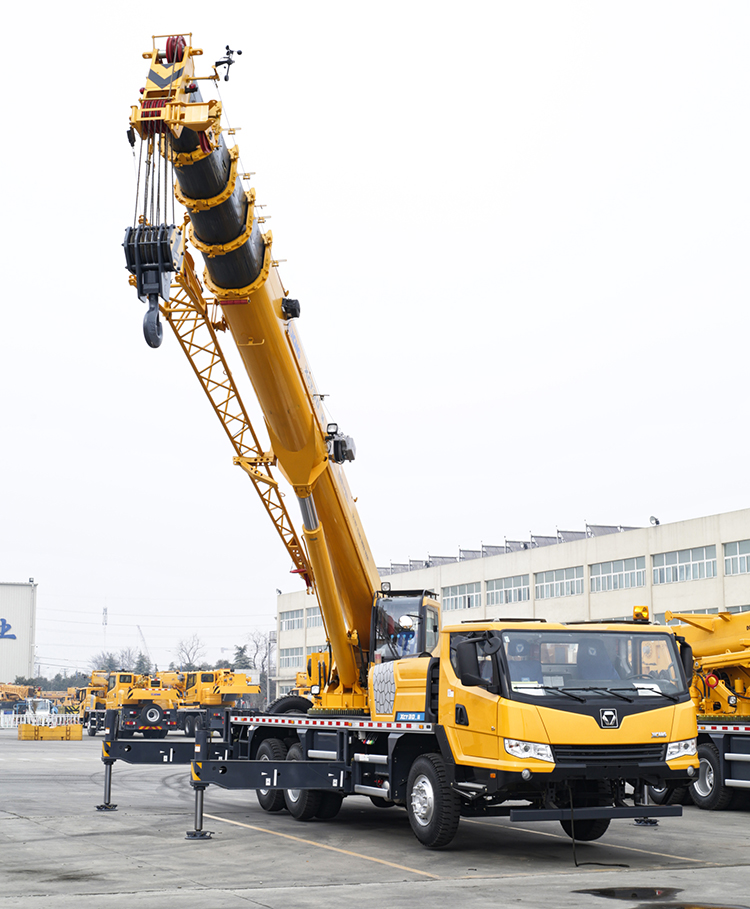

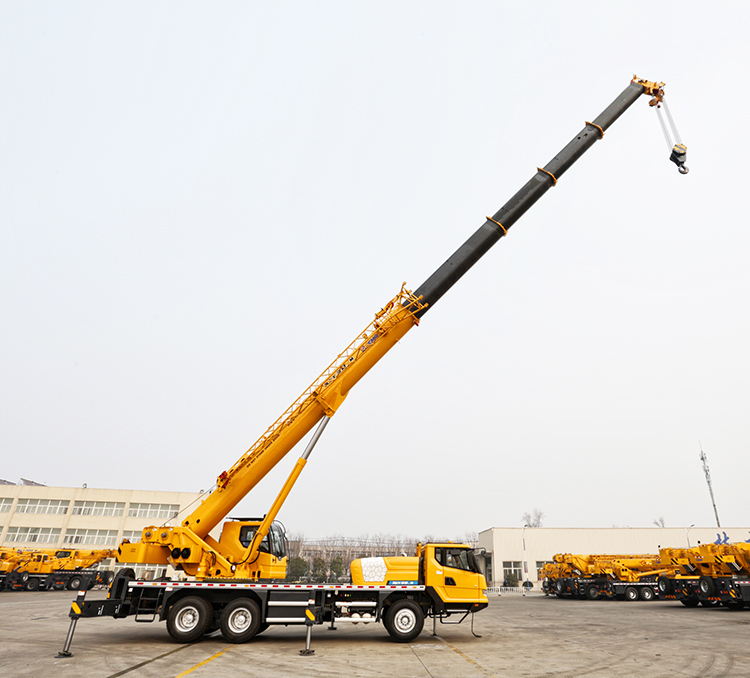

XCMG factory 30 ton hydraulic pickup truck crane XCT30_M.

XCMG pickup truck crane XCT30_M is widely used for the lifting operations in Oilfields, mines, general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Advantages and features:

1. Pickup truck crane XCT30_M adopts 5-section boom of 40.5m with U-type profile is adopted; the max. lifting load is 30t; the max. lifting height is 48.1m; the max.working radius is 38.4m; The performance takes the lead comprehensively.

2. XCMG XCT30_M pickup truck crane various configurations for working conditions in oilfields and municipal constructions can meet the all the requirements.

3. XCMG pickup truck crane XCT30_M is designed to endure high temperature, it is allowed to work in ambient temperature up to 60℃.

4. With dust-proof parts equipped, the crane is applicable to applications in deserts.

XCMG factory 30 ton hydraulic pickup truck crane XCT30_M price

Item		Unit	Parameter
Dimensions (length x width x height)		mm	12362×2550×3415
Total vehicle mass in travel configuration		kg	30000
Axle load	1st and 2nd axle	kg	6400
Axle load	3rd axle	kg	11800
Engine rated power/rpm		kW/(r/min)	192/2200
Max. output torque/rpm		N.m/(r/min)	1000/1400
Max. travel speed		km/h	85
Min. turning diameter		m	20
Min. ground clearance		mm	261
Approach angle		°	16.5
Departure angle		°	13
Max. grade ability		%	40
Fuel consumption per 100 km		L	32
Max. total rated lifting capacity		t	30
Min rated working radius		m	3
Max. load moment	Base boom	kN.m	965
Max. load moment	Fully-extended boom	kN.m	576
Outrigger span	Longitudinal	m	5.23
Outrigger span	Lateral	m	6.4
Hoist height	Base boom	m	10.5
Hoist height	Fully-extended boom	m	40.3
Boom length	Base boom	m	10.4
Boom length	Fully-extended boom	m	40.5
Jib offset angle		°	0、15、 30
Boom raising time		s	≤38
Boom fully extending time		s	≤90
Hoistin Hoisting speed (single line, 4th layer, no load)	Main winch	m/min	≥120
Hoistin Hoisting speed (single line, 4th layer, no load)	Auxiliary winch	m/min	≤90
