XCMG manufacturer 10 ton pick up crane for sale
![](/app/topc/statics/images/close.png)
![XCMG manufacturer 10 ton pick up crane for sale](http://www.machmall.com/images/store/357636/item/40c4f910f9d9e5ac69b6322276bed22f.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Brand Name:XCMG
- Place of Origin:XUZHOU,CHINA
- Max. Lifting Height:12M
- Max. Lifting Load:10 TON
Specifications
- weight:3800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

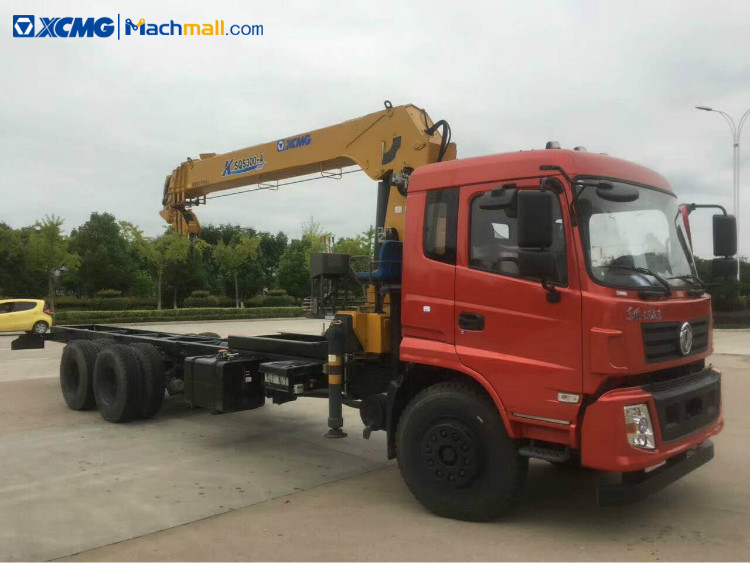

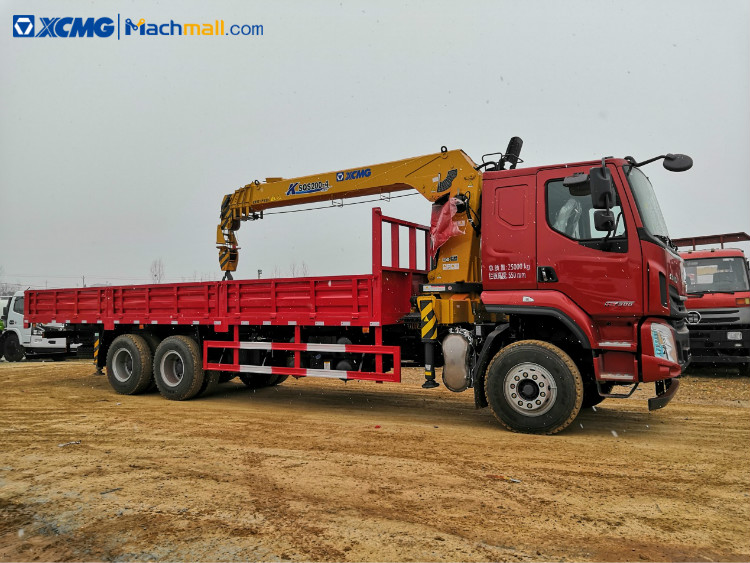

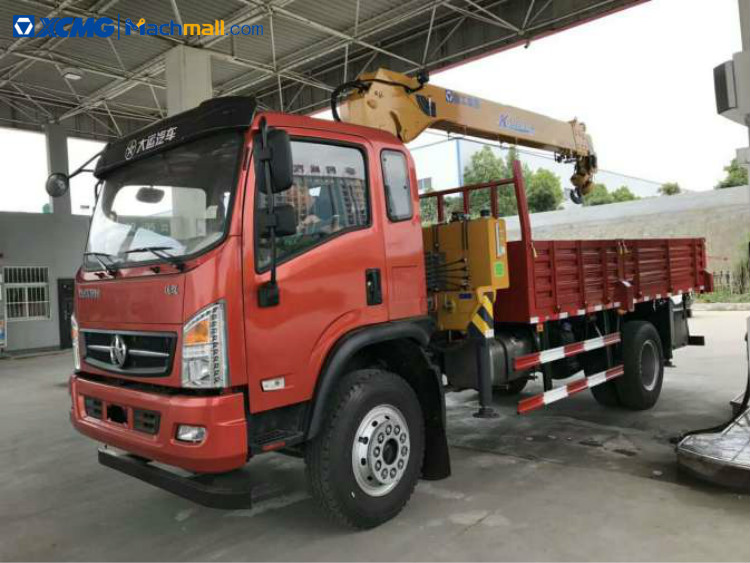

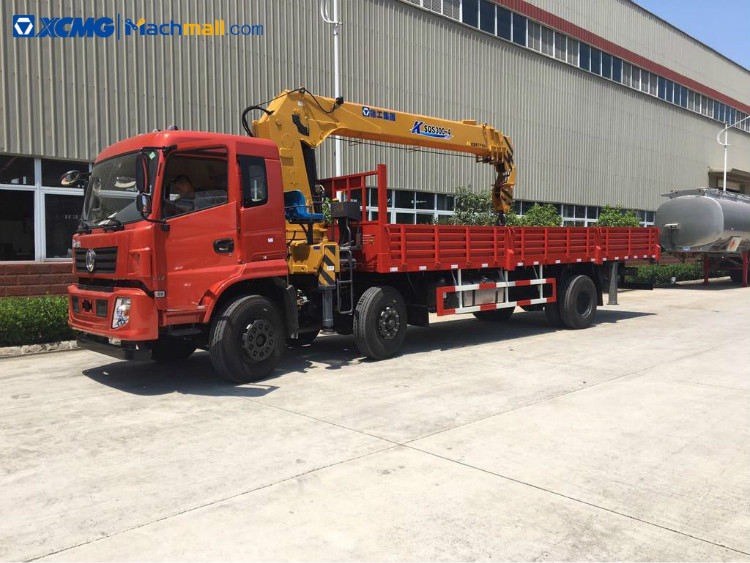

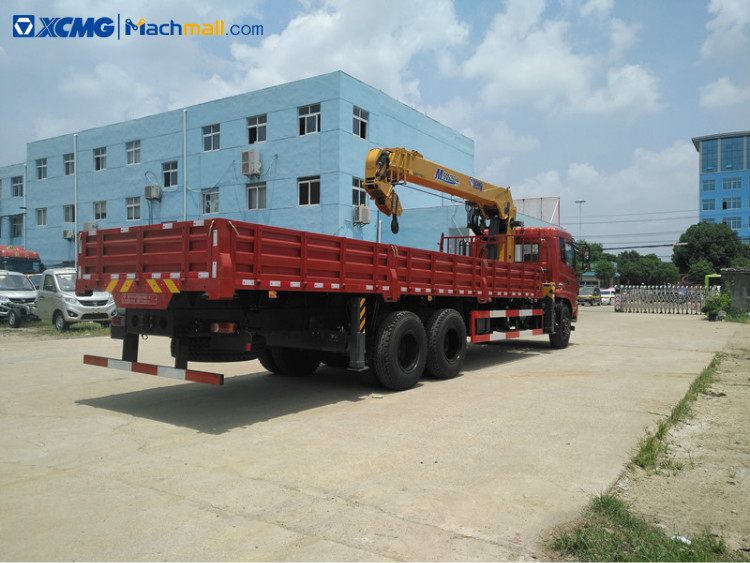

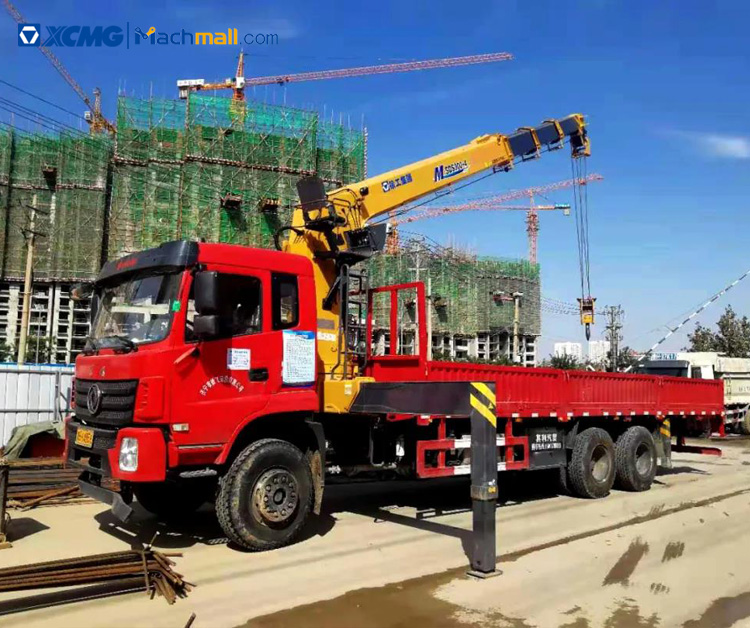

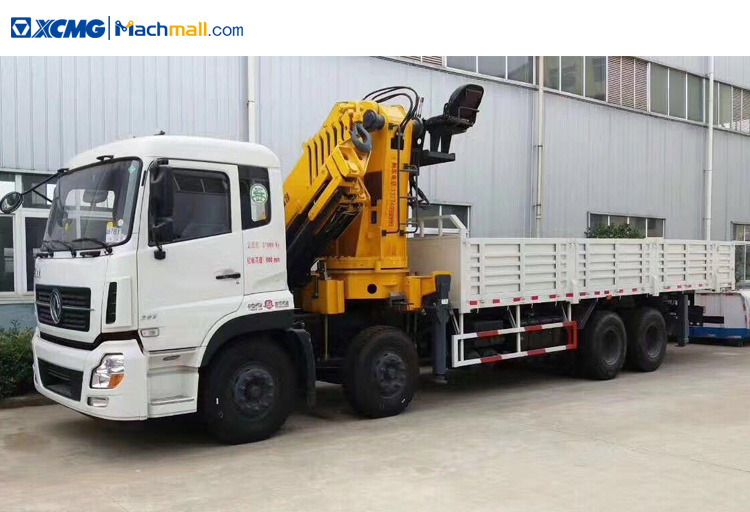

XCMG 10 ton pick up crane SQ10SK3Q.
XCMG 10 ton pick up crane: Single cylinder synchronization guy cable technology makes work efficiency higher than before.
1. Compact hinge point design takes up smaller space.
2. The work is more safety after fitted with alarm device.
3. The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
4. Float three –point bridge structure design can lower the accessional stress on the chassis when traveling.
5. XCMG 10 ton pick up crane has been fitted own powerful slewing of working in diversifying conditions.
6. Anti-slewing impulse equipment makes vehicle running safety.
Item |
Units |
SQ10SK3Q |
Max lifting capacity |
kg |
10000 |
Max lifting capacity |
T.m |
25 |
Recommend power |
kW |
30 |
Max oil flow |
L/min |
63 |
Max pressure |
mpa |
26 |
Oil Tank Capacity |
L |
160 |
Crane weight |
kg |
3800 |
Installation space |
mm |
1150 |
Rotation angle |
degree |
360 |
Max extension length |
mm |
12000 |
Max lifting height |
mm |
12500 |
