Summary
- Weight:20000kg
- Dimension(L*W*H):6220*2430*3200mm
- Power(W):128kw
- Model Number:XS203J
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed: 0-11.51 km/h
- Static Linear Pressure:470N/cm
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- Weight:20000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

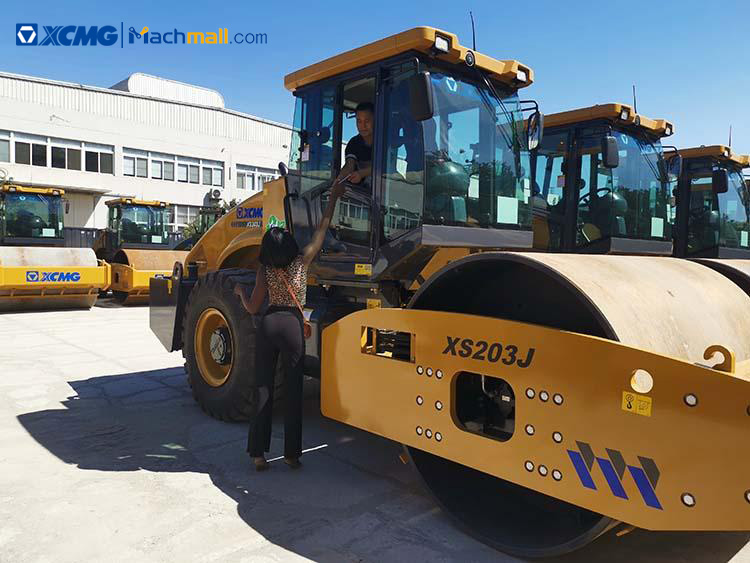

XCMG official 20 ton new road roller XS203J.
XCMG official 20 ton new road roller XS203J is a highly efficient and energy-saving super heavy machinery driven single drum vibratory roller independently developed by XCMG.
XCMG single drum roller XS203J is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large projects.
XS203J road roller is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial construction sites.
Performance Characteristics:
1.The Shangchai CHina-ll turbocharged low speed diesel engine is adopted to achieve the best fuel consumption working area and reduce the comprehensive fuel consumption by 10%.
2.XCMG single drum roller XS203J's cab and frame improves the working comfort of the operator.
3.Improve the heat dissipation ability comprehensively, ensuring efficient operation of power system.
4.Using advanced hydraulic damping control technology, optimized vibration parameters, reliability and work quality is greatly improved.
|

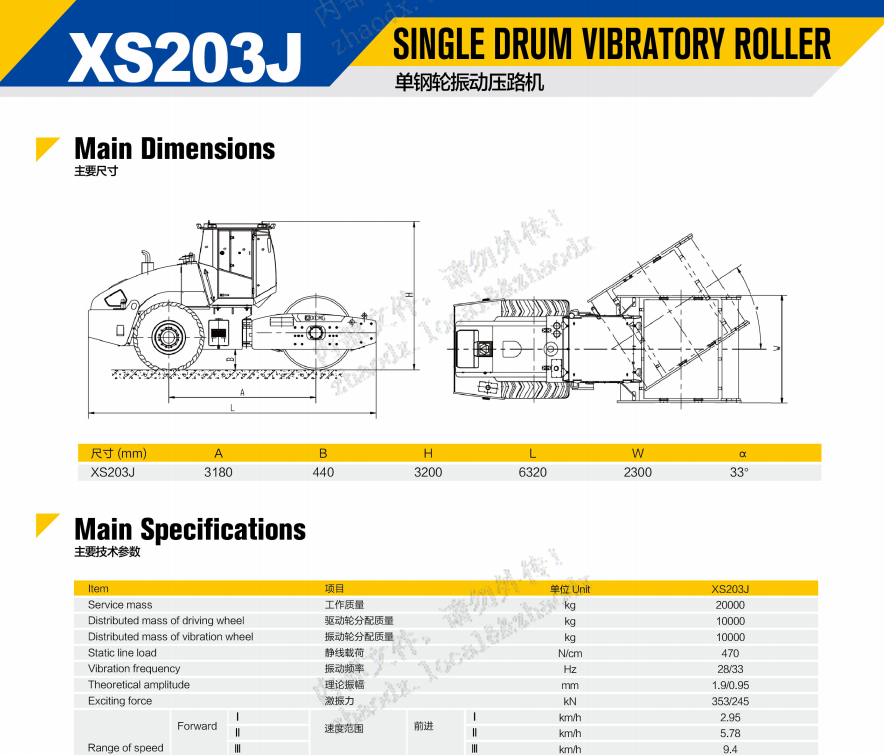

Model |
Unit |
XS203J |
|
Operating weight |
kg |
20000 |
|
Load applied on front drum |
kg |
10000 |
|
Static linear load |
N/cm |
470 |
|
Travel Speed |
km/h |
3-9.4 |
|
Theoretical gradeability |
% |
30 |
|
Min. outer turning radius |
mm |
6500 |
|
Steering angle |
° |
±33 |
|
Oscillating angle |
° |
±10 |
|
Vibration frequency |
Hz |
33/28 |
|
Nominal amplitude (high/low) |
mm |
1.9/0.95 |
|
Exciting force (high/low) |
kN |
353/245 |
|
Drum width |
mm |
2130 |
|
Drum Diemeter |
mm |
1600 |
|
Engine model |
|
Shanghai Diesel Engine SC8D175.2G2B1 |
|
Rater Power |
kW |
128 |
|
Engine oil consumption |
g/kW.h |
205 |
|
Hydraulic tank capacity |
L |
170 |
|
Fuel tank capacity |
L |
310 |
|
Dimension(L*W*H) |
mm |
6220*2430*3200 |
.jpg)
.jpg)
.jpg)
