XCMG HANVAN 6*4 New 30 ton Dump Trucks XGA3250D2WC price
Specifications
- Weight:16220.000kg
- Condition:New
- Moving Type:Wheel
- Passengers:2
- GVW:47220kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

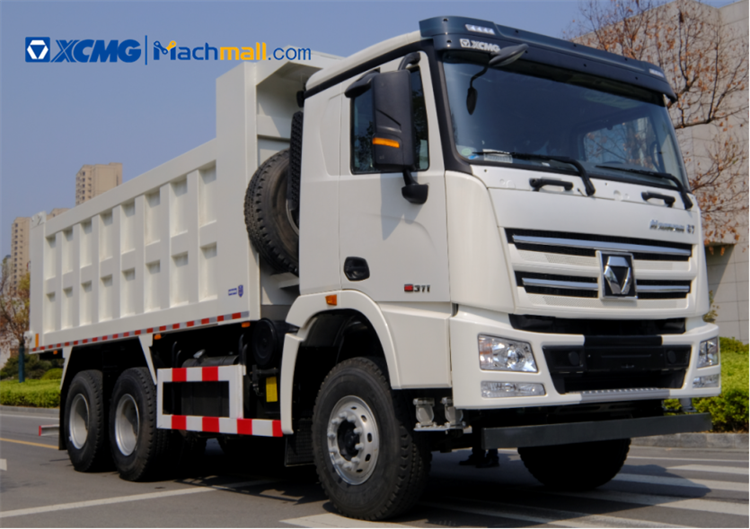

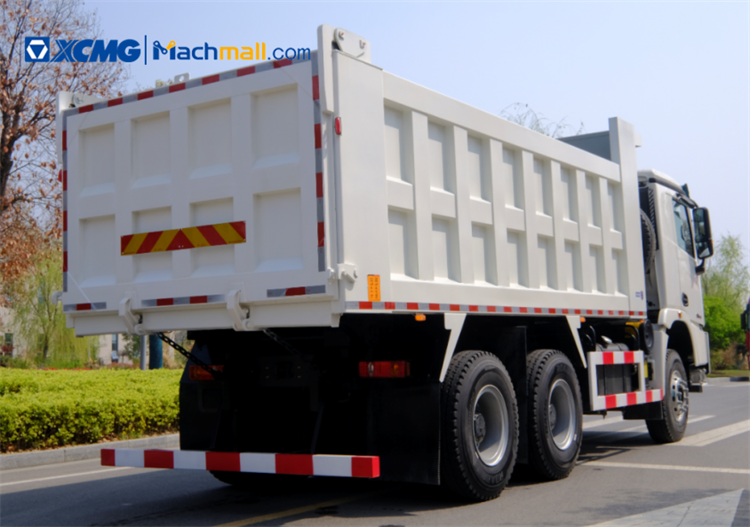

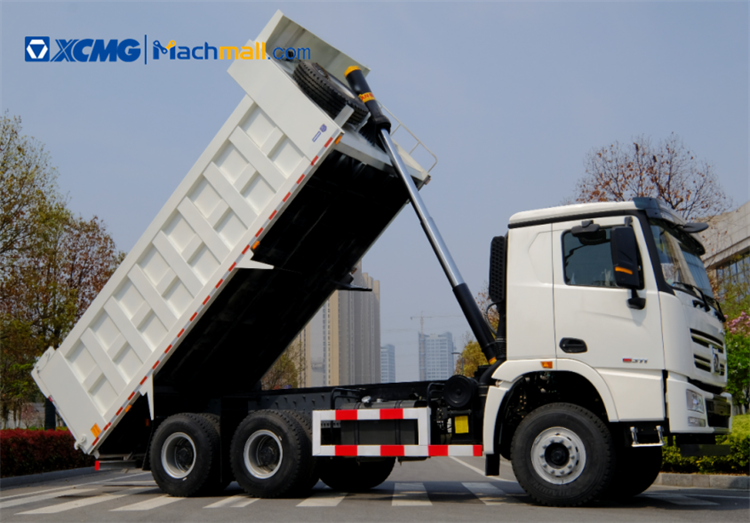

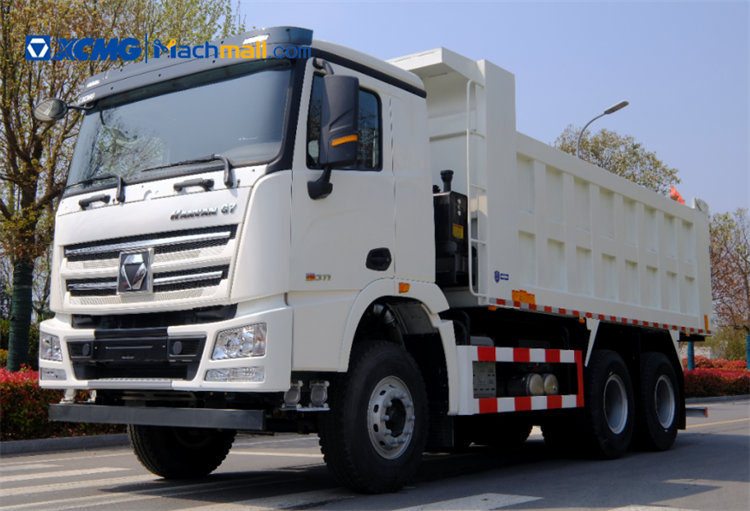

XCMG HANVAN 6*4 New 30 ton Dump Trucks XGA3250D2WC.
XCMG HANVAN G7 XGA3250D2WC dump trucks are equipped with Weichai engine, Fast transmission, Hande axle, which are the most successful brand in each field.
The horsepower is from 336HP to 430HP to meet multiple demands.
Key assembly components are optimized by CAE analysis and verifications, suchas parts bench test, vehicle benchreliability test andenhanced pavement test, which have dramatically improved the service lifetime and reliability, and the trucks can be applied to various working conditions.
|
/Mass parameter |
Curb weight |
16220kg |
||
|
GVW |
47220kg |
|||
|
|
Max Speed |
75km/h |
||
|
|
Min. turning diameter |
20m |
||
|
|
Grade ability(≥) |
36% |
||
|
|
Hill-hold ability(≥) |
20% |
||
|
/Performances |
Fuel consumption |
54L |
||
|
|
Fuel Tank |
400L |
300L |
|
|
/Dimensions |
Overall dimensions |
Length |
8613mm |
|
|
Width |
2550mm |
|||
|
Height |
3307mm |
|||
|
Wheelbase (mm) |
3800+1400 |
|||
|
Wheel tread |
Front |
2004mm |
||
|
Rear |
1860mm |
|||
|
Min.Clearance |
285mm |
|||
|
Approach angle |
34° |
|||
|
Departure angle |
22° |
|||
|
Front overhang |
1500mm |
|||
|
Rear overhang |
1913mm |
|||
|
Cargo size (mm) |
5800×2300×1500 |
|||
|
Cab |
Model |
G7SM |
||
|
Passengers |
2 |
|||
|
Engine |
Model |
WD615.47 |
||
|
Displacement |
9.726L |
|||
|
Output power |
273kW |
|||
|
Max torque speed |
1500N·m |
|||
|
Clutch |
Model |
/Pull type diaphragm spring clutch |
||
|
Operation |
Hydraulic manual |
|||
|
Transmission |
Model |
9JSD150A（Standard ） |
||
|
10JSD160（Optional ） |
||||
|
Operation |
Flexible shaft |
|||
|
Forward ratio |
12.57~1.00;14.96~1 |
|||
|
Reverse ratio |
Optional 14.24/3.19 |
|||
|
Model |
16T |
|||
|
Driven axle |
Ratio |
5.73 |
||
|
Brake type |
/Drum type |
|||
|
Differential lock |
/Differential lock between axles and wheels |
|||
|
Front axle |
Capacity |
7.5T flat axle |
||
|
Brake type |
Drum type |
|||
|
Wheel |
/Rim |
8.5V-20 |
||
|
Tire |
12.00R20-18PR |
|||
|
Frame |
Type |
Groove straight beam |
||
|
Main beam |
320×90×8mm |
|||
|
Auxiliary beam |
304×90×8mm |
|||
|
Width of chassis structure |
865mm |
|||
|
Suspension |
Front |
Type |
Multi-spring |
|
|
Amount of spring plate |
10 |
|||
|
Rear |
Type |
Multi-spring |
||
|
Amount of spring plate |
13 |
|||
|
Steering System |
Steering type |
Circulating ball type hydraulic power |
||
|
Ratio |
23.27 |
|||
|
Max pressure of pump |
17MPa |
|||
|
Brake System |
Rated working pressure |
1MPa |
||
|
Driving brake |
/Dual circuit pneumatic braking |
|||
|
Parking brake |
/Spring energy storage air brake |
|||
|
Assistant brake |
/Engine exhaust brake |
|||
|
Electric system |
Voltage |
24V |
||
|
Generator power |
2.2kw |
|||
|
Battery voltage and capacitance |
2×12V/165Ah |
|||
