Summary
- Fork Width: 100 mm
- Fork Length: 1070 mm
- Min Lifting Height: 85 mm
- Max Lifting Height:3500 mm
- Rated Loading Capacity:1000-2000 kg
- Power Source:DC MOTOR
- Type:Powered Pallet Truck
- Model Number:CDS1030 CDS1530 CDS2030
- Brand Name:YANCHA
- Place of Origin:Jiangsu, China
Specifications
- weight:430.000kg
- Condition:New
- Moving Type:Other
- Color:Customer Demanded
- Overall Dimensions:1800*840*2080 mm
- Battery:12V/120A
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

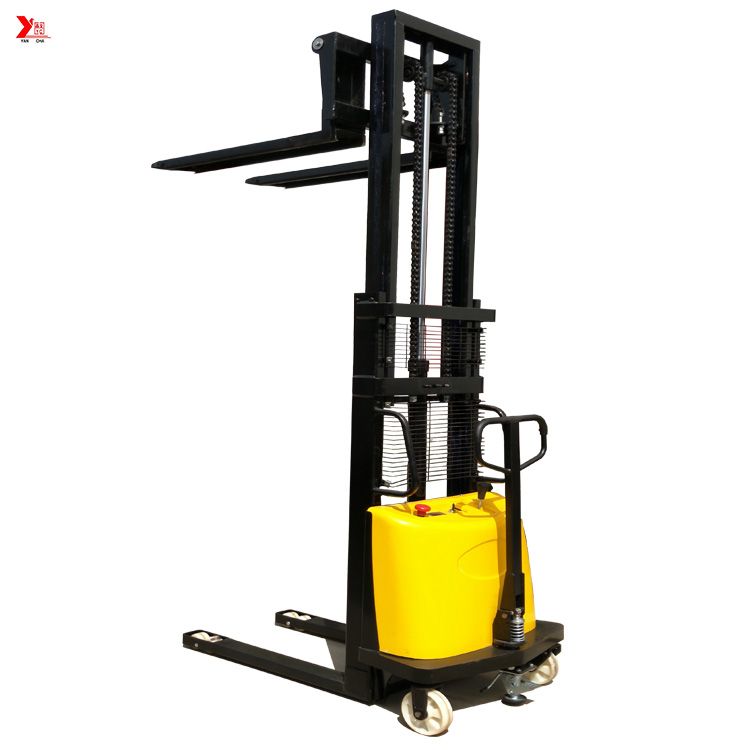

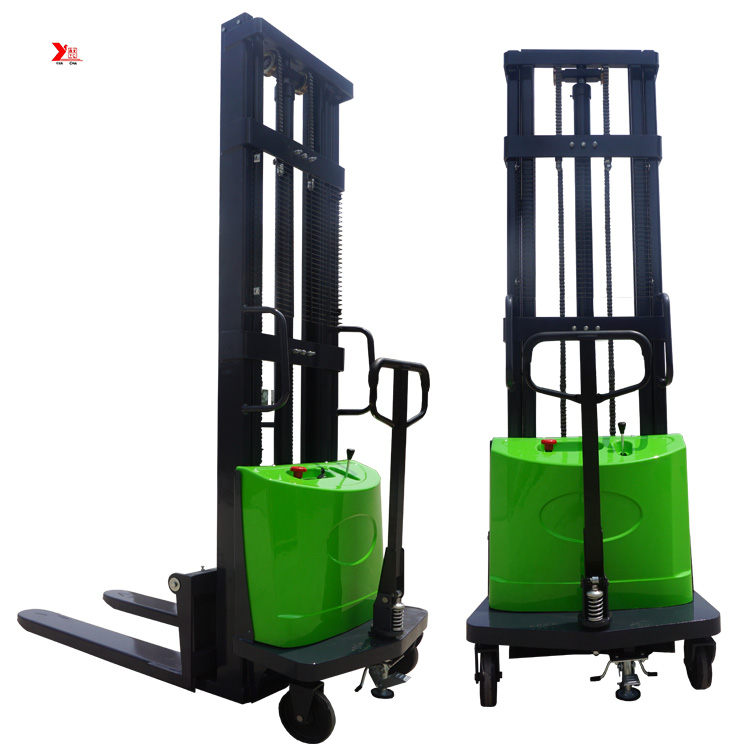

YANCHA stacker narrow aisle forklift 1 ton 1.5 ton.
YANCHA stacker narrow aisle forklift 1 ton 1.5 ton is economic and practical for stacking, loading and discharging because of its compact structure, small volume, light weight and convenient maintenance.
1. Lifting speed can be controlled by power.
2. Adopt low-noise imported hydraulic power unit with highly efficient battery and integration system.
3. Portal frame is made of manganese steel. Pressure-compensated valve is adopted: the heavier the cargo is, the slower the truck decreases; on contrarily, the lighter the cargos is, the faster the truck rises.
4.It can be operated flexible and easy.
Model |
Unit |
CDS1030 |
CDS1530 |
CDSD2030 |
Load Capacity |
kg |
1000 |
1500 |
2000 |
Lift Height |
mm |
3000 |
3000 |
3000 |
Load Center |
mm |
500 |
500 |
500 |
Fork Length |
mm |
1070 |
1070 |
1070 |
Lowest height |
mm |
85 |
85 |
85 |
Manipulation Way |
|
Handle |
Handle |
Handle |
Tyres |
|
PU/Nylon |
PU/Nylon |
PU/Nylon |
Lifting Speed at full Load |
mm/sec |
85 |
85 |
85 |
Battery |
V/Ah |
12/120 |
12/120 |
12/120 |
Working Time(for referece) |
h |
4 |
4 |
4 |
Lifting Motor |
kw |
2.2 |
2.2 |
2.2 |
The Min. Turning Inner Radius |
mm |
1200 |
1200 |
1200 |
L X W X H Dimension |
mm |
1800*840*2080 |
1800*840*2080 |
1800*840*2080 |
weight |
kg |
400 |
420 |
430 |
lifting Height at each weight |
mm |
1600/2000/2500/3000/3500 |
||
Height of Door Frame |
mm |
2080/1600/1850/2080/2350 |
More YANCHA Semi Electric Stacker
