XCMG factory small road grader machine 180 HP GR1803 for sale, MACHMALL

Engineering & Construction Machinery > Road Construction & Maintenance Machinery > Motor Grader

XCMG factory small road grader machine 180 HP GR1803 for sale

FOB Price: $56000.00-$70000.00

View All >

Model： GR1803

Engine： SHANGCHAI

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG factory small road grader machine 180 HP GR1803 for sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

GR1803

Specs & Compare

Details

Specifications

Weight:15400.000kg
Condition:New
Moving Type:Other
Forward Speed:38km/h
Reverse Speed:23km/h
Dimension(L*W*H):8900*2625*3420mm
Weight:15400kg
Rated power/speed:142kW/2200rpm
Ground clearance (front axle):430mm

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG factory small road grader machine 180 HP GR1803 for sale

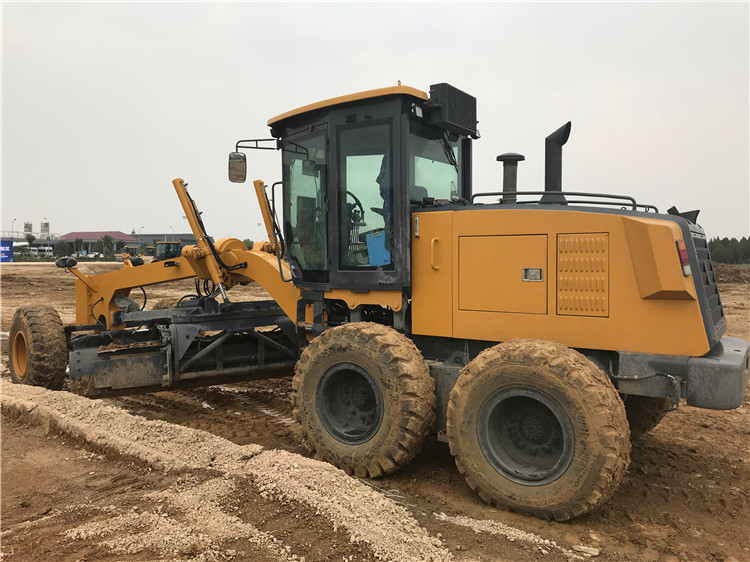

XCMG factory small road grader machine 180 HP GR1803.

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.

1. Energy saving and noise reduction: adopt low speed engine transmission line, low fuel consumption and energy saving and environmental protection.

2. Strong power: Shangchai efficient China stage III engine and hydraulic torque converter, the optimal torque converter achieves the best matching of torque converter and engine, reducing the start time, increase the work of torque output at low speed, strong and powerful.

3. Rotation with load: improve the pressure of hydraulic system system, the rotary force of the blade, the high frequency quenching treatment improves the wear resistance and life span.

4. Efficient operation: improves the displacement of hydraulic pump and hydraulic motor, increase the oil cylinder speed by 20%, realizes the industry leading work efficiency.

XCMG factory small road grader machine 180 HP GR1803 for sale

Item		GR1803
Basic parameters	Engine model	SC7H190.1G3
	Rated power/speed	140kW/2000rpm
	Overall dimension (standard)	8900x2625x3420
	Total weight (standard)	15400 kg
Performance parameters	Forward velocity	5/8/11/19/23/38km/h
	Reverse speed	5/11/23km/h
	Tractive effort f=0.75	≥79 kN
	Maximum gradeability	≥25%
	Tire inflation pressure	260kPa
	Working system pressure	20MPa
	Transmission pressure	1.3-1.8Mpa
Working parameters	Maximum steering angle of front wheel	±48°
	Maximum slant angle of front wheel	±17°
	Maximum oscillating angle of front axle	±15°
	Maximum oscillating angle of equilibrium box	±15°
	Maximum steering angle of frame	±27°
	Minimum turning radius	7.3m
Oil filling amount	Coolant	50L
	Fuel tank	280L
	Engine	24L
	Transmission	38L
	Balancing box	46L
	Drive axle	28L
