XCMG GR100 7 ton small motor grader with Cummins engine for sale
Specifications
- Weight:7000.000kg
- Condition:New
- Moving Type:Other
- Forward Speed:38km/h
- Reverse Speed:24km/h
- Dimension(L*W*H):6880*2375*3150mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

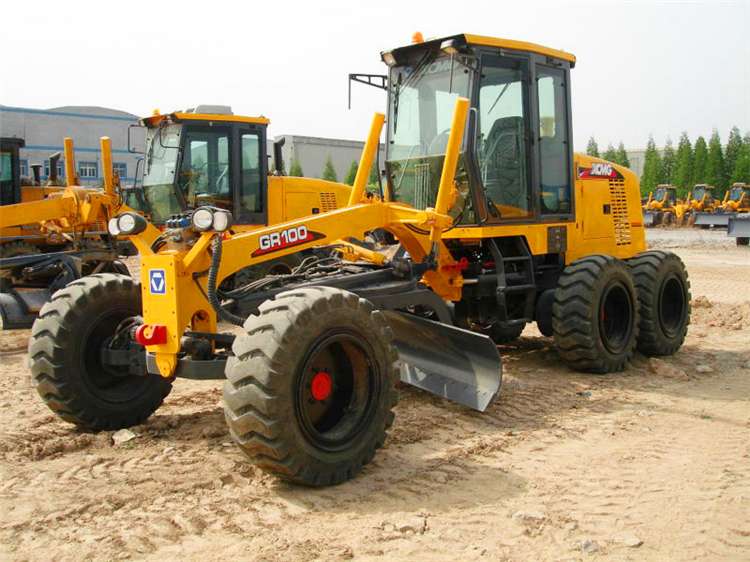

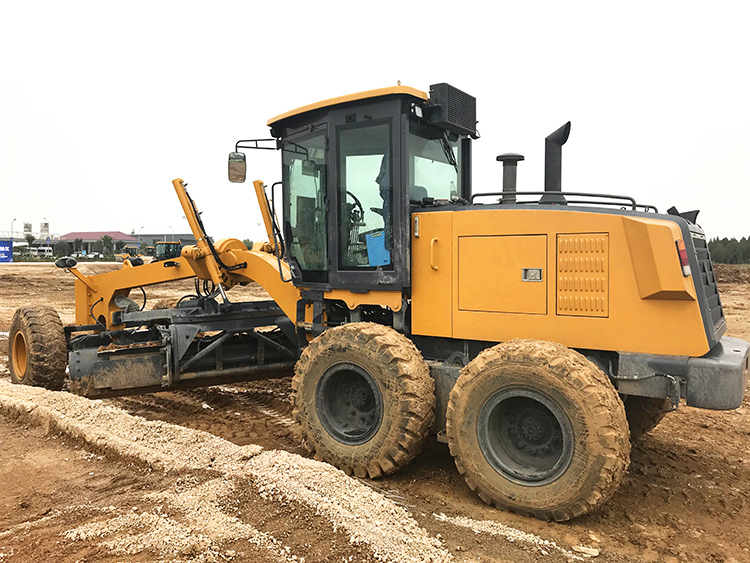

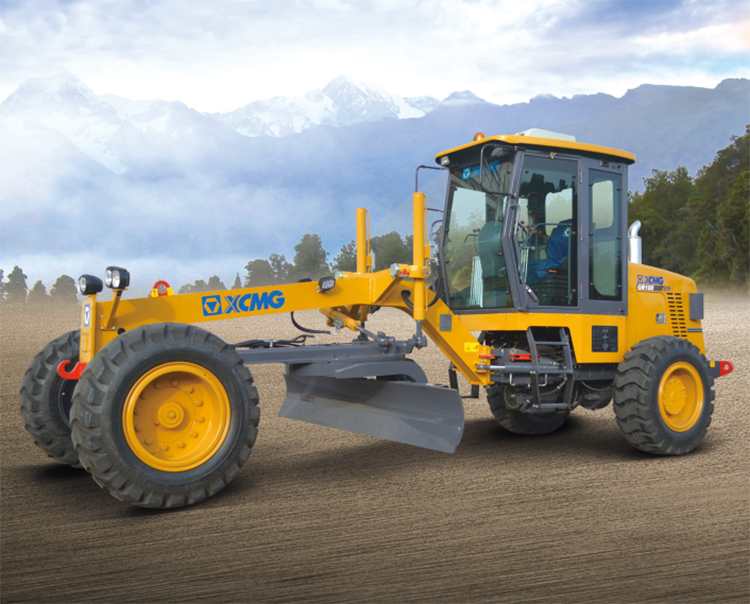

XCMG GR100 7 ton small motor grader with Cummins engine.
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. GR100 adopts Dongfeng Cummins 4BTA3.9-C100-II (SO11847) turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3. The drive axle is a dedicated XCMG axle.
4. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
5. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
6. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
|
Item |
GR100 |
|
Engine model |
J-XZGR100-4BT3.9 |
|
Rated power/speed |
75(2400r/min) |
|
Overall dimension (standard) |
6880X2375X3150 |
|
Total weight (standard) |
7000kg |
|
Tire specification |
16/70-24 |
|
Ground clearance (front axle) |
550mm |
|
Tread |
1900mm |
|
Space of front and rear axles |
4885 mm |
|
Forward velocity |
5,8,11,17,24,38km/h |
|
Reverse speed |
5,11,24km/h |
|
Tractive effort f=0.75 |
39.2N |
|
Maximum gradeability |
20% |
|
Tire inflation pressure |
300kPa |
|
Working system pressure |
16MPa |
