Summary
- Model Number:QY25K5C
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:50.5m
- Max. Lifting Load:25 ton
Specifications
- Weight:32800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

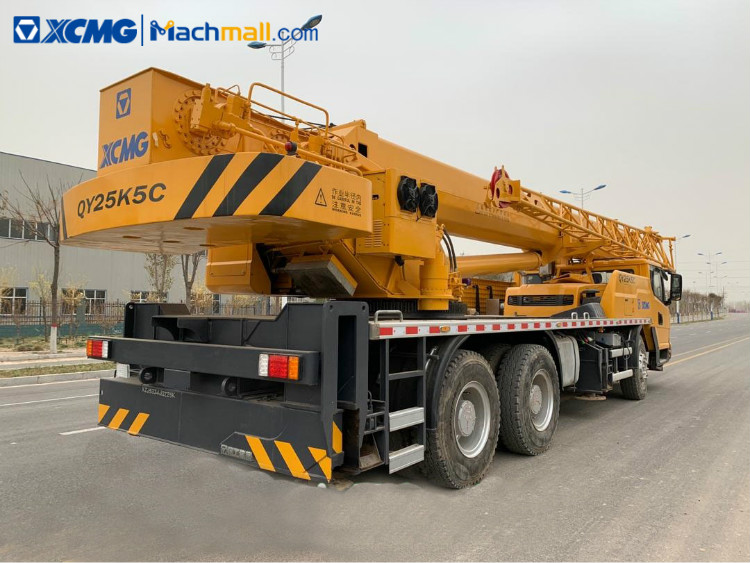

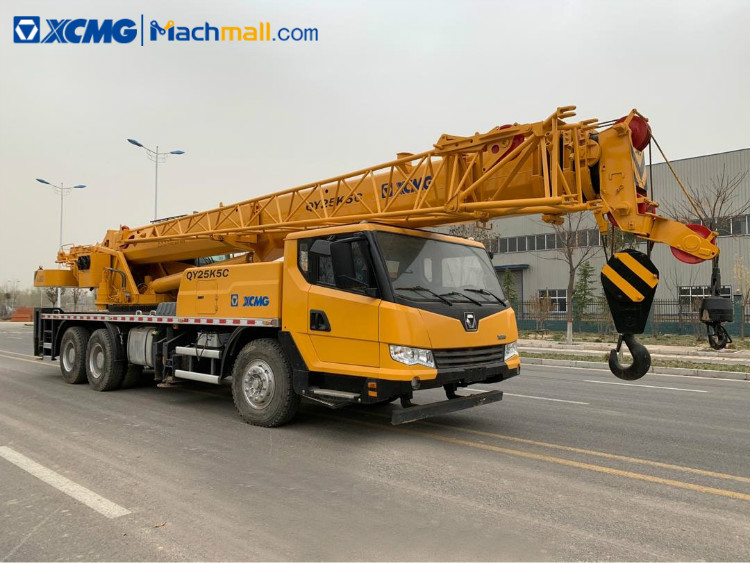

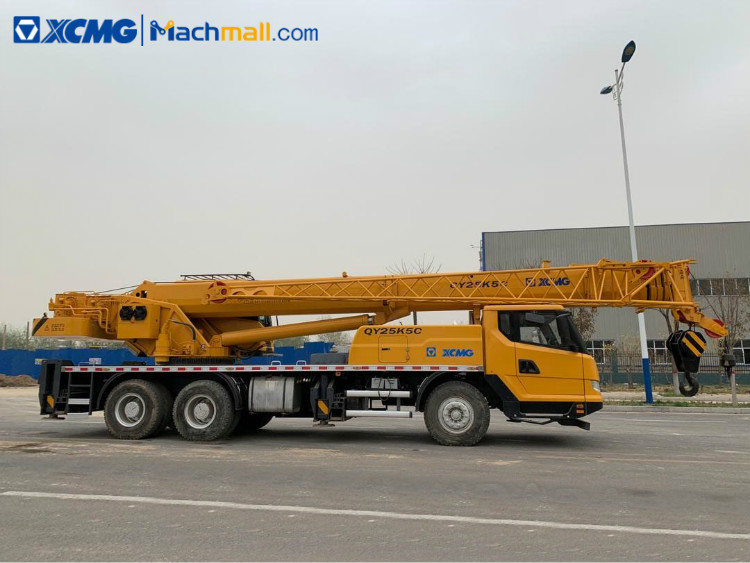

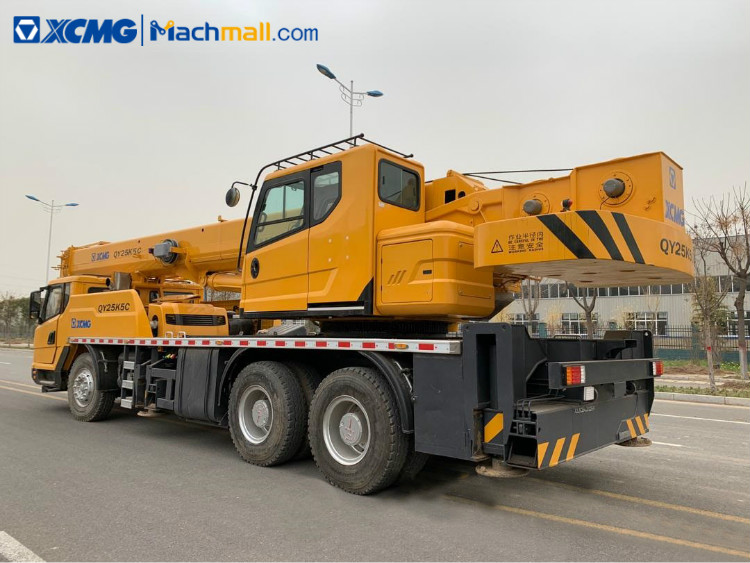

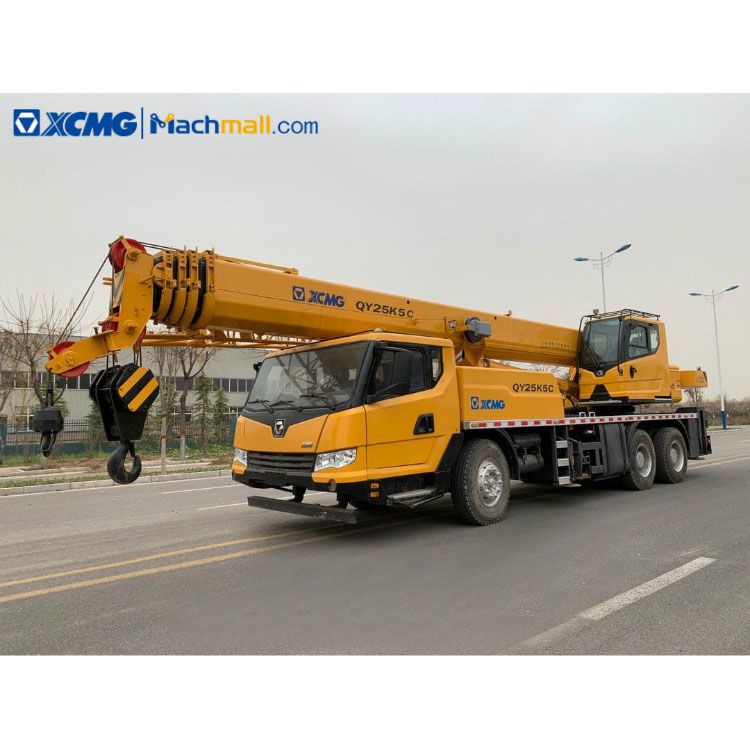

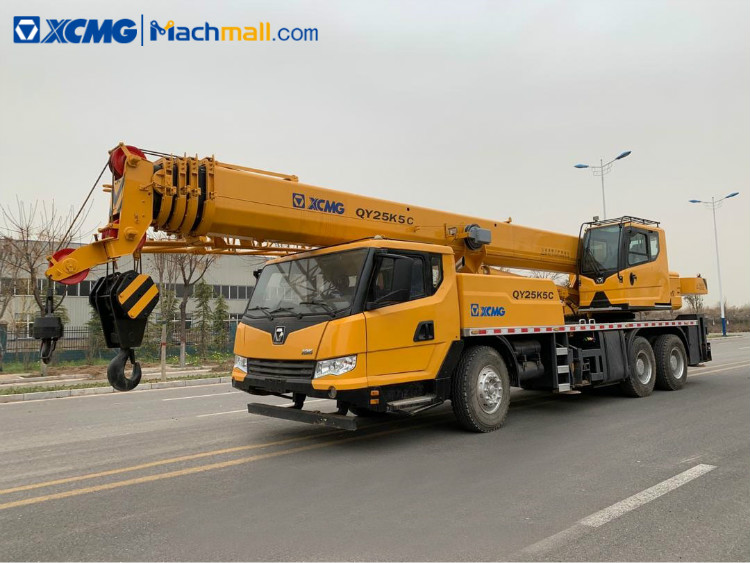

XCMG manufacturer 25 ton small mobile truck crane QY25K5C.
The operations of XCMG manufacturer 25 ton small mobile truck crane QY25K5C are very simple, convenient and flexible.
XCMG 25 ton small mobile truck crane QY25K5C is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
1. U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.
2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.Embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
3. With 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.
4.Open type fixed displacement pump and variabledisplacement motor system is adopted.Double pump confluenceis used in main operation, which meets the requirements of speed and reduces the energy consumption and system heat effectively. The load sensitive system that researched anddeveloped by ourselves contributes to smooth operation, high efficiency and energy saving.Particularslewing technology realizes smooth slewing and no jitter. Free fall is adopted in the elevating system,which effectively realizes energy-saving.The counterbalance valve adopts over-load compensated technology to ensure crane fallsmoothly.
|
Category |
Item |
|
Unit |
Parameter |
|
Dimension Parameter |
Overall length |
|
mm |
12680 |
|
|
Overall width |
|
mm |
2500 |
|
|
Overall height |
|
mm |
3400 |
|
|
Wheel base |
|
mm |
4425+1350 |
|
|
Wheel track |
|
mm |
2074/1834/1834 |
|
Weight Parameter |
Total mass under driving status |
|
kg |
32800 |
|
|
Axle load |
Front axle |
kg |
7300 |
|
|
|
Back axle |
kg |
25500 |
|
Kinetic Parameter |
Engine type |
|
|
SC9DF290Q4 |
|
|
Engine power rating |
|
kw/(r/min) |
213/2200 |
|
|
Rated torque of engine |
|
N.m/(r/min) |
1200/1400 |
|
Running Parameter |
Maximum travel speed |
|
km/h |
90 |
|
|
Minimum diameter of turning circle |
|
m |
22 |
|
|
Minimum ground clearance |
|
mm |
275 |
|
|
Approach angle |
|
° |
11 |
|
|
Departure angle |
|
° |
12 |
|
|
Braking length (the speed is 30km/h) |
|
m |
≤10 |
|
|
Maximum gradeability |
|
% |
41 |
|
|
Fuel consumption per hundred kilometers |
|
L |
≤32 |
|
Noise Parameter |
Car exterior noise when speeding up |
|
dB(A) |
88 |
|
|
Noise around the driver’s ear |
|
dB(A) |
90 |
