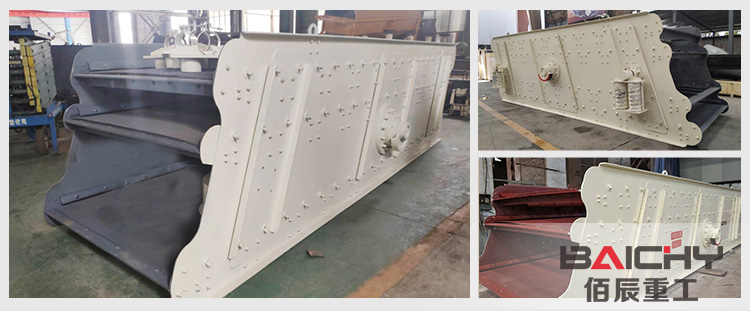

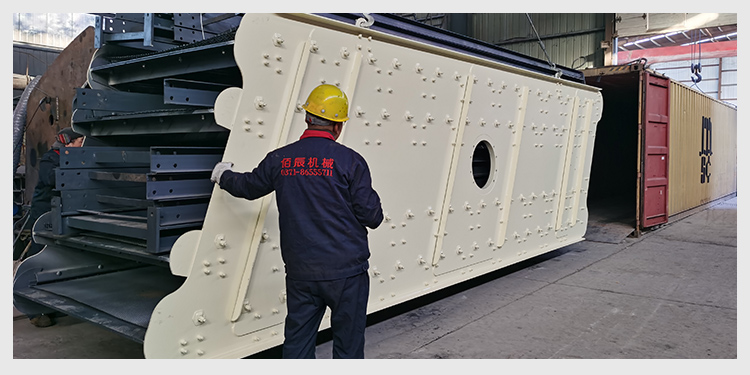

China Coal Gold Gravel Silica Sand Stone Circular Vibrating Screen Machine Price
Specifications
- Weight:5000.000kg
- Condition:New
- Moving Type:Other
- Model:3YK1237
- Capacity:30-100t/h
- Motor:7.5kw
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Advantage:
A). Reliable quality certified by CE and reaches European standard.
B). Two types of vibrating screen,
C). Unique and advanced design.
D). Powerful vibrating forces, low vibrating noise
E) Easy to maintain, high durability, etc.
Working principle
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
| Model | Sieve specification (mm) | layer | Mesh size (mm) | Max feeding size (mm) | Processing capacity (t/h) | Moto power (kw) | Vibrating Frequency (r/min) | Double amplitude (mm) |
| 2YK1237 | 1200X3700 | 2 | 3-50 | 200 | 30-100 | 5.5 | 970 | 5-9 |
| 3YK1237 | 1200X3700 | 3 | 3-50 | 200 | 30-100 | 7.5 | ||
| 2YK1548 | 4800X1500 | 2 | 3-100 | 400 | 30-275 | 15 | ||
| 3YK1548 | 4800X1500 | 3 | 3-100 | 30-275 | 15 | |||
| 2YK1848 | 4800X1800 | 2 | 3-100 | 56-330 | 18.5 | |||
| 3YK1848 | 4800X1800 | 3 | 3-100 | 56-330 | 18.5 | |||
| 4YK1848 | 4800X1800 | 4 | 3-80 | 56-330 | 22 | |||
| 2YK1860 | 6000X1800 | 2 | 3-100 | 65-586 | 18.5 | |||
| 3YK1860 | 6000X1800 | 3 | 3-100 | 65-586 | 22 | |||
| 4YK1860 | 6000X1800 | 4 | 3-100 | 65-586 | 30 | 980 | ||
| 2YK2160 | 6000X2100 | 2 | 3-100 | 81-720 | 22 | 980 | ||
| 3YK2160 | 6000X2100 | 3 | 3-100 | 81-720 | 30 | 970 | ||
| 4YK2160 | 6000X2100 | 4 | 3-100 | 81-720 | 37 | 980 | ||
| 2YK2460 | 6000X2400 | 2 | 3-150 | 100-810 | 22 | 970 | ||
| 3YK2460 | 6000X2400 | 3 | 3-150 | 100-810 | 30 | 980 | ||
| 4YK2460 | 6000X2400 | 4 | 3-150 | 150-850 | 37 | 980 | ||
| 2YK2470 | 7000X2400 | 2 | 3-100 | 180-900 | 30 | 980 | ||
| 3YK2470 | 7000X2400 | 3 | 3-100 | 180-900 | 37 | 980 | ||
| 4YK2470 | 7000X2400 | 4 | 3-100 | 180-900 | 45 | 980 | ||
| 2YK2480 | 8000X2400 | 2 | 3-150 | 190-940 | 30 | 980 | ||
| 3YK2480 | 8000X2400 | 3 | 3-150 | 190-940 | 37 | 980 | ||
| 4YK2480 | 8000X2400 | 4 | 3-150 | 190-940 | 45 | 980 | ||
| 2YK3070 | 7000X2400 | 2 | 3-100 | 220-1000 | 37 | 980 | ||
| 3YK3070 | 7000X2400 | 3 | 3-150 | 220-1000 | 45 | 980 | ||
| 4YK3070 | 7000X2400 | 4 | 3-150 | 220-1000 | 55 | 980 |
 |
 |
 |
|
Jaw Crusher
|
Impact Crusher | Cone Crusher |
 |
 |
 |
|
Grinding Mill
|
Baill Mill | Mobile Crusher Plant |
20 national service mileage:
Service mileage for local customers to provide equipment installation, commissioning and after-sales service
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
