Summary
- Weight:6500kg
- Overall Dimension:6.42*1.75*2m
- Table Size:1.4*0.7m
- Max Lifting Height:16m
- Rated Loading Capacity:227kg
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:XGA16AC
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:6500.000kg
- Condition:New
- Moving Type:Wheel
- Min. ground clearance:2100mm
- Min. turning radius:3.15m
- Wheelbase:2000mm
- Max. gradeability:30%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

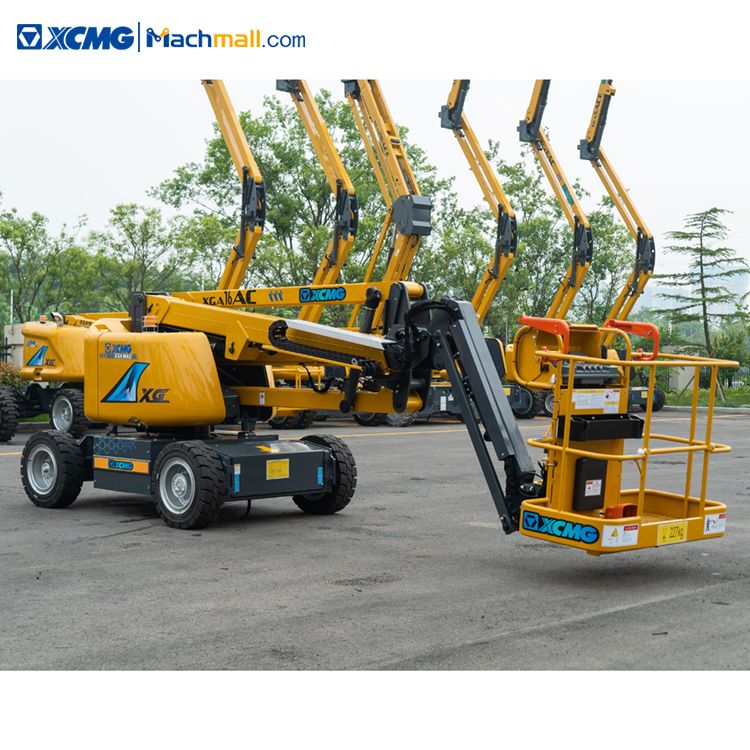

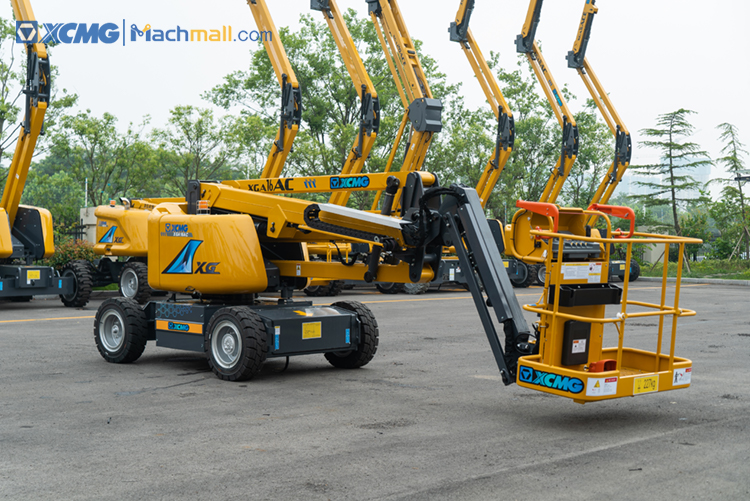

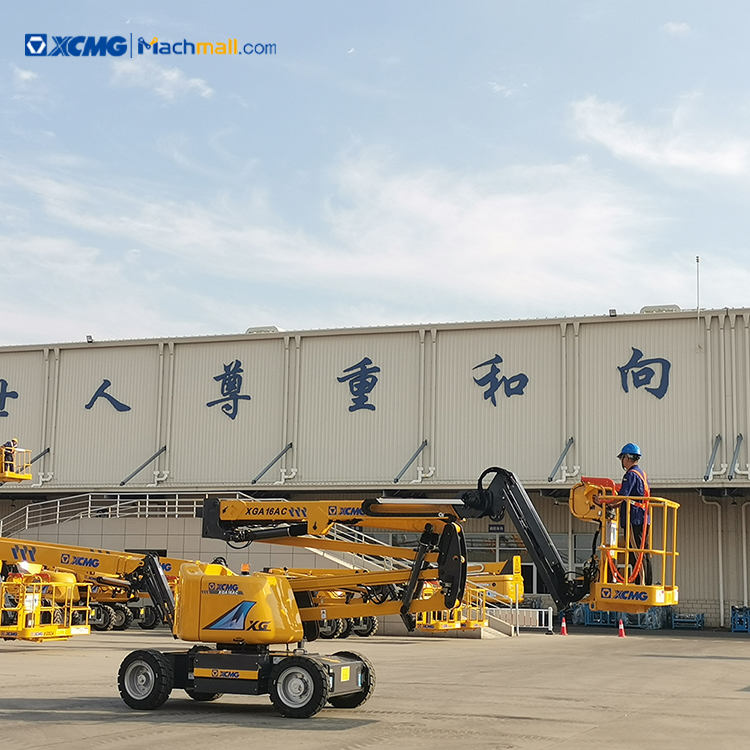

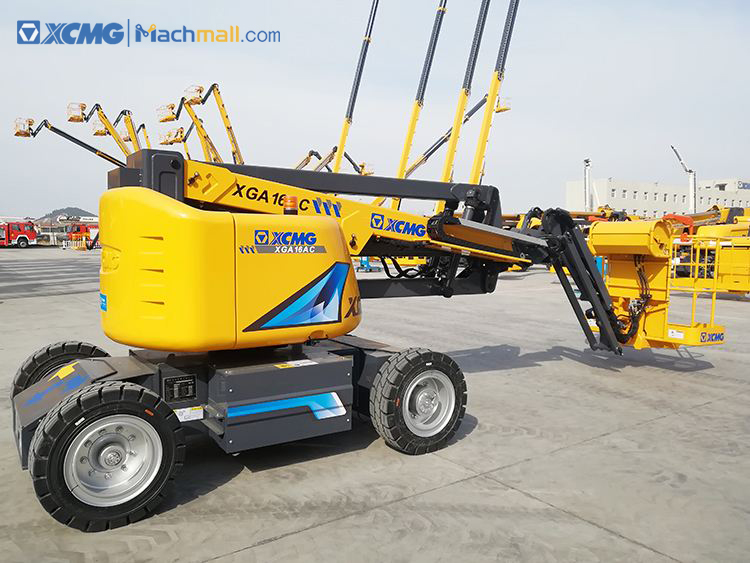

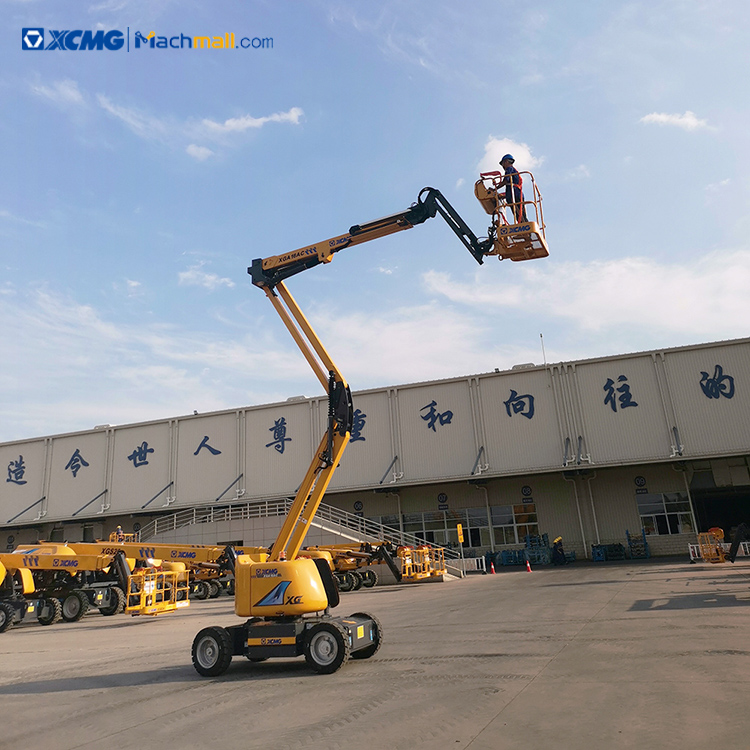

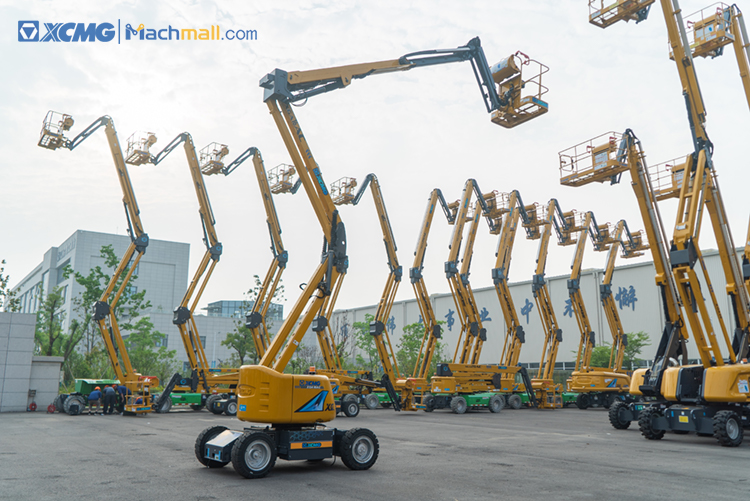

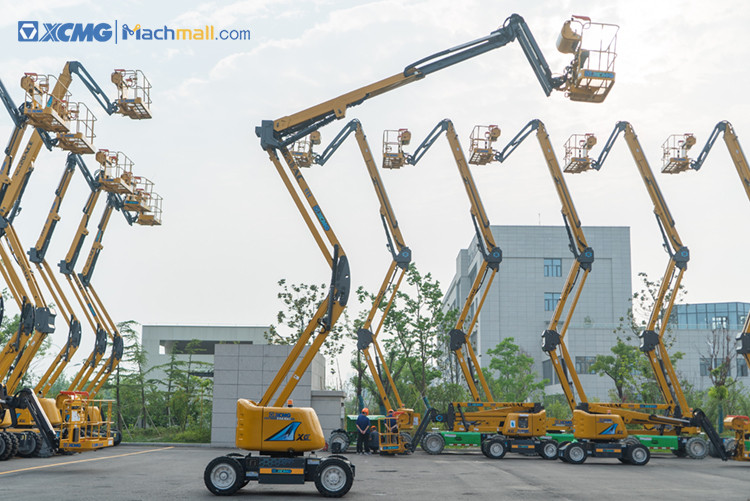

XCMG XGA16AC 16m crank arm articulated electric mobile lifting work platform.
The 16-meter-level electric mobile elevating work platform is easy to operate, safe, reliable, accurate and efficient. It adopts advanced motion optimization control procedures, and uses AC electric drive travel technology and differential travel control technology.
The power matching is accurate, the steering control is sensitive, and the action is smooth. Comfortable to operate. This model can meet the needs of users in various industries such as construction, petrochemical, venues and leasing.
Advantages and highlights:
1. Σ-shaped boom combine and zero tail swing design make it more productive.
2. As small as 3.15m turning radius enables the machine to work in narrow space.
3. Advanced AC motor driven technologies; steering differential control technologies; powerful and steady actions; grade ability up to 30%.
4. DC pump and proportional control technologies are energy-saving and effective, making the work steadier and safer.
5. Environment friendly, zero emission, low noise, traceless traveling, suitable for indoor construction.
|
Item |
Parameter |
|
Parameters of running state |
|
|
Overall dimensions (L × W × H) |
6.42×1.75×2 m |
|
Working platform overall dimensions |
1.4×0.7×1.15 m |
|
Max. speed |
5.2 km/h |
|
Max. gradeability |
≥30% |
|
Min. external turning radius |
≤3.15 m |
|
Ground clearance/m (center) |
0.21 m |
|
Wheelbase |
2 m |
|
Total mass |
6500 kg |
|
Main Operation Performance Parameters |
|
|
Rated working height |
15.5 m |
|
Max. platform height |
13.8 m |
|
Max. working range |
8 m |
|
Max. net spanning height |
7.03 m |
|
Scope of platform swing |
160° |
|
Slewing radius of turntable |
0.875 m |
|
Max. load capacity |
227 kg |
|
Max. rearward slewing |
0 m |
|
Control system |
12V DC proportional control |
|
Tire |
250-15 solid tire, optional foam tire 240/55 D17.5 |
|
Power parameters |
|
|
Power source |
420 Ah/48 V DC |
|
Power unit |
4 kw/48 V DC |
|
Auxiliary power unit |
2.2 kw/24 V DC |
|
Traveling motor |
3.3 kw/32 V AC |
