Summary
- Weight:17800kg
- Overall Dimension:11280*2490*3000mm
- Table Size:2400×900mm
- Max Lifting Height:26.38m
- Rated Loading Capacity:230kg
- Power:53/(2200) kW/(r/min)
- Model Number:XGA26
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:17800.000kg
- Condition:New
- Moving Type:Wheel
- Wheelbase:3000 mm
- Max. traveling speed:5 km/h
- Min. ground clearance:260 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

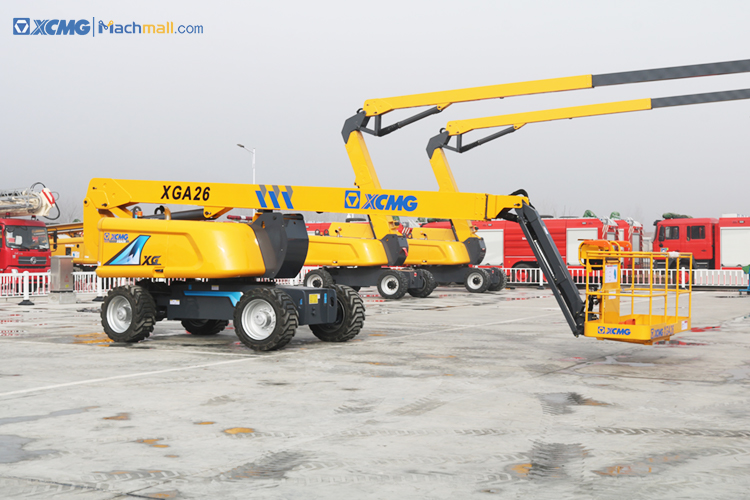

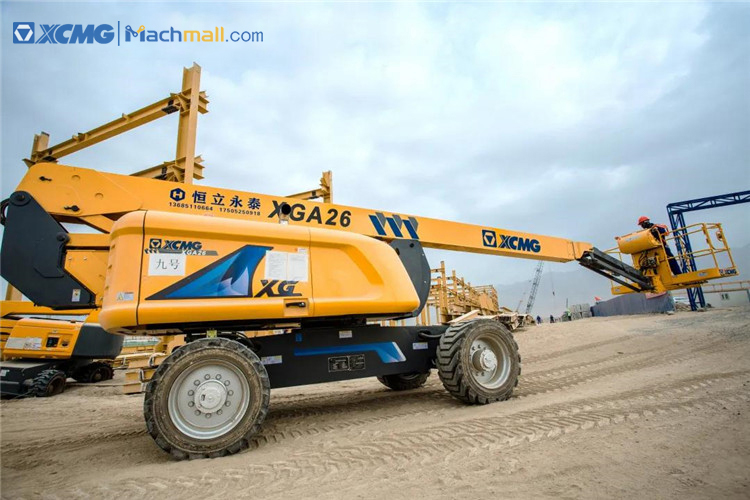

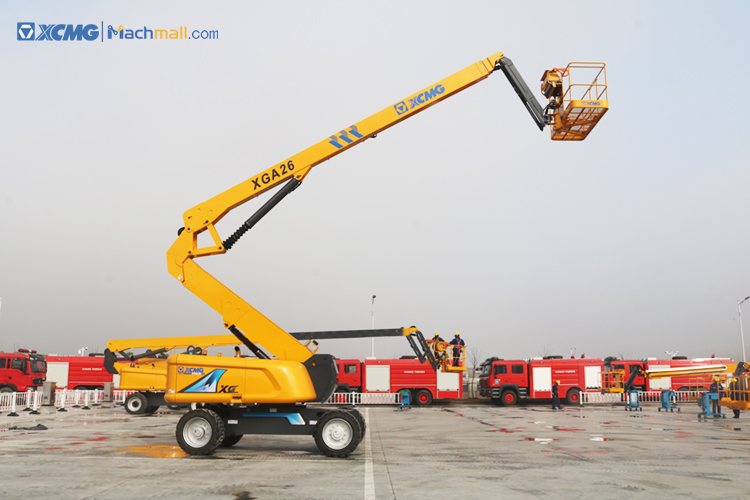

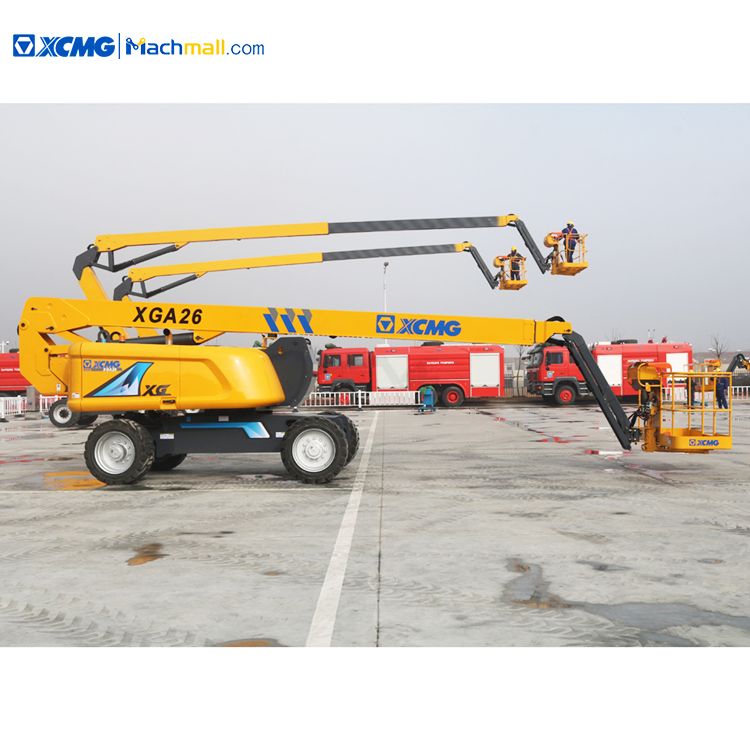

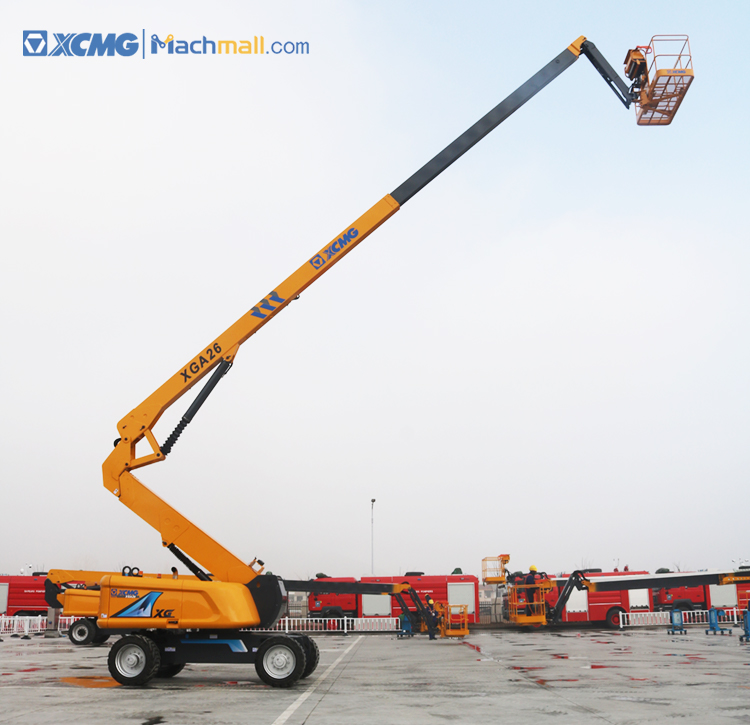

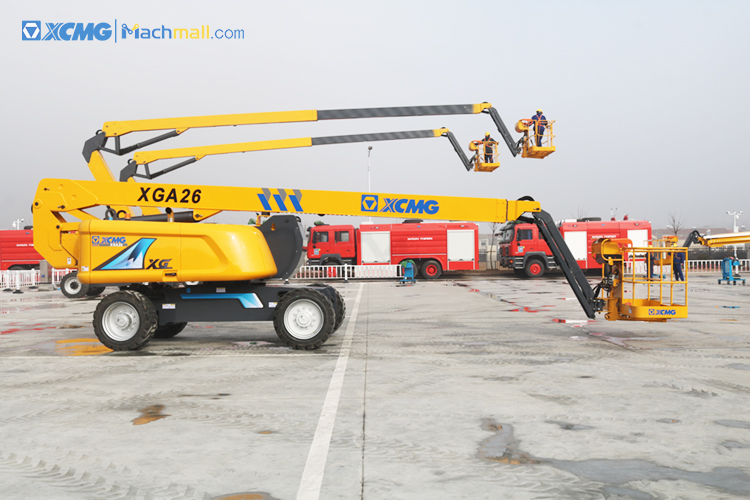

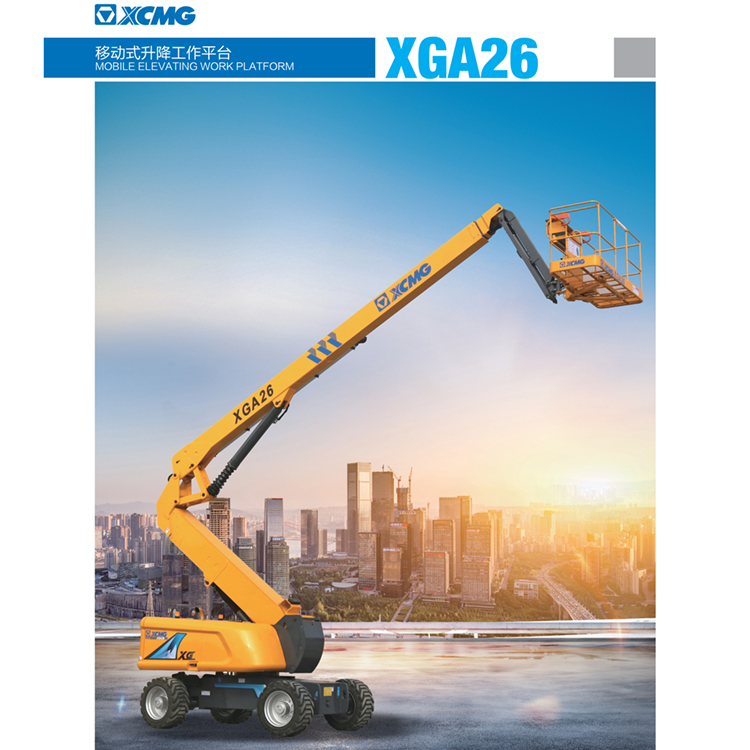

XCMG official new XGA26 26m 230kg Crank arm mobile lift platform.
XCMG official new XGA26 26m 230kg Crank arm mobile lift platform with excellent maneuverability and fuel economy. Four-wheel drive, industry-leading gradeability; excellent ductility and larger working range; efficient and stable working experience; power self-matching energy-saving system to maximize fuel economy.

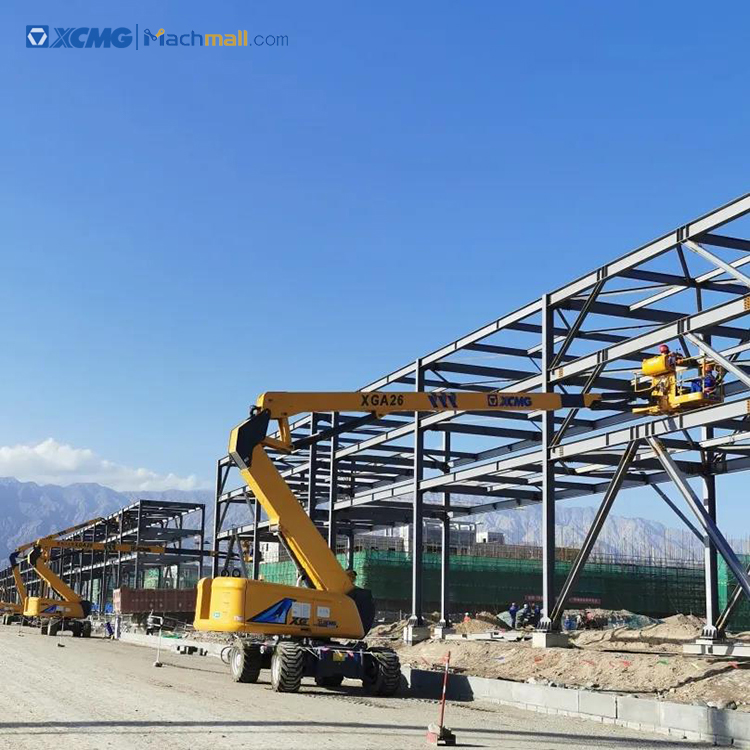

This model has leading performance, precise control, safety and reliability, and can meet the needs of users in construction, bridge and equipment maintenance, shipyard, petrochemical and leasing industries.
Highlights:
1. The electrical system adopts distributed PLC control technology and proportional valve adaptive control method, which makes the product environmental adaptability have a leading advantage.
2. Fully hydraulic drive, 360° free rotation of the turntable, no angle range limitation in the whole working surface, simple operation and high reliability.
3. Super road adaptability, four-wheel drive, off-road wide tires and axle balancing device, make the equipment have excellent driving and terrain adaptability, the maximum gradeability is 45%
4. The XCMG hydraulic lifting platform industry has maintained a high-speed and high-quality benign development trend for four consecutive years. XCMG boom lifts have steadily ranked first among domestic brands in China.
|
Item |
Unit |
XGA26 |
|
a. Overall length of complete machine |
mm |
11280 |
|
b. Overall width of complete machine |
mm |
2490 |
|
c. Overall height |
mm |
3000 |
|
d. Wheelbase |
mm |
3000 |
|
Max. working height |
m |
26.38 |
|
Max. platform height |
m |
24.38 |
|
Max. working range |
m |
18.9 |
|
Max. carrying weight |
kg |
230 |
|
Scope of luffing of No. 1 arm |
° |
-1 ~ +70 |
|
Scope of luffing of No. 2 arm |
° |
-35 ~ +68 |
|
Slewing angle of turntable |
° |
360° |
|
Max. Tail swing |
mm |
1330 (boom lifting) |
|
Dimension of platform |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
17800 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius |
m |
4.2m(Four-wheel steering) / 6.7m(Two-wheel steering) |
|
Min. ground clearance |
mm |
260 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
- |
18-625 |
|
Engine model |
- |
Cummins QSF2.8 71BHP |
|
Engine rated power |
kW/(r/min) |
53/(2200) |
