XCMG 24m Straight arm telescopic mobile towable trailer lift hydraulic lift platform for sale
Summary
- Weight:12500kg
- Overall Dimension:10150*2490*2800 mm
- Table Size:2400*900mm
- Max Lifting Height:24 m
- Rated Loading Capacity:230/340 kg
- Power:43/(2600) kW/(r/min)
- Model Number:XGS24
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:12500.000kg
- Condition:New
- Moving Type:Wheel
- Max. traveling speed:6km/h
- Wheelbase:2500mm
- Max. platform height:22m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

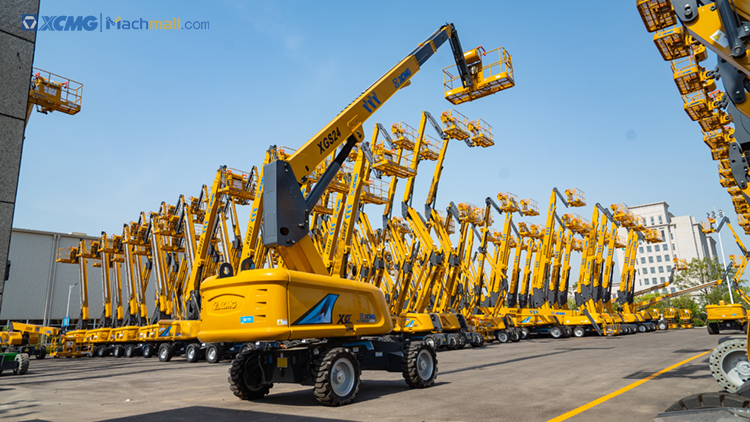

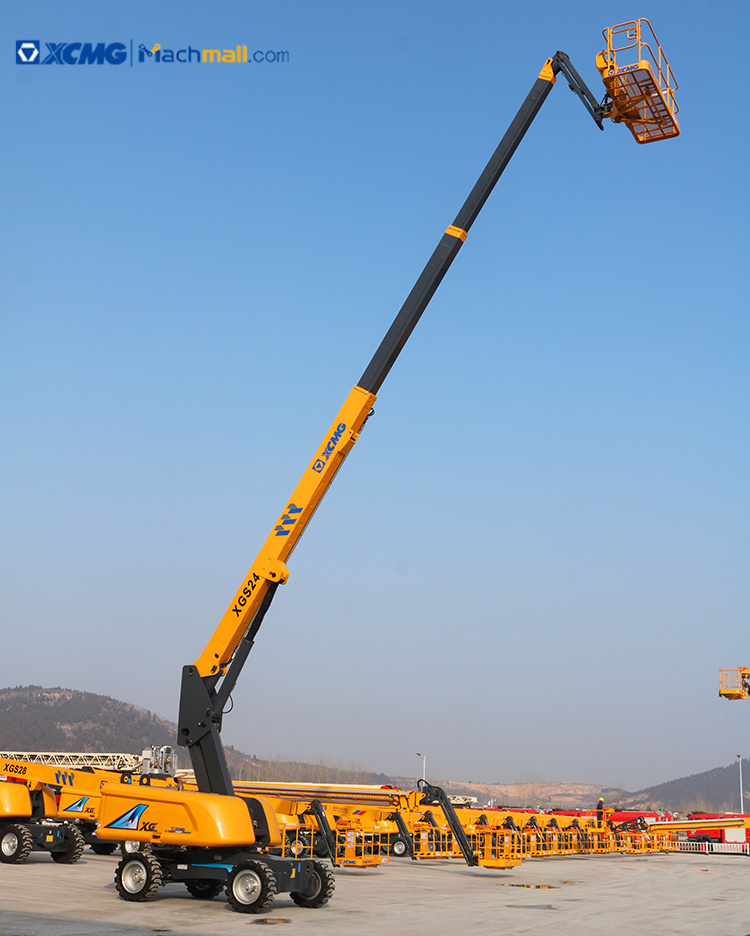

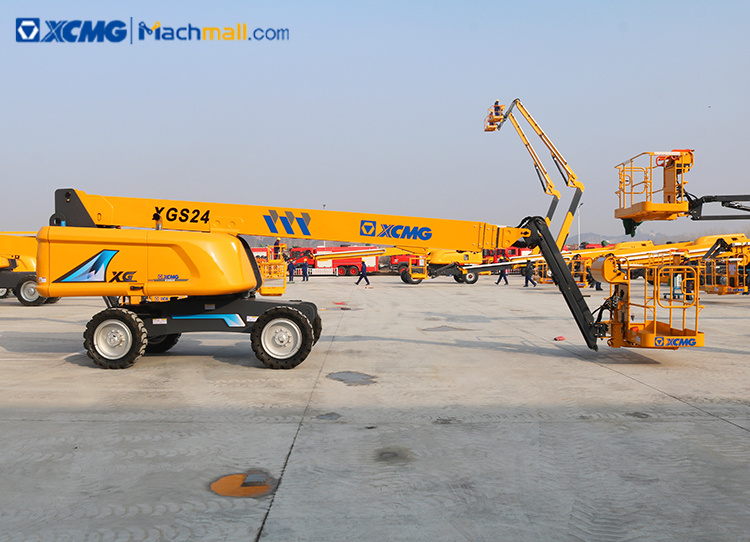

XCMG 24m Straight arm telescopic mobile towable trailer lift hydraulic lift platform.
XCMG 24m Straight arm telescopic mobile towable trailer lift hydraulic lift platform highlights with outstanding performance, efficiency, dynamics and easy operation.

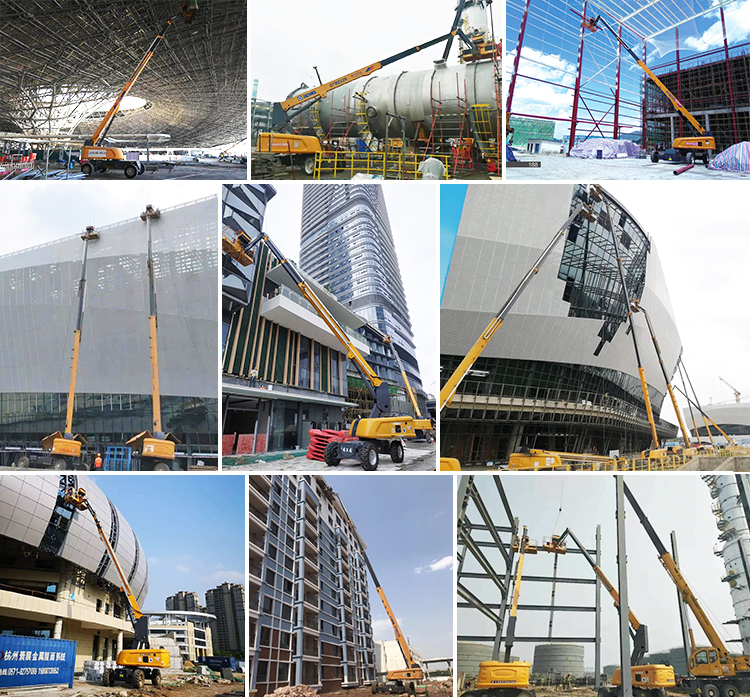

XCMG 24m Straight arm telescopic mobile towable trailer lift hydraulic lift platform is leading in the industry with maximum carrying capacity of 340kg, high operation height and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
1. XCMG aerial lifting platform XGS24 realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
2. XCMG aerial lifting platform XGS24 is excellent in drive and adaptability to road.
3. Making use of boom and making its work performance at leading edge.
4. Improves safety of extending mechanism and extends service life of steel rope.
5. XCMG aerial lifting platform XGS24 implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
|
Item |
Unit |
Parameter |
|
Overall length of complete machine |
mm |
10150 |
|
Overall width of complete machine |
mm |
2490 |
|
Overall height |
mm |
2800 |
|
Wheelbase |
mm |
2500 |
|
Max. working height |
m |
24 |
|
Max. platform height |
m |
22 |
|
Max. working range |
m |
18.3 |
|
Max. load capacity |
kg |
230/340 |
|
Luffing range of boom |
° |
-5 ~ +75 |
|
Slewing angle of turntable |
° |
360 |
|
Max. tail swing |
mm |
1550 |
|
Dimension of platform |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
12500 |
|
Max. traveling speed |
km/h |
6 |
|
Min. turning radius |
m |
6 |
|
Min. ground clearance |
mm |
230 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
- |
Solid tire 36×14-20/7.5 Or Foam tire 355/55D625 |
|
Engine model |
- |
Perkins 404D-22T |
|
Engine rated power |
kW/(r/min) |
43/(2600) |
