Summary
- Model Number:XGC55
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:52m
- Max. Lifting Load:55ton
Specifications
- Weight:46000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

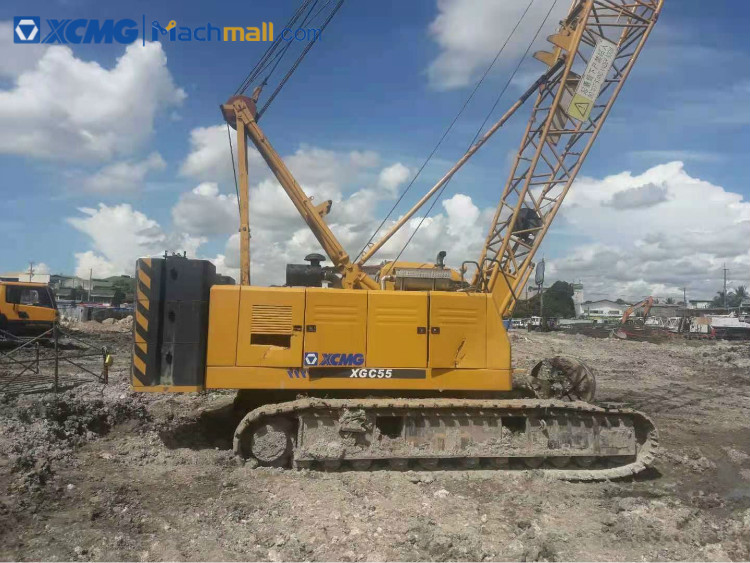

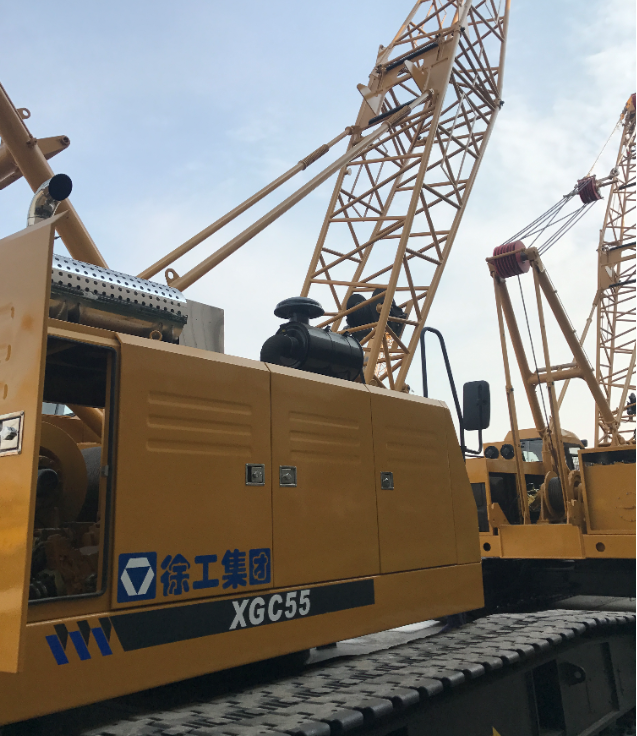

XCMG crawler mobile cranes 50 ton machine for construction.

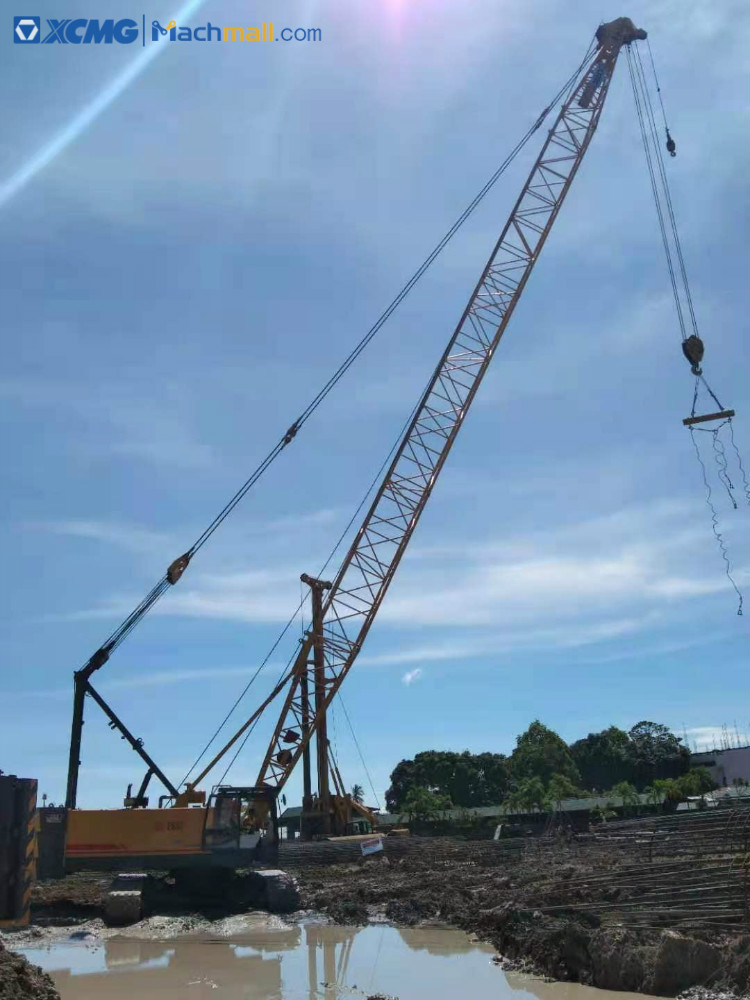

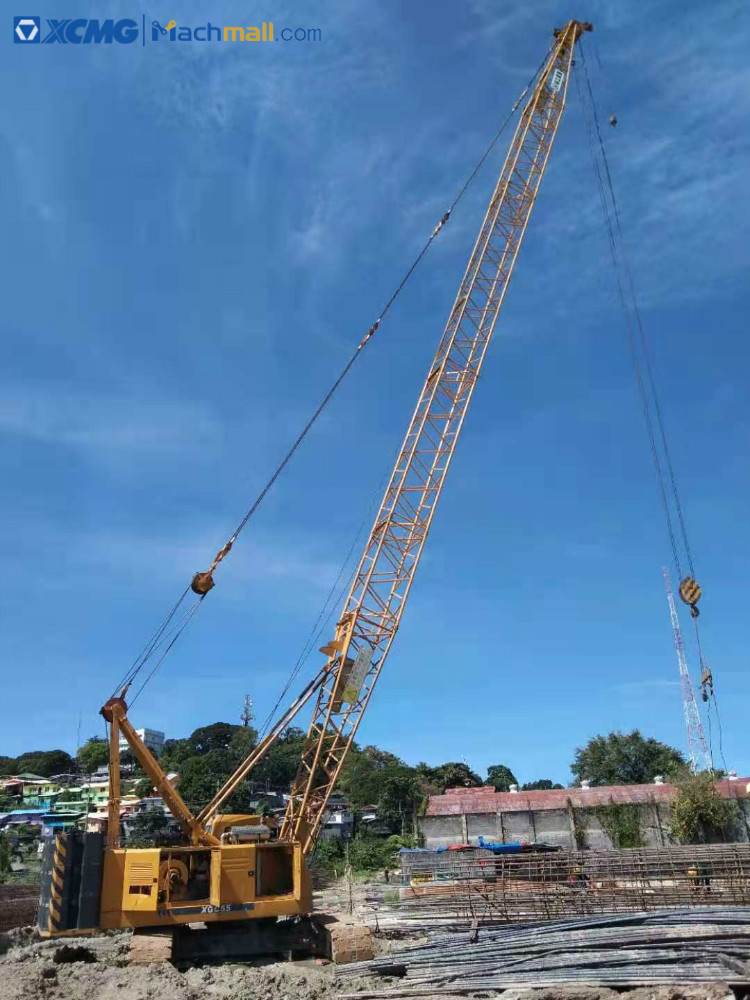

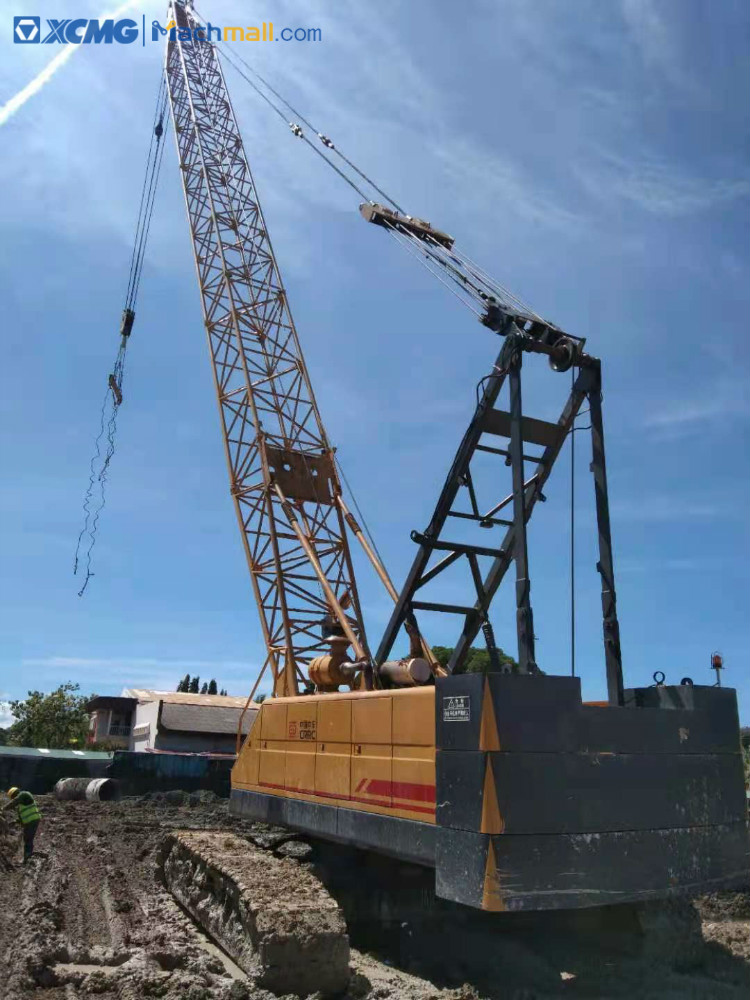

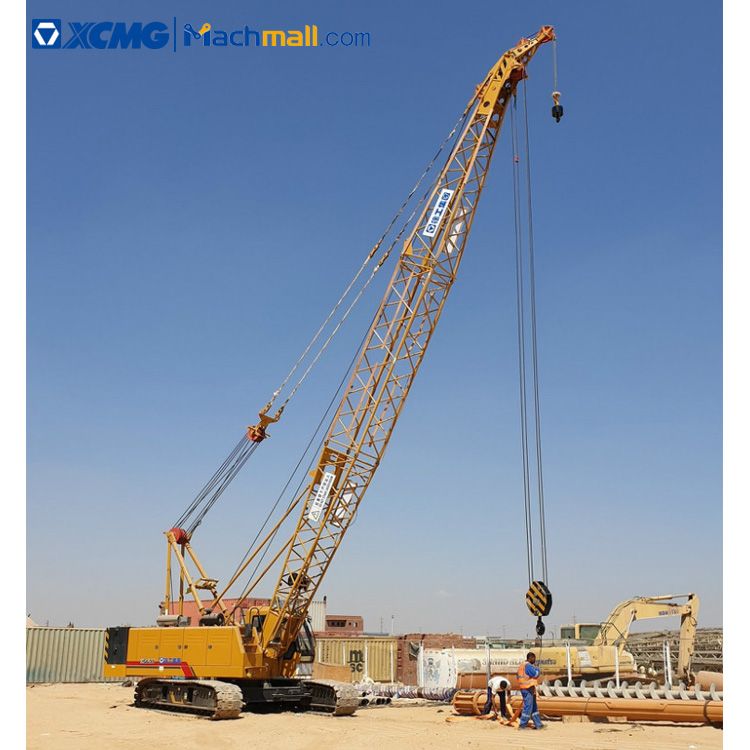

XCMG crawler mobile cranes 50 ton machine XGC55 has a wide range of application, including transportation infrastructure construction, city building construction, large load lifting and transfer, energy equipment installation and others.
1. Assembly/disassembly and transport economy
* Basic machine is an integrated transport design, without disassembling track frame and boom base, greatly save transport costs and improve the assembly/disassembly efficiency.
* Unique A-frame gantry self-erection technology, no need of cylinder can achieve self- erection, to realize crane quick assembly.
* Single counterweight weighing no more than 4t, small auxiliary lifting equipment can achieve complete counterweight assembly.
2. Opimized hydraulic system design
* Integrated design to reduce failure points, while reserve open space for assembly/ disassembly and maintenance.
* Use of highly integrated LUDV main valve, with the functions of multi-complex operation, control of combined flow, high/low speed selection, to ensure operation efficiency.
* Optional unique independent bypass filtration in the industry, strong magnetic adsorption device, strengthened hydraulic system filtration, and anti-emulsifying ability.
3. Main/ auxiliary hook one-key-switch-over function
One-key-switch is used to easily achieve main/auxiliary hook switch-over, for wider range of applications.
|

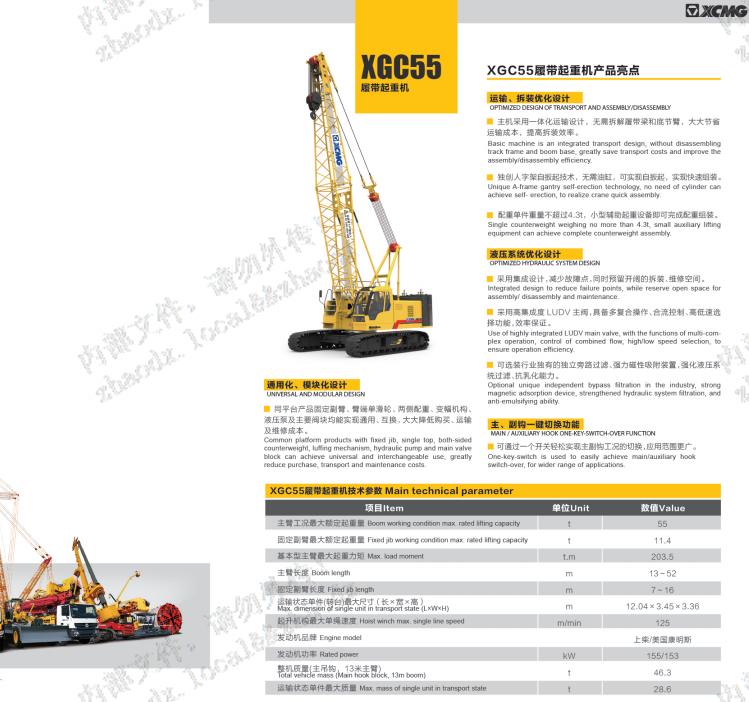

Items |
Unit |
XGC55 |
|
Max. rated lifting load of main boom |
(t) |
55 |
|
Max. rated lifting load of fixed jib |
(t) |
11.4 |
|
Max. lifting load moment |
(t.m) |
203.5 |
|
Max. rated lifting load of boom single pulley |
(t) |
6 |
|
Main boom length |
(m) |
13~52 |
|
Main boom luffing angle |
(°) |
-3~80 |
|
Fixed jib length |
(m) |
7~16 |
|
Max. size of single unit for transport (L×W×H) |
(m) |
12.04×3.45×3.36 |
|
Installation angle of fixed jib |
(°) |
10,30 |
|
Max. single line speed of hoist system |
(m/min) |
125 |
|
Max. single line speed of main luffing system |
(m/min) |
87/78 |
|
Max. slewing speed |
(r/min) |
2.45/2.2 |
|
Max. travel speed |
(km/h) |
1.37/1.22 |
|
Gradeability |
(%) |
30 |
|
Average ground pressure |
(MPa) |
0.06 |
|
Model |
- |
SC7H210.1G3/QSB6.7 |
|
Engine power |
(kW) |
155/153 |
|
Emission |
- |
National III stage/Europe III |
|
Crane overall mass |
(t) |
46.3(Main hook,13m boom) |
|
Max. weight of single unit for transport |
(t) |
28.6 |
