Summary
- Certification:CE/ISO9001
- Power(W):2×75kW
- Model Number:HZS270V
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
- Theoretical production rate:270m³/h
- Mixer type:JS4500
- Discharge height:4m
- Nominal volume of mixer:4000L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

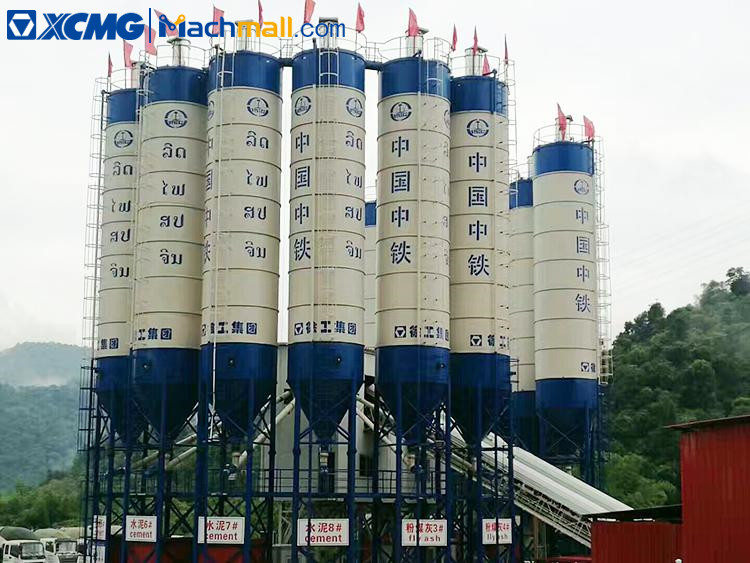

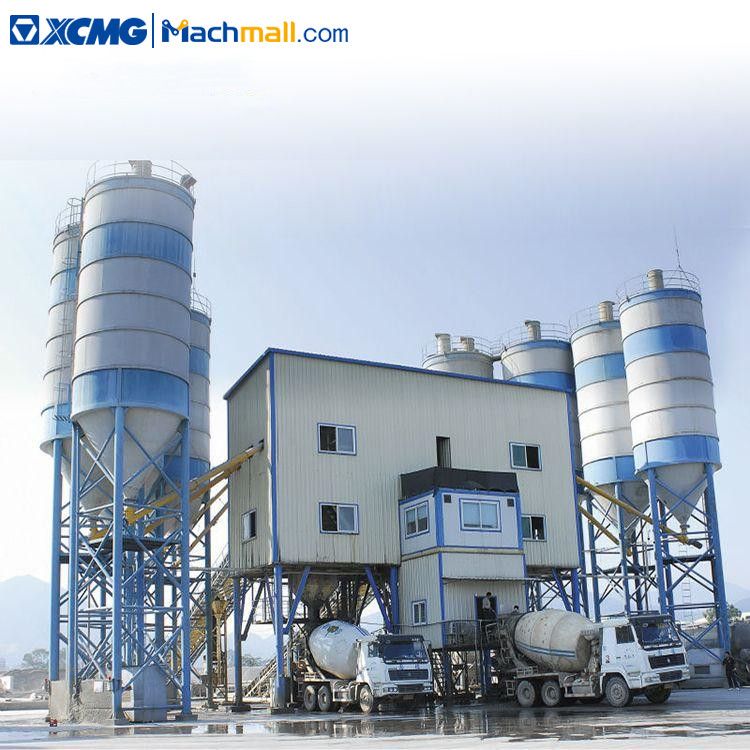

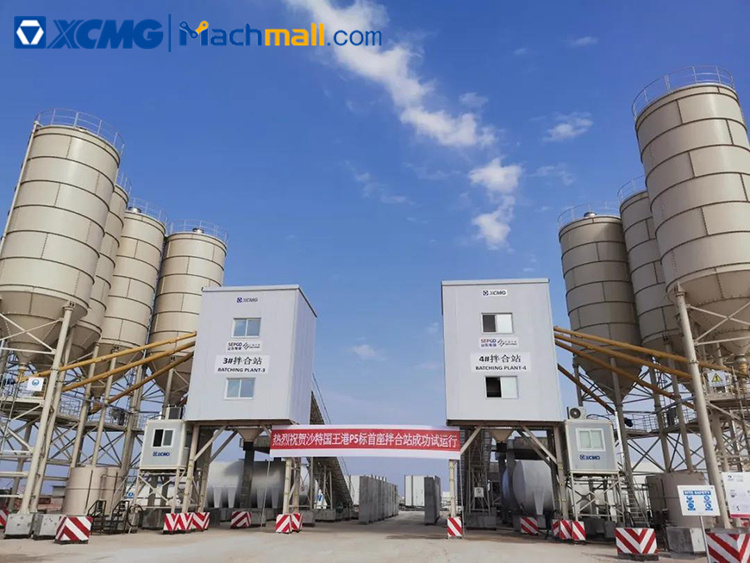

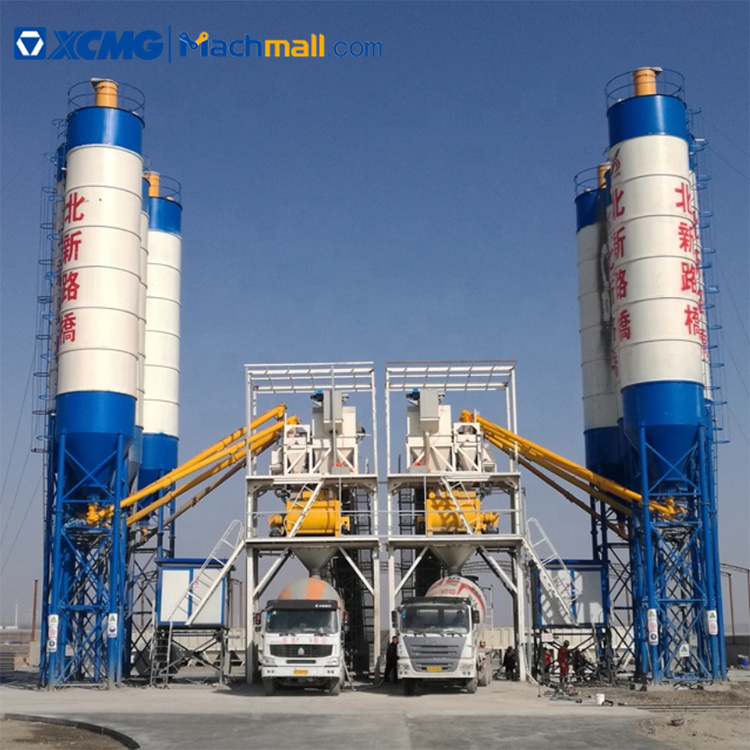

XCMG mobile concrete batching plant 270 productivity HZS270V.
The integrated design of XCMG mobile concrete batching plant HZS270V has the advantages of high efficiency, energy saving and environmental protection, accurate measurement, intelligent control, convenient operation, stability and reliability, and high cost performance.
Advantages and highlights:
1.More Efficient Production
Realize zero-speed start, high-speed hoist and low-speed stop, with high speed and small impact. Providing more reliable operation and better continuous production.
2.More Uniform Agitating
Features faster material cycle, more violent countercurrent and more uniform agitating. Greatly reducing cleaning intensity of labor.
3.Cutting-edge Environmental-care
XCMG not only provides conventional environmental schemes, but commits itself to the application and development of cutting-edge environmental technologies.
4.More Comprehensive Customization
All-around and 3D environmental measures are taken to effectively control the pollution. Realize all-around control of people, vehicles, pumps and plants.

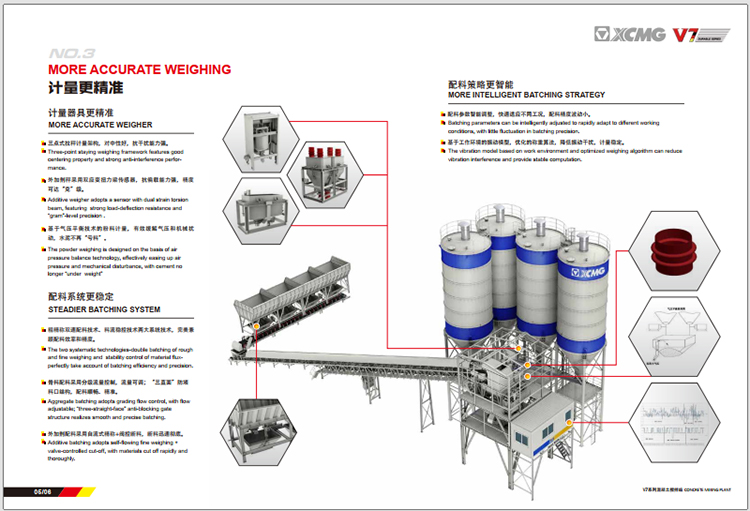

5.steadier batching system
The two systematic technologies-double batching of rough and fine weighing and stability control of material fluxperfectly take account of batching efficiency and precision.Aggregate batching adopts grading flow control, with flow adjustable; “three-straight-face” anti-blocking gate structure realizes smooth and precise batching.
|
Model |
Unit |
HZS270V |
|
Theoretical production rate |
m³/h |
270 |
|
Discharge height |
m |
4 |
|
Mixer type |
/ |
JS4500 |
|
Mixer power |
kW |
2×75 |
|
Nominal volume of mixer |
L |
4500 |
|
Production period |
S |
60 |
|
Max. diameter of aggregate |
mm |
≤80 |
|
Volume of aggregate silo |
m³ |
5×40 |
|
Volume of powder silo (optional) |
t |
6×300 |
|
Capability of batching plant |
L/Silo |
7200 |
|
Delivery capacity of inclined belt conveyor |
t/h |
900 |
|
Productivity of cement spiral conveyer |
t/h |
170 |
|
Productivity of flyash spiral conveyor |
t/h |
90 |
|
Standard installed capacity |
kW |
290 |
|
Gravel weighing range and accuracy |
kg |
(1620～5400)±2% kg |
|
Sand weighing range and accuracy |
kg |
(1200～4050)±2% kg |
|
Weighing range and accuracy of cement |
kg |
(810～2700)±1% kg |
|
Admixture weighing range and accuracy |
kg |
(360～1200)±1% kg |
|
Weighing range and accuracy of water |
kg |
(360～1200)±1% kg |
|
Weighing range and accuracy of additive |
kg |
(30～100)±1% kg |
