Summary
- Weight:9100
- Overall Dimension:8.49×2.49×2.38 m
- Table Size:1.8×0.76×1.1 m
- Max Lifting Height:20.7 m
- Rated Loading Capacity:256/350 kg
- Power:12 kw/32 V AC
- Model Number:XGA20AC
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:9100.000kg
- Condition:New
- Moving Type:Wheel
- Max. platform height:18.7 m
- Power source:420 Ah/48 V DC
- Max. speed:4.8 km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

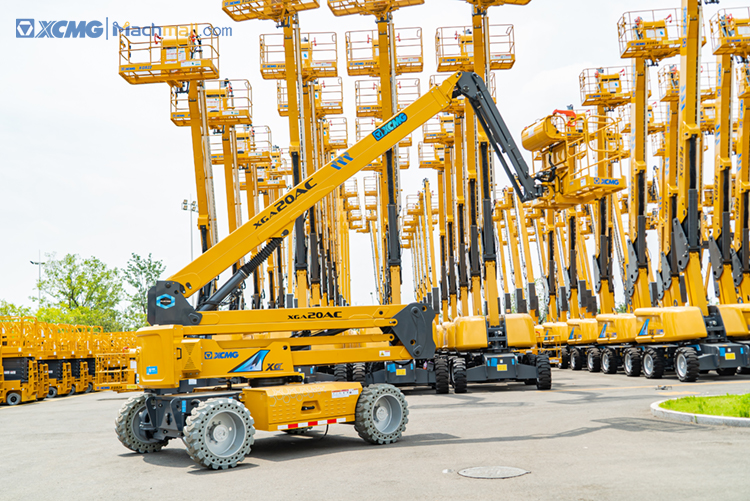

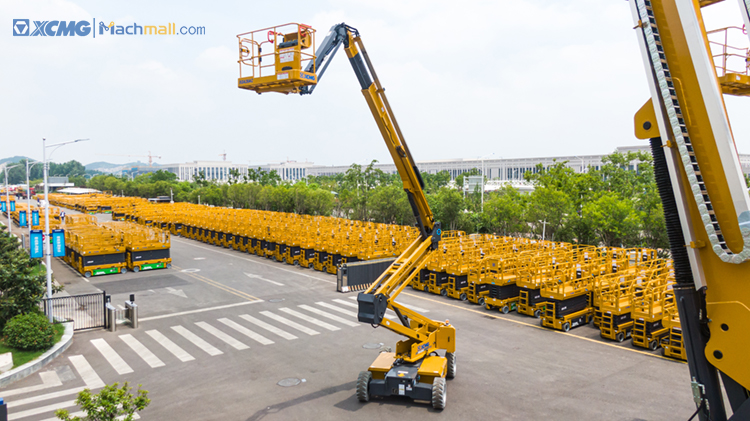

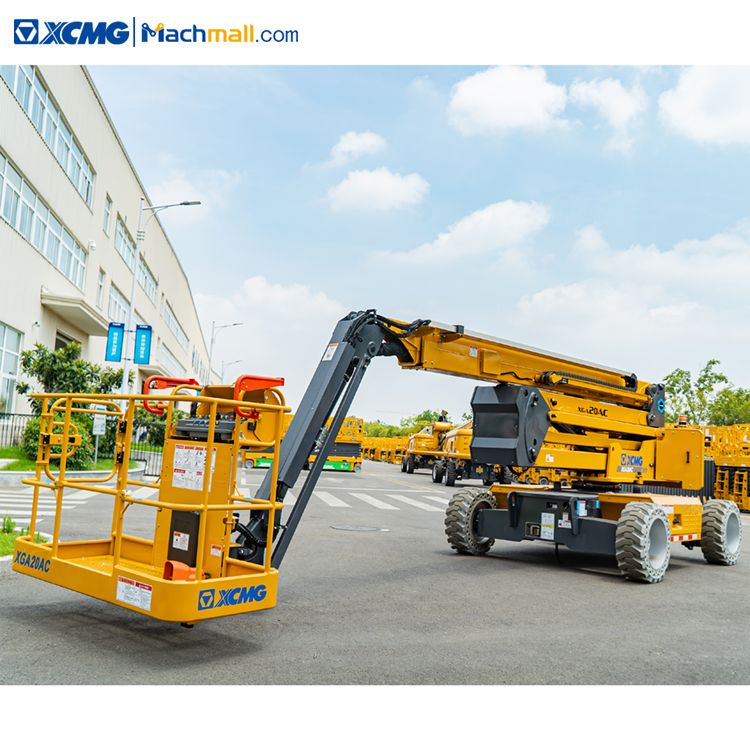

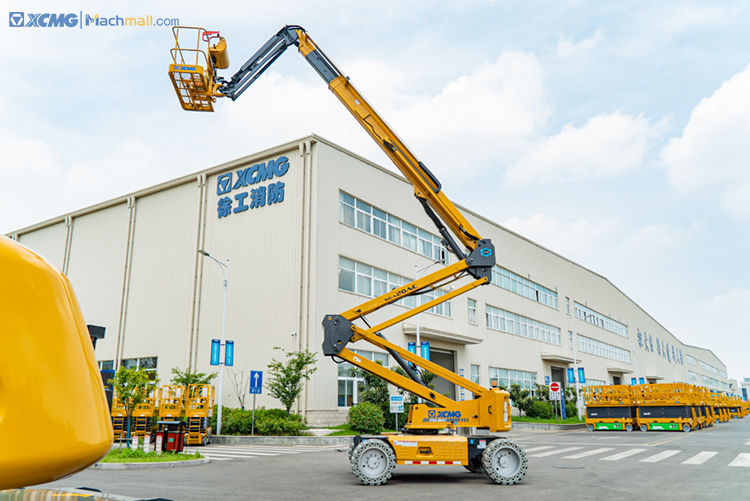

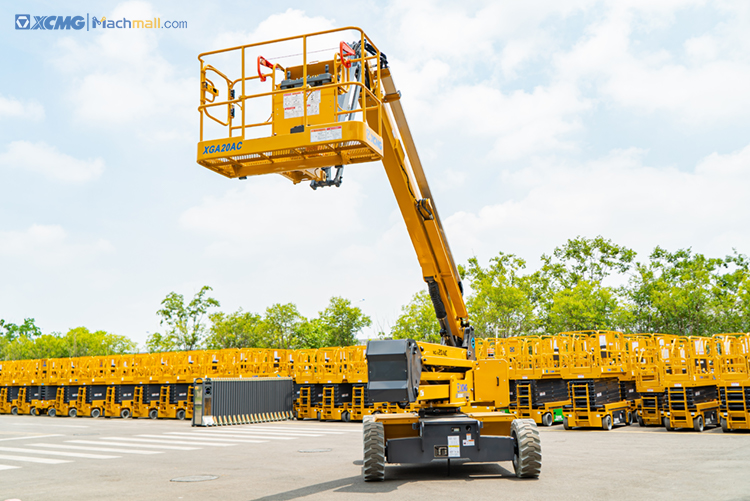

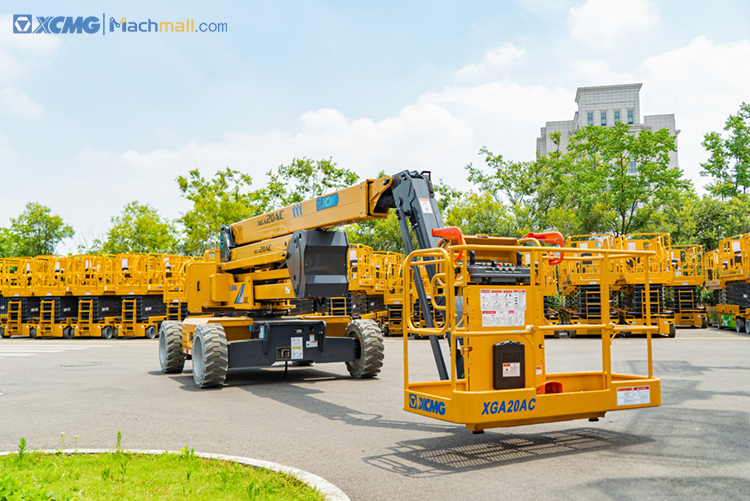

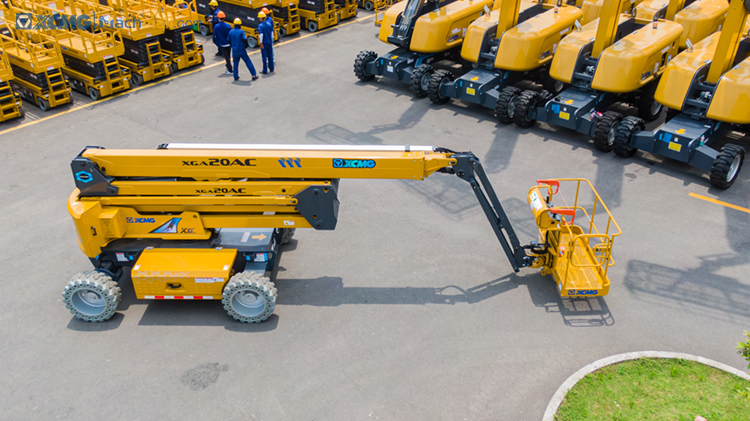

XCMG 20m crank arm mobile articulated towable trailer lift platform XGA20AC.

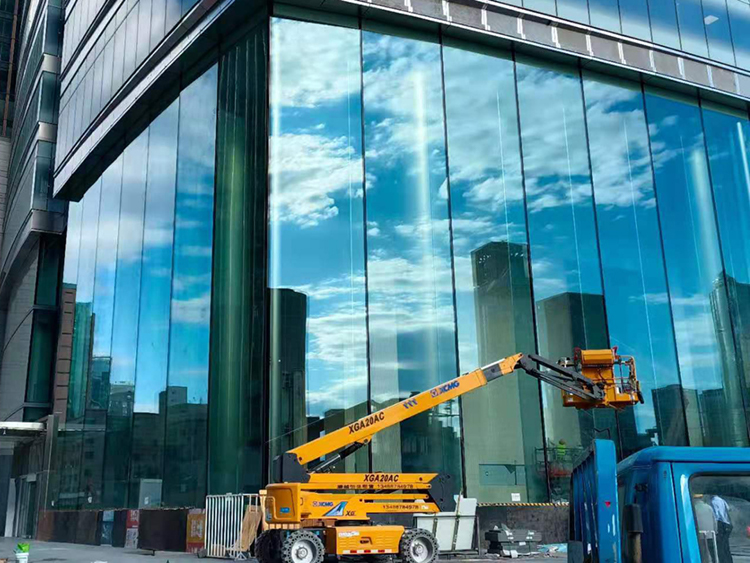

XCMG 20m crank arm mobile articulated towable trailer lift platform XGA20AC, the compact whole machine structure, the strong load capacity and driving ability, the long endurance, the energy conservation environmental protection, suits the indoor and outdoor working condition to use.
Advantages and features:
1. Industry-leading load capacity of 256kg/350kg;
2. The length, width and height of the whole machine are small in the industry, which is convenient for transportation;
3. Σ-shaped combined boom and small tail swing design improve work efficiency.
4. The turning radius is as low as 5m, maneuverable and flexible, challenging operations in small spaces;
5. Adopting long endurance design, equipped with 48V, 420Ah large-capacity battery, providing longer endurance;
6. The dead weight of the boom is lowered, which is stable and energy-saving;
7. Advanced four-wheel AC electric drive walking technology, steering differential control technology, strong power, stable action, and climbing ability up to 45%;
8. The combined application of AC pump control and proportional control technology provides users with a safer and more stable operation experience;
9. Green and environmental protection, zero emission, low noise, no trace driving, suitable for indoor clean environment construction operations.
|
Item |
Parameter |
|
Parameters of running state |
|
|
Overall dimensions (L × W × H) |
8.49×2.49×2.38 m |
|
Working platform overall dimensions |
1.8×0.76×1.1 m |
|
Max. speed |
4.8 km/h |
|
Max. gradeability |
≥45％ |
|
Min. external turning radius |
≤5 m |
|
Ground clearance/m (center) |
0.3 m |
|
Wheelbase |
2.5 m |
|
Total mass |
9100 kg |
|
Main Operation Performance Parameters |
|
|
Rated working height |
20.7 m |
|
Max. platform height |
18.7 m |
|
Max. working range |
11.98 m |
|
Max. net spanning height |
8.0 m |
|
Scope of luffing of No. 1 arm |
0°～72° |
|
Scope of luffing of No. 2 arm |
0°～73° |
|
Fly Jib Luffing Range |
-64°～70° |
|
Scope of platform swing |
160° |
|
Slewing angle |
360° |
|
Max. load capacity |
256/350 kg |
|
Max. rearward slewing |
0.66 m |
|
Control system |
12V DC proportional control |
|
Tire |
830*285（835*295，33×12-20） |
|
Power parameters |
|
|
Power source |
420 Ah/48 V DC |
|
Power unit |
12 kw/32 V AC |
|
Auxiliary power unit |
12 V DC |
|
Traveling motor |
3.3 kw/32 V AC |
