Summary
- Machine Weight: 25500kg
- Maximum Digging Depth:6972mm
- Maximum Digging Height:10048mm
- Bucket capacity:0.9-1.4m3
- Model Number:XE245DK
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- Weight:25500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

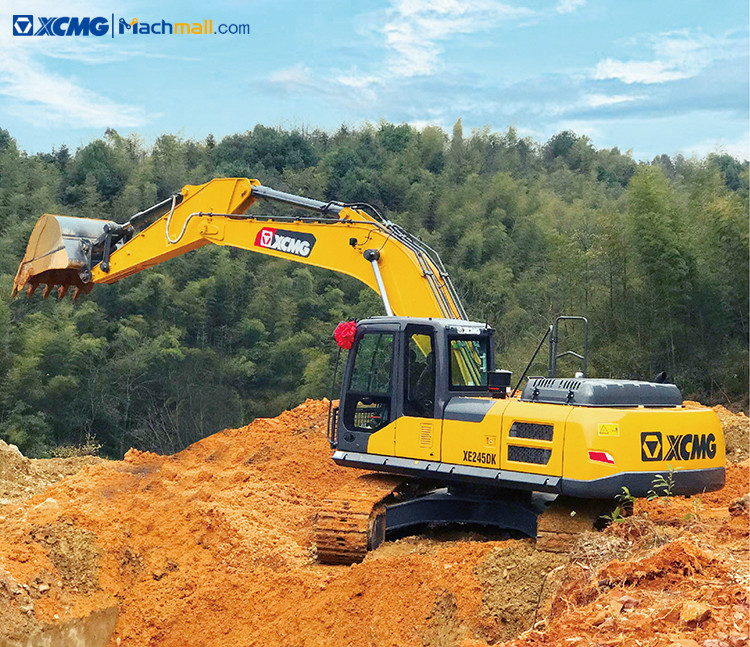

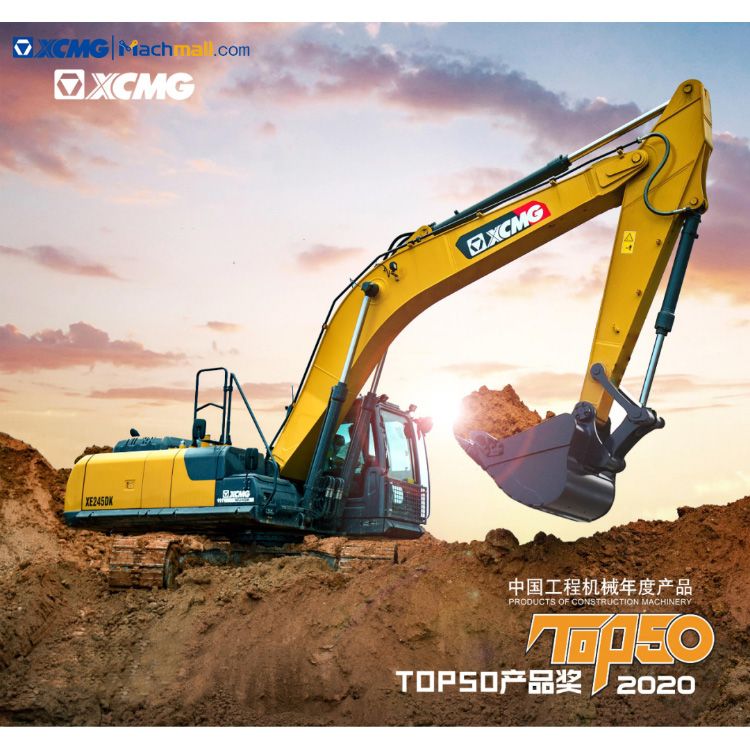

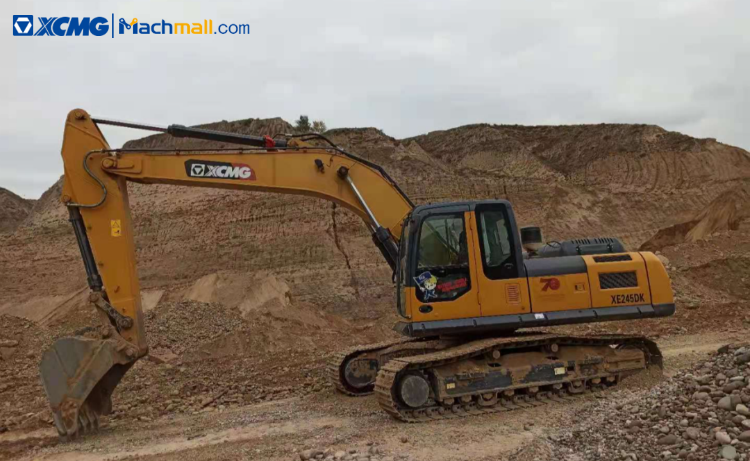

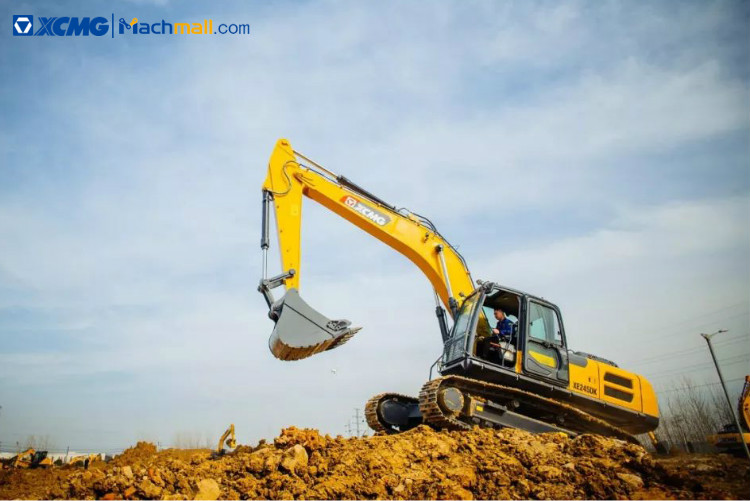

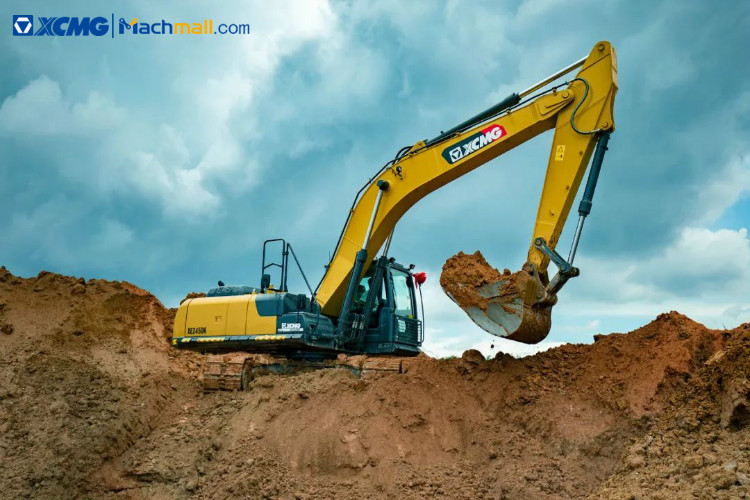

XCMG 25 ton small energy saving mining excavator.

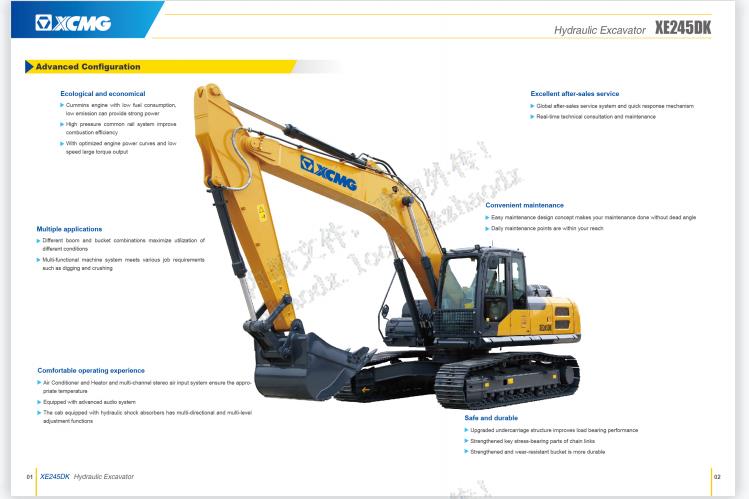

XCMG 25 ton mining excavator XE245DK: "DK series" medium-sized excavator, designed for small and medium-sized mine construction, energy saving, efficient, reliable and durable.

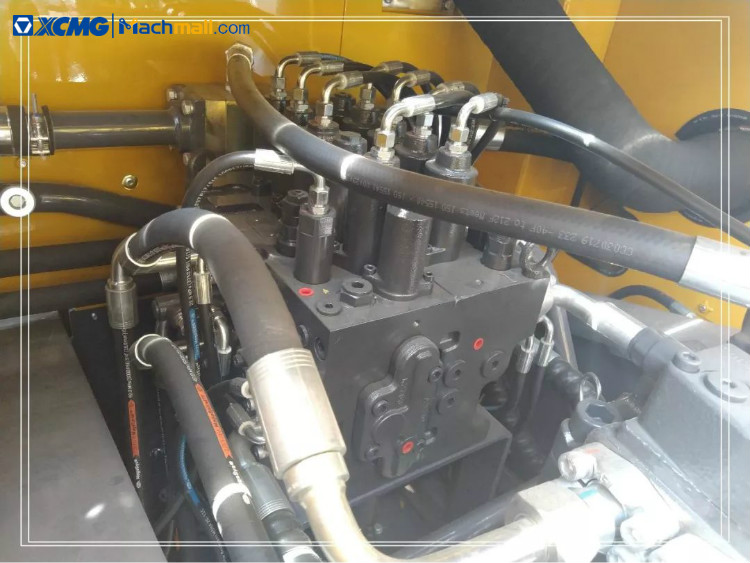

New long diameter, low pressure loss hydraulic system, small impact, less power loss, energy saving and efficient, smooth control and coordination;
XE245DK crawler excavator has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy. It can reduce fuel consumption by 7% compared with the previous generation.

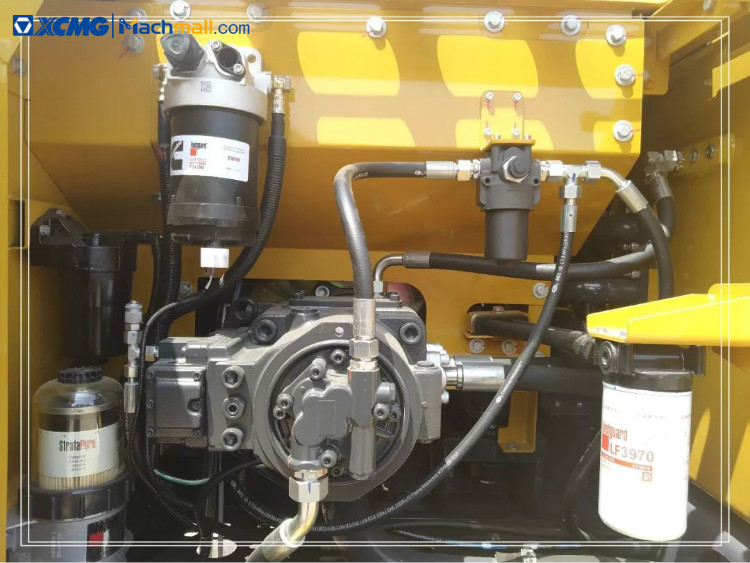

New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life.
The brand new optimization design with 1.3m³ reinforced bucket greatly improves digging and loading efficiency.
|
Model |
|
Unit |
XE245DK |
|
Operating weight |
|
Kg |
25500 |
|
Bucket capacity |
|
m³ |
0.9-1.4 |
|

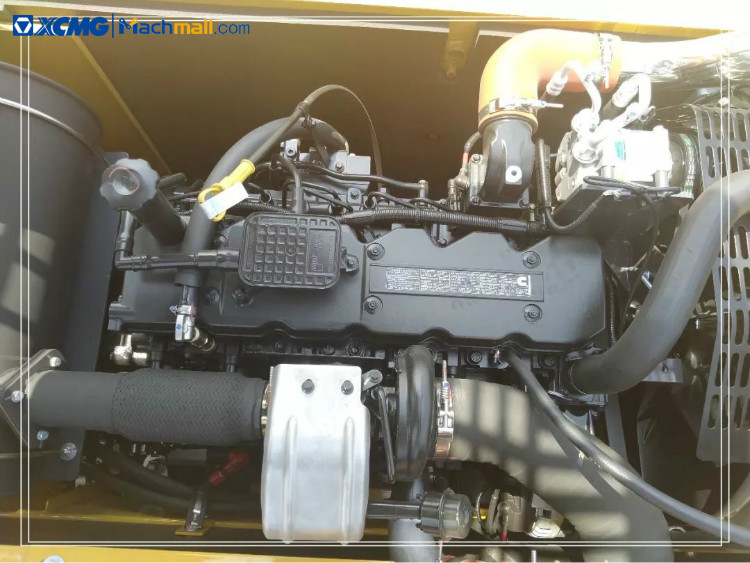

Engine |
Model engine |
/ |
QSB7 |
|
|
Injection |
/ |
√ |
|
|
Four strokes |
/ |
√ |
|
|
Water cooling |
/ |
√ |
|
|
Turbo-charging |
/ |
√ |
|
|
No. of cylinders |
/ |
6 |
|
|
Rated power/speed |
kw/rpm |
150/2050 |
|
|
Maximum torque/speed |
N.m/rpm |
825/1250 |
|
|
Displacement |
L |
6.7 |
|
Main performance |
Travel speed |
km/h |
5.3/3.6 |
|
|
Swing speed |
r/min |
11.2 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
56.7 |
|
|
Bucket digging force |
kN |
185 |
|
|
Arm digging force |
kN |
129 |
|
|
Maximum tractive force |
kN |
199 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×242 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Swing system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank capacity |
L |
400 |
|
|
Hydraulic tank capacity |
L |
220 |
|
|
Engine oil capacity |
L |
19.5 |
|
Appearance size |
Overall length |
mm |
10170 |
|
|
Overall width |
mm |
3190 |
|
|
Overall height |
mm |
3130 |
|
|
Width of platform |
mm |
2830 |
|
|
Total width of chassis |
mm |
3190 |
|
|
Track shoe width |
mm |
600 |
|
|
Wheel base of crawler |
mm |
3655 |
|
|
Track gauge |
mm |
2590 |
|
|
Counterweight clearance |
mm |
1062 |
|
|
Min. ground clearance |
mm |
490 |
|
Working range |
Max. digging height |
mm |
10048 |
|
|
Max. dumping height |
mm |
7123 |
|
|
Max. digging depth |
mm |
6972 |
|
|
Max. vertical wall digging depth |
mm |
5567 |
|
|
Max. digging radius |
mm |
10240 |
|
|
Min. swing radius |
mm |
3510 |
|
Standard |
Length of boom |
mm |
6000 |
|
|
Length of arm |
mm |
2964 |
|
|
Bucket capacity |
m³ |
1.3 |
