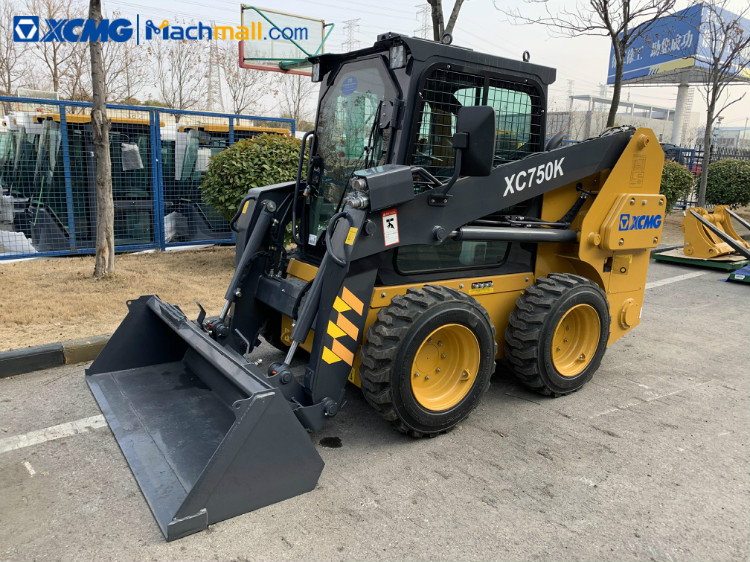

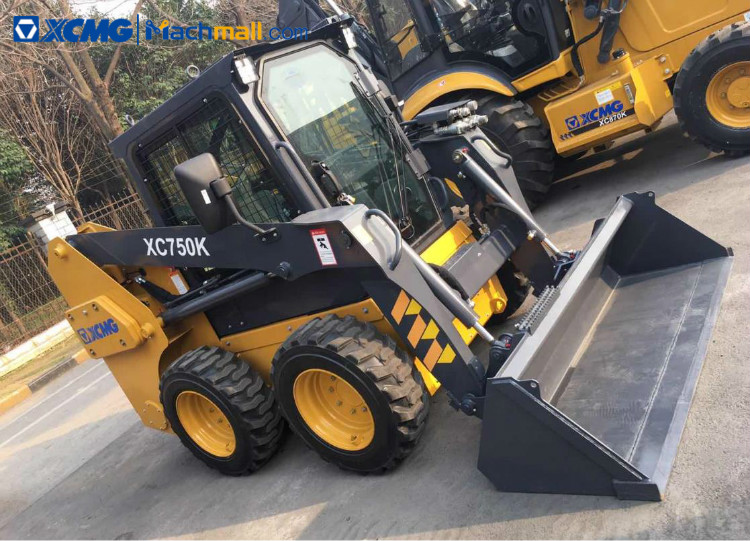

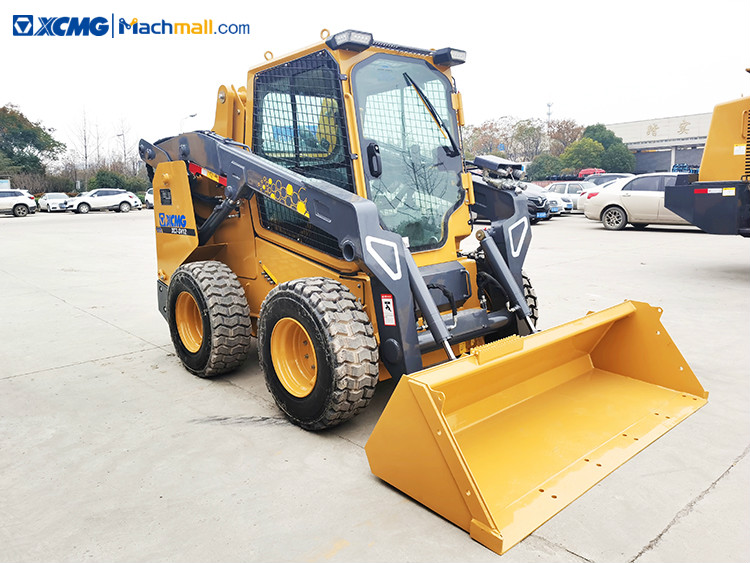

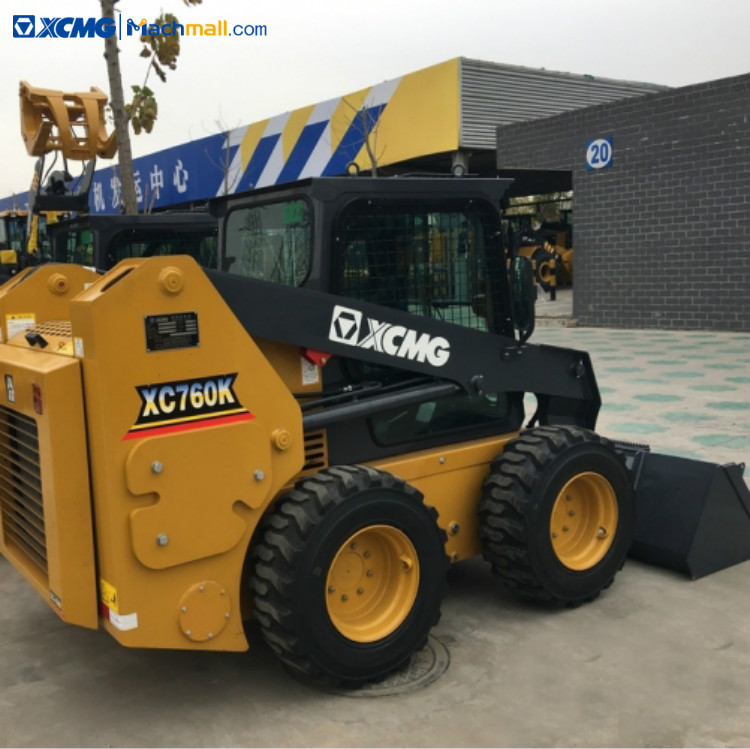

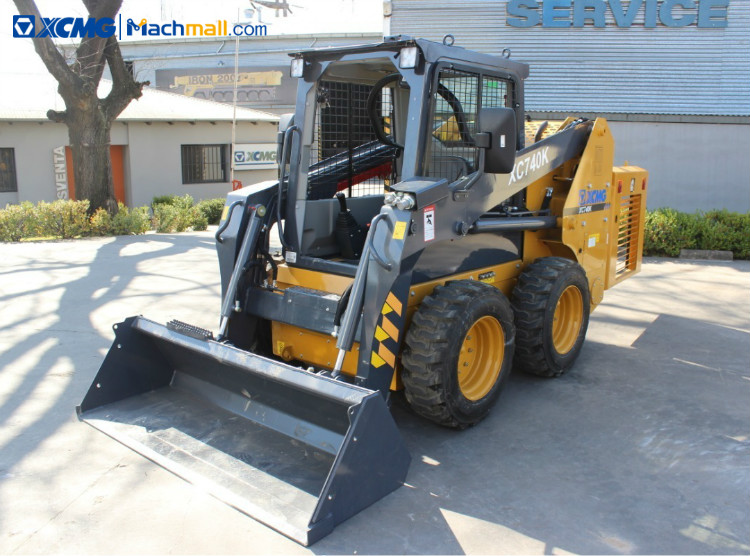

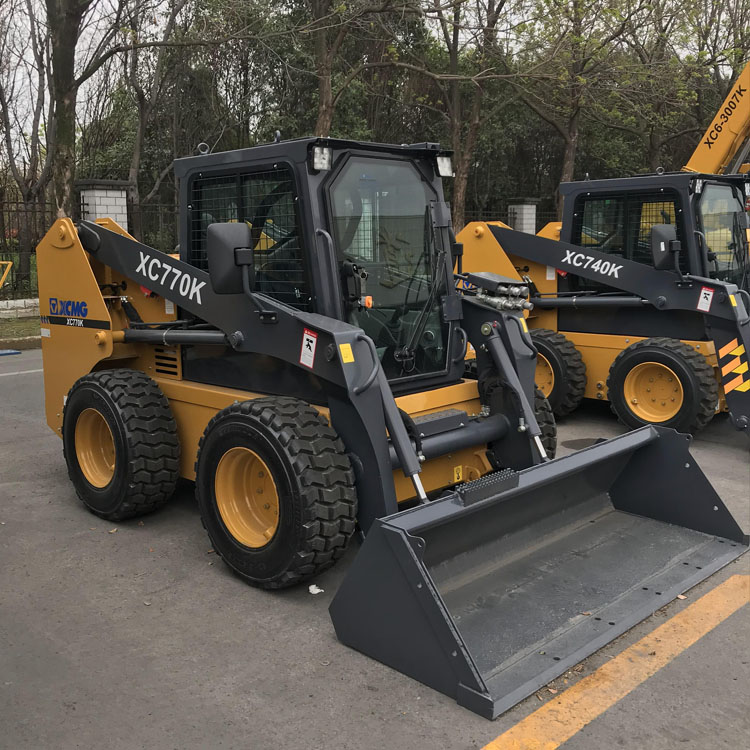

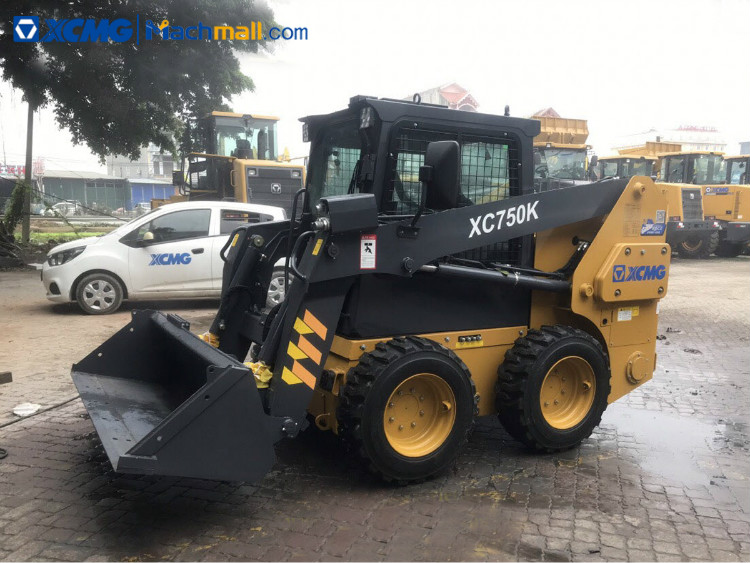

Chinese mini skid loader with skid loader attachment price
Summary
- Rated Load:700-1200kg
- Dimension(Long*Breadth*High):3270*1807*1970 mm
- Type:crawler
- Place of Origin:Xuzhou, China
- Brand Name:XCMG
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Chinese mini skid loader with skid loader attachment.
Chinese mini skid loader with strong power and rich attachments, the skid loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
Chinese mini skid loader advantages and highlights:

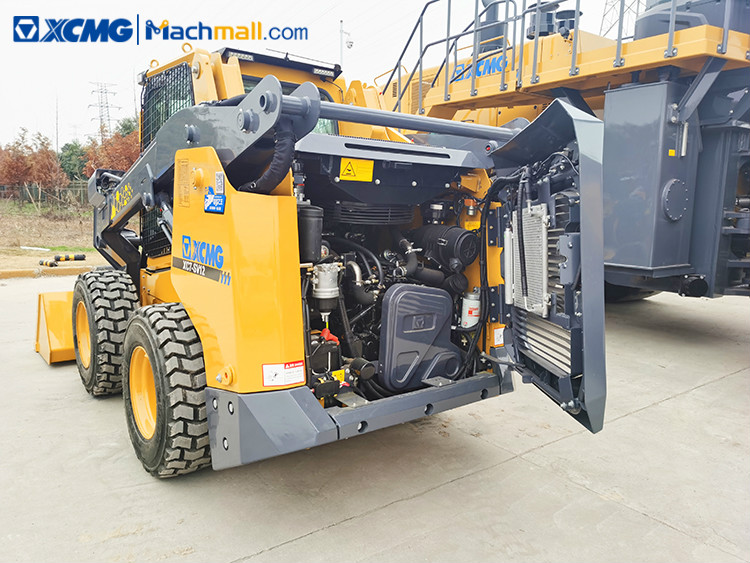

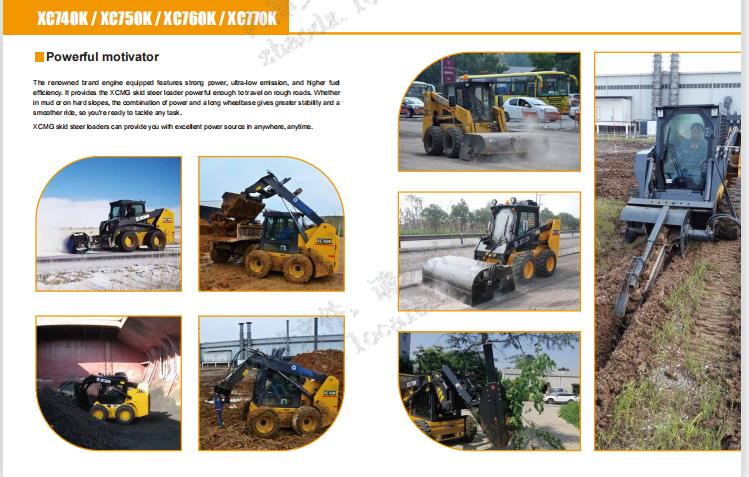

1. Strong and Efficient Power Transmission System
* The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.
* The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.
2. Solid and Reliable Design
The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.
3. Flexible Operations
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.

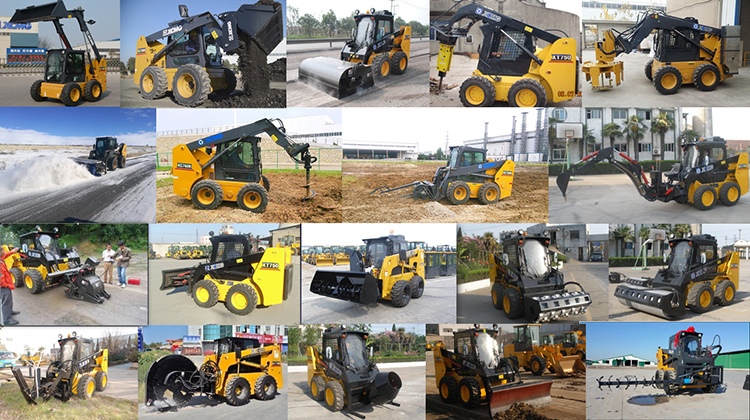

4. Multi-functionalities attachments
The international interchangeable quick-change coupling enables the change of tens of attachments, 4 in 1 bucket, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

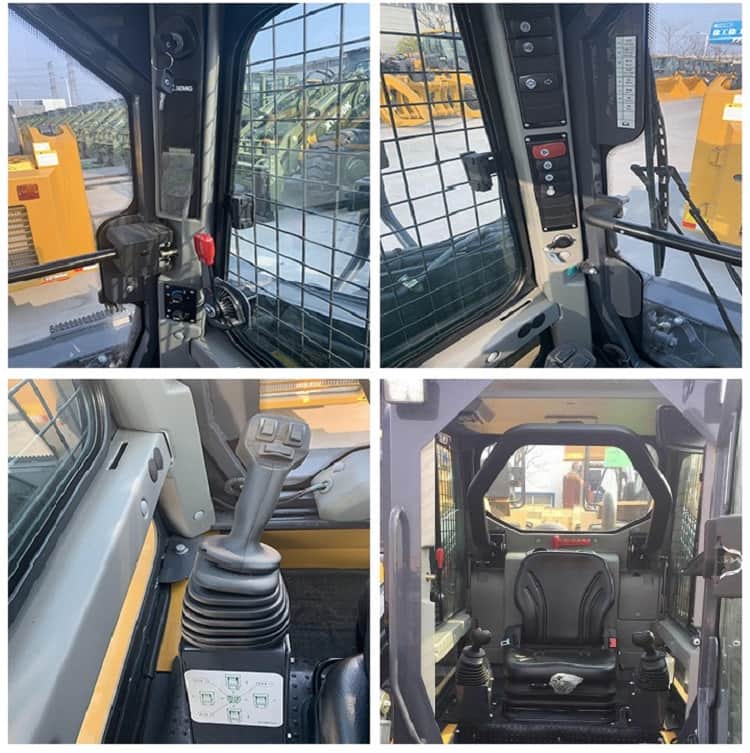

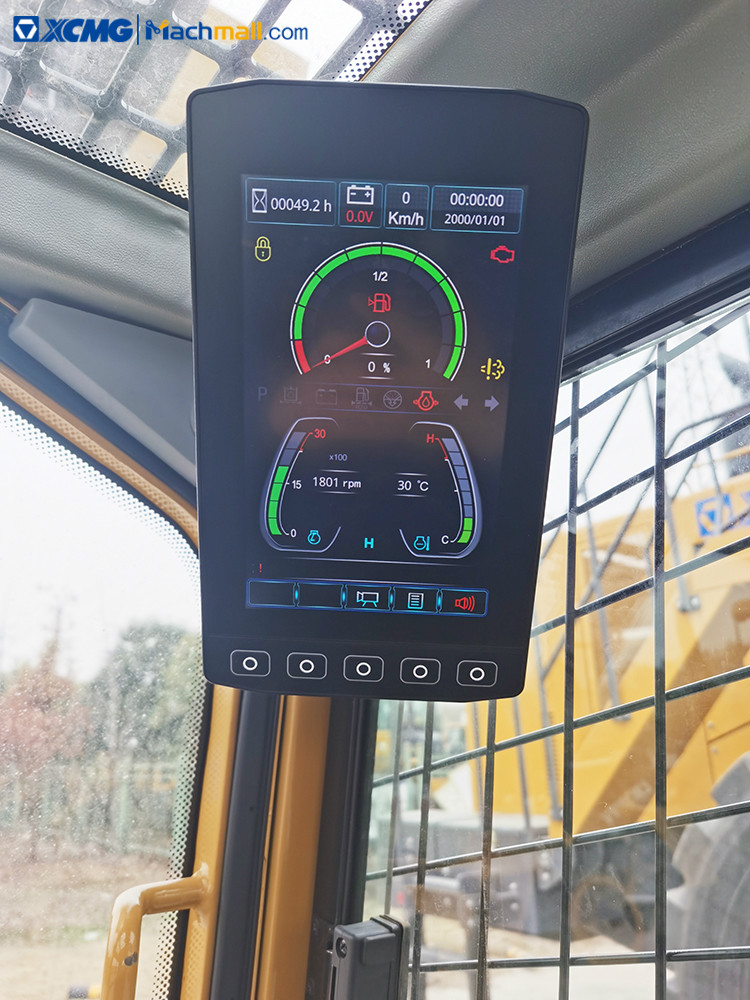

5. Comfortable operating environment
Improve the user’s operation comfort under cold environment. Achieve high airflow rate and more appropriate operation environment.
|
Parameters |
|
Unit |

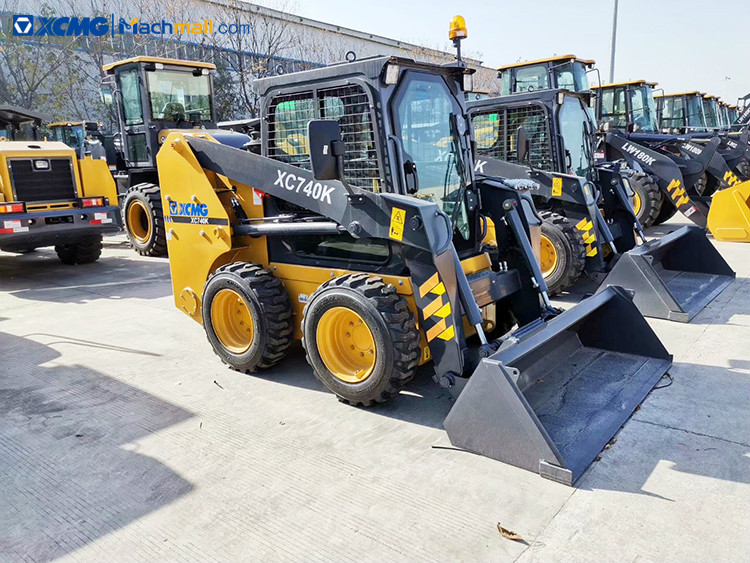

XC740K |

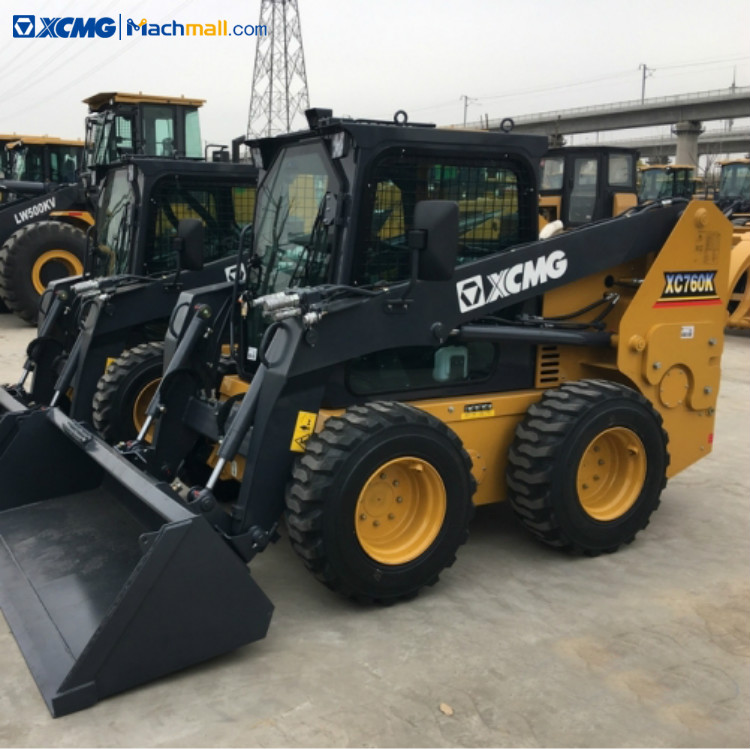

XC760K |
XC770K |
||
|
Rated load |
|
kg |
750 |
1080 |
1250 |
||
|
Tipping load |
|
kg |
1500 |
2160 |
2500 |
||
|
Operating weight |
|
kg |
3140 |
3450 |
3700 |
3650 |
3700 |
|
Maximum breakout force |
|
kN |
18 |
22 |
22 |
||
|
Engine |
Manufacturer |
|
Xinchai |
YANMAR |
Weichai |
Weichai |
|
|
|
Model |
|
4D27G31 |
4TNV98T |
WP4G80E231 |
WP4.1G82E301 |
WP4.1 |
|
|
Rated power |
Hp/kw |
49.3/36.8 |
82.2/61.3 |
80/60 |
80/60 |
100.4/74.9 |
|
|
Rated speed |
rpm |
2500 |
2500 |
2300 |
2400 |
2400 |
|
|
Cooling mode |
|
Water-cooling |
Water-cooling |
Water-cooled |
||
|
Performance parameter |
Operation mode |
|
Mechanical & multi-function electronic control |
Pilot hydraulic control & multi-function electronic control |
|
|
Pilot hydraulic control & multifunctional electronic control |
|
|
Tire standard |
|
10-16.5 |
12-16.5 |
12-16.5 |
||
|
|
Maximum speed |
Km/h |
14 |
12.5 |
44522 |
||
|
Hydraulic system |
Hydraulic flow rate |
L/min |
62.5 |
95 |
87.4 |
91.2 |
91.2 |
|
|
Optional large flow |
|
-- |
142.5 |
131 |
136.8 |
158.4 |
|
|
Hydraulic pressure |
bar |
200 |
210 |
210 |
||
|
A |
Maximum operating height |
mm |
3878 |
4180 |
4180 |
||
|
B |
Bucket hinge pin height |
mm |
3057 |
3205 |
3205 |
||
|
C |
Cabin top height |
mm |
1960 |
1960 |
1960 |
||
|
D |
Maximum horizontal height of bucket bottom |
mm |
2851 |
2997 |
2997 |
||
|
E |
Length without bucket |
mm |
2533 |
2660 |
3050 |
||
|
F |
Length with bucket |
mm |
3310 |
3610 |
3750 |
||
|
G |
Toppling angle |
° |
40 |
40 |
40 |
||
|
H |
Maximum unloading height |
mm |
2375 |
2450 |
2450 |
||
|
K |
Ground-bucket angle |
° |
30 |
30 |
30 |
||
|
L |
Rotating angle of bucket at highest point |
° |
83 |
83 |
83 |
||
|
J |
Unloading distance |
mm |
575 |
570 |
570 |
||
|
M |
Wheel base |
mm |
1027 |
1188 |
1320 |
||
|
O |
Departure angle |
° |
25 |
25 |
25 |
||
|
P |
Ground clearance |
mm |
183 |
205 |
205 |
||
|
R |
Front radius of turning circle (without bucket ) |
mm |
1183 |
1320 |
1370 |
||
|
S |
Front radius of turning circle (with bucket) |
mm |
2066 |
2230 |
2230 |
||
|
T |
Rear radius of turning circle |
mm |
1564 |
1715 |
1840 |
||
|
U |
Length of tail |
mm |
1005 |
1055 |
1105 |
||
|
V |
Wheel track |
mm |
1380 |
1500 |
1500 |
||
|
W |
Tire edge width |
mm |
1640 |
1807 |
1807 |
||
|
X |
Bucket edge width |
mm |
1800 |
2000 |
2000 |
||
|
|
Bucket capacity (stacking height) |
m3 |
0.45 |
0.6 |
0.6 |
||
|
|
Bucket capacity (tiling) |
m3 |
0.35 |
0.47 |
0.47 |
||
|
|
Diesel tank capacity |
L |
80 |
95 |
108 |
||
|
|
Capacity of hydraulic oil tank |
L |
60 |
70 |
80 |
||
