XCMG official 1020mm XM101K mini road cold planer asphalt milling machine price
Summary
- Dimension(L*W*H):7168*720*830mm
- Weight:17500kg
- Power(W):162/2200
- Model Number:XM101K
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Milling width (mm):1020mm
- Milling depth (mm):300mm
- Certification:CE/ISO9001
Specifications
- Weight:17500.000kg
- Condition:New
- Moving Type:Other
- Fuel tank:380L
- Travel speed:0-7km/h
- Gradeability:60%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

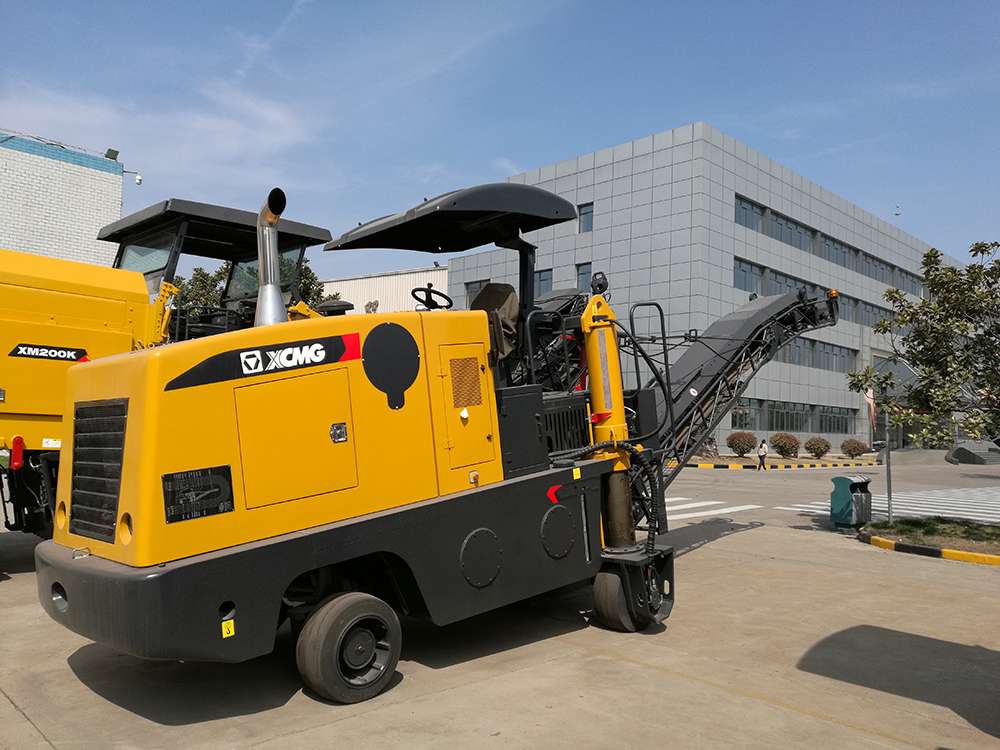

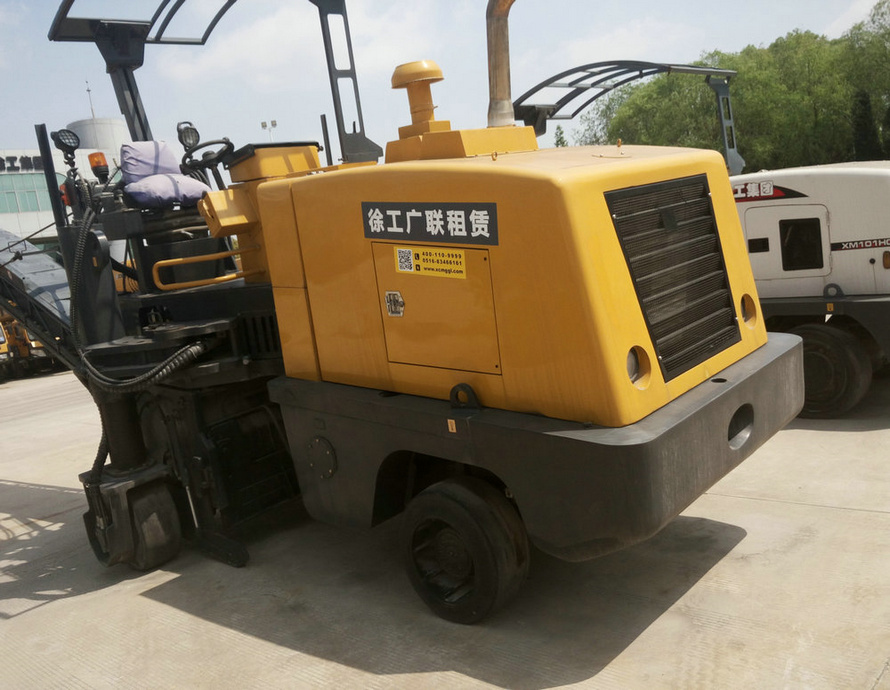

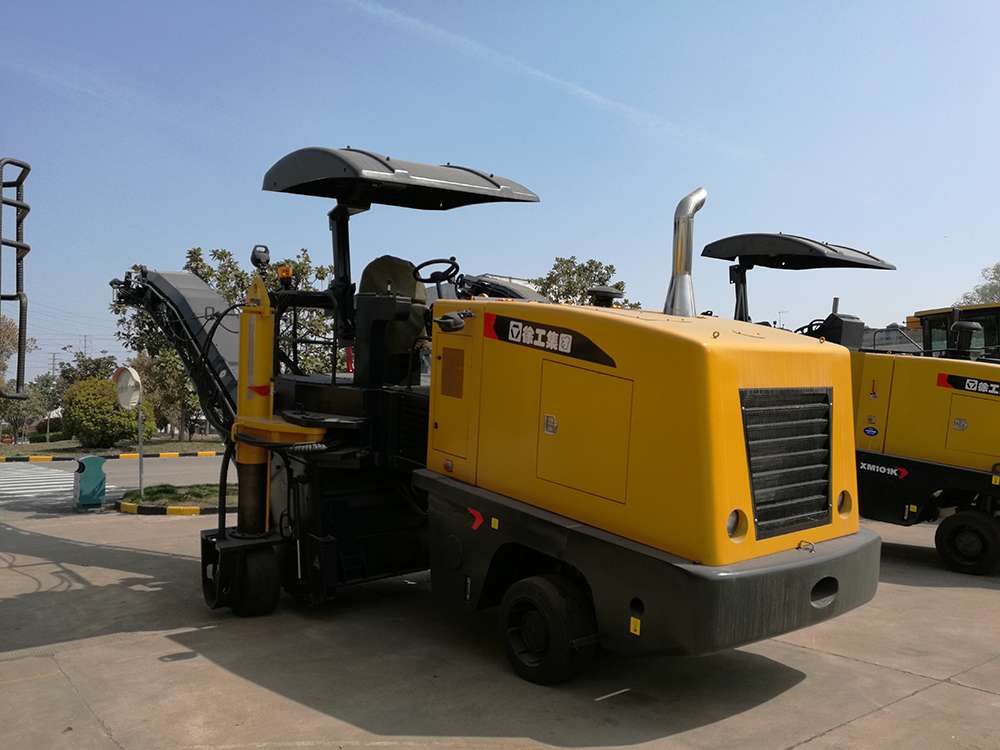

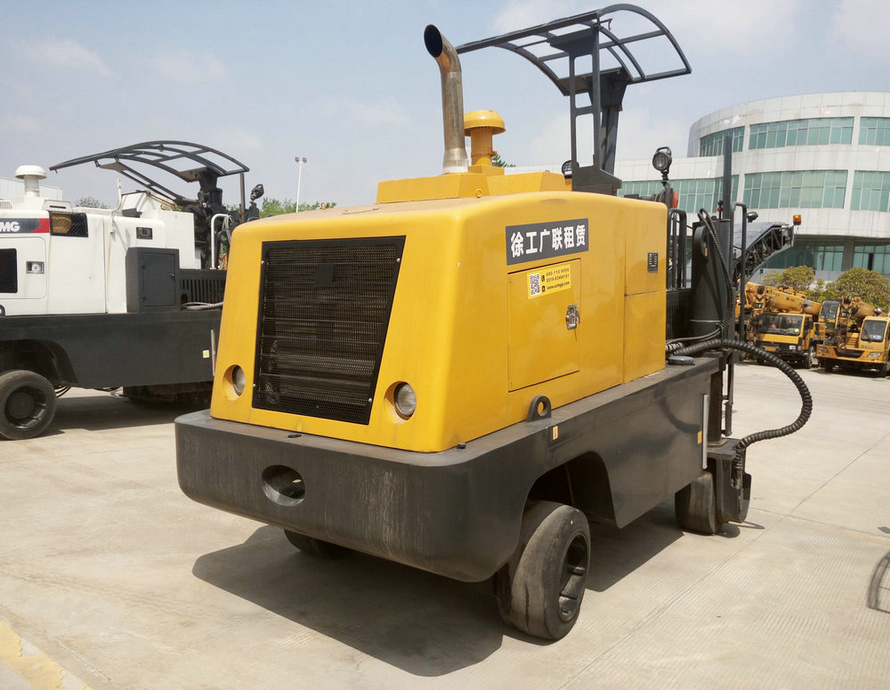

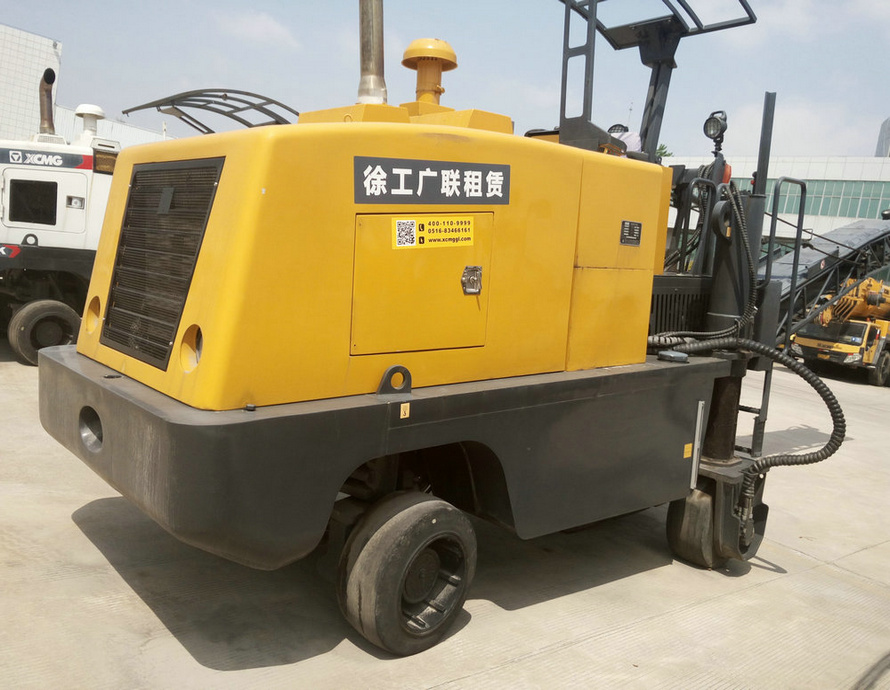

XCMG official 1020mm XM101K mini road cold planer asphalt milling machine.
XM101K road cold planer is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic:
1.Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
2.Compact three-wheeled machine with front-wheel drive .
3.The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
4.The imported hydraulic elements have high working reliability.
5.Excellent welting milling performance with right rear leg .
6.Hydraulic handheld breakers and rumble strip equipment can be selected.
| Model |
Unit |
XM101K |
|
|
Engine |
Rated power /speed |
Kw/rpm |
162/2200 |
|
Performance parameters |
Operating speed |
m/min |
0-30 |
|
Travel speed |
Km/h |
0-7 |
|
|
Gradeability |
% |
60 |
|
|
Ground clearance |
mm |
≤200 |
|
|
Operating weight |
Kg |
17500 |
|
|
Operating parameters |
Max.milling and mixing width |
mm |
1020 |
|
Max.milling and mixing depth |
mm |
300 |
|
|
Number of tools |
|
84 |
|
|
Milling drum diameter |
mm |
930 |
|
|
dimensions
|
L*W*H |
mm |
11350*2550*3795 |
|
Fuel tank |
L |
380 |
|
|
Hydraulic oil tank |
L |
160 |
|
|
Water tank |
L |
680 |
|
|
Travel mode |
|
Tire |
|
