XCMG 2m XM200K China mini road cold planer asphalt milling machine price
Summary
- Dimension(L*W*H):7650*2580*3000mm
- Weight:34000kg
- Power(W):447kw
- Model Number:XM200K
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Milling width (mm):2m
- Milling depth (mm):320mm
- Certification:CE/ISO9001
Specifications
- Weight:34000.000kg
- Condition:New
- Moving Type:Other
- Fuel tank:1400L
- Working speed:0-84m/min
- Gradeability:80%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

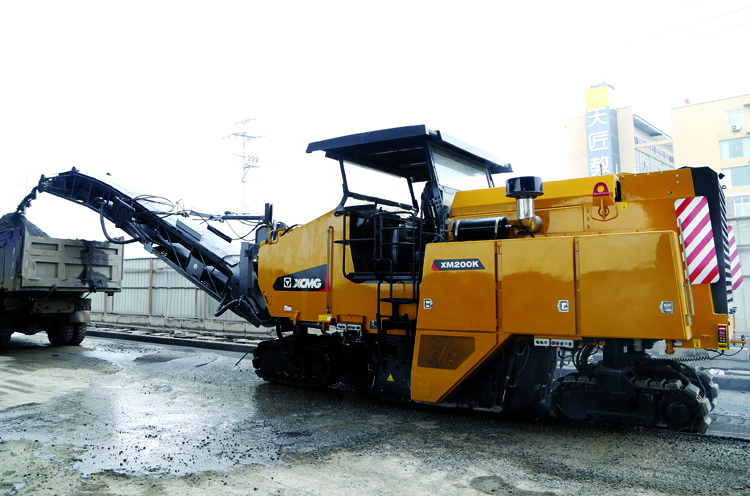

XCMG 2m XM200K China mini road cold planer asphalt milling machine.
XCMG XM200K road cold planer asphalt milling machine is for maintaining the asphalt concrete pavement and mainly applied to the excavation and refurbishment of large areas of highways, roads of cities and towns, airports, goods yards and parking lots etc.
Performance Characteristics:
1.The XM200K road milling machine is mainly composed of milling rotor driven by machinery and two groups of belt conveyors.
2.The full automatic power regulator can make the engine load automatically realize the mutual matching between the milling and driving power.
3.Can effectively clean the dust and cool the milling tools to extend its service life.
4.The machine is equipped with the standard sound-proof device to prevent environment from the noise.
5.The working efficiency of this equipment is high, and it is easy to control the milling depth, and has good maneuvering characteristics.
6.The used materials of milling can be recycled directly and widely applied to the repair, refurbishment and maintenance of asphalt pavement.
|
Item |
Unit |
XM200K |
|
|
Maximum milling width |
mm |
2000 |
|
|
Maximum milling depth |
mm |
320 |
|
|
Milling wheel |
Tool spacing |
mm |
15/18 |
|
Number of tools |
168/146 |
||
|
Milling wheel diameter (with tool) |
mm |
980 |
|
|
Milling wheel maximum inclination |
° |
5 |
|
|
Diesel engines |
Cooling method |
Water cooling |
|
|
Model |
QSX15 |
||
|
Number of cylinders |
6 |
||
|
Rated power |
kw |
447 |
|
|
Engine speed |
rpm |
2100 |
|
|
Fuel consumption: full load |
l/h |
120 |
|
|
Speed/grade ability |
Working speed |
m/min |
0-84 |
|
Walking speed |
km/h |
0-5 |
|
|
Theoretical Gradeability (Working Blocks) |
% |
80 |
|
|
Ground clearance |
320 |
||
|
Weight / load |
Shipping weight |
kg |
30000 |
|
Working weight |
kg |
34000 |
|
|
Track device |
Front track |
mm |
1720×300×620 |
|
Rear crawler |
mm |
1720×300×620 |
|
|
Box volume |
Fuel tank |
L |
1400 |
|
Hydraulic tank |
L |
300 |
|
|
Water tank |
L |
3400 |
|
|
Electrical system |
V |
24 |
|
|
Conveyor belt device |
Aggregate conveyor belt width |
mm |
800 |
|
Discharging conveyor width |
mm |
800 |
|
|
Conveyor belt conveying capacity |
≤m3/h |
330 |
|
|
Shipping dimensions |
Machinery (length×width×height) |
mm |
7650×2580×3000 |
|
Belt conveyor (length × width × height) |
mm |
8060×1150×1500 |
|
