Summary
- Rated Load:8 ton
- Dimension(Long* Breadth * High):9300*3500*3770mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:LW800KN
- Brand Name:XCMG
- Certification:CE, ISO
Specifications
- Weight:28500.000kg
- Engine Brand:CUMMINS
- Rated Load:6-10 ton
- Bucket Capacity:
- Power:250kw
- Wheel base:3600mm
- Dump clearance at maximum lift :4516mm
- Bucket capacity:4.5-6cbm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

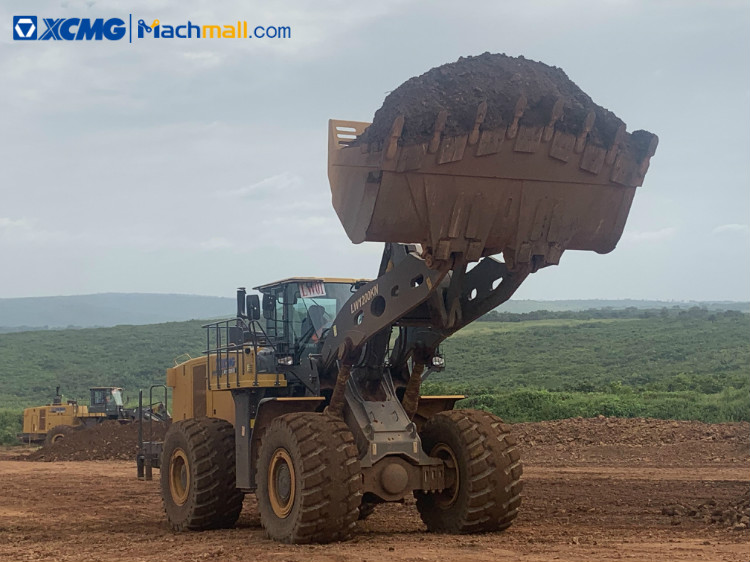

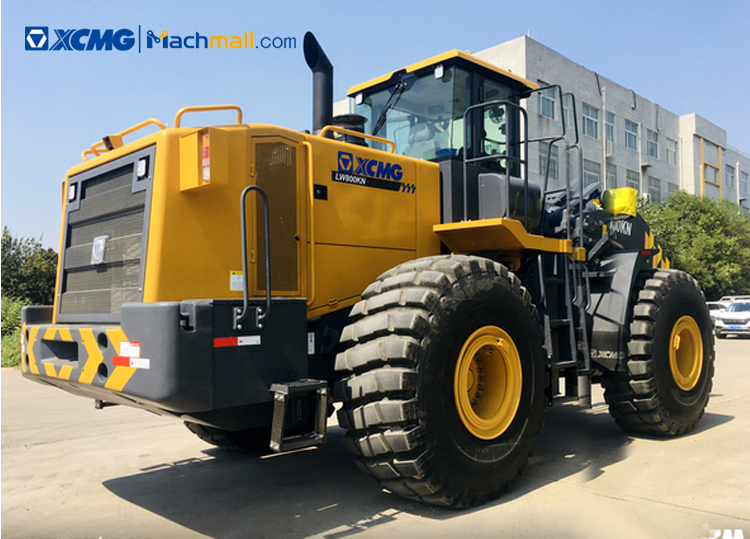

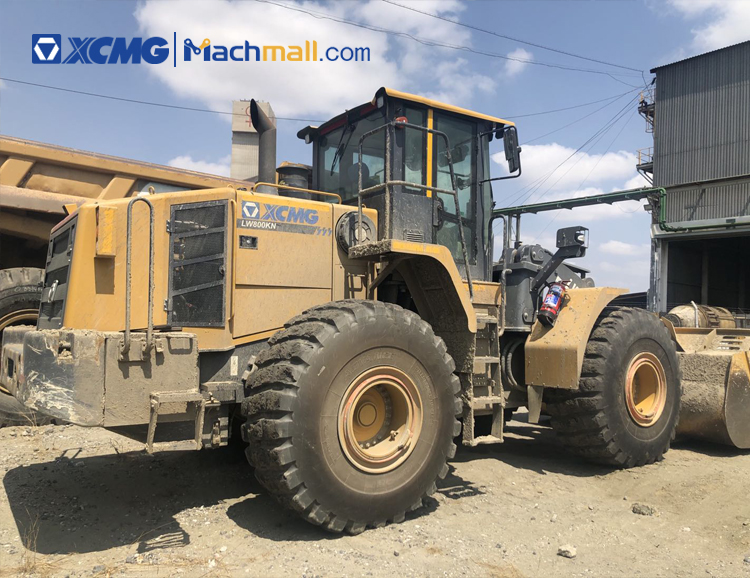

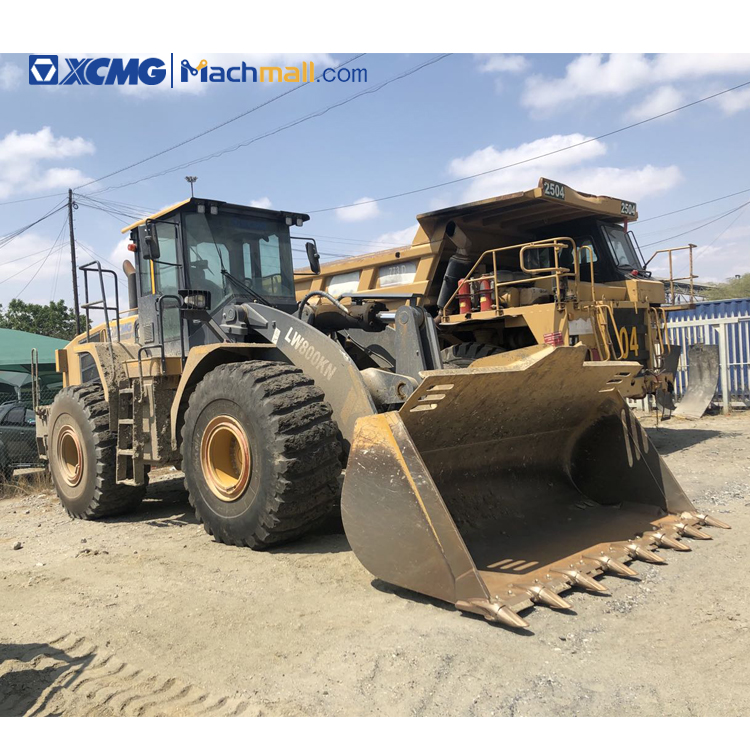

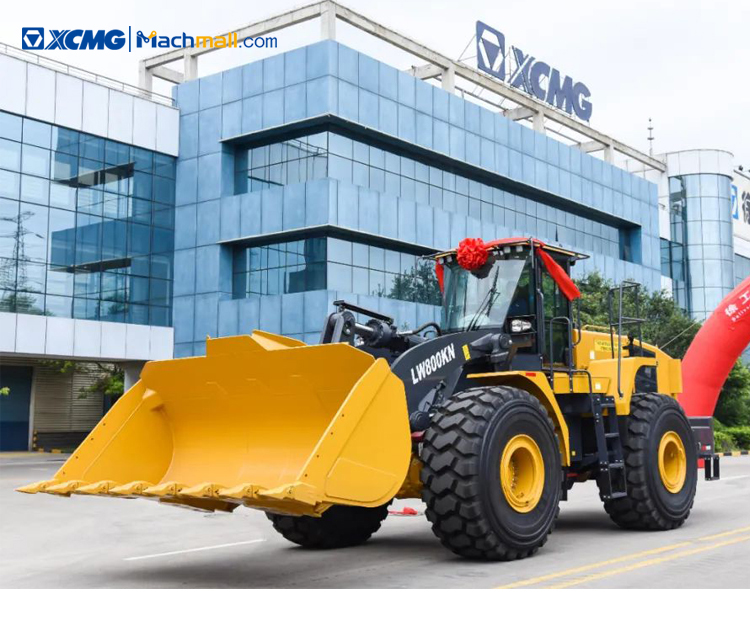

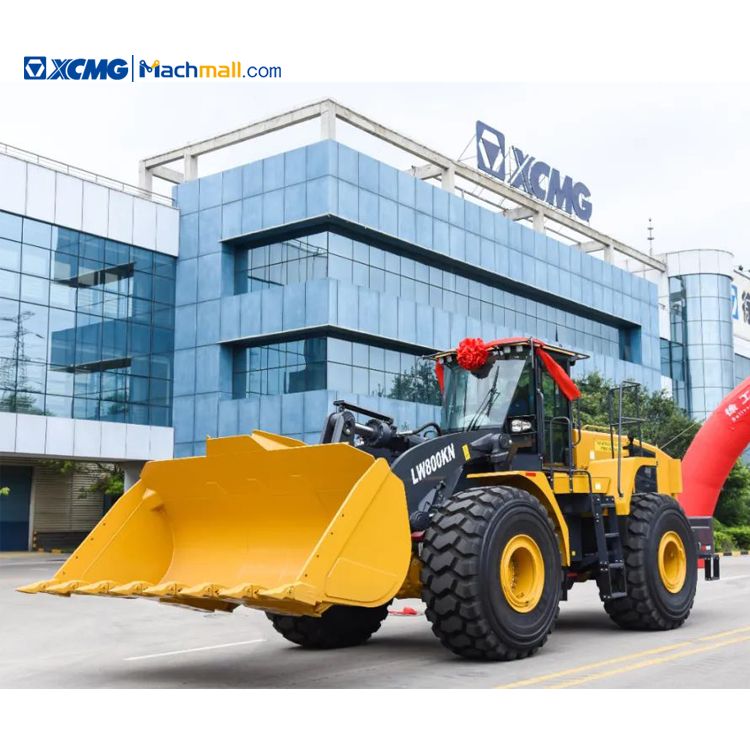

XCMG 250kw 6 cbm 8 ton wheel loader LW800KN.
* High performance Cummins QSM11 (Tier 3) engine
The imported Cummins QSM11 electronic injection, air-air inter-cooled, turbocharged engine with electronic start and stop device and high torque reserve coefficient enables the whole machine to have powerful traction force and rapid hydraulic response.
* Low fuel consumption
The low noise and high torque engine and the high capacity torque converter guarantee the maximum efficiency during low speed traveling to remarkably reduce the fuel consumption.
* High-efficiency hydraulic system
The hydraulic system adopts pilot control, steering flow amplifying, and working and steering confluence technology to realize low hydraulic power consumption, low energy consumption, and improved efficiency of the hydraulic system.
* Low emission
Compliance with environment protection requirements and output of clean emission.
|

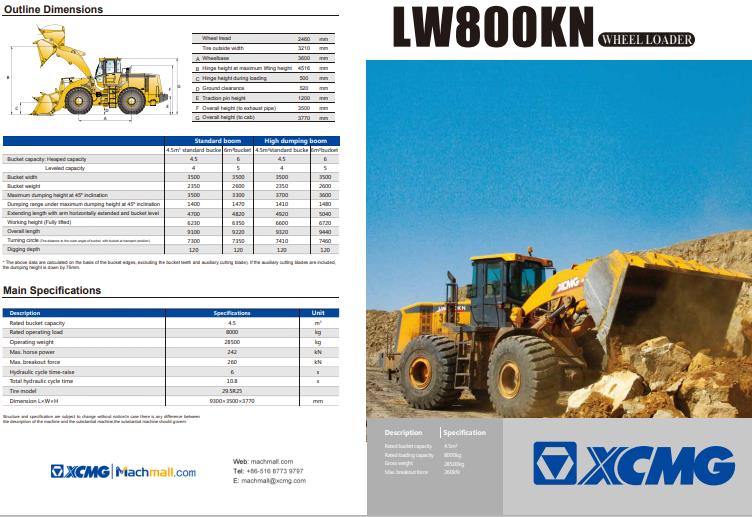

Description |
Unit |
Parameter value |
|
Rated capacity |
kg |
8000 |
|
Bucket volume |
m3 |
4.5 |
|
Operating weight |
kg |
28500 |
|
Max. horse power |
kN |
242 |
|
Max. breakout force |
kN |
260 |
|
Hydraulic cycle time-raise |
kN |
6 |
|
Total hydraulic cycle time |
s |
10.8 |
|
Tire model |
|
29.5R25 |
|
Dimension LxWxH |
mm |
9300*3500*3770 |
|
Wheelbase |
mm |
3600 |
|
Hinge height at maximum liting height |
mm |
4516 |
|
Hinge height during loading |
mm |
500 |
|
Ground clearance |
mm |
520 |
|
Traction pin height |
mm |
1200 |
