Summary
- Model Number:XGL80-6
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Span:40m
- Max Lifting Height:80m
- Max Lifting Load:6 ton
- Rated Lifting Moment:80 t·m
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

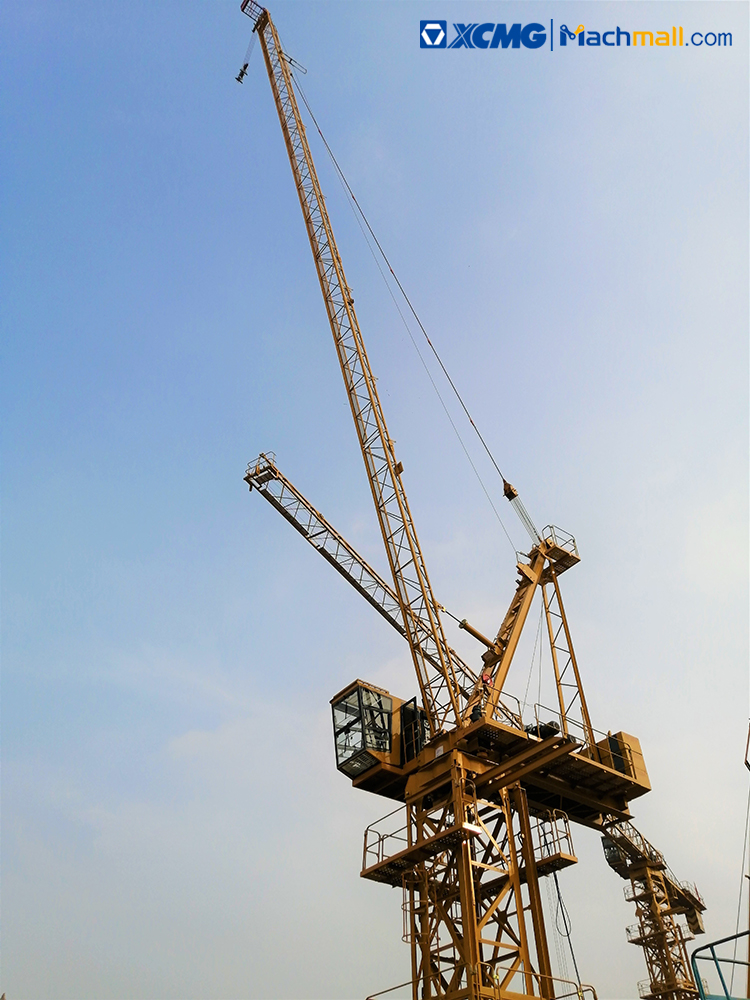

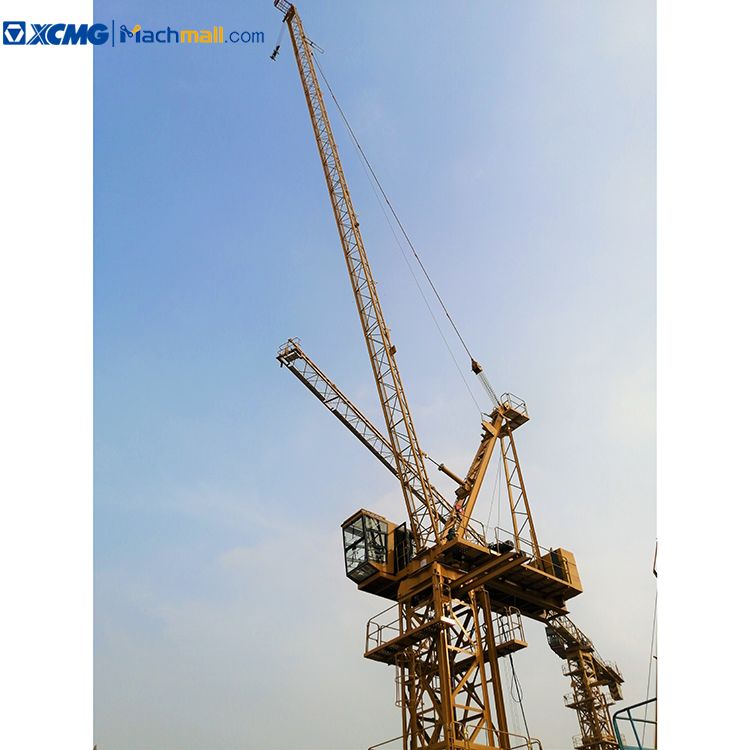

XCMG XGL80-6 6 ton stationary luffing tower crane.
XCMG XGL80-6 6 ton stationary luffing tower crane uses first-line brand steel, and the boom, swing and balance arms use high-strength steel of Q460C and above, with the highest strength level in the industry, ensuring the structural strength of the whole machine.
Features：
1.The safety factor of the whole machine exceeds the European standard, reaching 1.5-2.0 times the rated load;
2.The whole machine will not fade in three years, and will not rust in five years. It is more suitable for areas such as high cold, damp heat, and coastal areas, and the coating quality is industry-leading;
3.The cab is not rusty for ten years, and the field of vision is wide. The electrophoresis + spraying process of the whole machine. The external unit of the air conditioner is built-in, which reduces the failure rate of the air conditioner. The disassembly and assembly of the whole unit, and the installation and transportation of the air conditioner are free of disassembly, which improves the convenience and maintainability;
4.The whole machine is modularized and packaged for transportation, saving transportation vehicles and saving costs;
5.The main structural parts are installed by four cranes, and the whole machine is installed and disassembled and debugged in half a day, which improves the efficiency of installation and disassembly and saves the cost of installation and disassembly.
|
The main technical parameters |
||
|
|
Unit |
Parameter |
|
Model |
|
XGL80-6S |
|
Boom length (m)/boom end hoisting weight |
kg/t |
40/1.6 |
|
Rated lifting moment |
t·m |
80 |
|
Lifting weight |
ton |
6 |
|
Fixed height |
m |
39.5 |
|
Attachment height |
m |
135.5 |
