Specifications
- Weight:1.000kg
- Rated carrying capacity:2000 kg
- Lifting height:5000 mm
- Minimum height of mast:2335 mm
- Fork size:40/120/1070 mm
- Minimum turning radius:1750 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

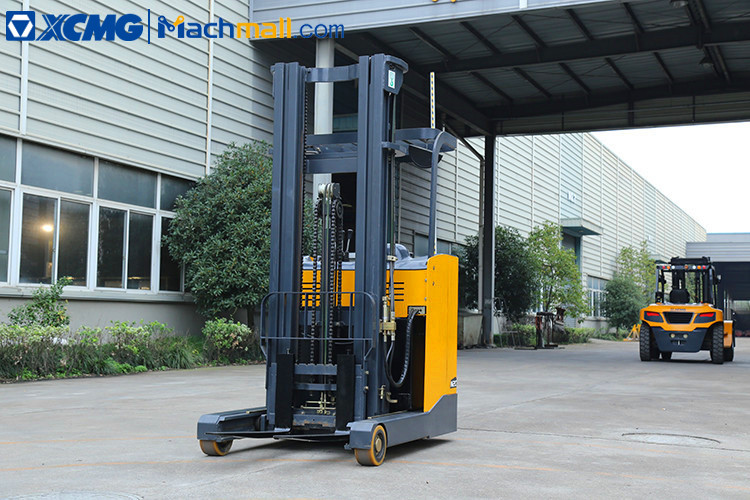

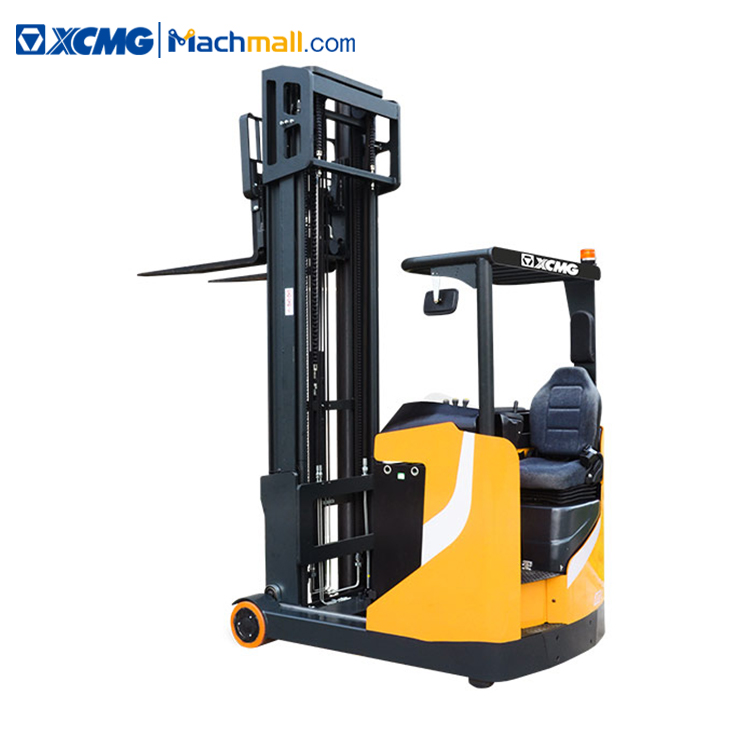

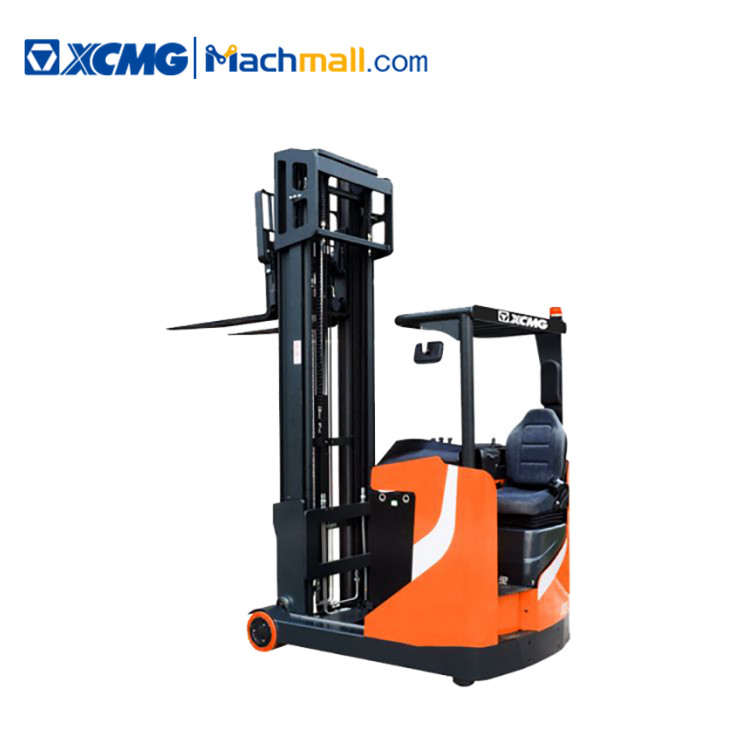

XCMG lift truck XCF-PSG20 2 ton capacity stacker 5m lift height.
XCMG lift truck XCF-PSG20 2 ton capacity stacker 5m lift height is equipped with adjustable seat, comfortable operation.
Features:
1.Intelligent front side pull type battery structure, battery replacement is simple and quick, all in one go.
2.The mast piping system is equipped with a safety speed limit valve to effectively control the descending speed of the goods. High-standard craftsmanship and high-quality materials make the forklift perform excellent in harsh working conditions.
3.Internationally advanced joints, hoses and wear-resistant, high-temperature resistant and highly flexible imported seals, combined with reasonable pipeline layout, ensure the cooling, sealing, durability, safety and efficiency of the hydraulic system of the whole machine .
4.Electricity, timing, and fault display functions are convenient for the operator to understand the vehicle's condition and perform repairs and maintenance in time. The surface material of the electrical system is waterproof and dustproof, and the fully enclosed heat dissipation design of the central control unit makes the circuit simpler and more reliable.
|
Project |
Unit |
Parameters |
|
Parameter item |
|
XCF-PSG20 |
|
Rated carrying capacity |
kg |
2000 |
|
Minimum height of mast |
mm |
2335 |
|
Lifting height |
mm |
5000 |
|
Overall length/vehicle length/total width |
mm |
2380/1310/1260 |
|
Fork size |
mm |
40/120/1070 |
|
Outer space of forks (minimum/maximum) |
mm |
240/760 |
|
Minimum turning radius |
mm |
1750 |
|
Driving speed (full load/no load) |
km/h |
10.5/10.5 |
|
Lifting speed (full load/no load) |
mm/s |
270/380 |
