Specifications
- Weight:641.000kg
- Battery :48V/60Ah
- Rated capacity :1500kg
- Weight :641kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

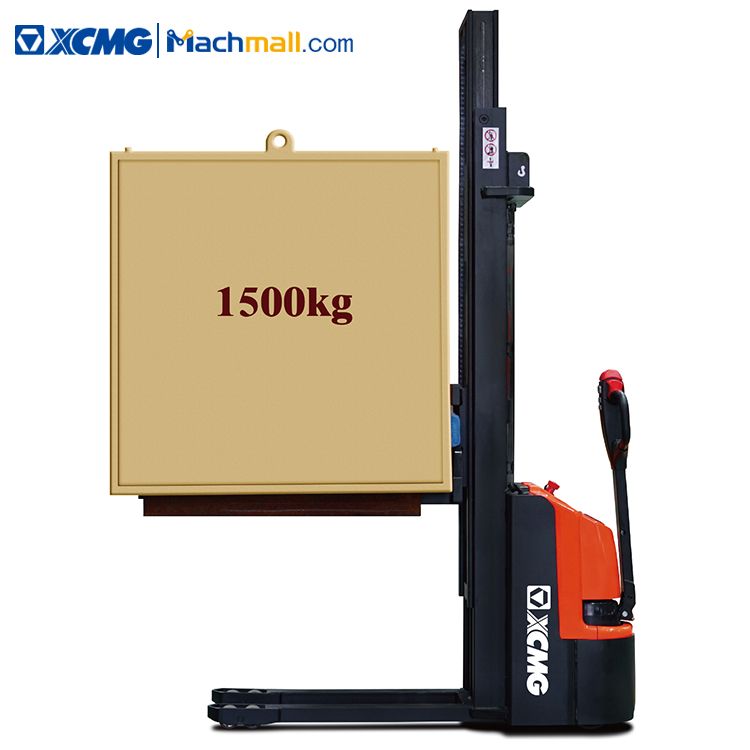

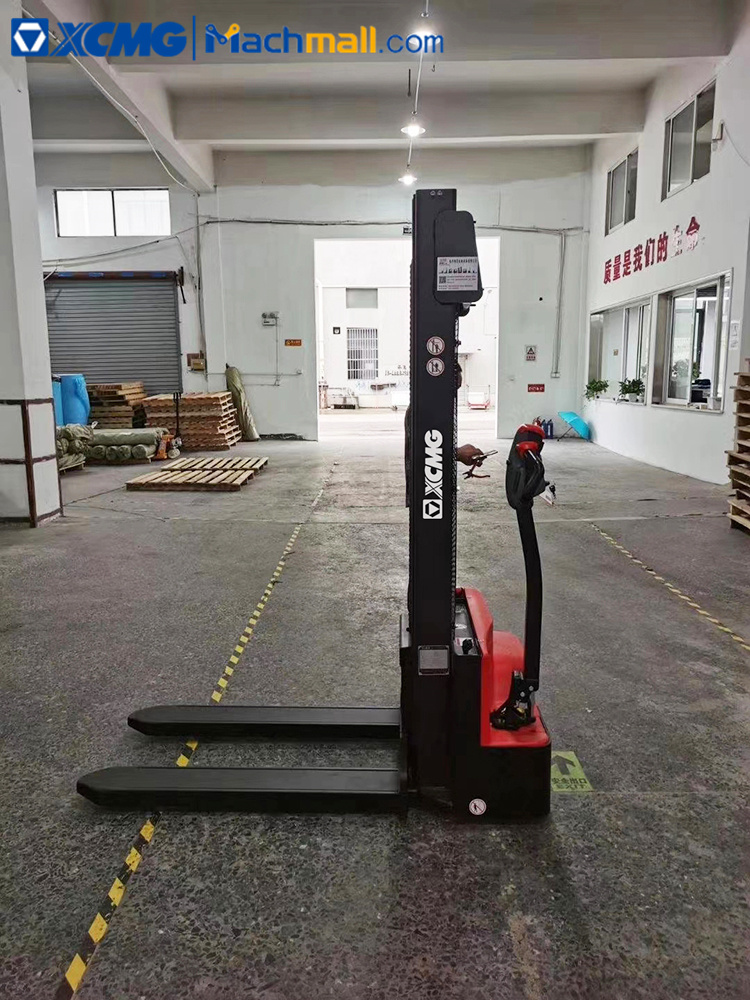

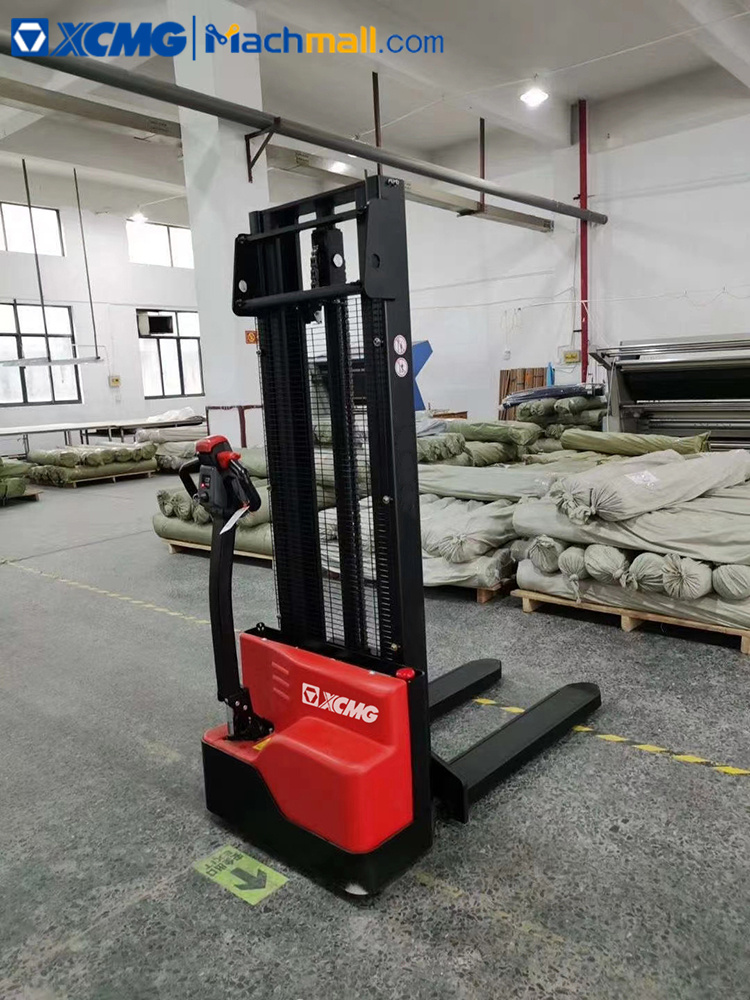

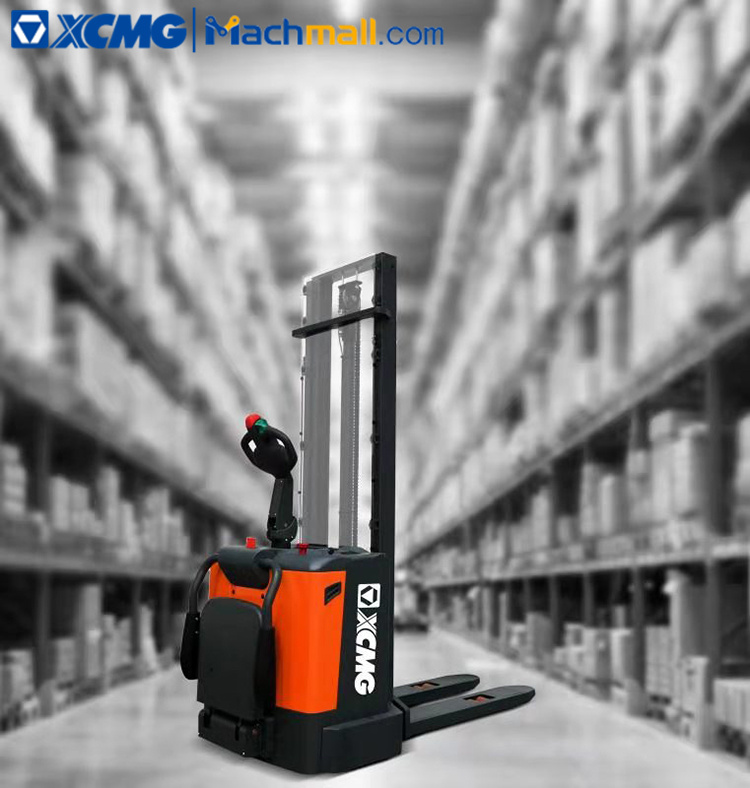

XCMG official XCS-PW15 lift truck 1.5 ton stacker for narrow warehouse.
XCMG official XCS-PW15 lift truck 1.5 ton stacker for narrow warehouse is an economical long-handle stacker, with a rated load of 1.5 tons and a lifting height of 1600-3600mm, which meets the needs of customers for the continuous improvement of economy, handling efficiency and safety.
This forklift is flexible in operation, economical and practical, and can fully meet customer requirements. The structure is compact, the turning radius is smaller than that of conventional vehicles, and it is more suitable for warehouse operations with small stacking aisles.
|

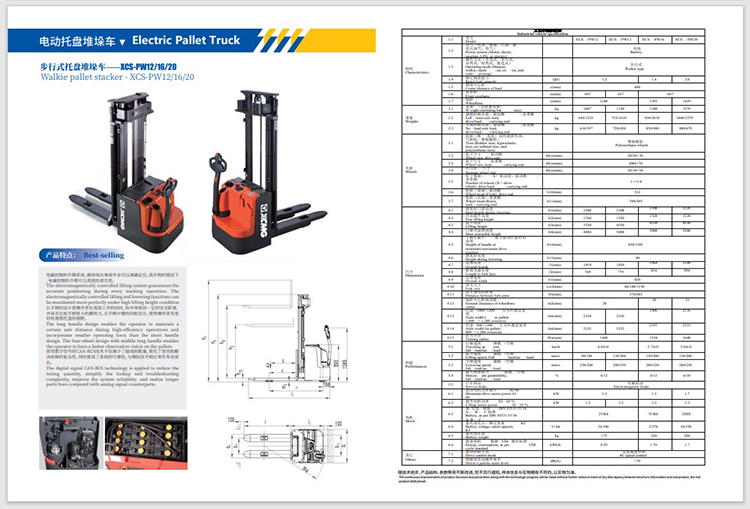

Project |
Unit |
Parameters |
|
Parameter item |
|
XCS-PW15 |
|
Rated carrying capacity |
kg |
1500 |
|
Minimum height of mast |
mm |
1978 |
|
Lifting height |
mm |
3600 |
|
Overall length/vehicle length/total width |
mm |
1806/656/820 |
|
Fork size |
mm |
60/150/1150 |
|
Outer space of forks (minimum/maximum) |
mm |
570/685 |
|
Minimum turning radius |
mm |
1485 |
|
Driving speed (full load/no load) |
km/h |
4.4/4.7 |
|
Lifting speed (full load/no load) |
mm/s |
110/160 |
