Summary
- Weight:12300kg
- Overall Dimension:10040*2490*2460mm
- Table Size:2400*900mm
- Max Lifting Height:22m
- Rated Loading Capacity:300/460kg
- Power:36.8kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescoping Lift
- Model Number:XGS22
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:12300.000kg
- Condition:New
- Moving Type:Other
- Max. traveling speed:6.3km/h
- Ground clearance/m (center):230mm
- Max. platform height:20m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

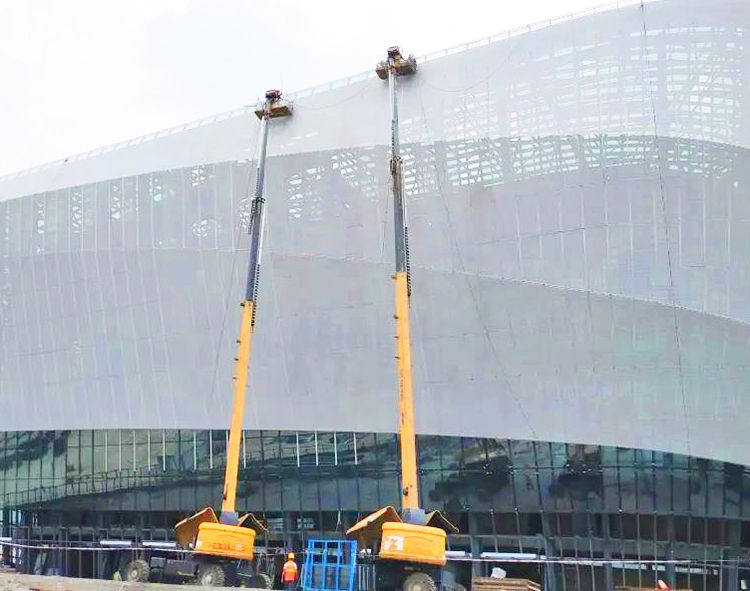

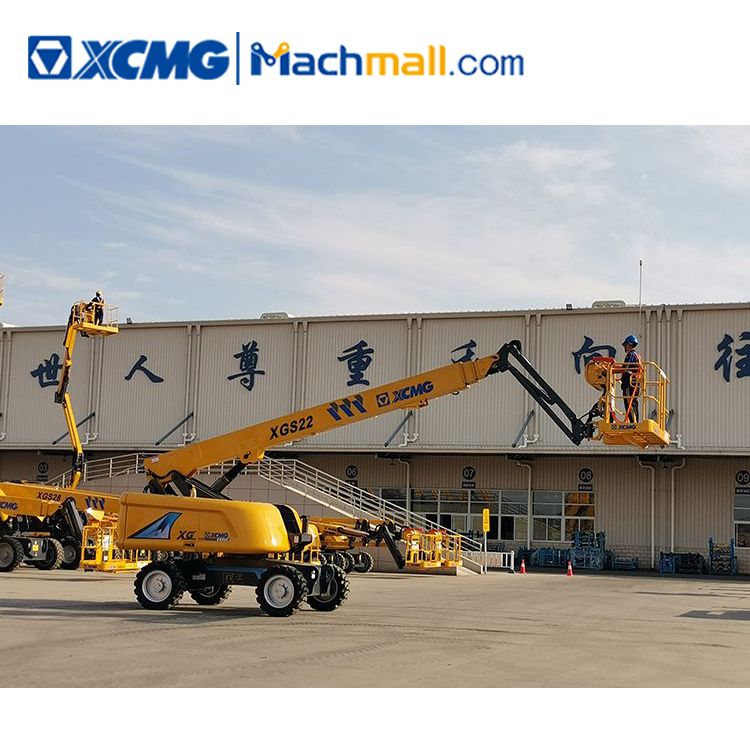

XCMG 22m telescopic boom lift tables XGS22.
XCMG telescopic boom lift table XGS22 highlights with outstanding performance, efficiency, dynamics and easy operation. XCMG telescopic boom lift table XGS22 is leading in the industry with maximum carrying capacity of 460kg, high operation height and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
1.XCMG lift table XGS22 realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
2.XCMG lift table XGS22 is excellent in drive and adaptability to road.
3.Making use of boom and making its work performance at leading edge.
4.XCMG lift table XGS22 improves safety of extending mechanism and extends service life of steel rope.
5.Implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
|
Item |
Unit |
XGS22 |
|
A whole machine length |
mm |
10040 |
|
B whole machine width |
mm |
2490 |
|
C whole machine height |
mm |
2460 |
|
D wheelbase |
mm |
2500 |
|
Max. Operation height |
m |
22 |
|
Max. Platform height |
m |
20 |
|
Max. Operation extend |
m |
16.6 |
|
Max. Load capacity |
kg |
300/460 |
|
Luffing range of boom |
° |
-3~+73 |
|
Rotation angle of turntable |
° |
360 |
|
Max. Tail swing |
mm |
1270 |
|
Platform size |
mm |
2400×900 |
|
Platform rotation angle |
° |
160 |
|
Whole machine weight |
kg |
12300 |
|
Max. traveling speed |
km/h |
6.3 |
|
Min. Turning radius |
m |
6 |
|
Min. Ground clearance |
mm |
230 |
|
Max. gradeability |
% |
45 |
|
Tire specification |
- |
Solid tire 36×14-20 Or Foam Tire 355/55D625 |
|
Engine model |
- |
Yuchai 4D2404 |
|
Rated engine power |
kW/(r/min) |
36.8/ (2700) |
