Summary
- Rated Speed:2000rpm
- Max Digging Radius:10855mm
- Machine Weight:48100kg
- Maximum Digging Depth:7000mm
- Maximum Digging Height:9855mm
- Bucket capacity:2.5m³
- Operating Weight:48100Kg
- Model Number:XE490DK
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:48100.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

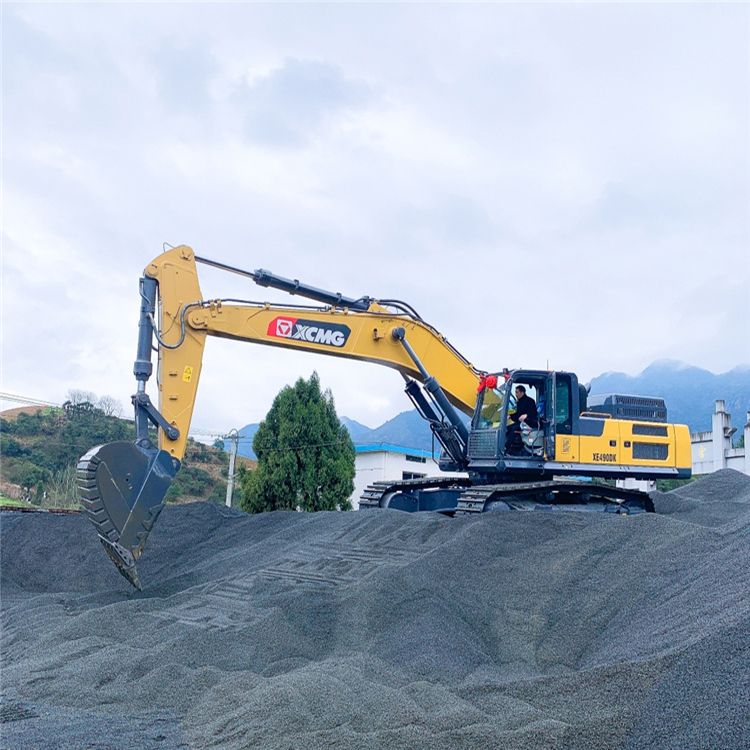

XCMG Official XE490DK 49 ton large crawler excavator.
XE490DK large crawler excavator is one of the leading large excavator models launched by XCMG Excavator Business Department. XE490DK large crawler excavator integrates the valuable experience gained by XCMG from years of research and development of excavating products, and adopts advanced design and manufacturing methods. Meanwhile,XE490DK large crawler excavator adheres to the design concept of "high efficiency, high safety, low carbon and environmental protection".
I. More energy-saving and environmental protection
* Power system adopts the imported Cummins (Cummins QSM11), featuring direct injection, four stroke, water-cooling, turbocharger, air to air intercooler, six cylinder engine. XE490DK large crawler excavator adopts efficient HPI fuel injection technology, through separate cylinder control and full electronic control, fuel economy will be greatly increased. It is an engine specifically designed and manufactured for engineering machinery operation conditions.
II. More efficient returns
* XE490DK large crawler excavator adopts customized torque curve, which has the characteristics of low speed and large torque, low fuel consumption, good economy and so on. At the same time, the engine adopts constant power mode in a specific speed segment, which enables the machine to maintain a strong power output under heavy load and low speed.
III. More reliable and durable
* Sturdy travelling mechanism can meet the requirements of heavy-load operations, its durability, reliability and mobility is higher. Equipped with reinforced four rollers and one track, excellent performance and more reliable quality can be achieved. Strengthen the lower frame and X-type beam, improve the strength of cross section, disperse the stress of carbody, it is qualified for more hard work.
IV. More intelligent control
* XEICS system with independent intellectual property rights, using CAN bus communication to achieve the corresponding control function, CAN effectively adapt to the operating environment, operating conditions and operating load, so as to be able to identify, think, judge, make decisions and execute.
V. More comfortable and safe
* The cab with pressurization function can effectively prevent dust from entering the cab and provide a clean working environment for drivers. The internal frame of the cab is strengthened, the overall structure strength is increased, pin holes are added in the front and rear, and safety performance is improved. Cab equipped with double laminated glass, can effectively filter UV and increase high protection level.
VI. Convenient maintenance
* Oil filter, pilot filter, fuel filter, oil and water separator, and air filter are accessible on the ground to check and replace, it is within your reach, easy to maintain, saves maintenance time, and improves work efficiency.
|
Item |
Unit |
Parameters |
|
|
Operating weight |
Kg |
48100 |
|
|
Bucket capacity |
m³ |
2.3～3.1 |
|
|
Engine |
Model |
/ |
Cummins QSM11 |
|
No. of cylinders |
/ |
6 |
|
|
Rated power/speed |
kw/rpm |
280/2000 |
|
|
Maximum torque/speed |
N.m |
1898/1300 |
|
|
Displacement |
L |
11 |
|
|
Main performance |
Travel speed（H/L) |
km/h |
5.4/3.2 |
|
Swing speed |
r/min |
9.2 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
85 |
|
|
Bucket digging force |
kN |
301 |
|
|
Arm digging force |
kN |
248 |
|
|
Maximum tractive force |
kN |
338 |
|
|
Hydraulic system |
Main pump |
/ |
Two piston pumps |
|
Rated flow of main pump |
L/min |
2×360 |
|
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Swing system pressure |
MPa |
31 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
725 |
|
Hydraulic tank capacity |
L |
430 |
|
|
Engine oil capacity |
L |
38 |
|
|
Appearance size |
A Overall length |
mm |
11805 |
|
B Overall width |
mm |
3582 |
|
|
C Overall height |
mm |
3890 |
|
|
D Width of platform |
mm |
3095 |
|
|
E Track length |
mm |
5353 |
|
|
F Overall width of chassis |
mm |
3582 |
|
|
G Track shoe width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
4292 |
|
|
I Track gauge |
mm |
2750 |
|
|
J Counterweight clearance |
mm |
1324 |
|
|
K Min. ground clearance |
mm |
519 |
|
|
L Min. tail swing radius |
mm |
3800 |
|
|
M Track height |
mm |
1198 |
|
|
Working scope
|
A Max. digging height |
mm |
9855 |
|
B Max. dumping height |
mm |
6890 |
|
|
C Max. digging depth |
mm |
7000 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6900 |
|
|
E Max. digging radius |
mm |
10855 |
|
|
F Min. swing radius |
mm |
4580 |
|
|
Standard |
Length of boom |
mm |
6670 |
|
Length of arm |
mm |
2900 |
|
|
Bucket capacity |
m³ |
2.5 |
|
|
Optional |
Length of boom |
mm |
7060 |
|
Length of arm |
mm |
2400/3380 |
|
|
Bucket capacity |
m³ |
2.3(Rock bucket) 2.5(Strengthened bucket) 3.1(Strengthened bucket) |
|
